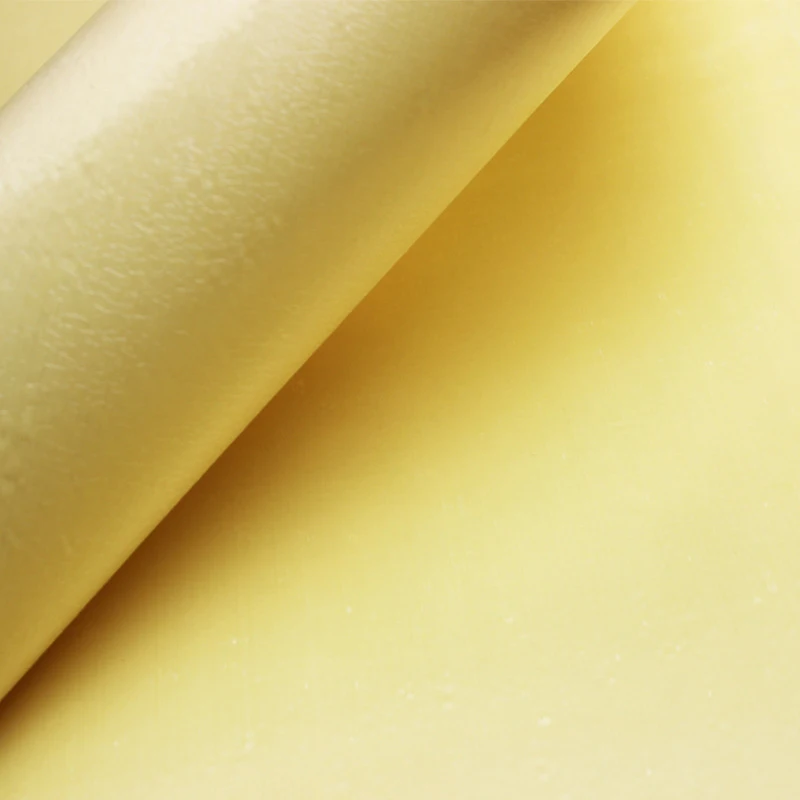

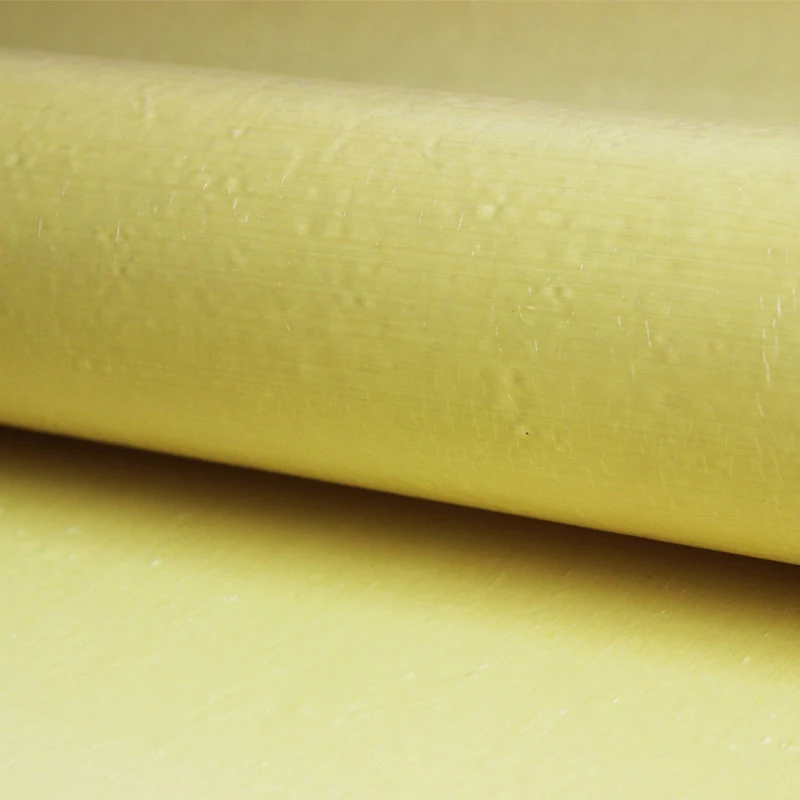

Honghua Bulletproof Aramid UD Fabric Ballistic
- Category: >>>
- Supplier: Jiangsu Honghua Special Equipment Co. Ltd.
Share on (1600219799564):
Product Overview
Description
Products Description
The specific impact energy absorption of UHMWPE fiber is the highest among advanced composite materials.

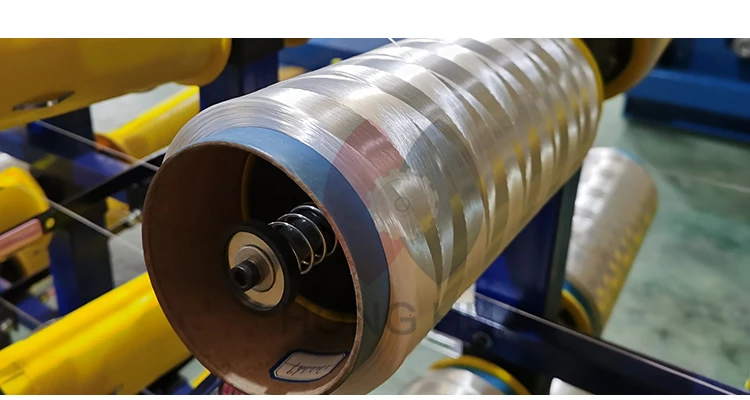

UHMWPE Fiber for Ballistic applications, has a larger monofilament denier, higher breaking elongation rate and greater impact resistance, high strength and modulus with low density, anti-aging and abrasion resistance, which greatly improves energy transmission efficiency and impact resistance of the fiber.
UHMWPE Fiber for Ballistic applications, has a larger monofilament denier, higher breaking elongation rate and greater impact resistance, high strength and modulus with low density, anti-aging and abrasion resistance, which greatly improves energy transmission efficiency and impact resistance of the fiber.
Applications
The specific impact load value U/P of UHMWPE fiber is 10 times that of steel, and more than twice that of glass fiber and aramid fiber. Now it has been widely used as ballistic materials for soft body armor and hard plate.UHMWPE fiber with a tenacity of 40 cN/dtex is the excellent fiber as the raw material for ballistic application. It has been used in the lightest UD material of soft body armor.
The specific impact load value U/P of UHMWPE fiber is 10 times that of steel, and more than twice that of glass fiber and aramid fiber. Now it has been widely used as ballistic materials for soft body armor and hard plate.UHMWPE fiber with a tenacity of 40 cN/dtex is the excellent fiber as the raw material for ballistic application. It has been used in the lightest UD material of soft body armor.
Product Specification | Tenacity cN/dtex | Level(standard) | ||
Denier | Detex | |||
400 | 440 | 32-37 | TM32,TM35 | |
700 | 770 | 32-37 | TM32,TM35 | |
800 | 880 | 32-37 | TM32,TM35 | |
1600 | 1760 | 32-37 | TM32,TM35 | |

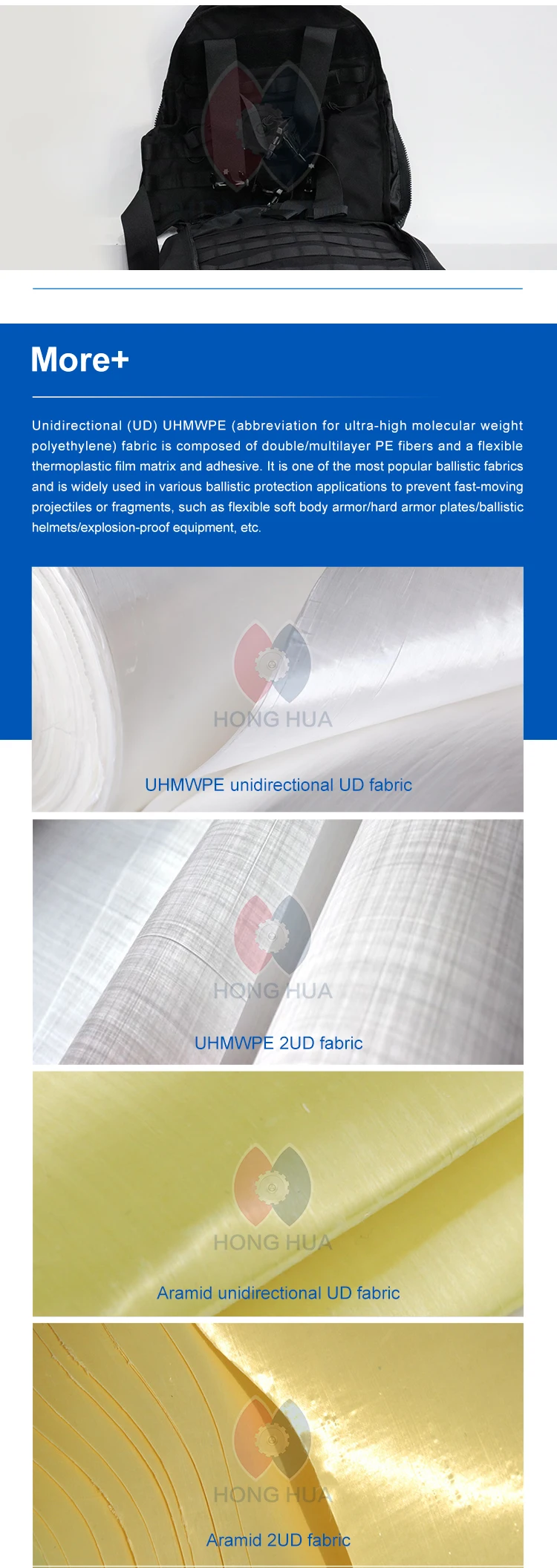

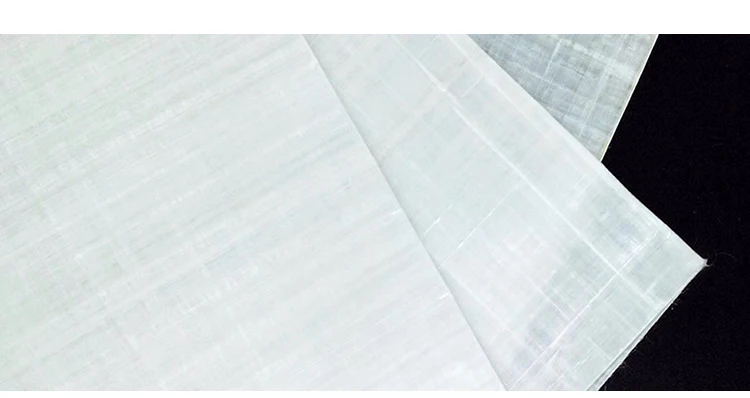

PE UD：With UHMWPE fiber as raw material, PE UD is combined with specially formulated base material, and 2-12 layers of Uni-Directional fiber flakes are 90°orthogonally arranged by a specific process and a resin matrix composite. The finished product presents as a white fiber sheet.
Applications:
It’s mainly used in soft bulletproof field, with advantages of lightness, softness, and excellent wearing comfort; light weight will also work with good protection against shooting threats in various environments.
Applications:
It’s mainly used in soft bulletproof field, with advantages of lightness, softness, and excellent wearing comfort; light weight will also work with good protection against shooting threats in various environments.
Style | Areal density (g/㎡） | Thickness（mm） | Width(mm) | Ballistic Performance |
WB532 | 130±6 | 0.16±0.02 | 1.2-1.6 | NIJ A 9mm（36 layers） NIJ IA .44（49 layers） |
WB-674M | 160±6 | 0.21±0.02 | 1.2-1.6 | NIJ IIIA 9mm（25 layers） NIJ IIA.44（34 layers） |
WB-674L | 160±6 | 0.21±0.02 | 1.2-1.6 | NIJ IA 9mm（21 layers） NIJ IIIA.44（28 layers） |

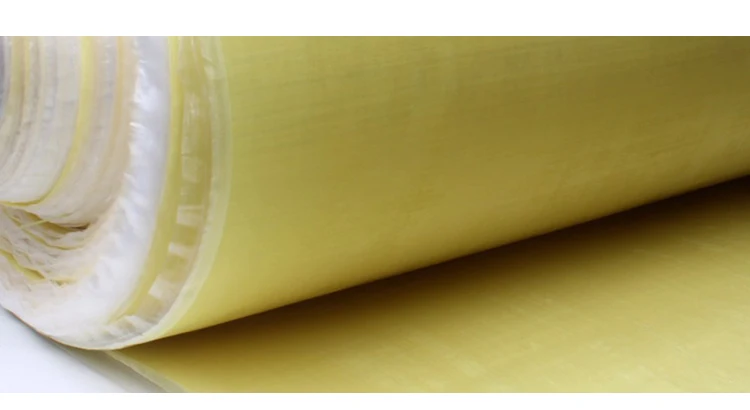

Aramid UD: Aramid fiber has a high tensile strength with high modulus of elasticity, the tensile strength of which is up to 8 times that of steel on a same weight basis. Owing to its unique properties above, it’s one of the best materials for ballistic application in the world now. Aramid UD sheet is based on our special UD technology aligning the parallel fibers in each layer, and each layer is constructed in a resin matrix.
Applications:
Aramid UD is a unidirectional laminated fabric with two plies crossed at 0°/90°, used for Soft Body Armor.
Applications:
Aramid UD is a unidirectional laminated fabric with two plies crossed at 0°/90°, used for Soft Body Armor.
Style | Areal density(g/㎡） | Thickness(mm) | Width(m) | Ballistic Performance |
FT-532 | 215±8 | 0.2±0.02 | 1.2-1.6 | NIJ lIA 9mm（27 layers） NIJIIA .44（30 layers） |

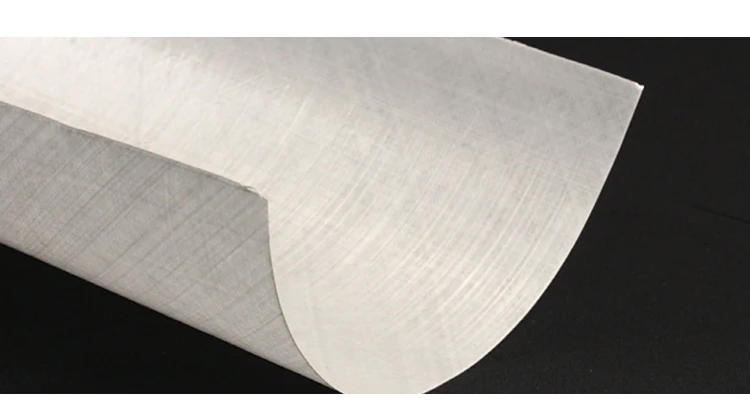

UHMWPE Hard Ballistic UD Sheet is the best choice for light-weight GA141 level 5 and level 6, NIJ III and IV ballistic plates, shields, and vehicle armors.
UHMWPE fiber as raw material, UHMWPE Hard Ballistic UD is combined with special aqueous dispersion adhesive, and 2 layers of Uni-Directional fiber flakes are 0°/90° orthogonally arranged by a specific process and a resin matrix composite. The finished product presents as a white fiber sheet.
It shows excellent anti-fragment performance, greatly reducing the depression. Due to the very low dielectric constant of UHMWPE fiber, the equipment will have stealth effect once using Hard PE armor to cover the important parts of the warship, tank, battery and etc.
Applications
It’s mainly used in bulletproof inserted plate, bulletproof armored vehicle, bulletproof shield, bulletproof walls and other hard bulletproof areas; light weight will also work with excellent protection for multi-shot shooting, and oblique shooting.
UHMWPE fiber as raw material, UHMWPE Hard Ballistic UD is combined with special aqueous dispersion adhesive, and 2 layers of Uni-Directional fiber flakes are 0°/90° orthogonally arranged by a specific process and a resin matrix composite. The finished product presents as a white fiber sheet.
It shows excellent anti-fragment performance, greatly reducing the depression. Due to the very low dielectric constant of UHMWPE fiber, the equipment will have stealth effect once using Hard PE armor to cover the important parts of the warship, tank, battery and etc.
Applications
It’s mainly used in bulletproof inserted plate, bulletproof armored vehicle, bulletproof shield, bulletproof walls and other hard bulletproof areas; light weight will also work with excellent protection for multi-shot shooting, and oblique shooting.
Style | Areal density(g/㎡） | Thickness(mm) | Width(m) | Application |
HA-782 | 125±5 | 0.15±0.02 | 1.2-1.6 | Plate/Helmet/Armored Vehicle |
HA-792 | 125±5 | 0.15±0.02 | 1.2-1.6 | Plate/Helmet/Armored Vehicle |
Pressing and molding by smart technology ,the structure of Ballistic Helmet shell are made of UHMWPE UD or Aramid UD with superior performance.
Ballistic Plate has been independently developing ballistic plates for inserted in the jackets. By materials, there are 100% Pure PE Plate, Alumina Ceramic Plate, Silicon Carbide Ceramic Plate and Boron Carbide Ceramic Plate. By curvature, there are single-curved plate, double-curved plates and multi-curved plates.
Ballistic Plate is made of PEUD and ceramics, and has been widely used for the personal ballistic protection and armor ballistic protection of domestic and foreign military, police and law enforcement.
Ballistic Plate is made of PEUD and ceramics, and has been widely used for the personal ballistic protection and armor ballistic protection of domestic and foreign military, police and law enforcement.
Body Armor is divided into concealable bulletproof vest, bulletproof vest, full-protective bulletproof vest, etc. The protective level can be updated by inserting front and rear bulletproof plate/ Hard Armor Panel(HAP).Body armor jacket is made of waterproof and anti-flame polyester, polyester-cotton, nylon, nylon 66 fabric as material of carriers, and PEUD and Aramid UD as ballistic inserted panel. Due to the high strength, light weight, soft , flexible and comfortable of HMPE UD/ Aramid UD, the injury to human body is smaller after a bullet shot.The design, color, fabric of carrier, size of the body armor can be customized according to customer needs and applications.
The bags were designed in conjunction with the Metropolitan Police to provide a safe mode of transporting loaded weapons found at crime scenes, to the laboratory.Both these bags require customer supplied cardboard box liners, sealable plastic/nylon wrappers and securing ties, to ensure the weapons are contained in a sterile environment to avoid loss of forensic evidence.The unit comprises a heavy duty plastic tube with aramid wrapper placed over a ceramic plate backed with an aramid laminate board and contained within a rigid wood frame.
About Us

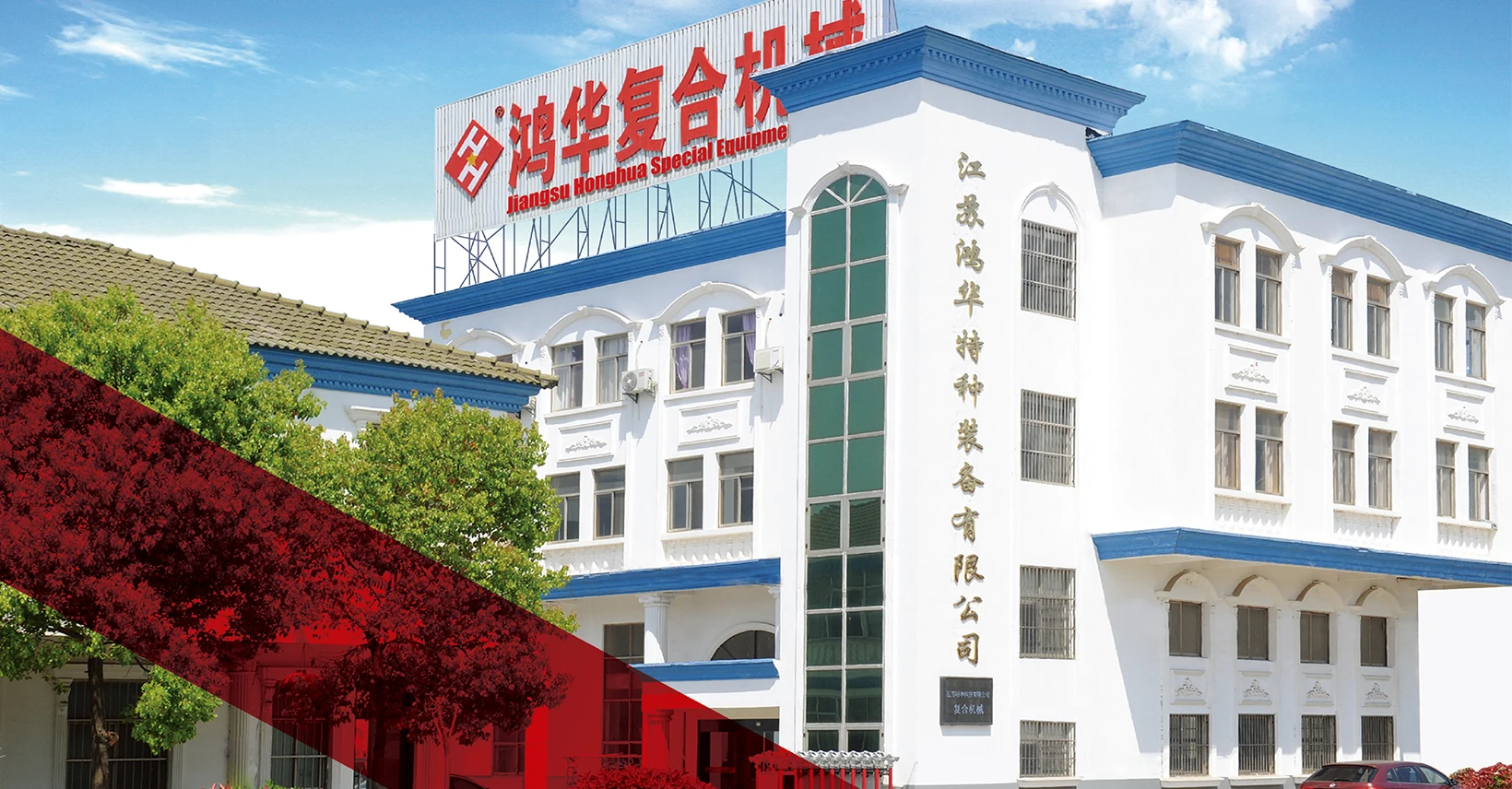

Honghua Special Equipment Co., LTD is a professional manufacturer and distributor of composite machinery and special equipment machinery. Company has our own power plant, has ten years of experience in this field.We can provide:Mesh belt type laminating machine, Flame laminating machine, Adhesive laminating machine, Hot melt adhesive laminating machine, Glue point transfer laminating machine, Laminating materials production lines, Continuous production line for UD without weft cloth, Wall cloth compound machine, Teflon belt laminating machine, Cutting machine, Cutting bed, etc.
