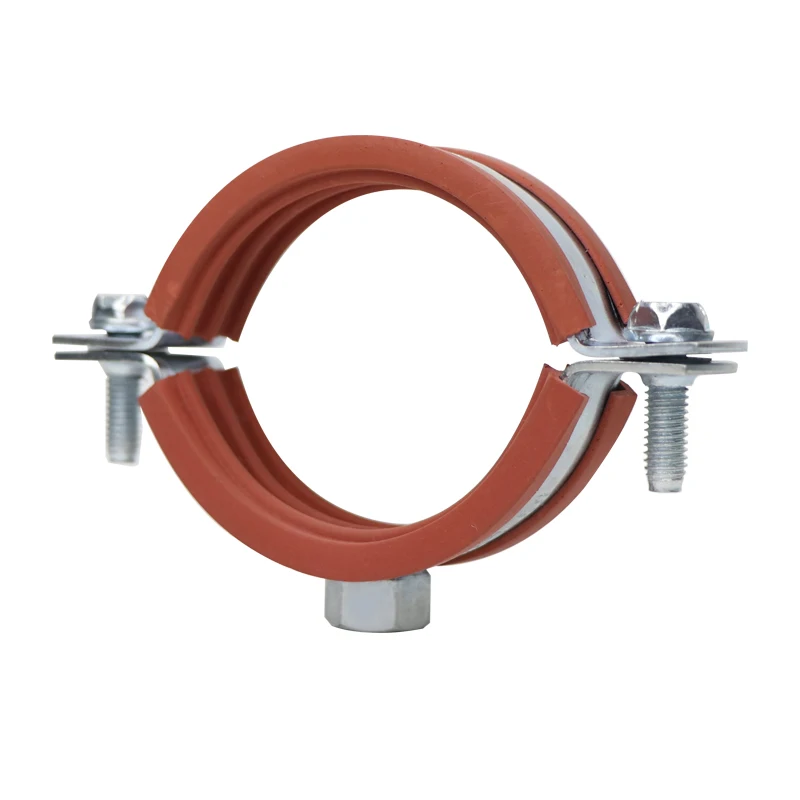

Customized Hanger Pipe Clamp With EPDM Rubber With Nut for fastening
- Category: >>>
- Supplier: Qingdao Topfix Machinery Mfg Co. Ltd.
Share on (1600219919003):
Product Overview
Description
PIPE FIXING SYSTEM

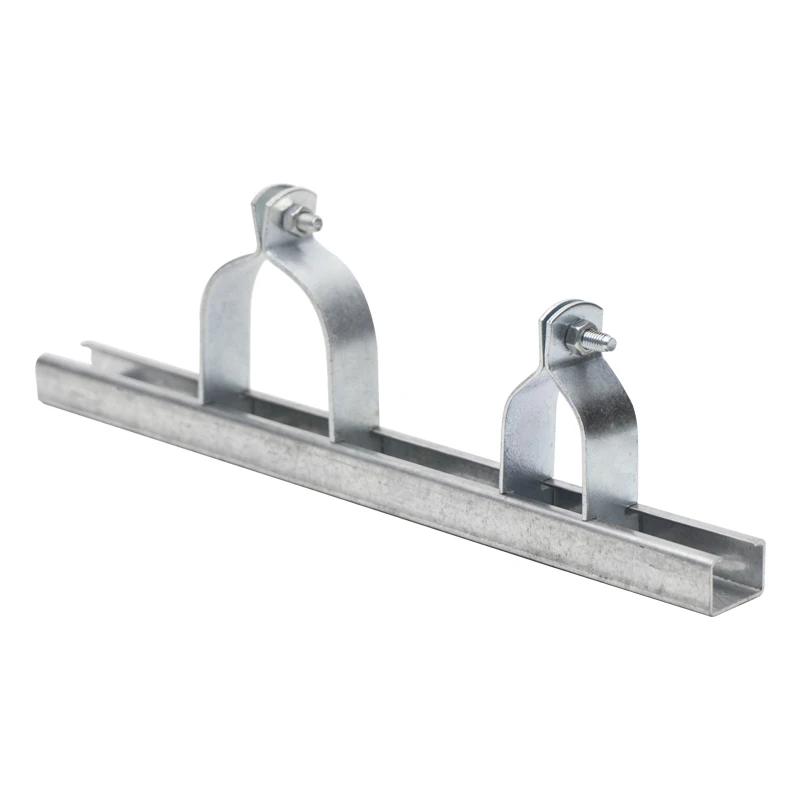

Channel Strut
Products Description

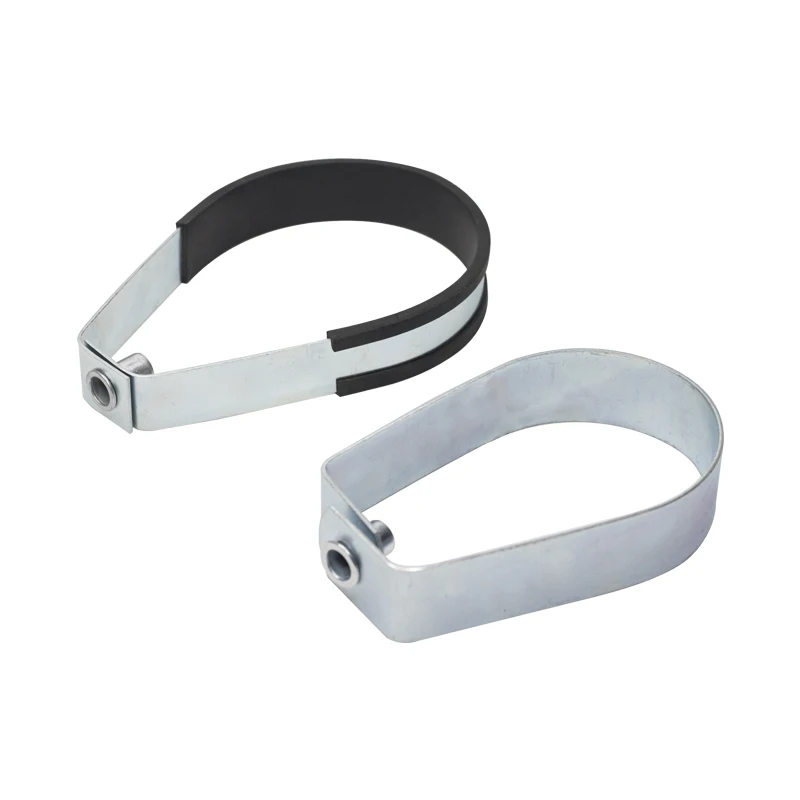

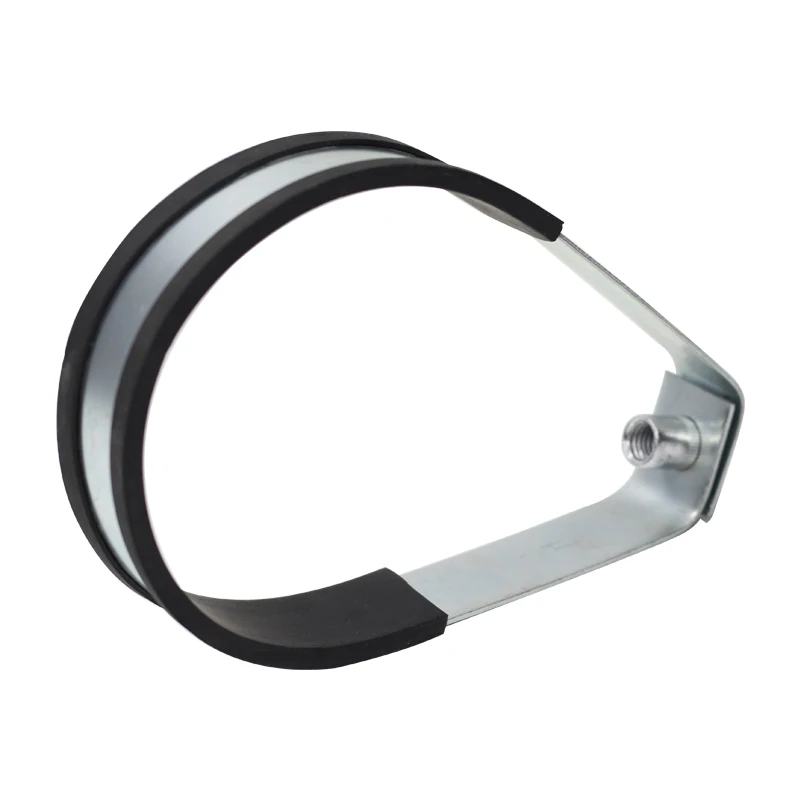

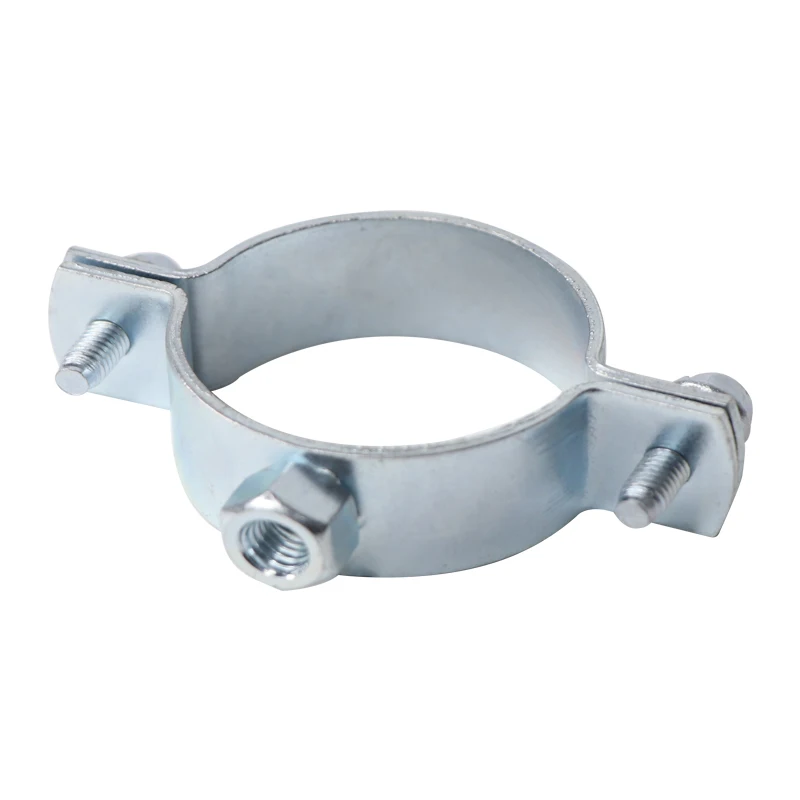

Hanger Pipe Clamp
Material Code | Explanations |
W1 | Steel, zinc plated |
Product specification information:
Pipe Size | Pipe size | Nut | Band | Art. No | Art.No |
(mm) | (inch) | (wxt) | (without rubber) | (with rubber) | |
26 | 3/4" | M8 | 25x1.5 | 2117.026 | 2118.026 |
35 | 1" | M8 | 25x1.5 | 2117.035 | 2118.035 |
40 | 1 1/4" | M8 | 25x1.5 | 2117.040 | 2118.035 |
48 | 1 1/2" | M8 | 25x1.5 | 2117.048 | 2118.048 |
60 | 2" | M8 | 25x1.5 | 2117.060 | 2118.060 |
75 | 2 1/2" | M10 | 25x2.5 | 2117.075 | 2118.075 |
90 | 3" | M10 | 25x2.5 | 2117.090 | 2118.090 |
115 | 4" | M10 | 25x2.5 | 2117.115 | 2118.115 |
140 | 5" | M10 | 30x3.0 | 2117.140 | 2118.140 |
160 | 6" | M10 | 30x3.0 | 2117.160 | 2118.160 |
Q:Are you trading company or manufacturer?
A:we are factory with trading department.
Q:Is OEM/ODM service available?
A:Yes,we can accept OEM/ODM.
Q:Do you can provide samples? is it free or extra?
A:Yes,we can provide the samples for free charge,but don't bear the transportation charge.
Q:What finishing you can provide?
A:We can provide zinc plated,hot dip galvanized,powder coating,stainless steel ,painting ,etc.
Q:How long is your delivery time?
A:The delivery time is about 30days for a 20" container,the details depends on the actual orders.
Q:How to control the quality of the products?
A:We have strict QC during the order production and the order finished.
Q:What is your terms of payment?
A:Our payment is 30% deposit ,the 70% against the copy of bill of lading. We also can accept L/C at sight.
