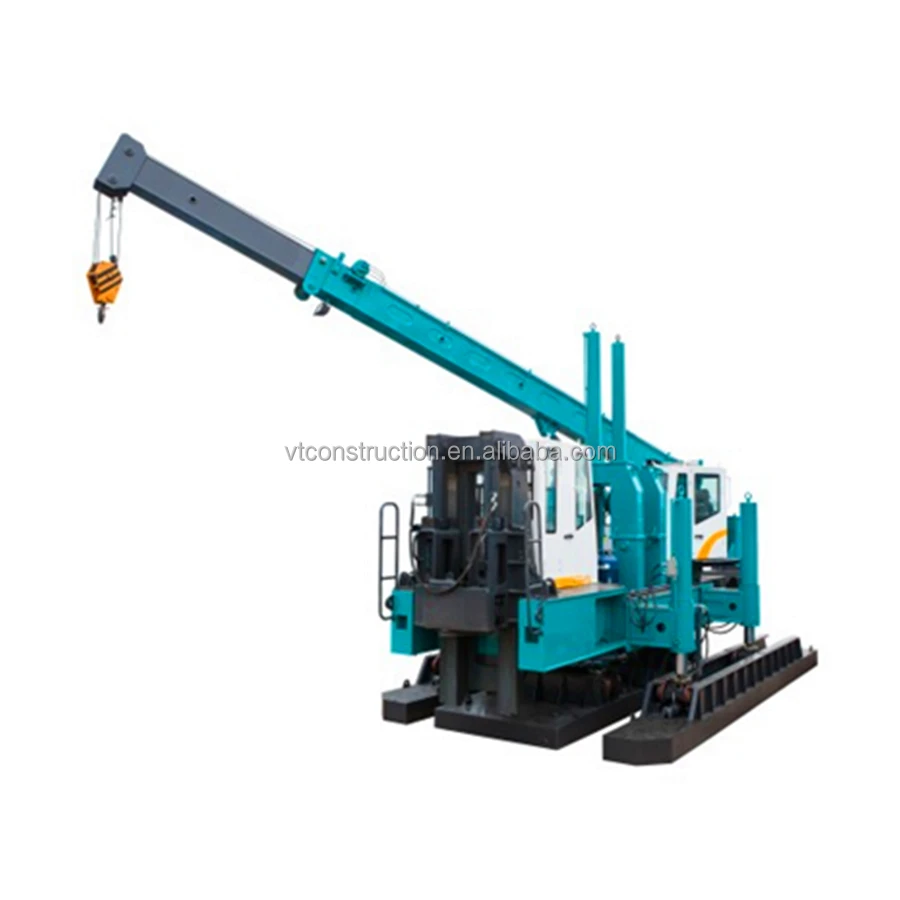

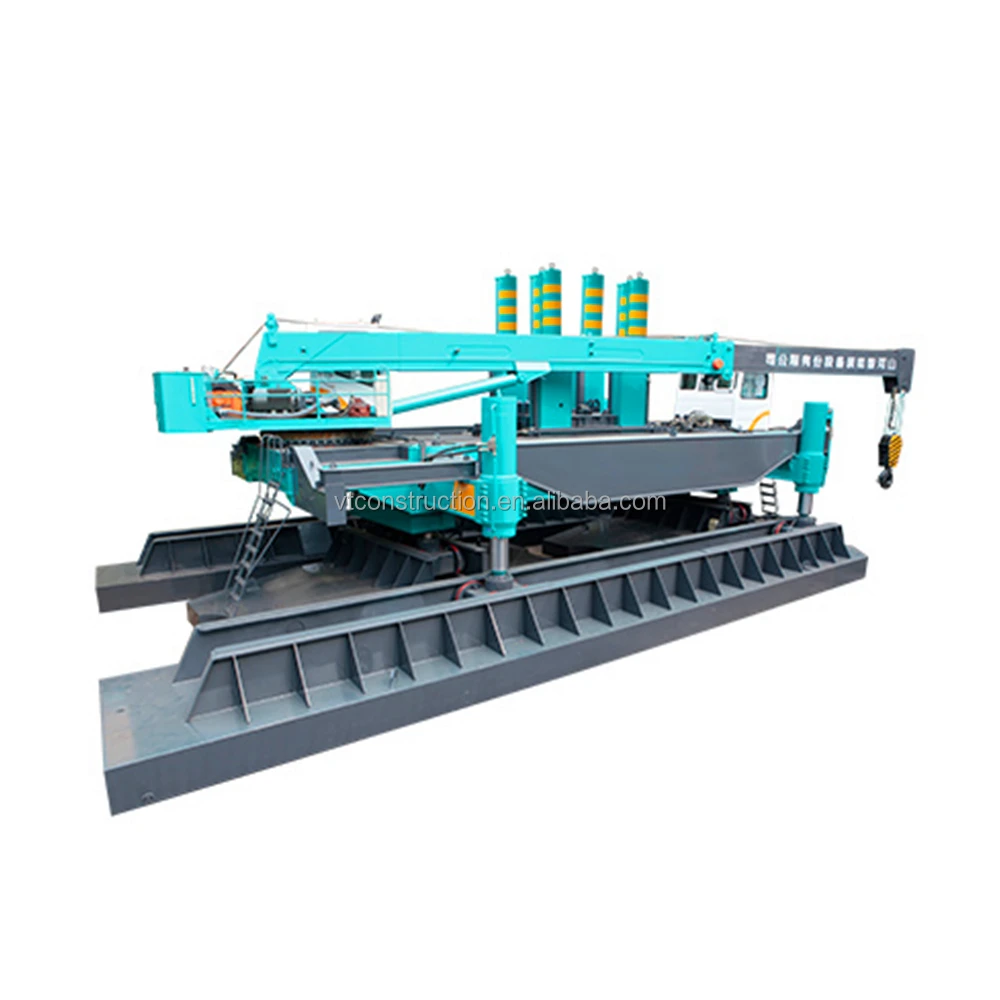

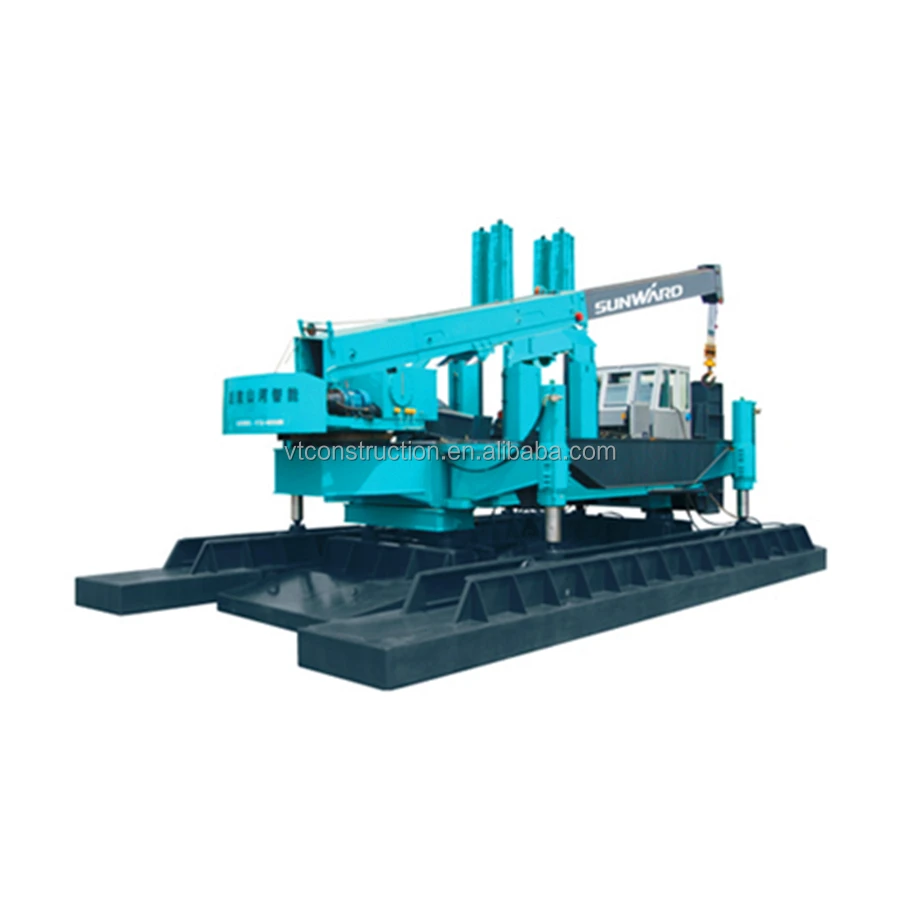

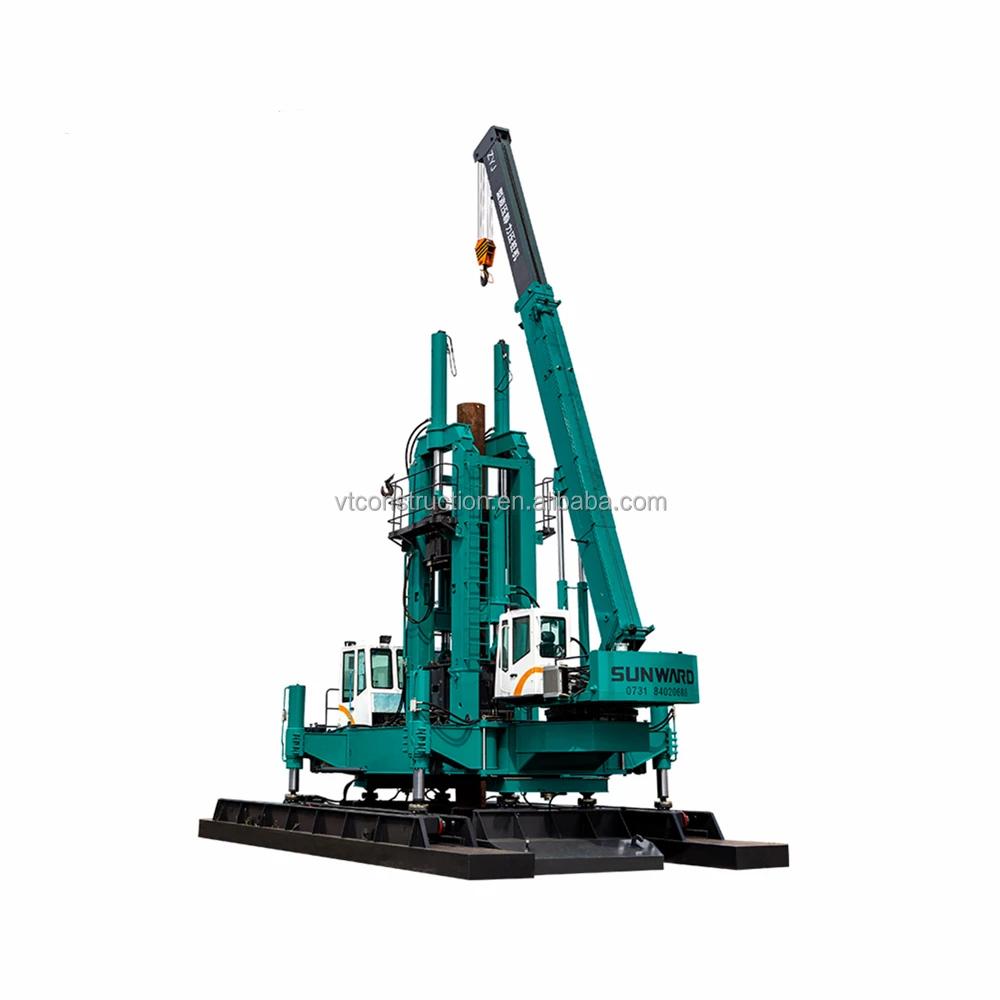

High pressure compact hydraulic static pile driver 120 ton for construction project
- Category: >>>
- Supplier: Dongtai Ventex International Trading Limited Company
Share on (1600219948419):
Product Overview
Description
Product Description
Our Advantages
Structure
2. Vertical motion mechanism
3. Piling platform
4. Pile clamping box
5. Main cabin
6. Side piling installation set
7. Assistant cantilever
8. Cross motion and rotary mechanism / Short base
9. Longitudinal motion mechanism / Long base
Product Paramenters
ZYS60 | ZYS80 | ZYS120 | ZYS240 | ZYS320 | ZYS400 | ZYS500 | |||
Rated piling pressure (tf) | 60 | 80 | 120 | 240 | 320 | 400 | 500 | ||
Piling speed (m/min) | High speed | 5.5 | 5.5 | 5.5 | 7.7 | 6.5 | 6.5 | 6.0 | |
Low speed | 1.1 | 1.1 | 0.9 | 1.8 | 1.57 | 1.23 | 1.2 | ||
Piling stroke (m) | 1.4 | 1.4 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | ||
Pace (m) | Longitudinal | 1.4 | 1.4 | 1.6 | 2.4 | 3.6 | 3.6 | 3.6 | |
Horizontal | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | ||
Angle range (°) | 15 | 15 | 15 | 15 | 15 | 11 | 11 | ||
Lifting stroke (m) | 0.6 | 0.6 | 0.8 | 1.0 | 1.0 | 1.0 | 1.1 | ||
Square pile (mm) | Min. | 200 | 200 | 200 | 300 | 350 | 400 | 400 | |
Max. | 300 | 300 | 300 | 400 | 450 | 500 | 500 | ||
Round pile (mm) | Min. | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
Max. | 300 | 300 | 300 | 300 | 300 | 400 | 400 | ||
Side piling space (mm) | 400 | 400 | 450 | 900 | 1300 | 1382 | 1380 | ||
Corner piling space (mm) | 800 | 800 | 1100 | 2600 | 2600 | 2800 | 2800 | ||
Weight of lift (t) | 3 | 3 | 5 | 12 | 12 | 12 | 16 | ||
Length of hanging pile (m) | 7 | 7 | 10 | 14 | 14 | 14 | 15 | ||
Power (kw) | Piling | 15 | 15 | 22 | 74 | 74 | 111 | 111 | |
Lifting | 7.5 | 7.5 | 11 | 30 | 30 | 30 | 30 | ||
Working size (m) | L*W*H | 5.4*3.8*2.6 | 6*4*2.6 | 8*4*2.8 | 11*6*3 | 12*7*3 | 13*7*3 | 13*8*3 | |
Gross weight (T) | 60 | 80 | 120 | 240 | 320 | 400 | 500 | ||
Manufacture and Delivery
Job Site
Why Choose Us
VENTEX has more than 10 years manufacturing and selling experience of different kinds of construction equipment, including D series Delmag type diesel pile hammer, DD series Guide Rod type diesel pile hammer, hydraulic impact hammer, vibro hammer, hydraulic static pile driver, rotary drilling rig, HDD machine and related spare parts. We established good relationship with plenty of China construction machine manufacturers. Our professional team can offer suitable equipment for customer, and provide the best price. In the past 10 years, the equipments provided by VENTEX have been widely used by domestic and foreign clients and enjoy good reputation. We warmly welcome clients to cooperate with us.
Once service, friend forever!
