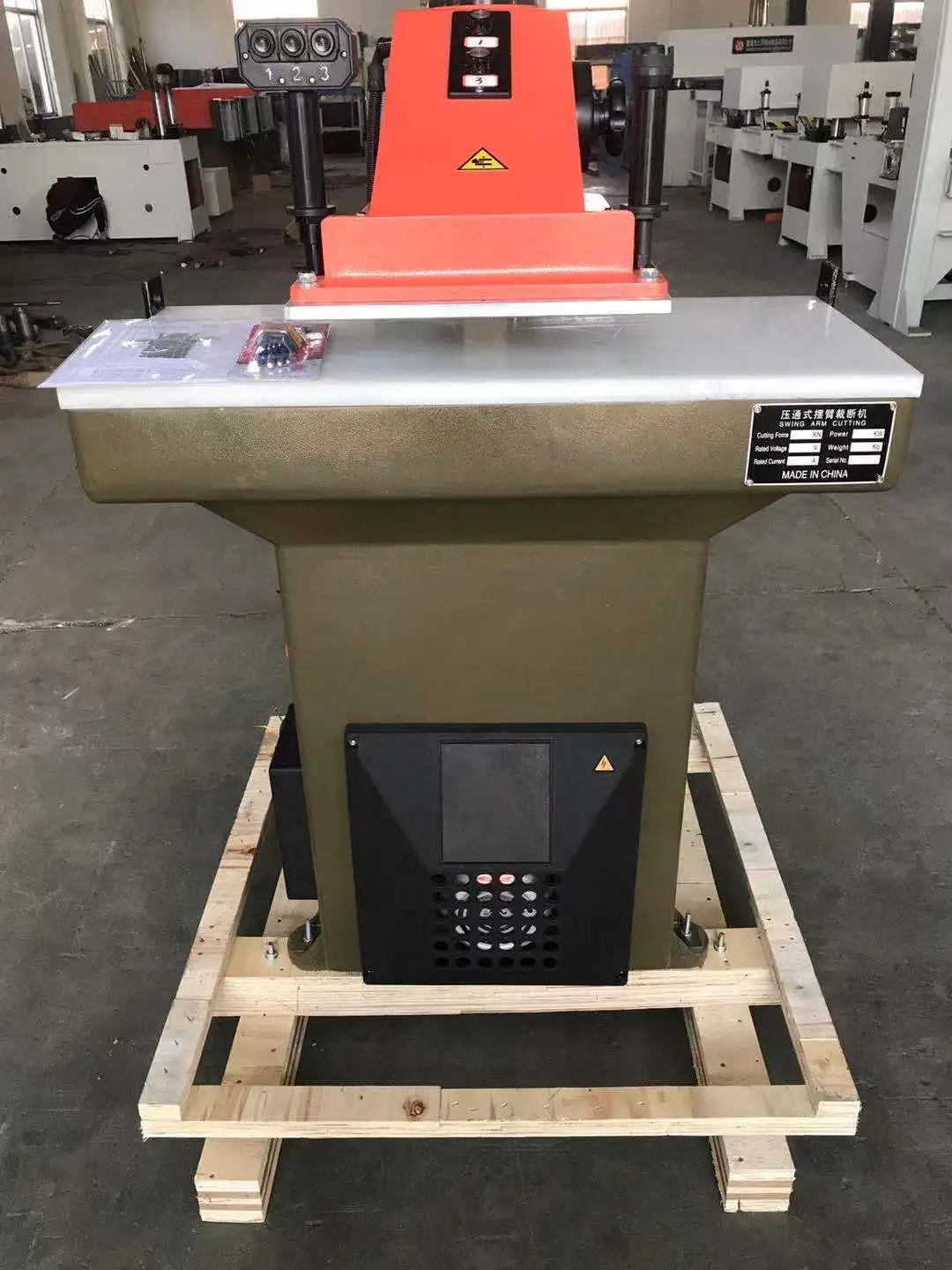

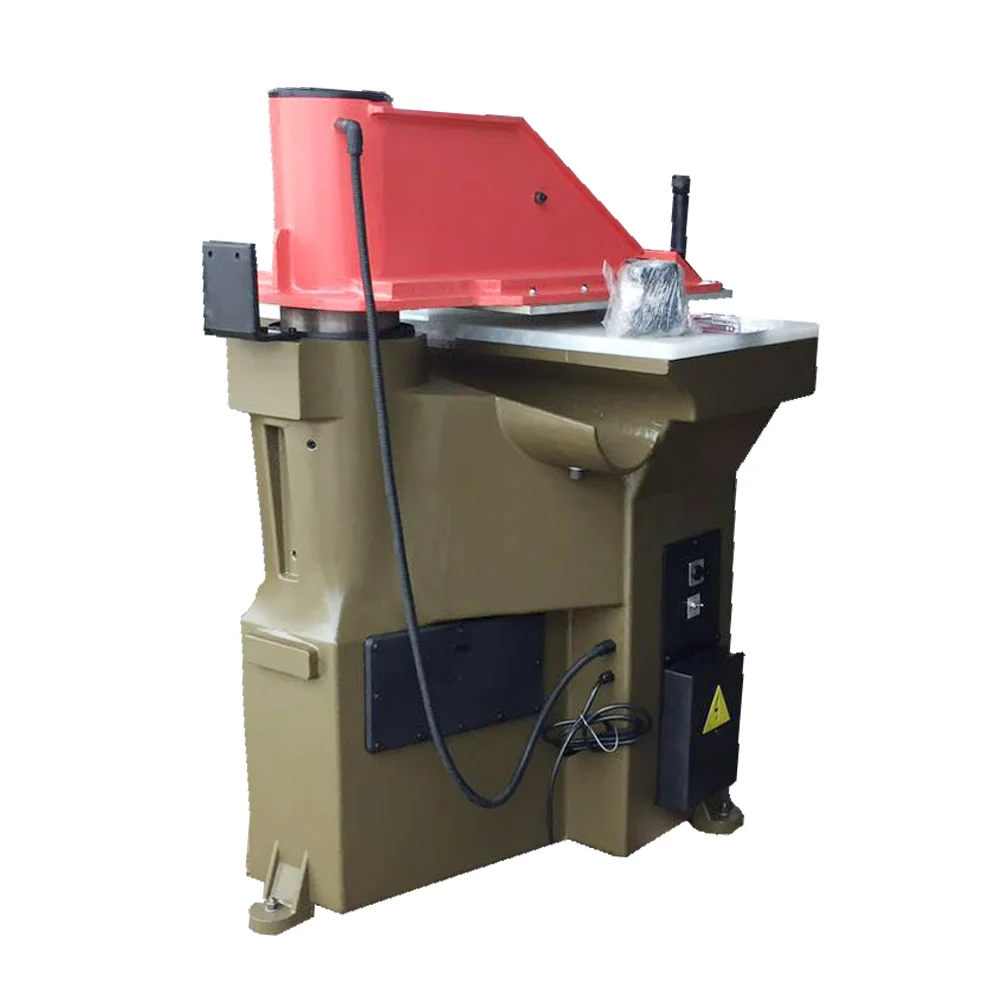

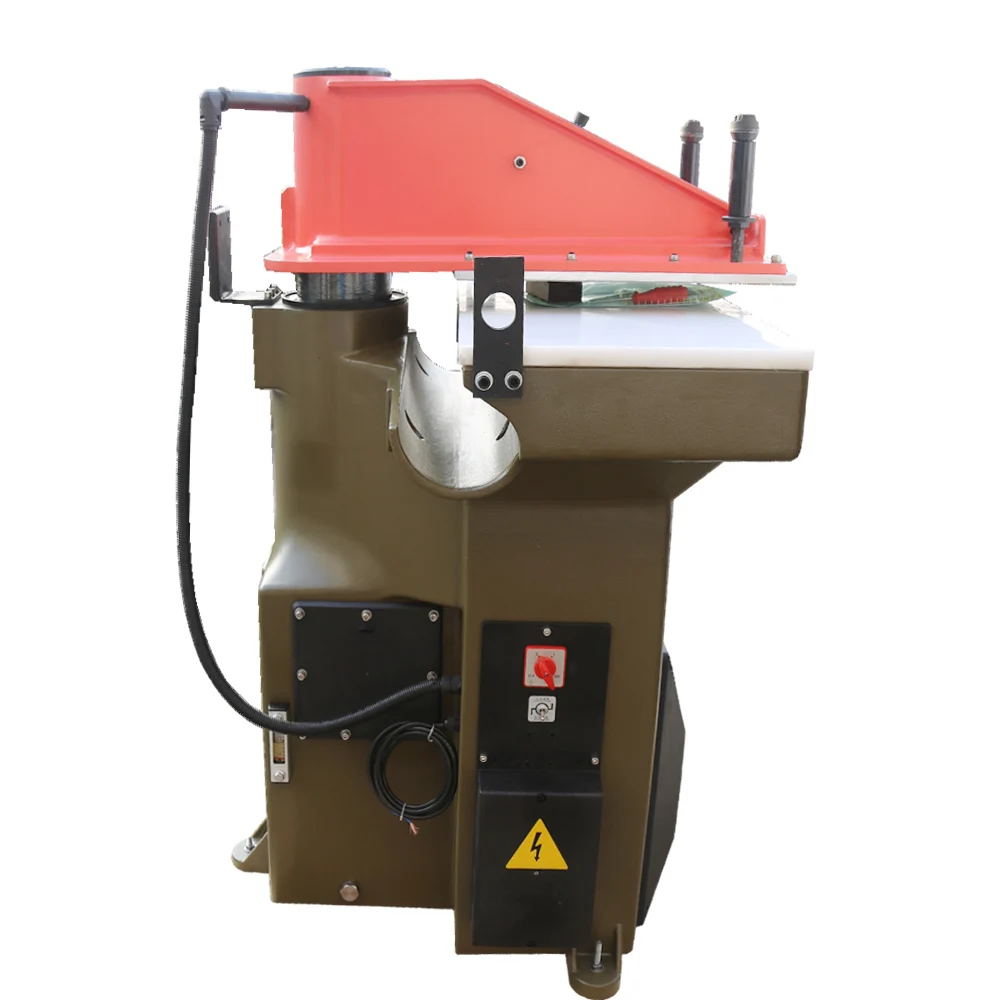

hydraulic swing arm die press machine and clicker cutting press for leather goods
- Category: >>>
- Supplier: Jiangsu Atong Machinery Manufacturing Co. Ltd.
Share on (1600219974509):
Product Overview
Description
Product Description
Attention
I would be grateful if you could tell me the destination port. I will check if we can offer the shipping service for you.
Application: This clicker press machine can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.
model No. | JSAT-S22 |
max cutting force | 22 T |
working table size | 900*430 mm |
swing arm size | 370 mm |
cutting stroke | 5-75mm |
power | 1.1 kw |
machine size | 1050*1000*1500mm |
G.W | 900 KG |
character
1. Safety: two-hand trip operation, rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials with high efficiency.
2. The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
3. High speed, low energy consumption, less failure and easy maintenance.
4. To meet the need of frequent replacement of die cutters of different sizes, this type of cutting machine that can timely output two kinds of cutting force is available for selection.
5. Ductile cast iron body made the cutting machine be used for a very long time with small noise.
6. CE certified quality with competitive price in high quality level.
7. Swing arm cutting machine of special specifications can be customized.
2. The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
3. High speed, low energy consumption, less failure and easy maintenance.
4. To meet the need of frequent replacement of die cutters of different sizes, this type of cutting machine that can timely output two kinds of cutting force is available for selection.
5. Ductile cast iron body made the cutting machine be used for a very long time with small noise.
6. CE certified quality with competitive price in high quality level.
7. Swing arm cutting machine of special specifications can be customized.
Related Products
Packing&Shipping
Hydraulic clicker press well packed with protective film and loaded in plywood case or export container. it will arrange shipping within 10 working days after get your total payment.
Company Introduction
Jiangsu Atong Machinery Manufacturing Co., Ltd is located in Dagang Town, Yancheng City, Jiangsu Province --- the Hometown of Chinese Shoe Machinery known as a national intensive area of spark plan technology. The company is a scale enterprise specialized in producing series precision machinery and general machinery products such as hydraulic die cutting machines, strip cutting machine , hydraulic hole punching machine, laminating machine and etc.
Our Services & Strength
English version operation manual and technical data;
One-Year-Period wear parts;
Tool kit
One-Year-Period wear parts;
Tool kit
FAQ
1)What's warranty of travelling head die cutting machine?
12 months Warranty
Life-long maintenance service for cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your cutting machine free?
Yes, please contact us to send your materials.
12 months Warranty
Life-long maintenance service for cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your cutting machine free?
Yes, please contact us to send your materials.
