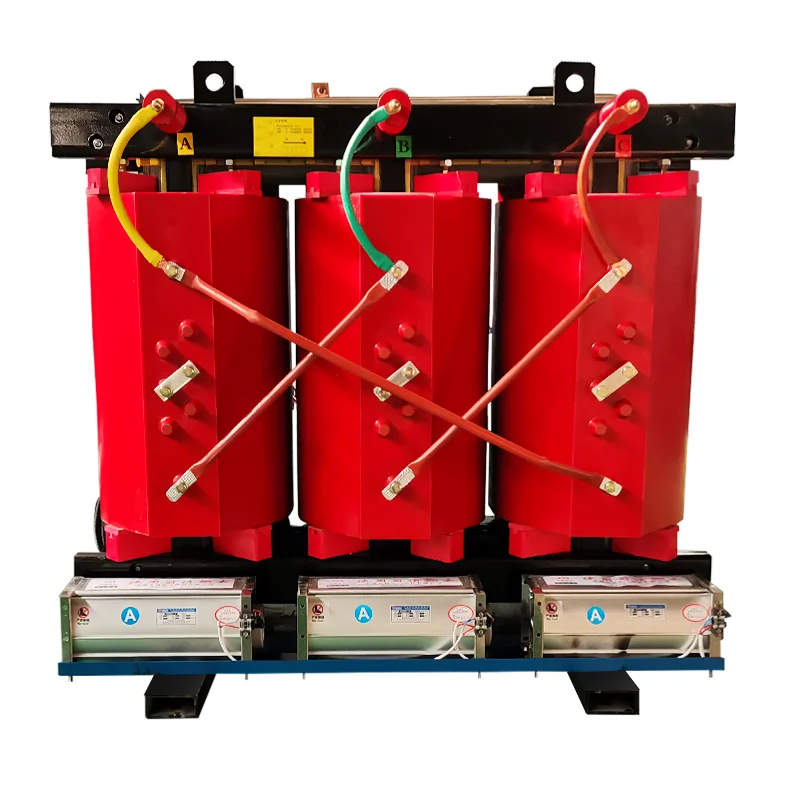

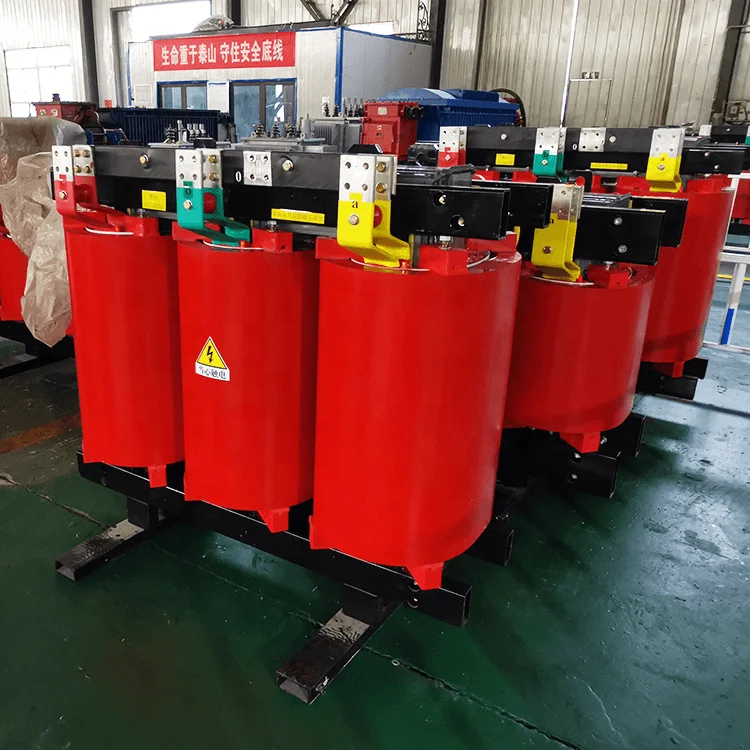

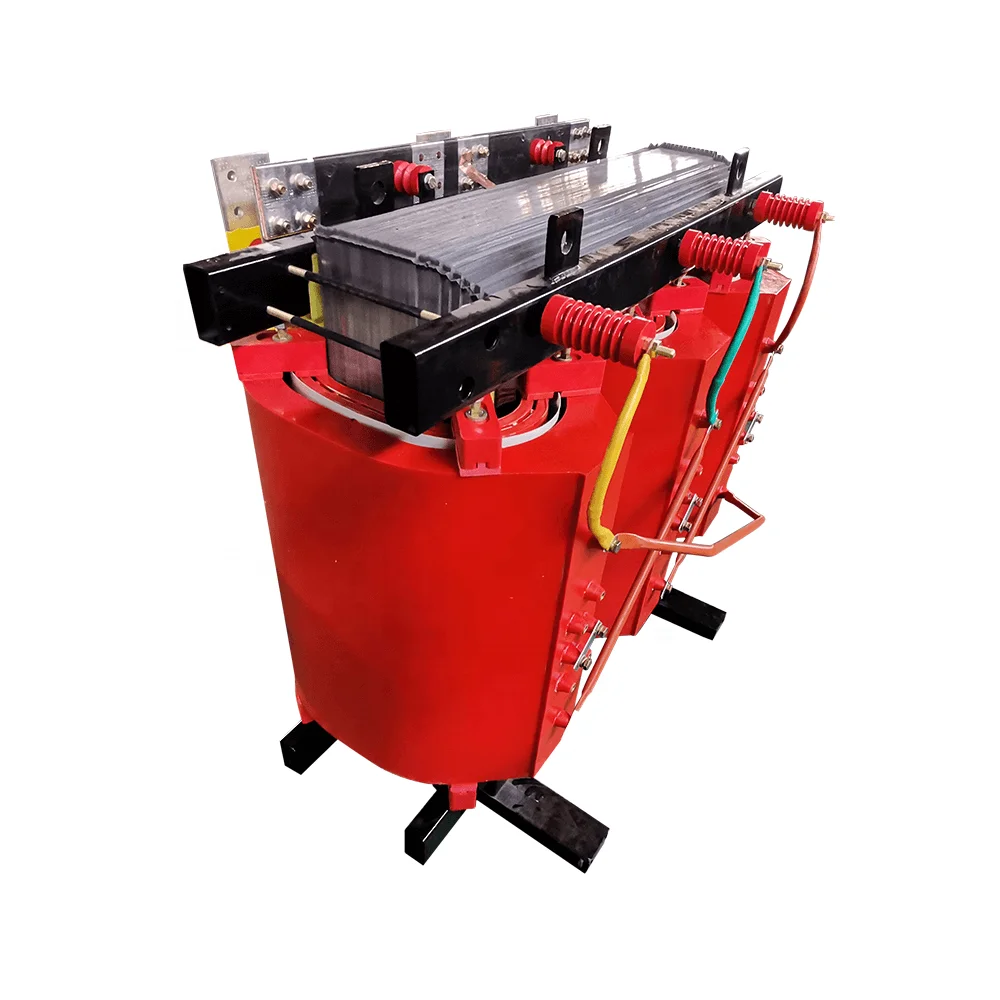

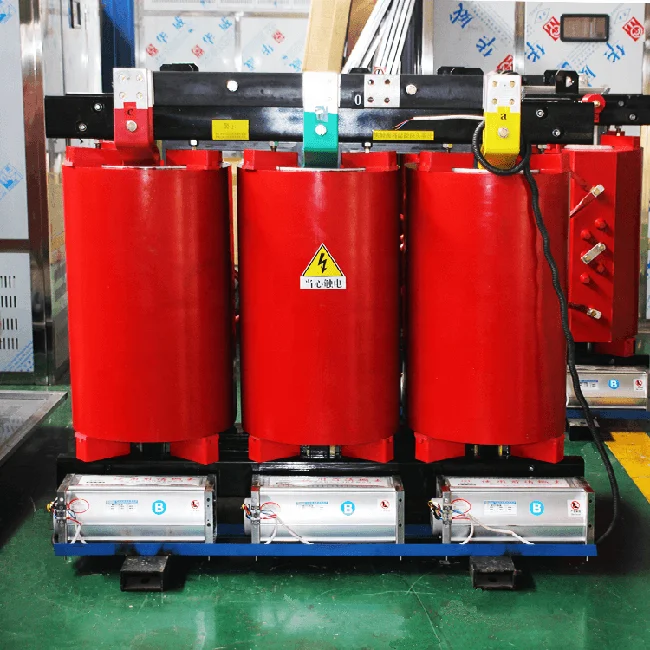

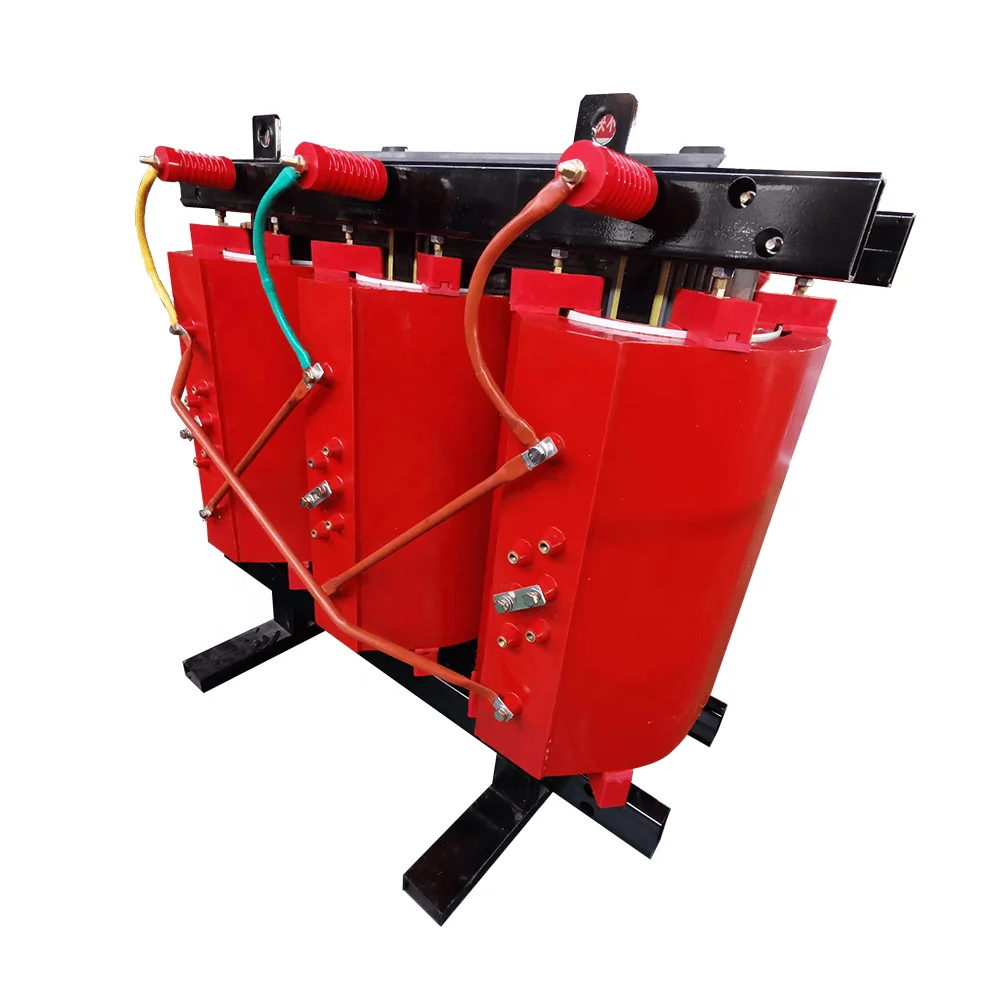

SCB11 35KV Electrical Power Distribution Epoxy Resin Cast Dry Type Isolation Transformer 3000V 5000VA 100000VA
- Category: >>>
- Supplier: Shanxi Yawei Electric Technology Co. Ltd.
Share on (1600219986332):
Product Overview
Description
Product Description
item | value |
Place of Origin | China |
Shanxi | |
Brand Name | YAWEI |
Model Number | SCB10/11 |
Usage | Power |
Phase | Three |
Coil Structure | TOROIDAL |
Coil Number | AUTOTRANSFORMER |
Type | Dry-type |
Feature | Low Loss |
Certification | ISO CE |
Color | red |
Products Description
Parameter Advantage
1.Security,flame ratardant fire prevention,can directly mounted in load center;
2.Maintenance free,easy installation,integrated cost is low;
3.Low loss, low noise, obvious energy saving effect;
4.Good heat dissipation performance, and capacity operation can be increased in short time when forced air cooling;
5.Good moisture resistance;
6.Equipped with perfect temperature protection control system for transform,probide areliable guarantee safe operation.
2.Maintenance free,easy installation,integrated cost is low;
3.Low loss, low noise, obvious energy saving effect;
4.Good heat dissipation performance, and capacity operation can be increased in short time when forced air cooling;
5.Good moisture resistance;
6.Equipped with perfect temperature protection control system for transform,probide areliable guarantee safe operation.
Resin potting
Temperature control device
low voltage-- box coil
Forced air cooling
Product Paramenters
Rated Power (kva) | High Voltage (kv) | H.V.Tap range | Low Voltage (kv) | Vector-group | No load current (%) | No-load loss(KV) | load loss(KV) 75% | Short Circuit Impendence (%) |
50 | 35-38.5 | ±5% ±2×2.5% | 0.4 | Dyn11 Yyn0 | 500 | 1500 | 2.8 | 6 |
100 | 700 | 2200 | 2.4 | |||||
160 | 880 | 2960 | 1.8 | |||||
200 | 980 | 3500 | 1.8 | |||||
250 | 1100 | 4000 | 1.6 | |||||
315 | 1310 | 4750 | 1.6 | |||||
400 | 1530 | 5700 | 1.4 | |||||
500 | 1800 | 7000 | 1.4 | |||||
630 | 2070 | 8100 | 1.2 | |||||
800 | 2400 | 9600 | 1.2 | |||||
1000 | 2700 | 11000 | 1.0 | |||||
1250 | 3150 | 13400 | 0.9 | |||||
1600 | 3600 | 16300 | 0.9 | |||||
2000 | 4250 | 19200 | 0.9 | |||||
2500 | 4950 | 23000 | 0.9 |

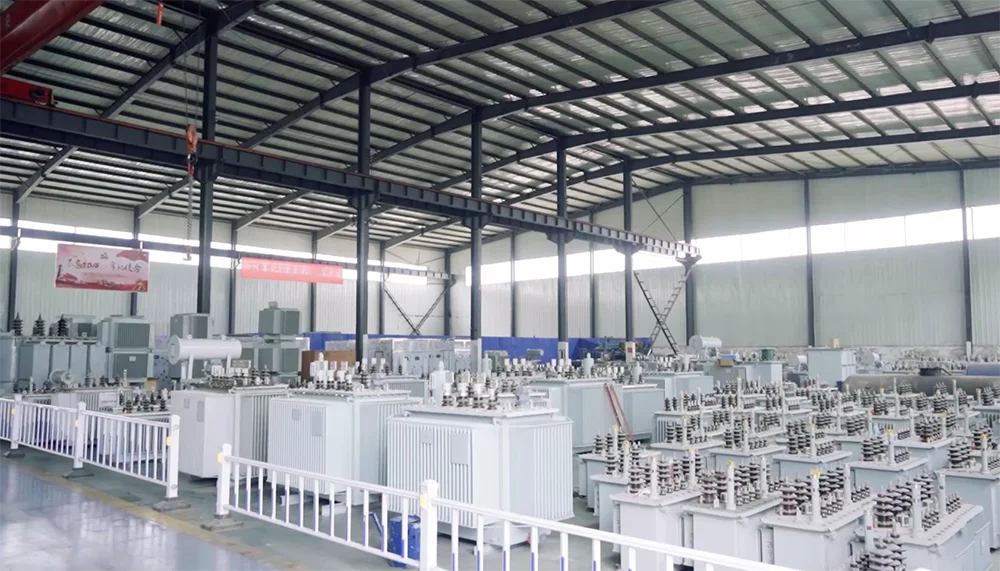

Company Information
Shanxi Yawei Electric Technology Co., Ltd. is located in the Wusu Comprehensive Bonded Zone, Shanxi Comprehensive Reform Demonstration Zone.
The company's products have the characteristics of superior quality, energy saving and environmental protection, convenient installation and maintenance, reliable operation and effective reduction of product-related operating costs.
It mainly produces transformers of 110KV and 220KV large ultra-high voltage transformers and various dry-type transformers below 35KV. Oil-immersed transformers, amorphous alloy transformers, pre-assembled transformer substations, and special transformers of various specifications such as box transformers, electric furnace transformers, rectifier transformers,and mine transformers.
Certifications
FAQ
HIGH QUALITY AND LOW PRICE PRODUCES
Q: Are you manufacturer or trading company?
A: Shanxi Yawei Electric Technology Co., Ltd. is a wholly-owned branch of Shanxiwei
Transformer Co., Ltd., with its own factory and technical personnel.
Q: How fastest is your delivery time?
A: Generally it is 20 days if the goods are in stock. or it is 30 days if the goods are not
in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before
production, the balance against copy of B/L.
Q: How do you control the quality ?
A: Professional QC team comply with TQM insure you the quality. Each step is in
compliance to the standards, at the same time ,we will take photos or shoot video
for you.
Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 20-30 days
upon receipt of advance payment.

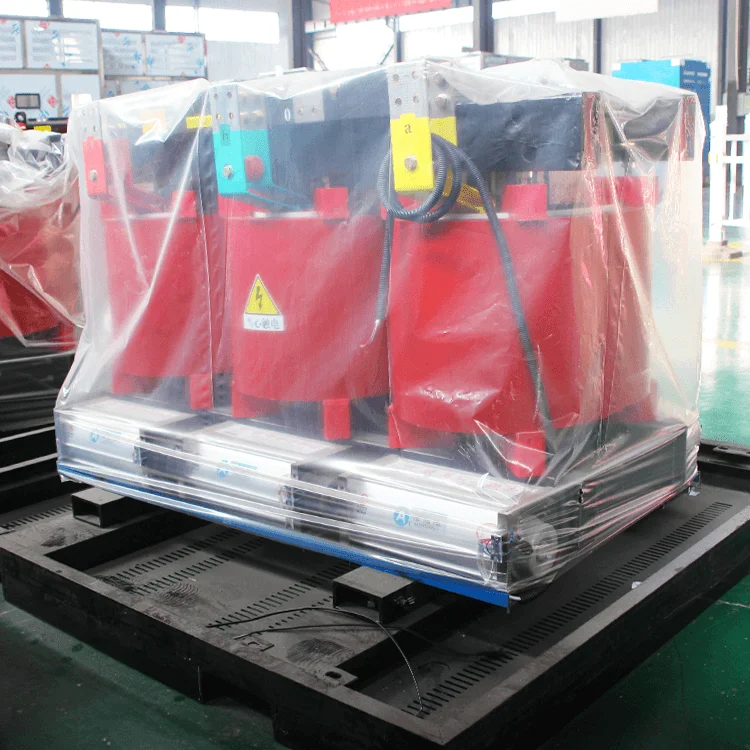

Q: What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q: How fastest is your delivery time?
A: Generally it is 20 days if the goods are in stock. or it is 30 days if the goods are not
in stock, it is according to quantity.
A: Shanxi Yawei Electric Technology Co., Ltd. is a wholly-owned branch of Shanxiwei
Transformer Co., Ltd., with its own factory and technical personnel.
Q: How fastest is your delivery time?
A: Generally it is 20 days if the goods are in stock. or it is 30 days if the goods are not
in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before
production, the balance against copy of B/L.
Q: How do you control the quality ?
A: Professional QC team comply with TQM insure you the quality. Each step is in
compliance to the standards, at the same time ,we will take photos or shoot video
for you.
Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 20-30 days
upon receipt of advance payment.
Q: What is the standard of package?
A: Export standard package or special package according to customer requirement.
Q: How fastest is your delivery time?
A: Generally it is 20 days if the goods are in stock. or it is 30 days if the goods are not
in stock, it is according to quantity.
