Durable And High Quality Indoor Villa Volumetric Gas Heater Hot Water Boiler
- Category: Gas Water Heaters >>>
- Supplier: Chongqing Junmao Technology Co. Ltd.
Share on (1600219989397):
Product Overview
Description
Specification
model | RSTDQ130-N-45 | RSTDQ199-N-45 | RSTDQ320-N-45 | RSTDQ320-N-65 | RSTDQ320-N-75 | ||
Rated thermal load (kW) Thousands of calories (Kcal) | 45/3.8 | 45/3.8 | 45/3.8 | 65/5.6 | 75/6.4 | ||
Rated volume (L) | 130 | 199 | 320 | 320 | 320 | ||
The water rate L/h (temperature rise of 25℃) | 1383 | 1383 | 1383 | 2060 | 2347 | ||
Maximum pressure of furnace body (MPa) | Max1.0 | Max1.0 | Max1.0 | Max1.0 | Max1.0 | ||
Maximum hot water temperature℃ | 85 | 85 | 85 | 85 | 85 | ||
Instrument power (kW) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | ||
Pressure: (Unit: Pa) | Natural gas | 2000-2500 | 2000-2500 | 2000-2500 | 2000-2500 | 2000-2500 | |
Liquefied petroleum gas | 2800-4000 | 2800-4000 | 2800-4000 | 2800-4000 | 2800-4000 | ||
rated voltage | 220V | 220V | 220V | 220V | 220V | ||
Natural gas consumption (m³/h) | ≈4.5 | ≈4.5 | ≈4.5 | ≈6.5 | ≈7.5 | ||
Consumption of liquefied gas (Kg/h) | ≈3.5 | ≈3.5 | ≈3.5 | ≈4.5 | ≈6.2 | ||
Air inlet | DN20 | DN20 | DN20 | DN25 | DN25 | ||
In and out of the gate | DN40 | DN40 | DN40 | DN40 | DN40 | ||
Smoke vent (mm) | ∅120 | ∅120 | ∅120 | ∅120 | ∅120 | ||
Whole machine mass (kg) | 115 | 160 | 220 | 220 | 220 | ||
Operating weight (kg) | 245 | 360 | 540 | 540 | 540 | ||
Overall dimensions (mm) | ∅560*1519 | ∅560*1719 | ∅740*1950 | ∅740*1950 | ∅740*1950 | ||
Tail gas temperature℃ | ＜80 | ＜80 | ＜80 | ＜80 | ＜80 | ||
Installation position | interior | interior | interior | interior | interior | ||
model | RSTDQ320-N-99 | RSTDQ398-N-75 | RSTDQ398-N-99 | RSTDQ460-N-99 | ||
Rated thermal load (kW) Thousands of calories (Kcal) | 99/8.6 | 75/6.4 | 99/8.6 | 99/8.6 | ||
Rated volume (L) | 320 | 398 | 398 | 460 | ||
The water rate L/h (temperature rise of 25℃) | 3130 | 2347 | 3130 | 3130 | ||
Maximum pressure of furnace body (MPa) | Max1.0 | Max1.0 | Max1.0 | Max1.0 | ||
Maximum hot water temperature℃ | 85 | 85 | 85 | 85 | ||
Instrument power (kW) | 0.6 | 0.6 | 0.6 | 0.6 | ||
Pressure: (Unit: Pa) | Natural gas | 2000-2500 | 2000-2500 | 2000-2500 | 2000-2500 | |
Liquefied petroleum gas | 2800-4000 | 2800-4000 | 2800-4000 | 2800-4000 | ||
rated voltage | 220V | 220V | 220V | 220V | ||
Natural gas consumption (m³/h) | ≈9.9 | ≈7.5 | ≈9.9 | ≈9.9 | ||
Consumption of liquefied gas (Kg/h) | ≈8.2 | ≈6.2 | ≈8.2 | ≈8.2 | ||
Air inlet | DN25 | DN20 | DN25 | DN25 | ||
In and out of the gate | DN40 | DN40 | DN50 | DN50 | ||
Smoke vent (mm) | ∅120 | ∅160 | ∅160 | ∅160 | ||
Whole machine mass (kg) | 220 | 220 | 250 | 280 | ||
Operating weight (kg) | 540 | 650 | 650 | 740 | ||
Overall dimensions (mm) | ∅740*1950 | ∅740*2150 | ∅740*2150 | ∅740*2250 | ||
Tail gas temperature℃ | ＜80 | ＜80 | ＜80 | ＜80 | ||
Installation position | interior | interior | interior | interior | ||
A. 5s to produce steam, convenient, safe and easy to use
B. Energy-saving rate 30-50%, Thermal efficiency 95%
C. All environmental indicators have reached the standard
D.No volume: Non-pressure vessels, there is no risk of explosion
E. Intelligent control, human energy-saving
B. Energy-saving rate 30-50%, Thermal efficiency 95%
C. All environmental indicators have reached the standard
D.No volume: Non-pressure vessels, there is no risk of explosion
E. Intelligent control, human energy-saving

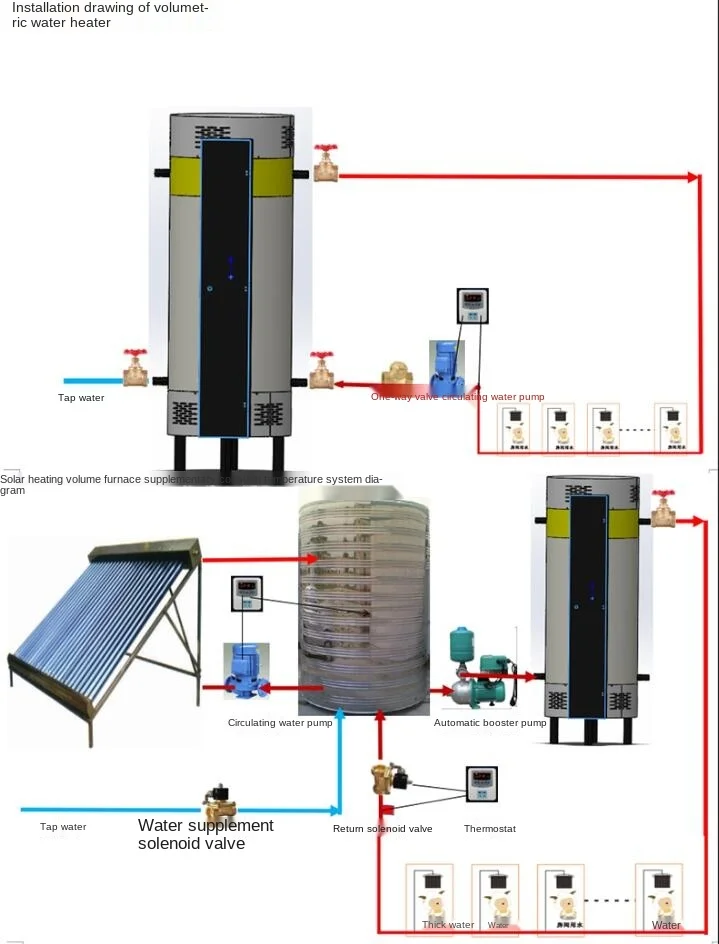

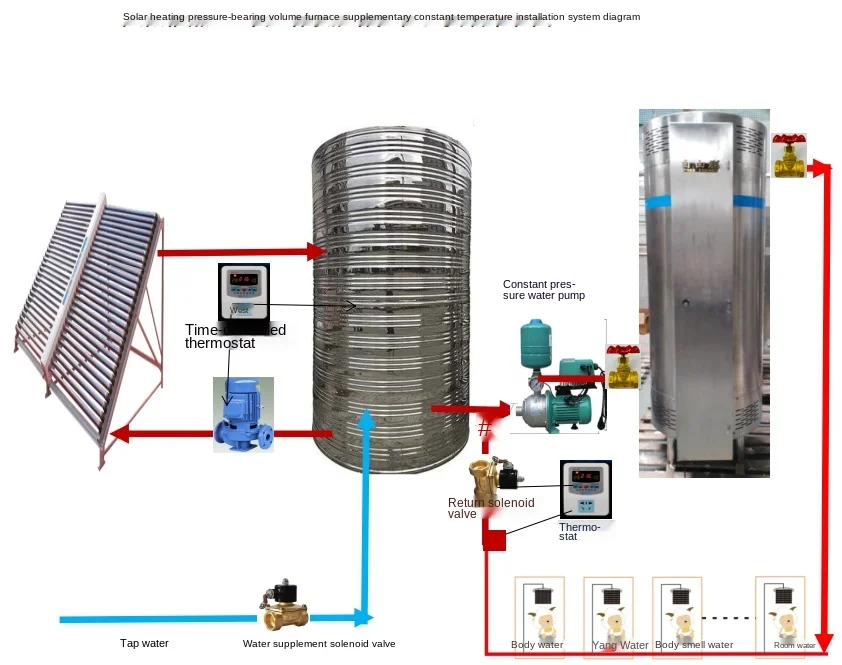

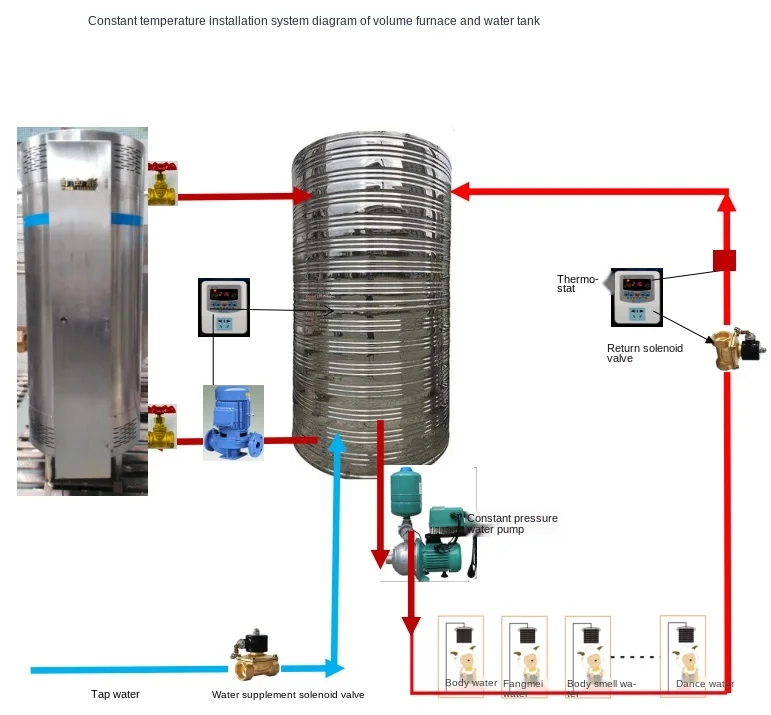

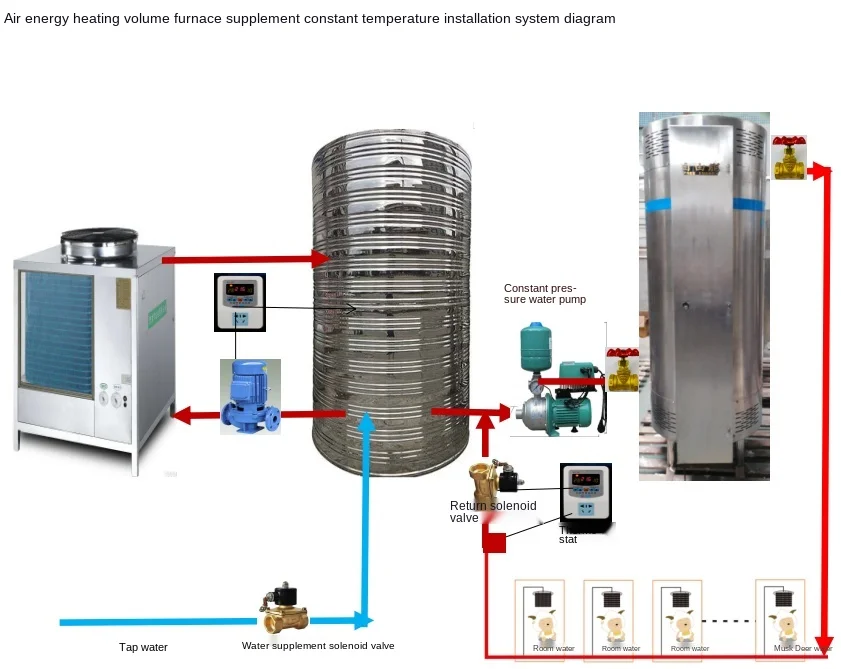

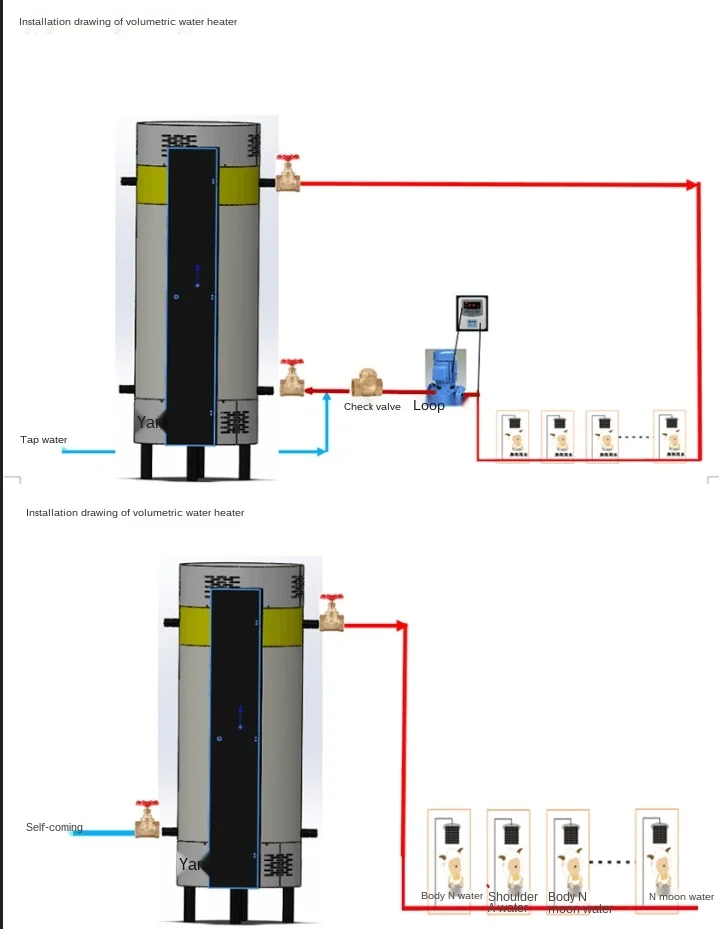

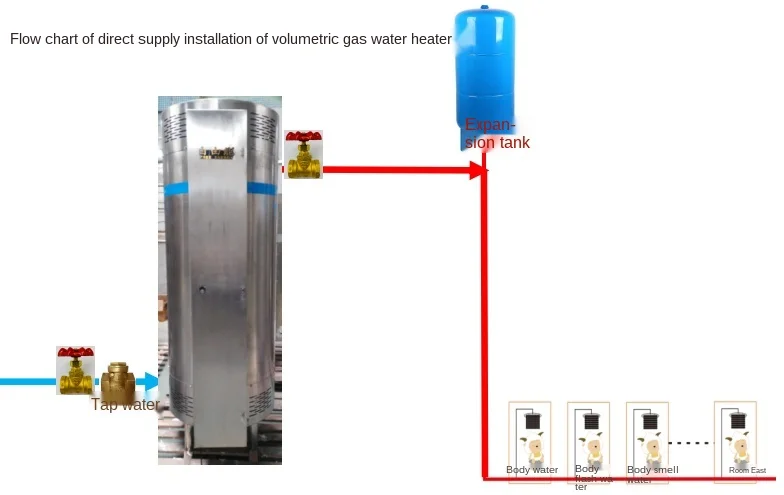

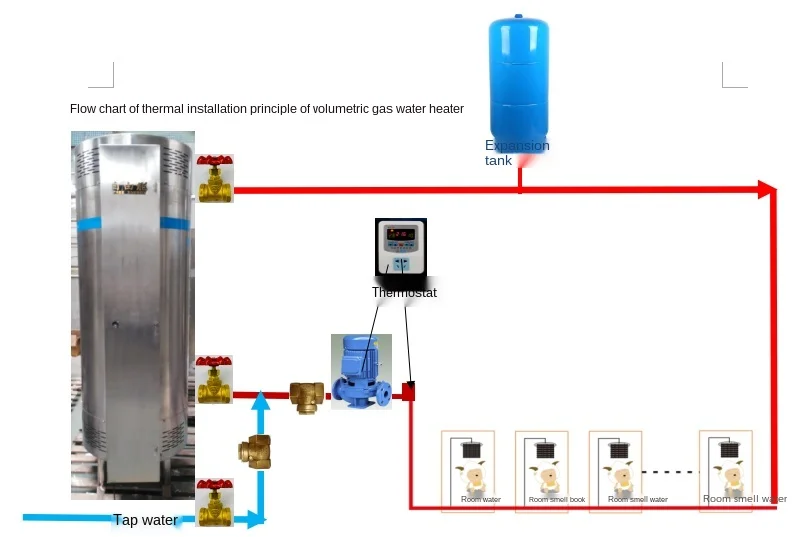

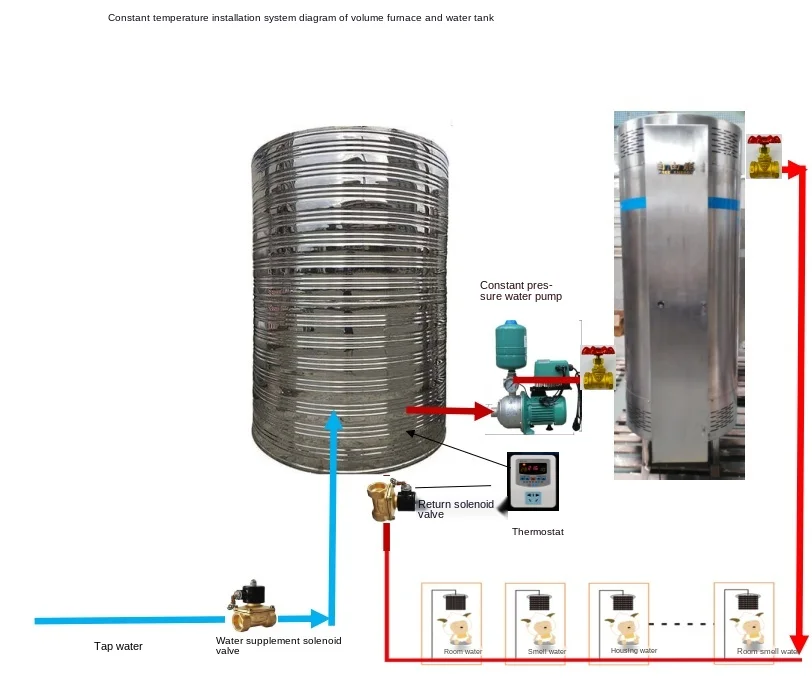

Installation drawing
Certifications
