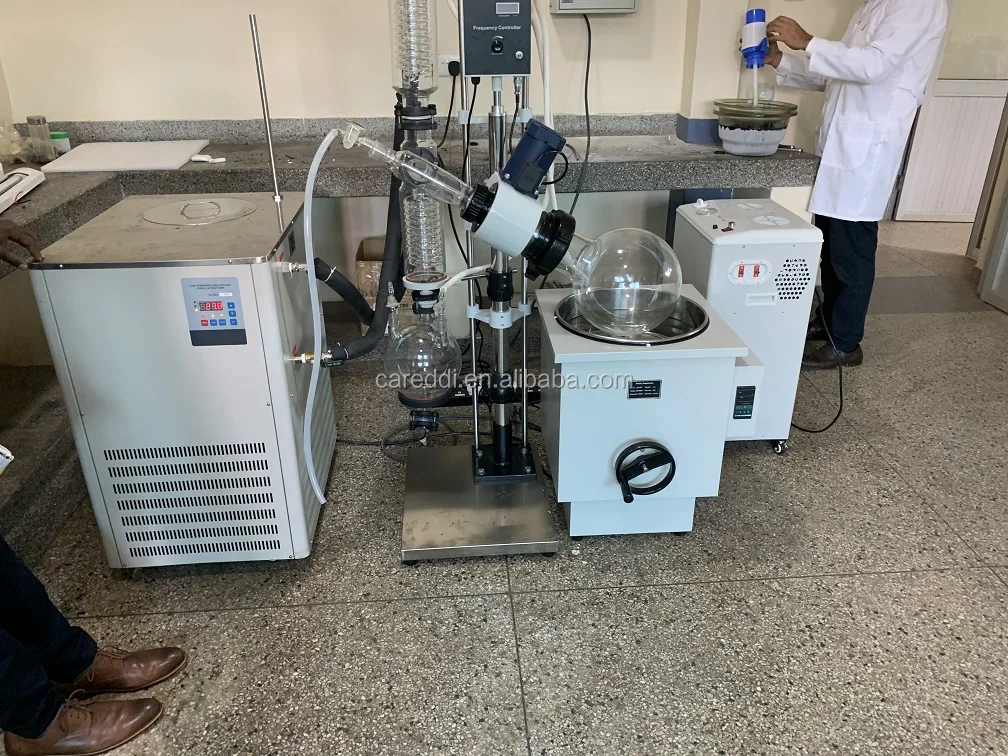

CE Certificated Rotary Evaporator 50L with Chiller and Vacuum Pump for CBD Oil Distillation
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (1600220099653):
Product Overview
Description
Product Description

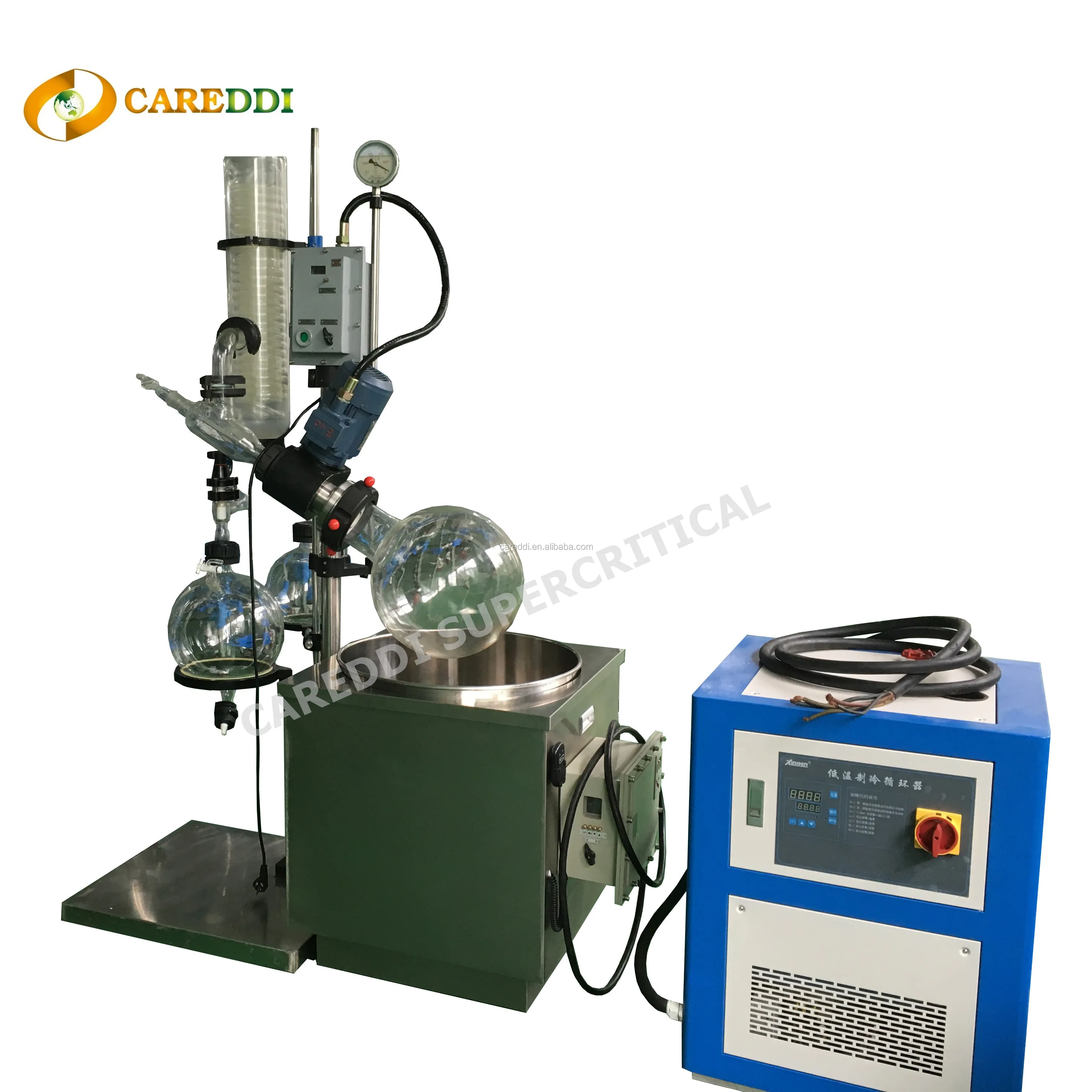

Industrial Vacuum Rotary Evaporator
Rotary Evaporator can form thin film by rotating under the constant heating and negative pressure, evaporate effectively and recover the solvent after condensing at same time.
PTFE bottom discharge valve, no pollution of grease
PTFE bottom discharge valve, no pollution of grease
Connector for anti-backflow of condensate
Main parts made by using #304 stainless steel material
Japanese Tech of AC induction motor, variable speed, no brush, no spark
Main parts made by using #304 stainless steel material
Japanese Tech of AC induction motor, variable speed, no brush, no spark
Technical Parameters | ||||||||||
Model | PR-2 | PR-5 | PR-10 | PR-20 | PR-50 | |||||
Evaporation Flask (L) | 2L | 5L | 10L | 20L | 50L | |||||
Collection bottle(L) | 1L | 2L OR 3L | 5L | 10L+5L | 10L+10L | |||||
Bath heating power (KW) | 1.5 | 2 | 3 | 5 | 5 | |||||
Vacuum pressure (Mpa) | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 | |||||
Rotation speed (RPM) | 10-180 | 10-90 | 5-110 | 5-110 | 5-110 | |||||
Evaporation rate (H2O)(L/H) | 1.2 | 2 | 3.5 | 5 | 8 | |||||
Motor power(W) | 40 | 90 | 120 | 120 | 180 | |||||
Power phase | 2 phase | 2 phase | 3 phase | 3 phase | 3 phase | |||||
SIZE(LXWXH) (Cm) | 55x35x75 | 55x35x110 | 100x50x180 | 110x70x200 | 120x80x220 | |||||
