Price:$28.00 - $31.00

Quantity:


Product Overview

Description



Products Description

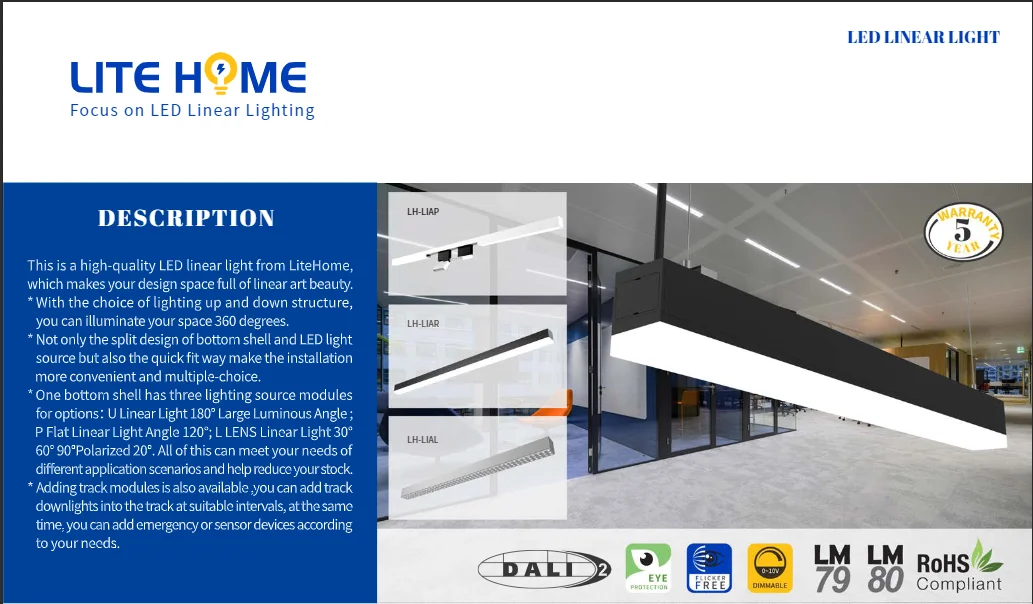

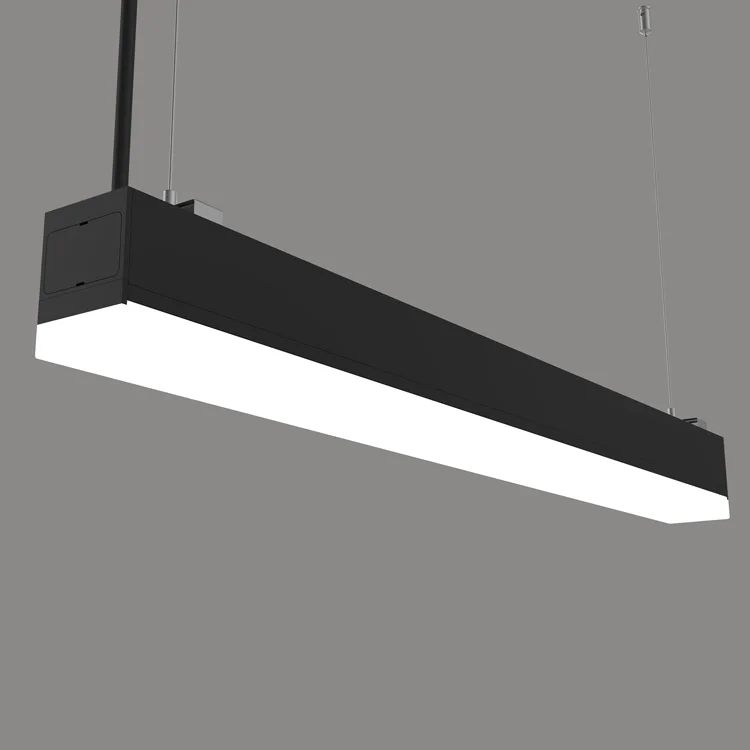

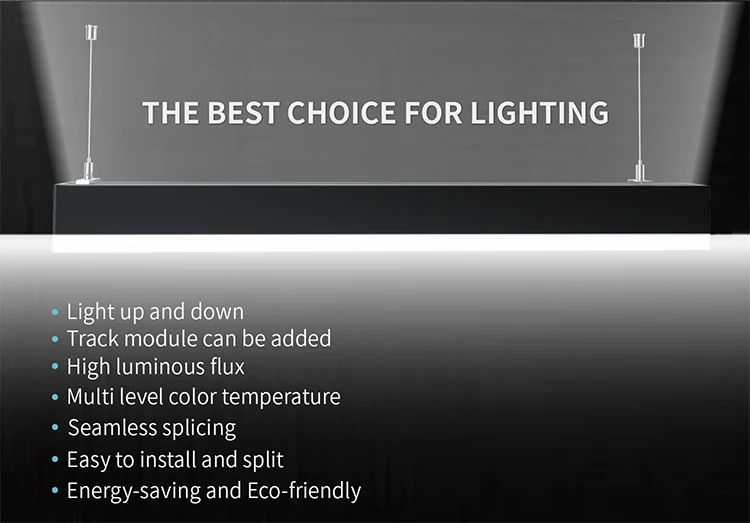

180° LED Linear Light

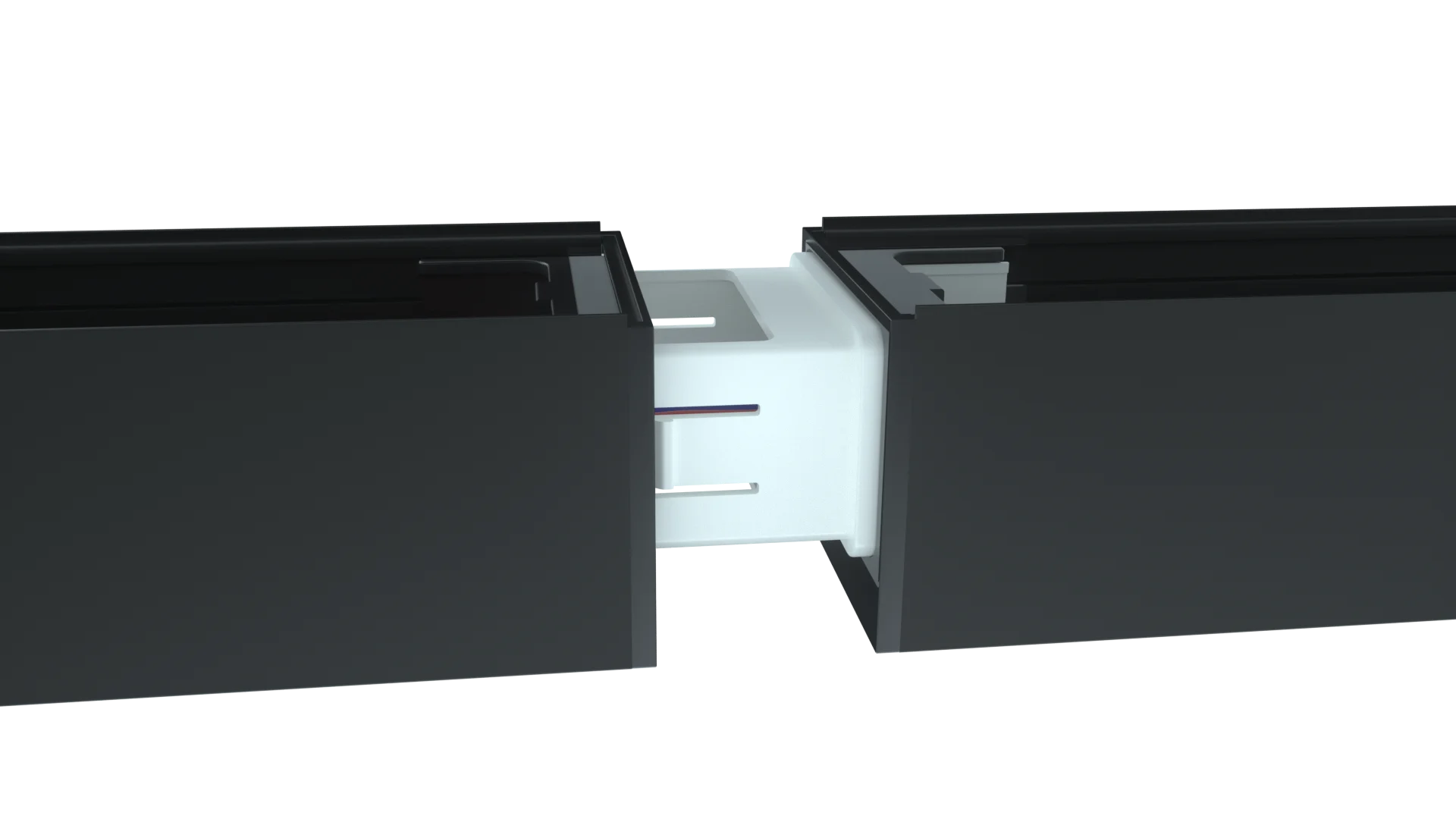

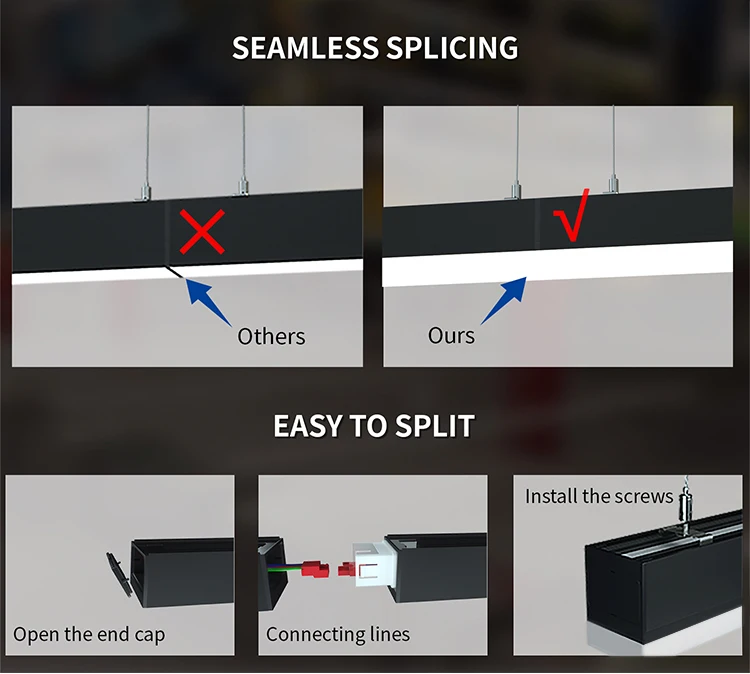

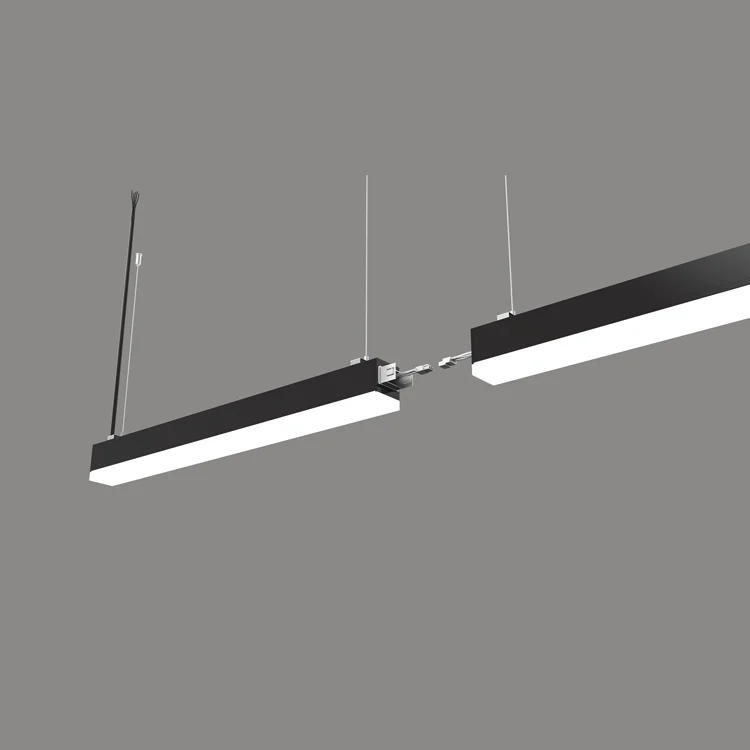

This Linear lights can be seamlessly spliced. It can realize that there is no dark area when lighting, and the light is very uniform.

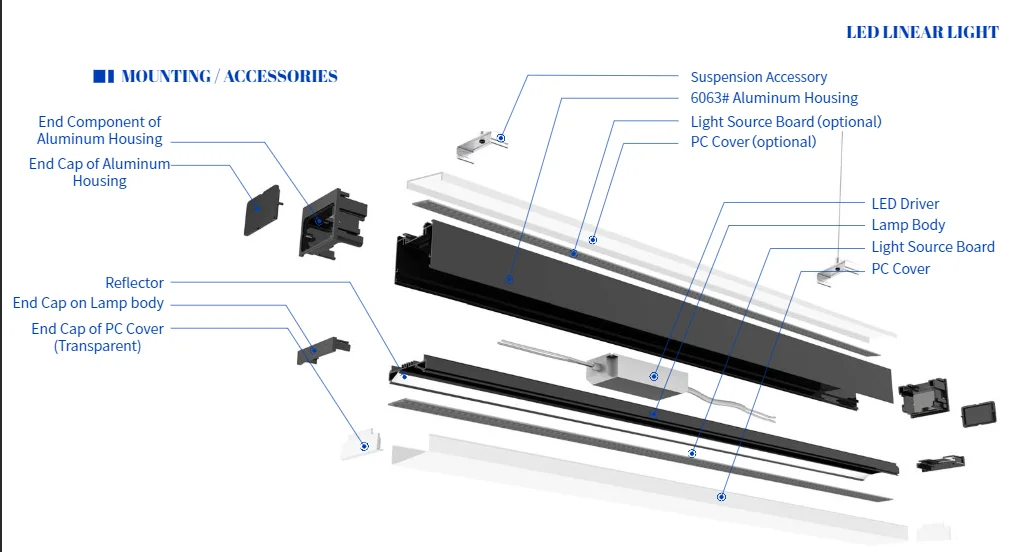

The body of this series of linear lights can be opened. It is very convenient when you install lamps in series. Another advantage is that the shell can be reused. After 8 years, the Light can be replaced without replacing the shell, only the power supply and light source need to be replaced. More environmentally friendly.

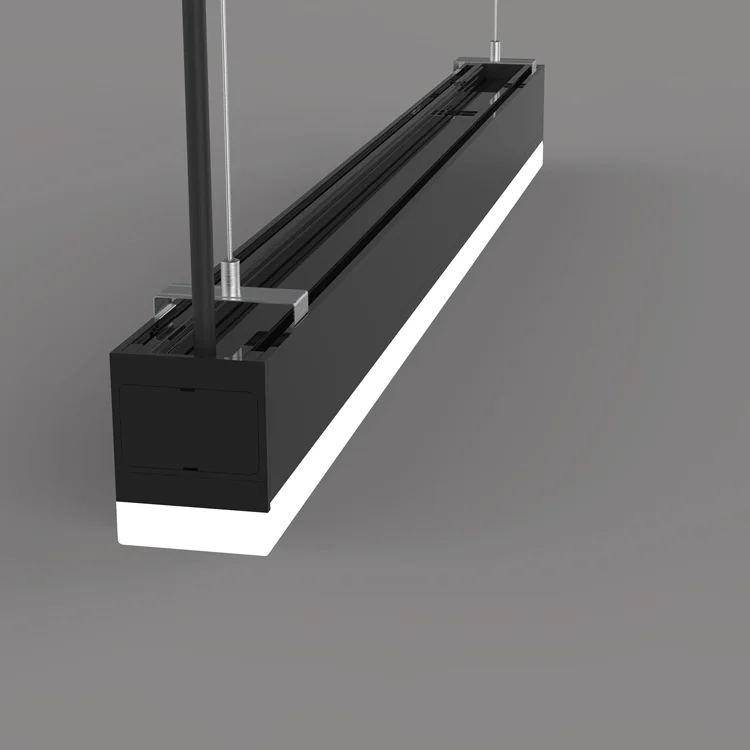

Our products will not be easily blown by the wind when they are hoisted.

There are DALI dimming and 0/1-10V dimming to choose from.

This light has a larger luminous angle and a wider irradiated area than 120° led linear light.

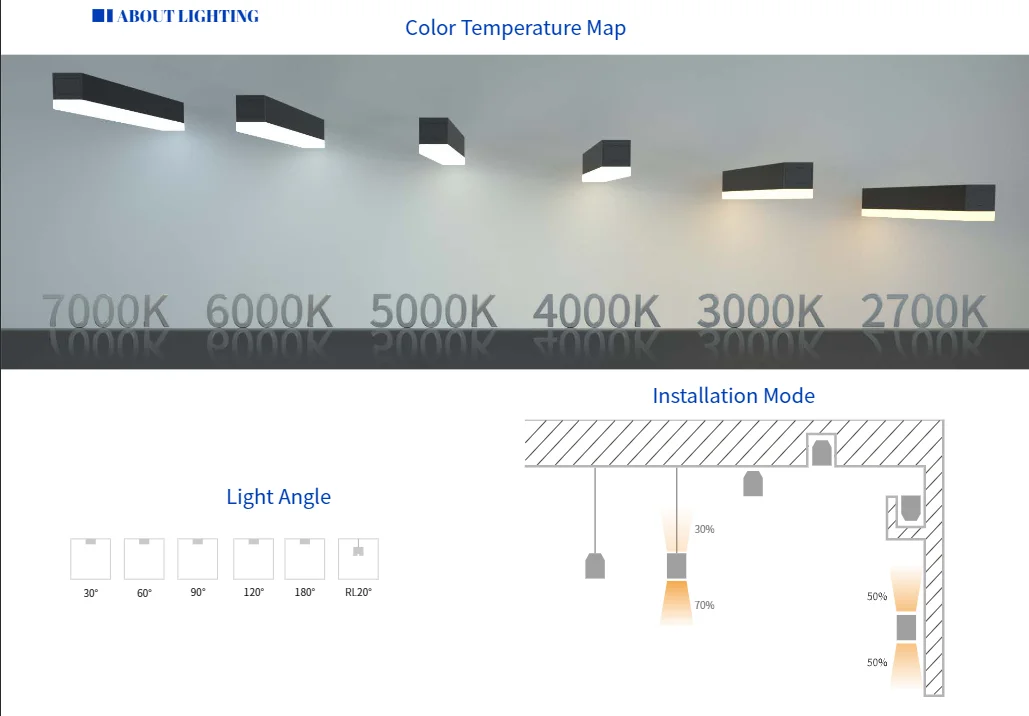

Installation






Dimensions


Code No.
Beam angle
Size
Dimming Type
Power
Lumen
LH-LIAR2-020
120°
600*63*80mm
No/DALI
20W
100-120lm/w
LH-LIAR3-030
120°
900*63*80mm
No/DALI
30W
100-120lm/w
LH-LIAR4-040
120°
1200*63*80mm
No/DALI
40W
100-120lm/w
LH-LIAR5-060
120°
1500*63*80mm
No/DALI
60W
100-120lm/w
LH-LIAR6-080
120°
1800*63*80mm
No/DALI
80W
100-120lm/w
LH-LIAR8-100
120°
2400*63*80mm
No/DALI
100W
100-120lm/w








Parameter


Manufacturer
LiteHome
Product Name
180° LED linear light
Input Voltage
AC 220-240V/AC 100-277V/AC 180-347V
Output Voltage
DC 36-42V
Power
20W/30W/40W/60W/80W/100W

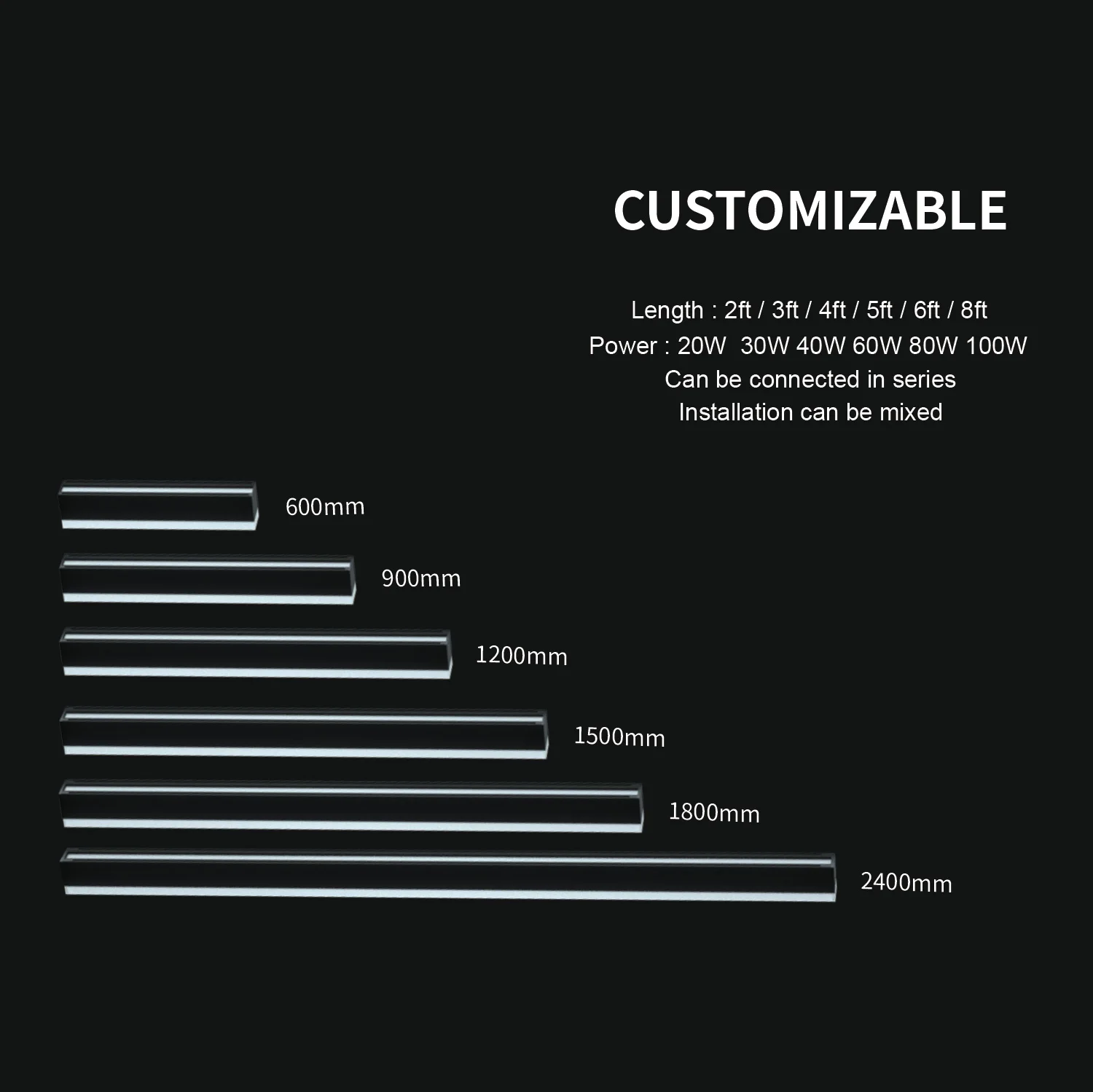

Product Length
2ft/3ft/4ft/5ft/6ft/8ft
Beam Angle
180°
Dimmable
DALI
EU Luminous Efficacy
100-120lm / w
CRI
≥ 80Ra
Power Factor
> 0.95

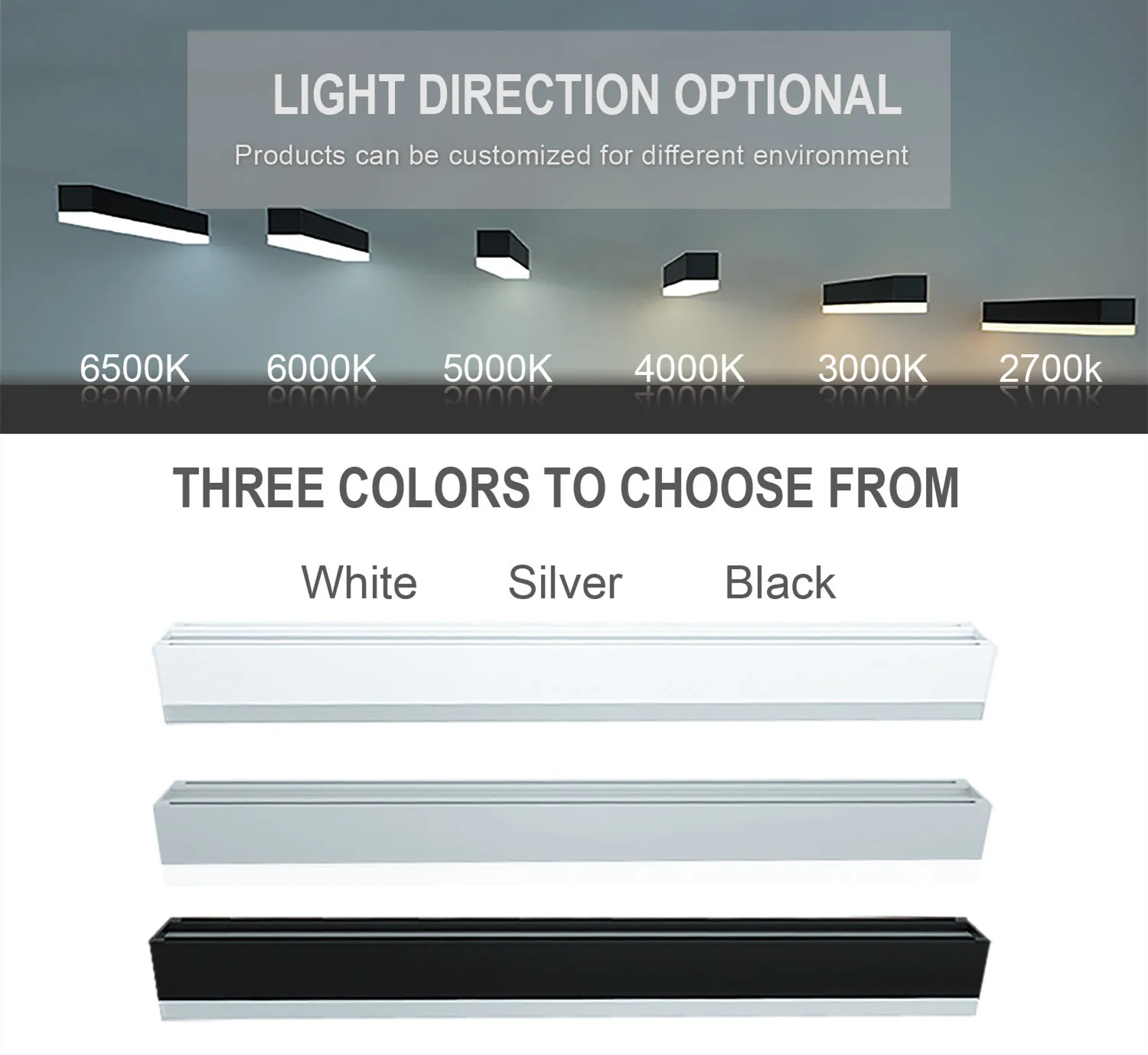

Color
Silver / White / Black
Color Temperature
3000K / 4000K / 5000K / 6000K
IP Grade
IP20
Shape
Rectangular
Material
6063 # Aluminum + PC
Light Source
SMD 2835
Operating Temperature
-20℃-+45℃
Lifespan (hours)
50000
Working Time (hours)
50000
Warranty
5 years, L80B10(Ta=25℃)

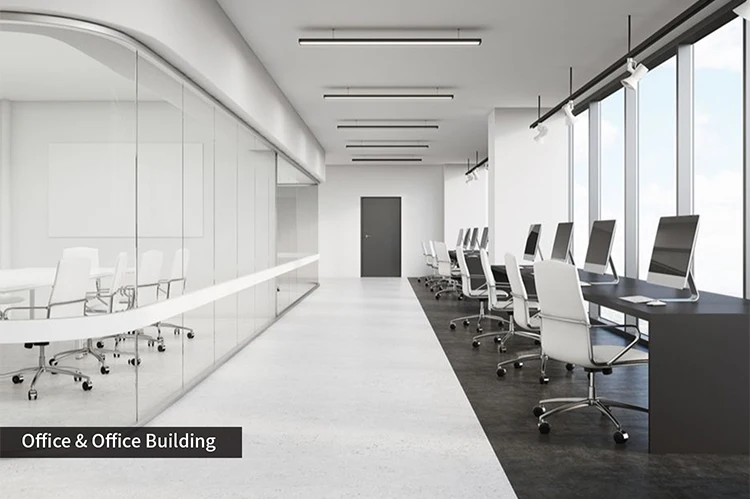

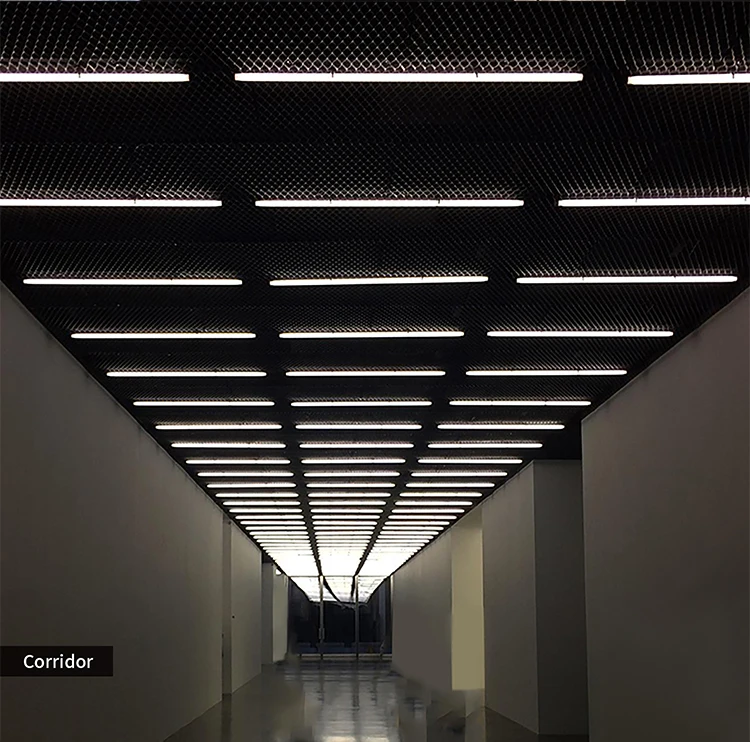

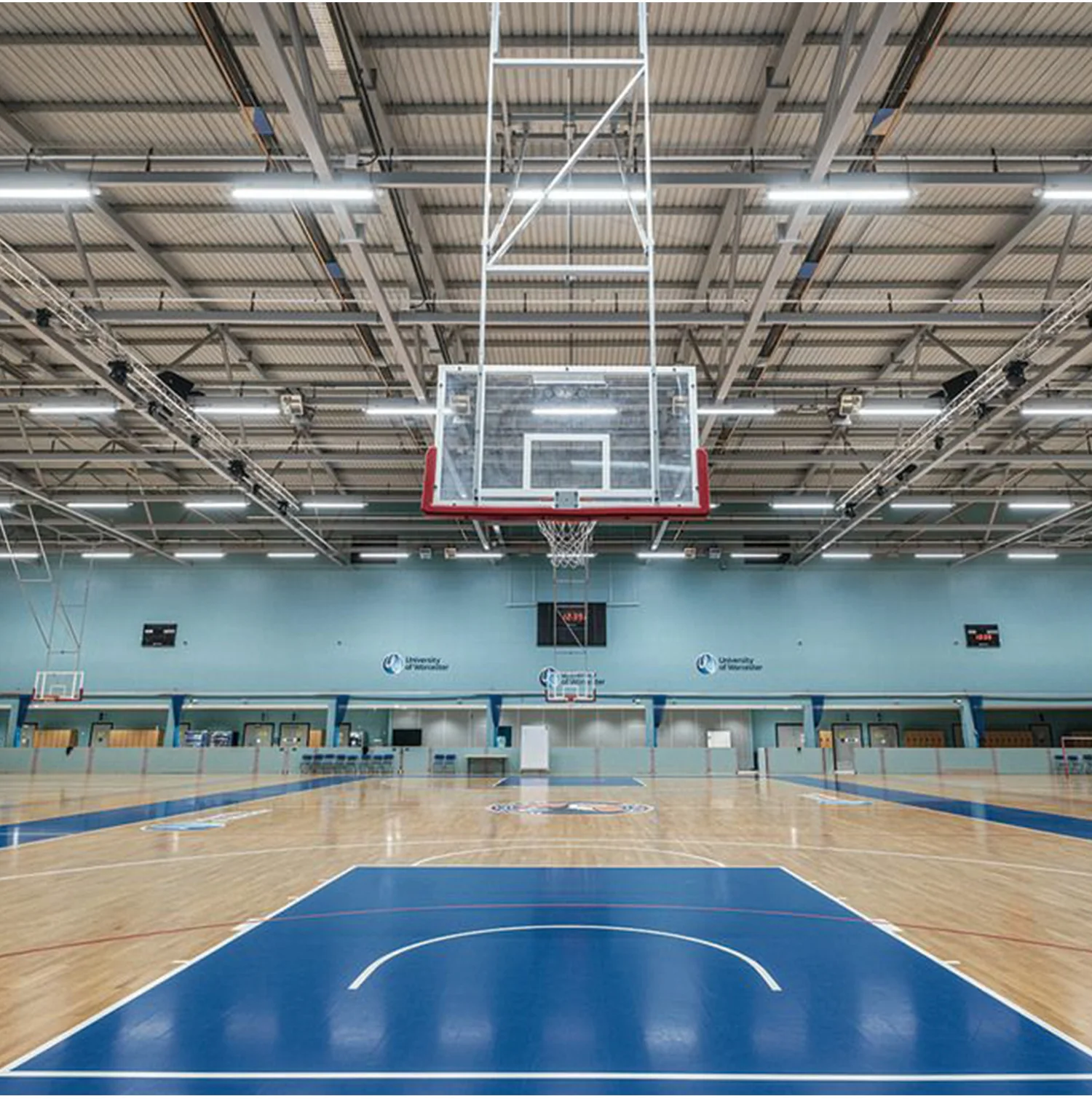

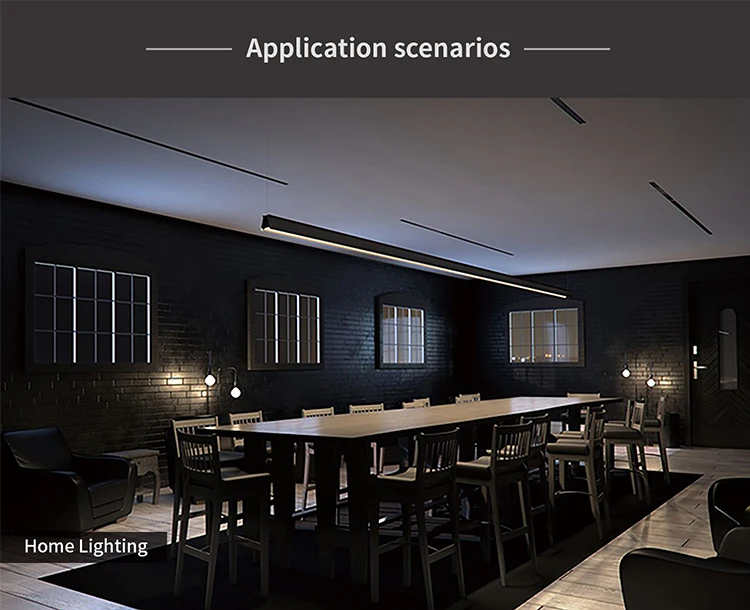

Application Scenarios










Company Profile

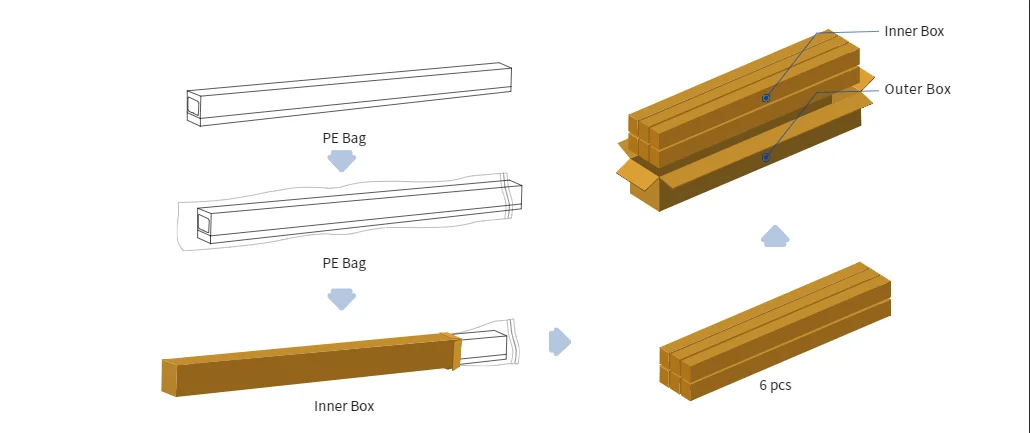

Payment ＆ shipping
