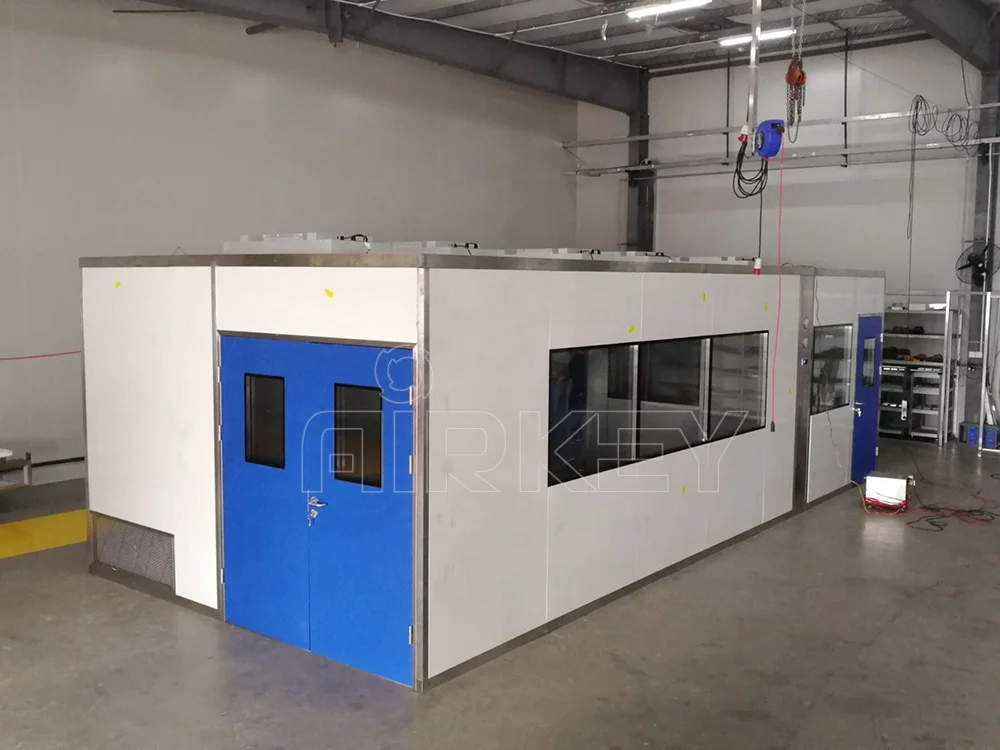

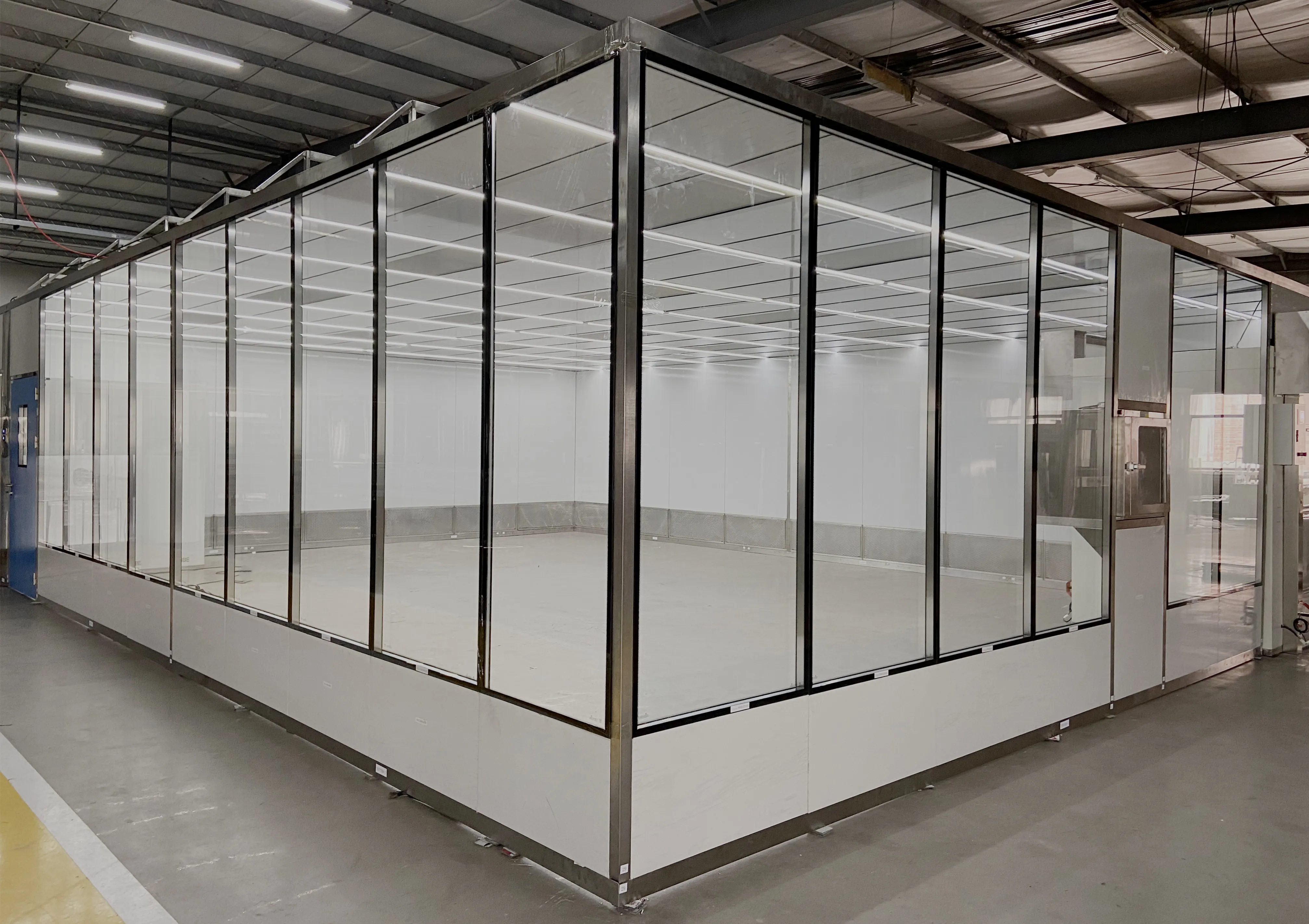

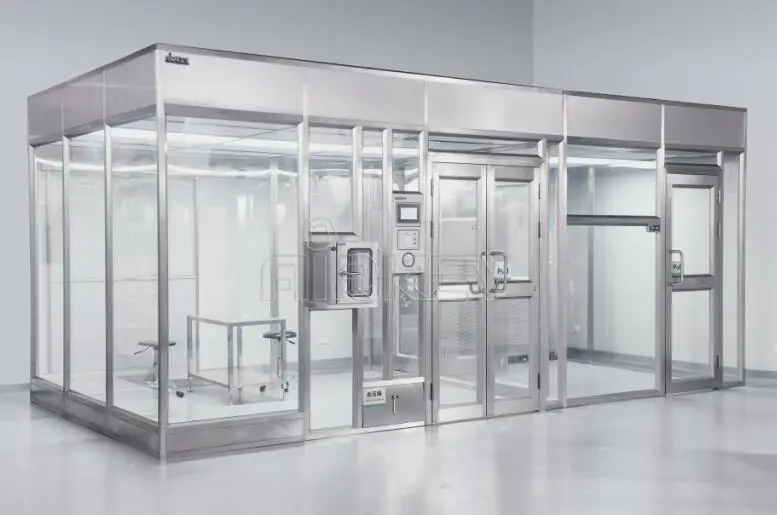

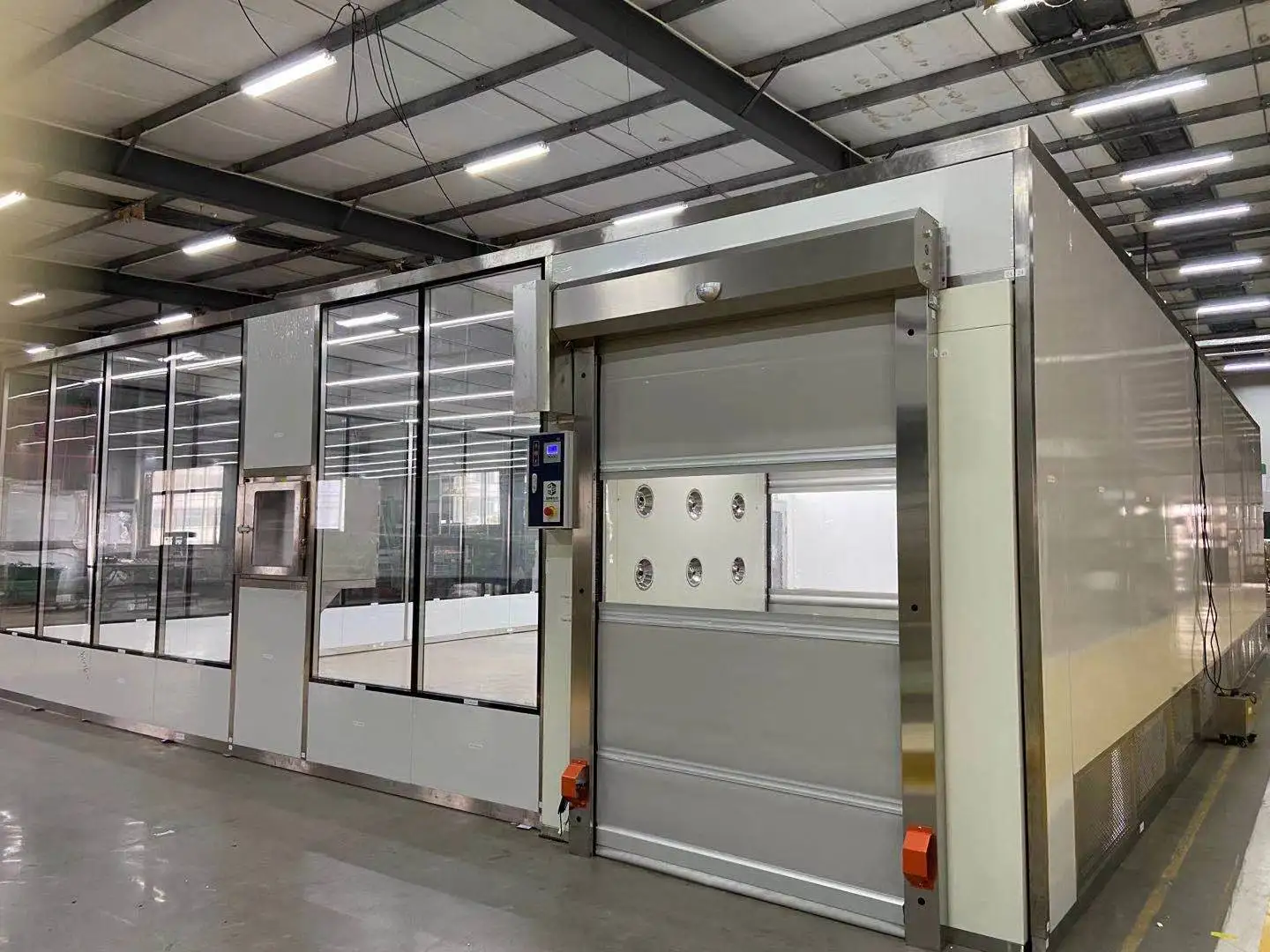

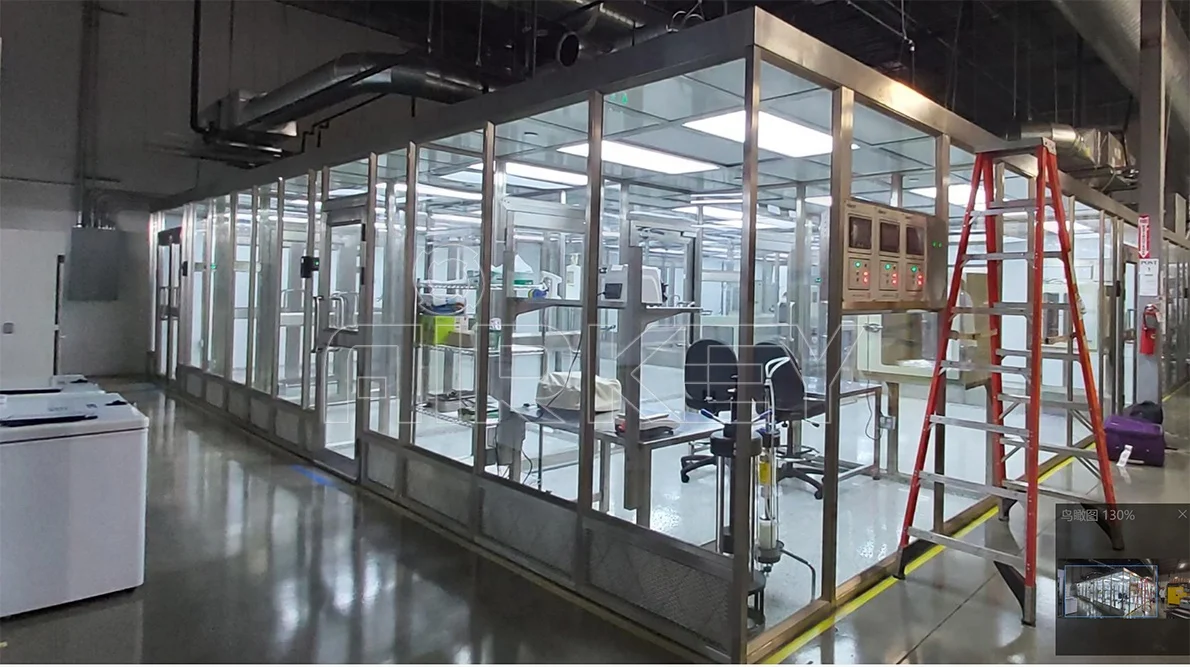

Modular laboratory clean room
- Category: >>>
- Supplier: Airkey Envirotech Co. Ltd.
Share on (1600220185295):
Product Overview
Description

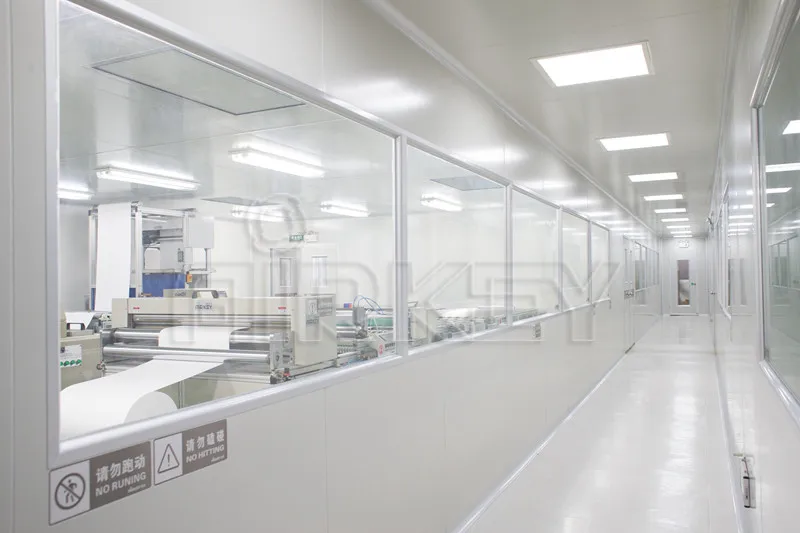

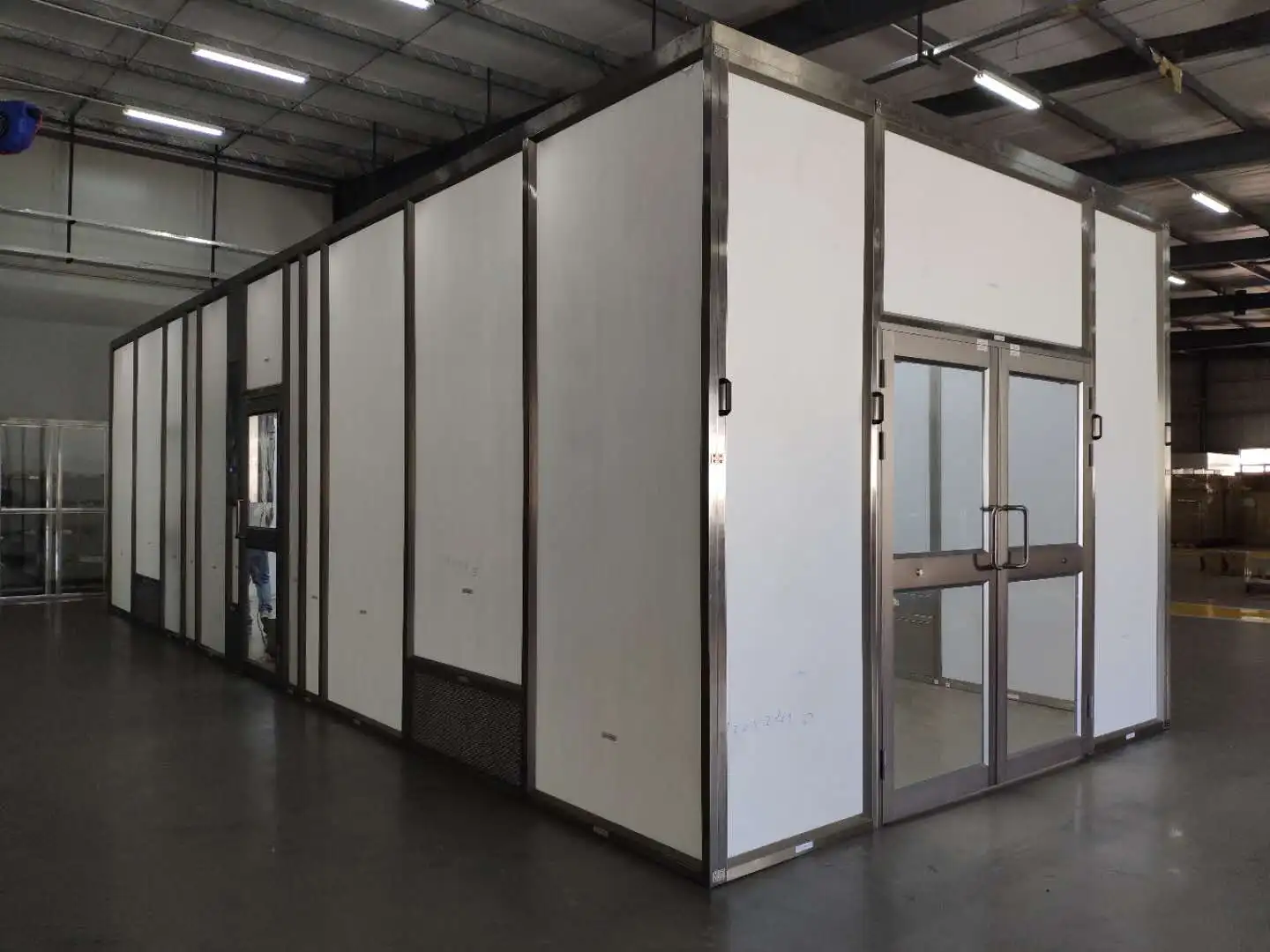

Modular laboratory clean room
Feature:
Low investment, high return. Stable, building a cleanroom of higher cleanliness will not affect the manufacturing of existing clean room. Flexible designs bring the maximum convenience and practicability.
TECH PARAMETERS:
Class | Model | Inner dimension W * D * H (mm) | Number of FFU | Air volume(m3/h) |
Class 10-100 | GHCR4 * 4 | 1220 * 1220 * 2150 | 2 | 2300 |
GHCR4 * 8 | 1220 * 2440 * 2150 | 4 | 4600 | |
CHCR8 * 8 | 2440 * 2440 * 2150 | 8 | 9200 | |
CHCR 8 * 12 | 2440 * 3660 * 2150 | 12 | 13800 | |
CHCR 8 * 16 | 2440 * 4880 * 2150 | 16 | 18400 | |
CHCR 8 * 20 | 2440 * 6100 * 2150 | 20 | 23000 | |
CHCR 12 * 12 | 3660 * 3660 * 2150 | 18 | 20700 | |
Class 1000 | CHCR 8 * 12 | 2440 * 3660 * 2150 | 9 | 10350 |
CHCR 8 * 16 | 2440 * 4880 * 2150 | 12 | 13800 | |
CHCR 8 * 20 | 2440 * 6100 * 2150 | 15 | 17250 | |
CHCR 10 * 12 | 3060 * 3660 * 2150 | 8 | 9200 | |
CHCR 12 * 12 | 3660 * 3660 * 2150 | 10 | 11500 | |
CHCR 12 * 16 | 3660 * 4880 * 2150 | 12 | 13800 | |
CHCR 12 * 20 | 3660 * 6100 * 2150 | 16 | 18400 | |
Class 10000 | CHCR 8 * 8 | 2440 * 2440 * 2150 | 2 | 2300 |
CHCR 8 * 12 | 2440 * 3660 * 2150 | 2 | 2300 | |
CHCR 8 * 16 | 2440 * 4880 * 2150 | 4 | 4600 | |
CHCR 8 * 20 | 2440 * 6100 * 2150 | 4 | 4600 | |
CHCR 12 * 12 | 3660 * 3660 * 2150 | 4 | 4600 | |
CHCR 12 * 16 | 3660 * 4880 * 2150 | 5 | 5750 | |
CHCR 12 * 20 | 3660 * 6100 * 2150 | 6 | 6900 |
If you are interested in it,pls let us know.We will reply you in 24 hours.
