Устройство CMVP10 D типа CNTD, миниатюрный герметичный микропереключатель, миниатюрный микропереключатель
- Category: >>>
- Supplier: Cntd Electric Technology Co. Ltd.
Share on (1600220313372):
Product Overview
Description

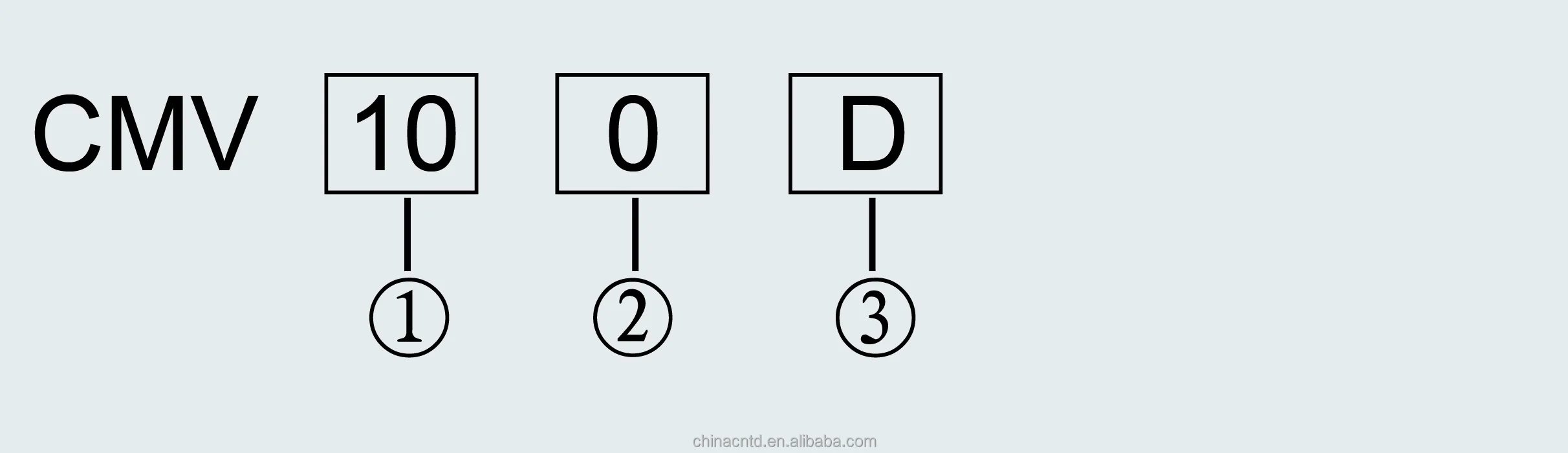

Model Number Structure
Item | Code | Description |
Rated Current | 10 | 10A |

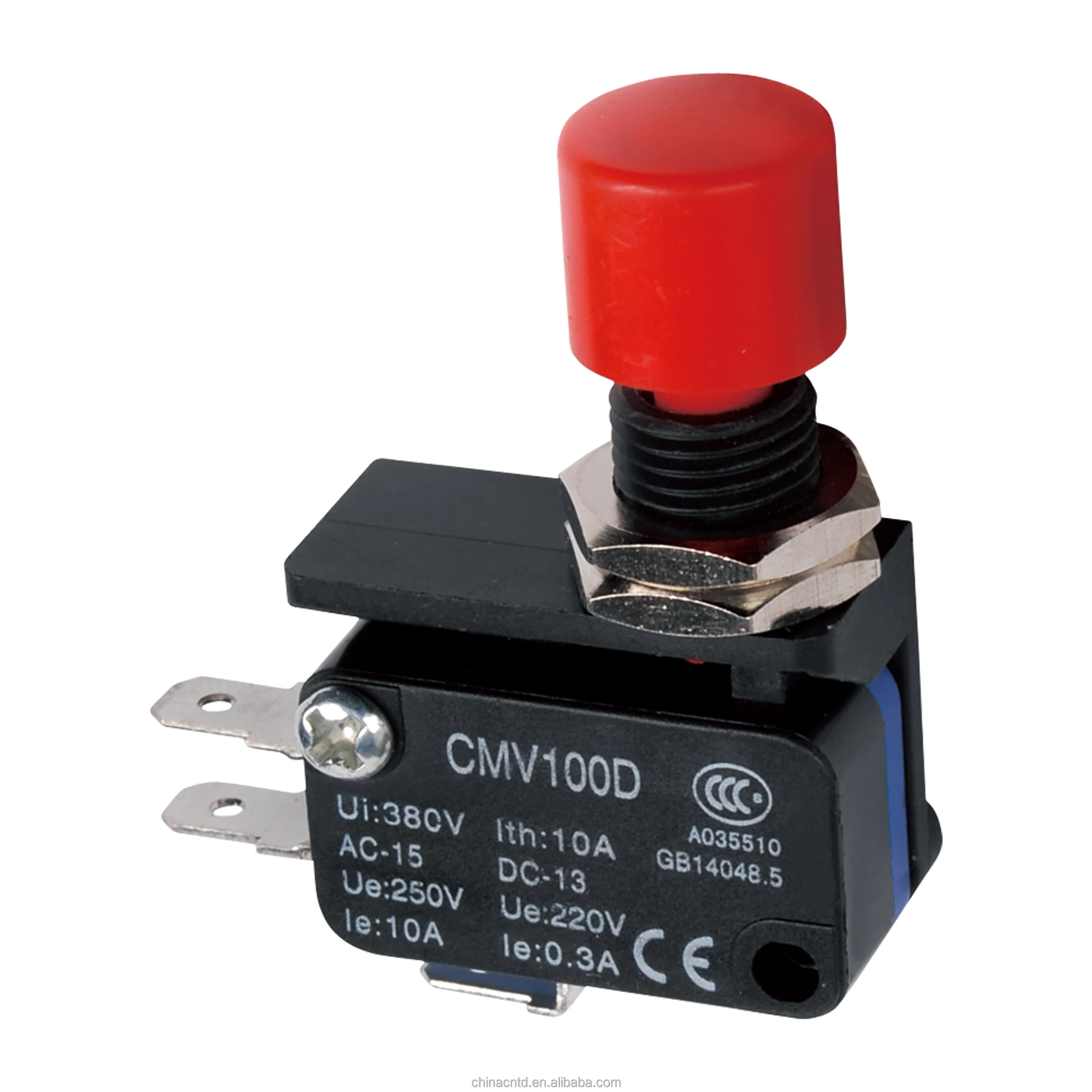

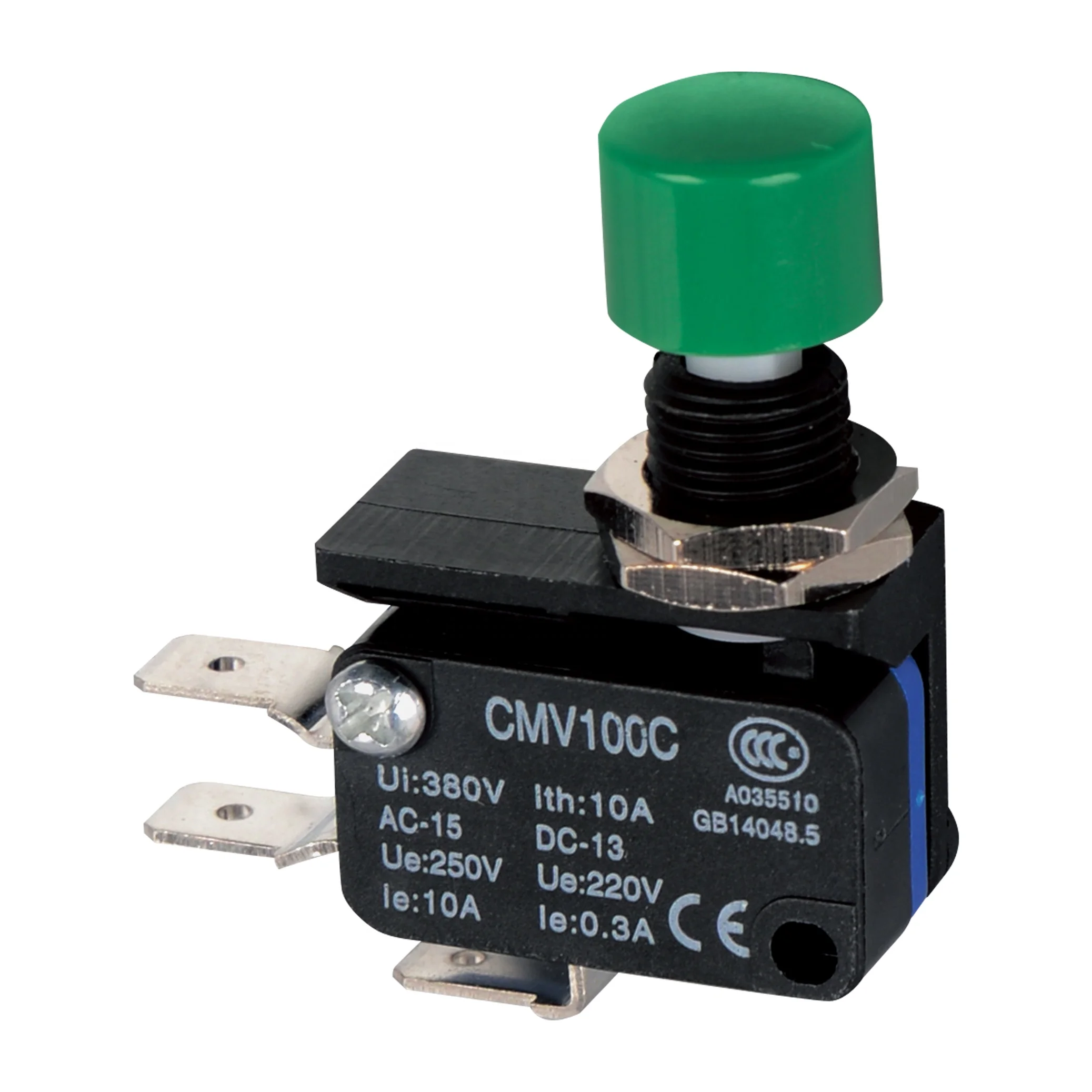

Head and driving rod | 0 | Button type |
1 | Long handle type | |
Head and driving rod | 2 | Short shank type |
3 | Long pulley type | |
4 | Short pulley type | |

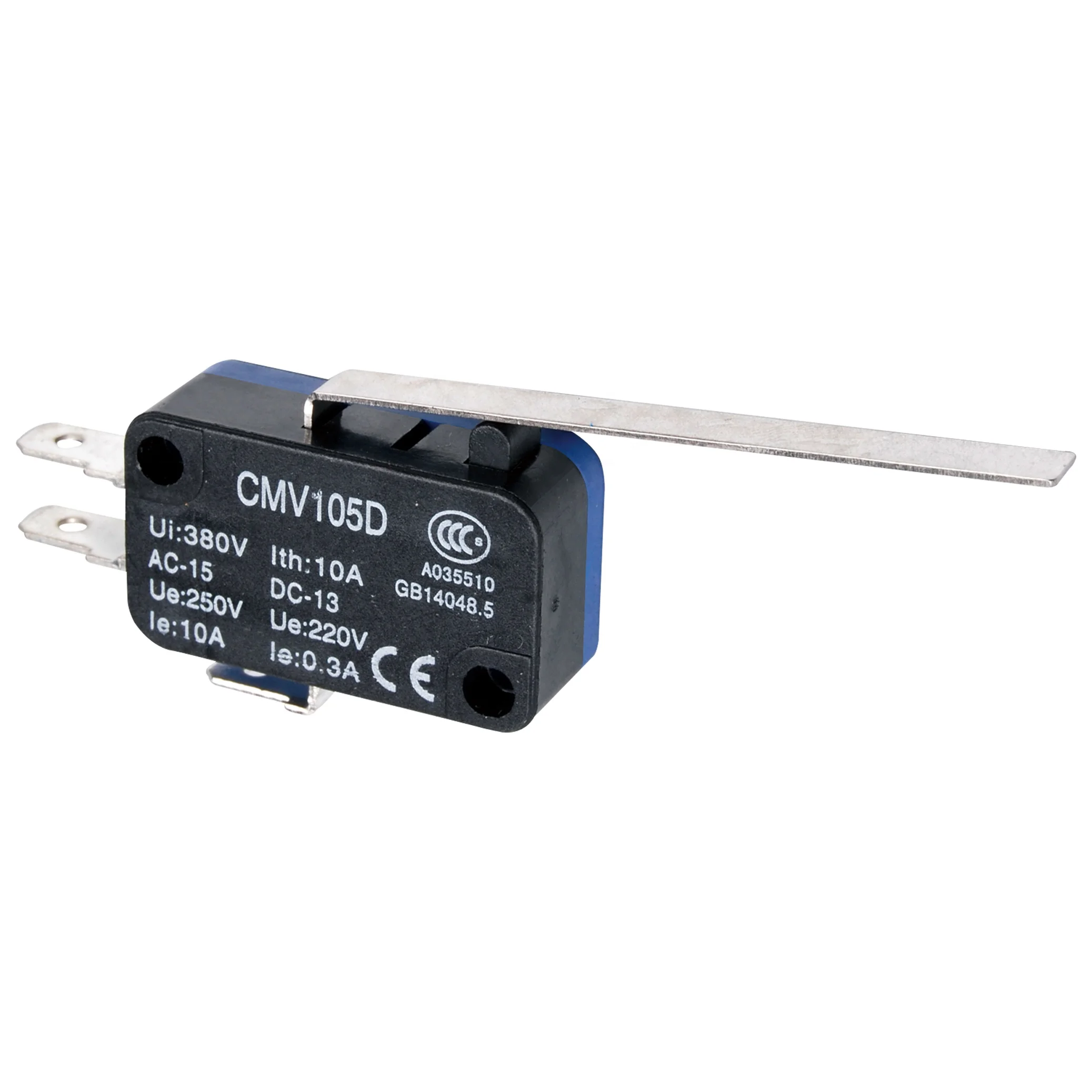

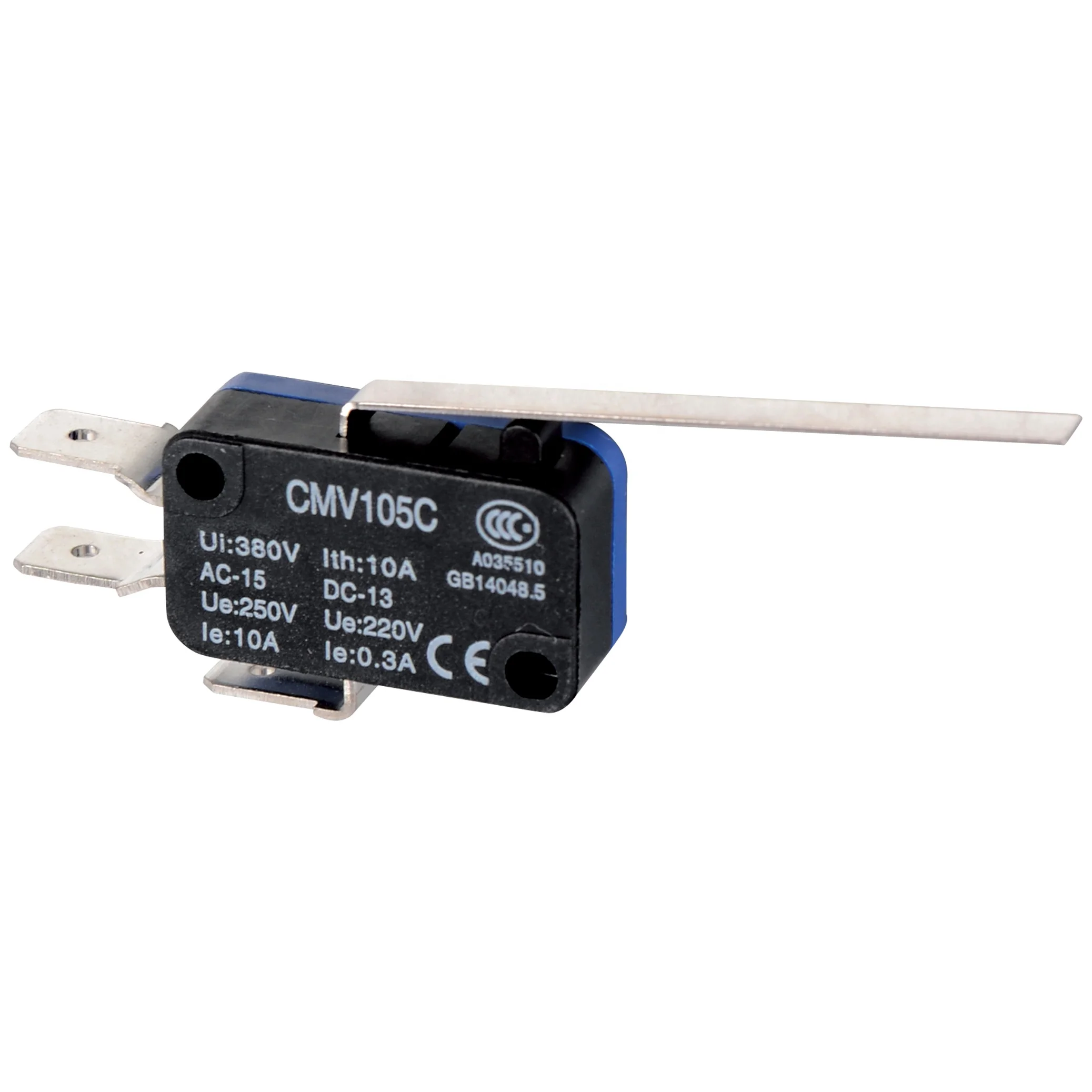

5 | Longer handle type | |

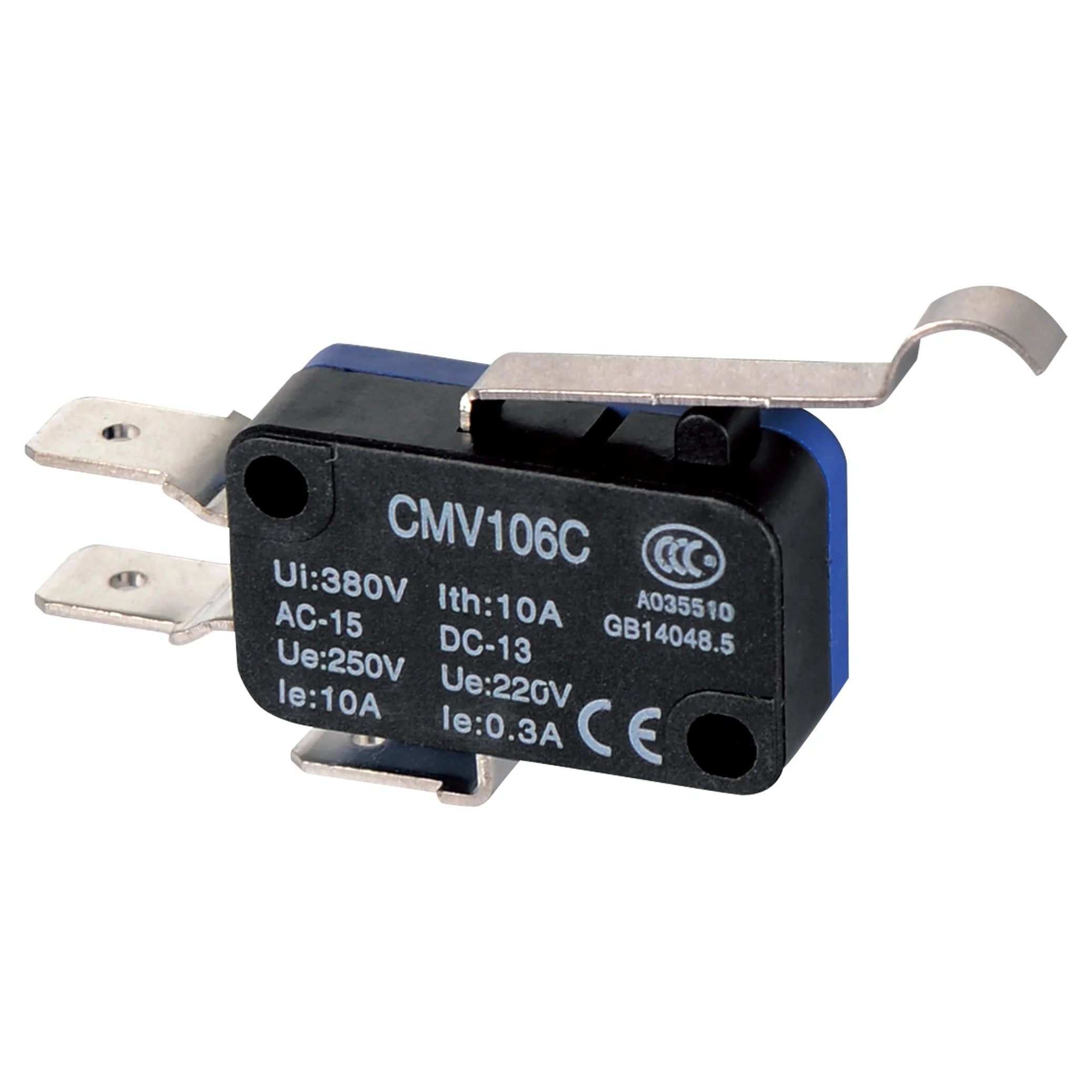

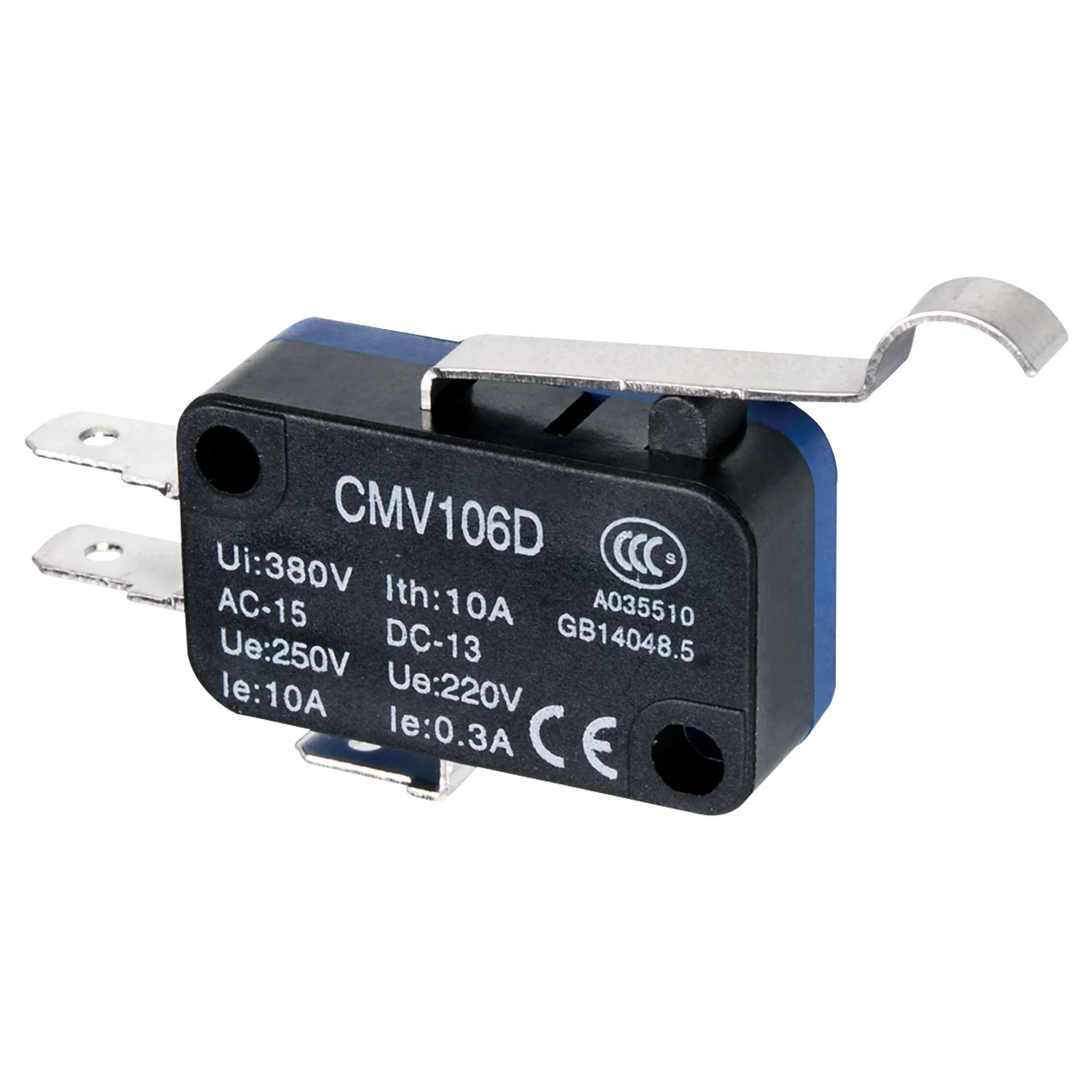

6 | Crank type | |
Terminal specifications | C | #250 terminal |
D | #187 terminal |
Ratings
Spec. | Noninductive Load (A) | Inductive Load (A) | |||||||||||||||
10A | Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||||||||||
NC | NO | NC | NO | NC | NO | NC | NO | ||||||||||
250VAC | 10 | 1.5 | 6 | 2 | |||||||||||||
8VDC | 10 | 3 | 6 | 3 | |||||||||||||
30VDC | 6 | 3 | 6 | 3 | |||||||||||||
125VDC | 0.3 | 0.1 | 0.6 | 0.1 | |||||||||||||
250VDC | 0.3 | 0.05 | 0.3 | 0.05 | |||||||||||||
Inrush Current | N.C/N.O: 24A max | ||||||||||||||||
Specifications
Type | CMV 10 type | ||
Operation Speed | 0.05mm~1m/s (Button type) | ||
Operating Frequency | Electrical: 20 operations/min | ||
Insulation Resistance | 100MΩ above(at 500VDC) | ||
Contact Resistance | 15mΩ max. (initial value) | ||
Non-continuous terminals | 1000VAC, 50/60Hz for 1 minute | ||
Current-carrying and non-current-carrying metal parts, Between terminal and earthing | 1500VAC, 50/60Hz for 1 minute | ||
Vibration | Misoperation | 10 to 55Hz, 1.5mm pairs swing | |
Shock | Durable | Maximum 1000 m/S² (100G) | |
Misoperation | Maximum 200m/S² (100G) | ||
Electrical Life | More than 300,000 times | ||
Ambient Temperature | Using: -20~+70℃ (With no icing) | ||
Ambient Humidity | Below 85% RH (+5~35℃) | ||
Operating Characteristics
Models | CMV100D | CMV101D | CMV102D | CMV103D | CMV104D | CMV105D | CMV106D |
OF(Max.) | 2.4N | 1.23N | 2.4N | 1.23N | 0.7N | 0.69N | 1.2N |
RF(Min.) | 0.49N | 0.14N | 0.49N | 0.14N | 0.49N | 0.06N | 0.14N |
PT(Max.) | 1.2mm | 4.0mm | 1.6mm | 4.0mm | 1.5mm | 9.0mm | 4.0mm |
OT(Min.) | 1.0mm | 1.6mm | 0.8mm | 1.6mm | 0.8mm | 2.0mm | 1.5mm |
MD(Max.) | 0.4mm | 1.5mm | 0.6mm | 0.6mm | 0.6mm | 2.8mm | 1.5mm |
OP(mm.) | 14.7±0.4 | 15.2±1.2 | 15.2±0.5 | 20.7±1.2 | 20.7±0.6 | 15.2±3 | 18.7±1.2 |
