Product Overview

Description





Product Description

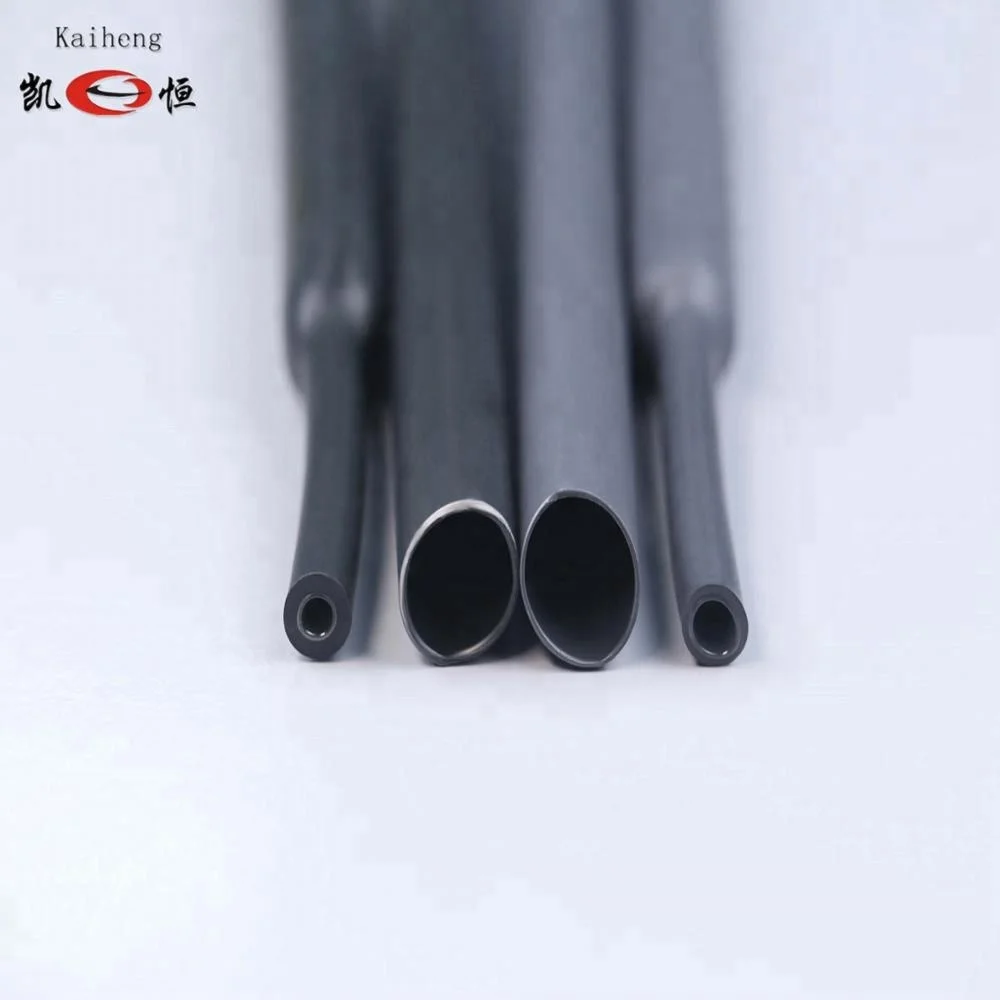

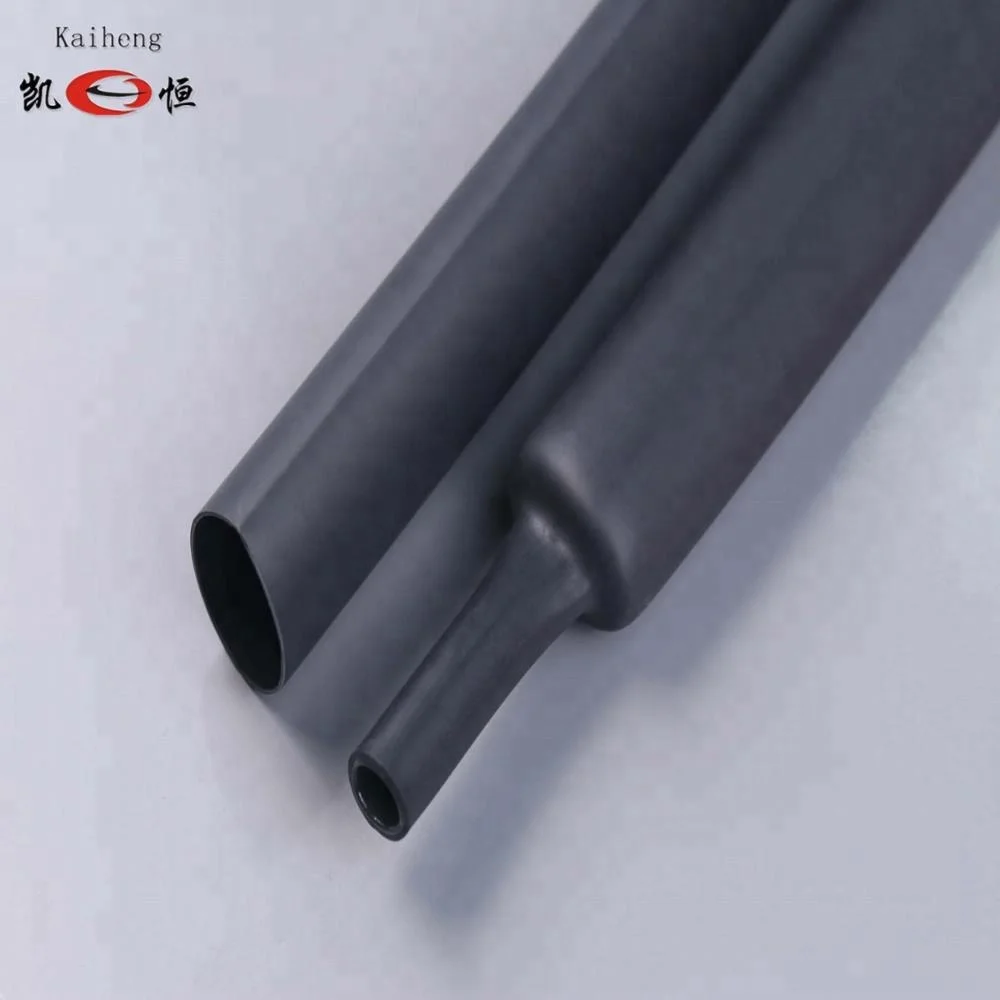

KS-DW 4:1

Dual wall, high-shrink-ratio, adhesive-lined flexible polyolefin tubing

KS-DW 4:1 is a flexible, flame-retardant, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive. Inner is hot-melt adhesive with good stickness and outer is flexible, irradiated cross-linked polyolefin. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets without removing connectors.







Specification values
Property
Requirement
Test method
Typical value


Physical:
Tensile strength
9.0MPa min.
ASTM D 638
≥12MPa
Elongation
200% min.
ASTM D 638
≥400%
Heat shock
No cracking, dripping or flowing of outer wall
ASTM D 2671
Pass
Low temperature flexibility
No cracking
ASTM D 2671
Pass
Aging 158℃,168hrs
Tensile strength after aging
70% of original min.
ASTM D 638
≥90%
Elongation after aging
100% min.
ASTM D 638
≥300%

Electrical:
Dielectric voltage withstand
2500V, 60sec no breakdown

Pass
Volume resistivity
1014Ω•cm min.
ASTM D 876
≥1014Ω•cm

Chemical:
Copper corrosion 158℃,168hrs
No corrosion
ASTM D 2671
Pass
Flammability
ALL TUBING FLAME TEST
UL224
Pass


■\tFeatures/Benefits

•Shrink ratio:4:1.
•Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
•Good mechanical, electrical and chemical properties.
•Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.
•Conform to RoHS and Sony-ss00259 environmental directive.



■\tOperating Temperature Range

•Operating temperature range: -55℃~110℃
•Minimum shrink temperature: 80℃
•Minimum full recovery temperature: 110℃



■\tSpecifications/Standards

UL224 125℃ 600V
AMS-DTL-23053/4 class3



Product sizes
Size

As supplied(mm)
After recovery(mm)
Standard length
(inch/mm)
Inside diameter
(min.)

Wall thickness
(nominal)

Inside diameter
Wall thickness*
(nominal)

Adhesive wall thickness
(nominal)

m/length,m/spool

Shrink Radio 3:1
1/8 (3/1)
3.0
0.35
1.0
1.00±0.28
0.50
1.2/200
3/16 (4.8/1.6)
4.8
0.35
1.6
1.00±0.28
0.50
1.2/100
1/4 (6/2)
6.0
0.4
2.0
1.00±0.28
0.50
1.2/100
3/8 (9/3)
9.0
0.5
3.0
1.40±0.28
0.60
1.2
1/2 (12/4)
12.0
0.6
4.0
1.78±0.38
0.76
1.2
3/4 (18/6)
18.0
0.7
6.0
2.25±0.55
0.76
1.2
1 (24/8)
24.0
0.8
8.0
2.54±0.55
1.02
1.2
1 1/4 (30/10)
30.0
0.8
10.0
2.54±0.55
1.02
1.2
1 1/2 (39/13)
39.0
0.8
13.0
2.54±0.55
1.02
1.2
Shrink Radio 4:1
4/1
4.0
0.4
1.0
1.00±0.28
0.50
1.2
6/1.5
6.0
0.45
1.5
1.00±0.28
0.50
1.2
8/2
8.0
0.45
2.0
1.00±0.28
0.50
1.2
12/3
12.0
0.5
3.0
1.40±0.28
0.60
1.2
16/4
16.0
0.6
4.0
1.78±0.38
0.76
1.2
24/6
24.0
0.7
6.0
2.25±0.55
0.76
1.2
32/8
32.0
0.8
8.0
2.54±0.55
1.02
1.2
52/13
50.0
0.8
13.0
2.54±0.55
1.02
1.2
