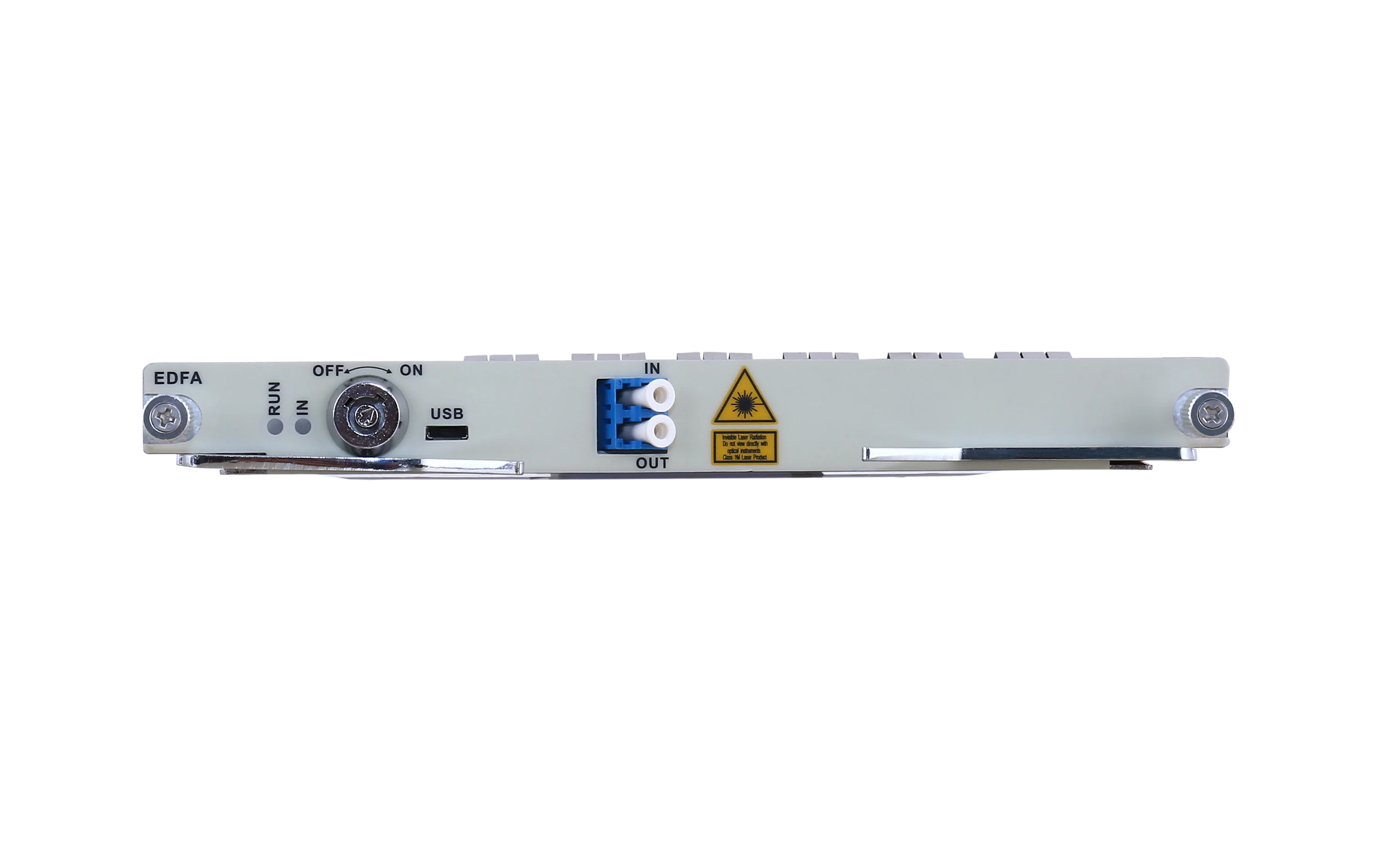

1U 1550nm DWDM Variable Gain Optical Amplifier EDFA VGA Model wdm edfa 1550nm
- Category: >>>
- Supplier: Shanghai B And A Technology Co. Ltd.
Share on (1600220445672):
Product Overview
Description
Product Description
The Variable Gain (VG) EDFA is a micro processor-controlled module for C-band amplification. The EDFA contains mid-stage access for dispersion compensation modules. It is packaged in a standard 90x70 multi-source amplifier package, meaning that it can be mounted on any line card already designed to accommodate a multi-source EDFA.
This optical amplifier is high stability output EDFA. The key components of the product are high reliability multimode PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power, the unique optical circuit design ensures the excellent optical performance
Specification
Parameter | Min | Typ | Max | Unit | Notes | |
Wavelength | 1529 | 1550 | 1564 | nm |
| |
Input power range | -30 |
| 0 | dBm |
| |
0utput power range | -10 |
| 20 | dBm |
| |
Saturated output power(1) |
|
| 20 | dBm |
| |
Gain Range | 20 | 20 | 30 | dB |
| |
Mid-stage range | 0 | 4 | 4 | dB | For FBG DCM only | |
Noise Figure | G=25dB |
|
| 5.8 | dB | Test condition:0utput power:18dBm@1550nm |
G≥22dB |
|
| 5.9 | dB | ||
G≥20dB |
|
| 7.5 | dB | ||
G≥15dB |
|
| 12.2 | dB | ||
G≥13dB |
|
| 15 | dB | ||
G≥10dB |
|
| 21.5 | dB | ||
Gain Stability |
|
| ±0.1 | dB |
| |
Settable tilt |
| 0 |
| dB | Positive tilt for gain below 22dB | |
Gain setting Accuracy | -0.5 |
| +0.5 | dB |
| |
Gain Flatness vs wavelength | ------ | ±0.5 | ±0.75 | dB | Test condition:0utput power:18dBm | |

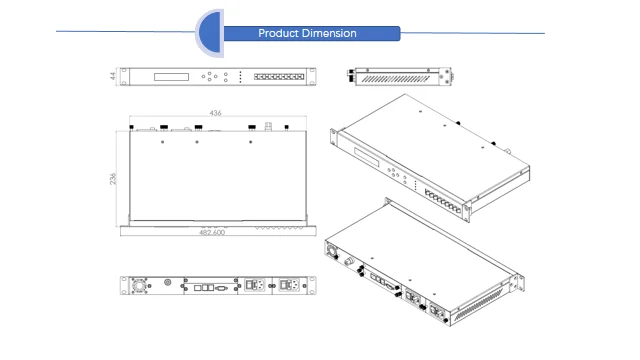

Size
482*236*44 mm
Packaging & Shipping
Packing Details: Standard export package or customized package
Delivery Details: 7-15days
