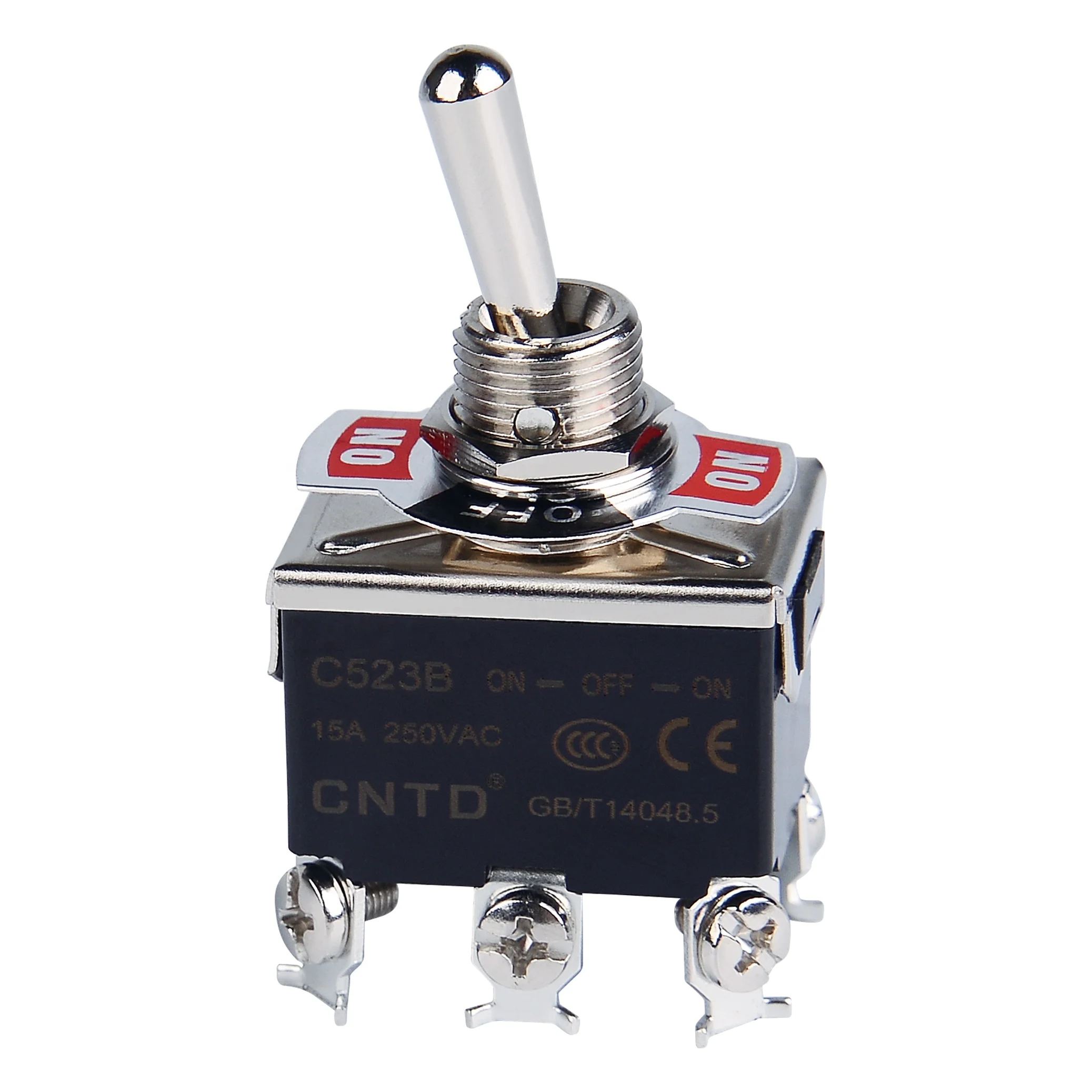

CNTD Double Pole Double Throw Self locking Type 15A 250V Screw Terminal C523B ON OFF ON Toggle Switch
- Category: Toggle Switches >>>
- Supplier: Cntd,Electric,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Features
10A type and 15A type for selection
Fixed type and auto-return type (both single-throw and double-throw) for selection
Screw terminal, solder terminal and tab terminal for selection
Water-proof cap for water-proof and oil-proof
Mounting hole: Ф 12mm
Model Number Structure
Item | Code | Decription |
Type | CO | 10A 250VAC Self-locking |
COR | 10A 250VAC Spring return | |
C5 | 15A 250VAC Self locking | |
C5R | 15A 250VAC Spring return | |
Contact | 11 | Single pole single throw ON-OFF |
12 | Single pole double throw ON-ON | |
13 | Single pole double throw (central OFF)ON-OFF-ON | |
131 | Single pole double throw (central OFF single return)ON-OFF-ON | |
21 | Double pole single throw ON-OFF | |
22 | Double pole double throw ON-ON | |
23 | Double pole double throw (central OFF)ON-OFF-ON | |
231 | Double pole double throw (central OFF single return)ON-OFF-ON | |

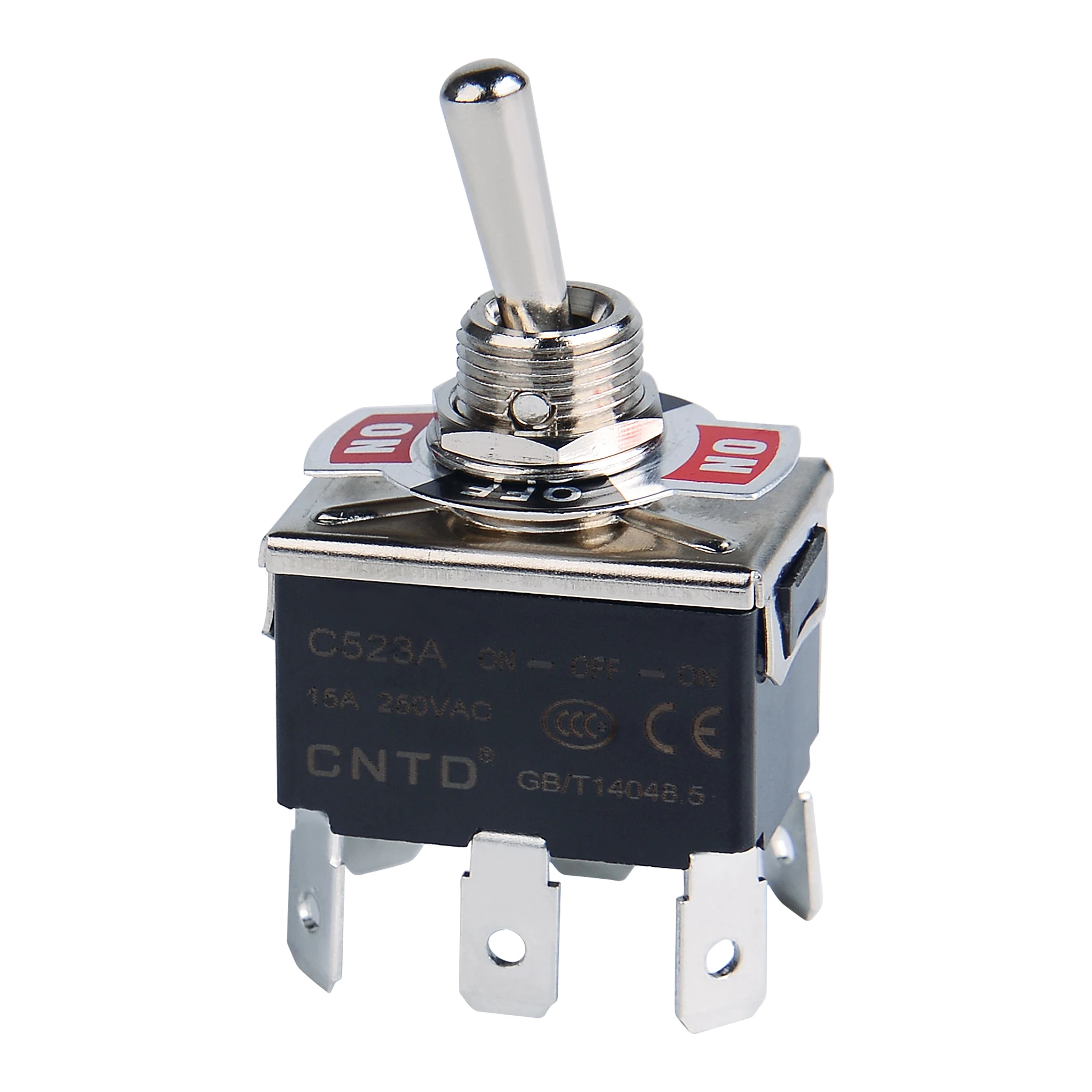

Terminal | A | Tab terminal(#250) |
B | Screw terminal | |
C | Solder terminal(#187) |
Specifications
Contact resistance | 15MΩ max. (initial) |
Insulation resistance | 100MΩ above (under 500VDC) |
Dielectric strength | 2000VAC, 50/60Hz for 1 minute |
Vibration | 10 to 55Hz, 1.5mm double amplitude |
Ambient temperature | Using: -20~+70℃ (With no icing) |
Humidity | 85% RH max. |
Electrical life | 500,000 operations above |
Ratings
Load | Type | AC Rating | DC Rating |
Resistance Load | CO | 10A 250V 15A 125V | 0.4A 250V 0.8A 125V |
C5 | 15A 250V 20A 125V | 0.5A 250V 0.9A 125V | |
Inductive Load | CO | 10A 250V 15A 125V | 0.2A 250V 0.4A 125V |
C5 | 15A 250V 20A 125V | 0.3A 250V 0.5A 125V 15A | |
Lamp Load | CO | 300W 100V 500W 200V | 30V |
C5 | 400W 125V 800W 250V | - | |
Motor Load | CO | 200W 125V 300W 250V | 7A 30V |
C5 | 400W 125V(single phase) | ||
CO | 500W 250V(three phase) | - | |
C5 | 750W 250V(three phase) |
