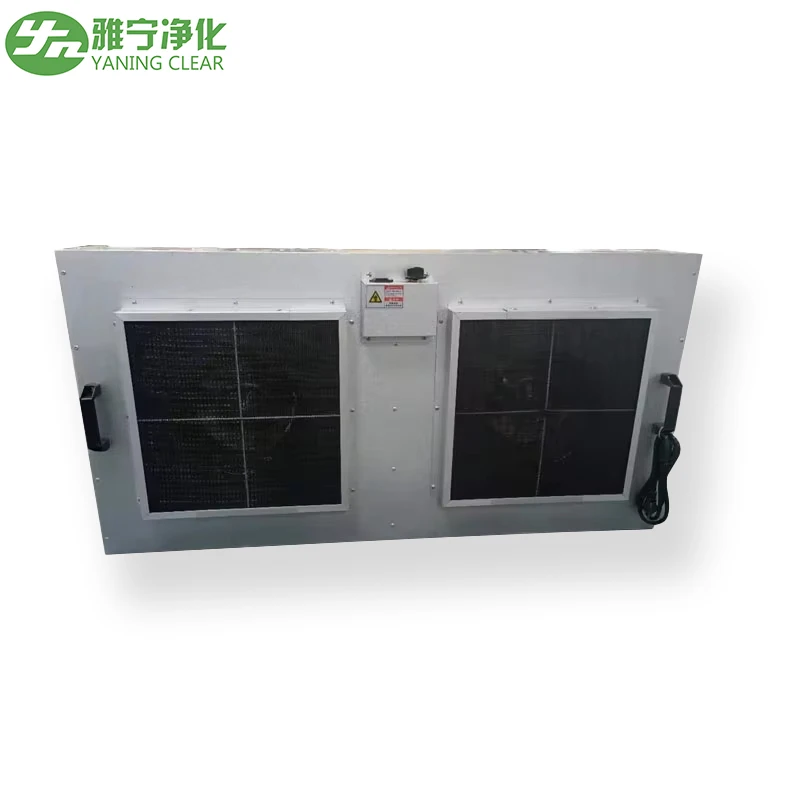

110V/60 Double Fan FFU for North American Market Air Cleaning Equipment

Share on (1600220595047):


Price:$300.00-600.00

Quantity:


Product Overview

Description



Products Description


The fan filter unit (FFU) is an air self-cleaning device that can be mounted on a ceiling or placed on a stand to achieve a local level of 100.

It can also be used to supply air at the end of a clean room. The product is equipped with an primary efficiency and
high-efficiency two-stage filtration device. The fan sucks in air from the top and filters it with pre filter and hepa filter. The
filtered clean air is sent out through the air outlet. There are two types of mounting methods: hanging and floor stand.



FFU (Fan Filter Unit) is the combination of the Fan and Filter, also known as "filtering equipment of the air blower. Head is
usually installed in the clean room terminal air supply, usually placed in the hoisting of the "dry" gasket seal on the keel
frame. Above the head part is fan module, the following sections for the filter. According to the requirements of cleanliness, the filter can provide different levels of efficiency (HEPA) or super efficient (ULPA) filter, clean air for clean room. Fan module in addition to overcome the resistance of the hepa filter head lower, but also overcome the resistance of the entire circulation wind all components of the channel, so as to maintain a set of wind speed operation. Flexible head system had advantages of simple design and construction, wind speed regulating, clean area is easy to change wait for a characteristic, therefore has become one of the popular industrial clean room system.

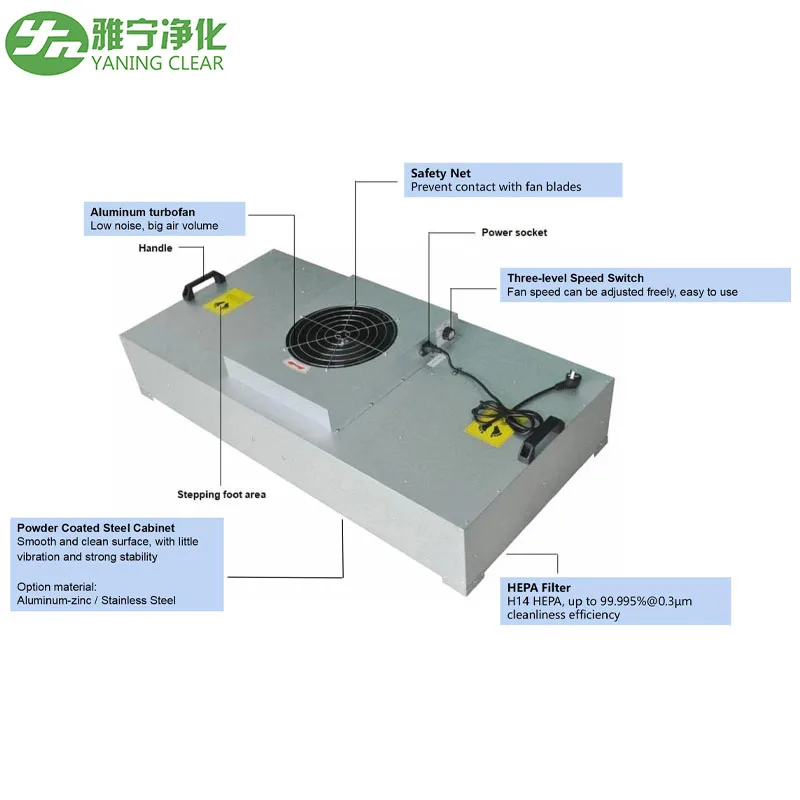

Features


1.FFU box made of cold-rolled steel plate sprayed or made of stainless steel, compact structure and beautiful appearance;

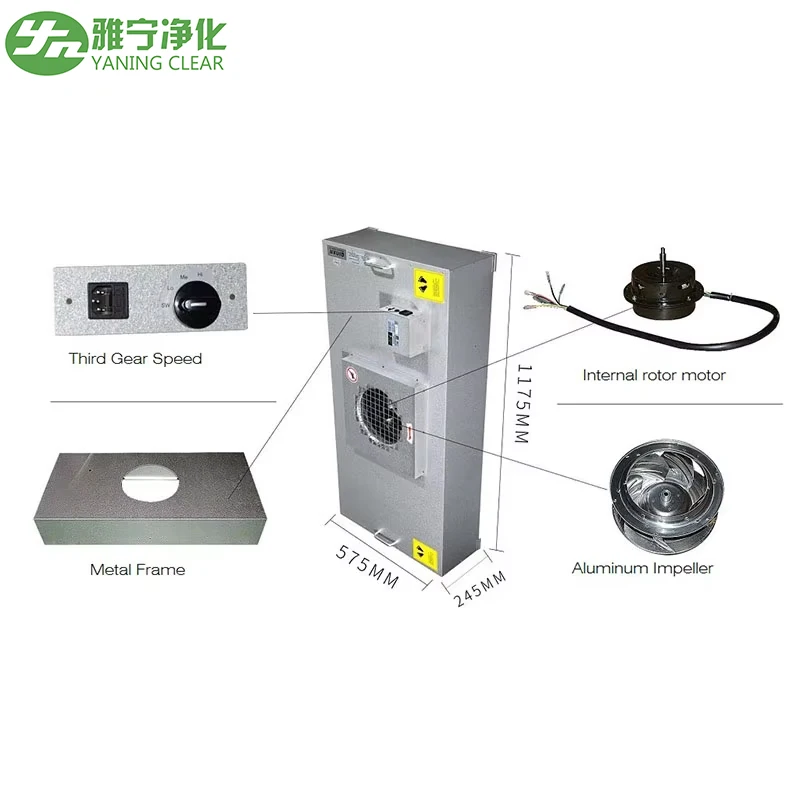

2. using direct-drive high efficiency centrifugal fan, with long life, low noise, maintenance-free, small vibration, adjustable
speed;

3. suitable for assembly into ultra-clean production lines, according to the process layout for a single use, can also be more than one series to form 100 assembly line. Efficient filter configuration, replacement is extremely convenient.




Product Paramenters


Model
YN-FFU-575
YN-FFU-1175
YN-FFU-875
YN-FFU-1175*2
YN-FFU-1475
(mm) Body size
W*L*H
575*575*230
575*1175*230
875*1175*230
1175*1175*230
725*1475*230
(mm) Filter size
W*L*H
570*570*69
570*570*69
870*1170*69
1170*1170*69
720*1470*69
Air velocity
5-8CMM
500m³/h
12-16CMM
1000m³/h
19-25CMM
1500m³/h
21-34CMM
2000m³/h
19-26CMM
1500m³/h
Noise
48-54dB(A)
48-54dB(A)
50-56dB(A)
52-58dB(A)
50-56dB(A)
Fan full pressure
210 Pa
210 Pa


220 Pa
230 Pa
220 Pa
Power
170W
170W
210W
275W
210W
Weight
28 kg
35 kg
47 kg
55 kg
50 kg
Material
Powder coat steel/Galvanized Aluminum Plate/Stainless Steel 304
Power Supply
AC Single phase 110V/220V  50Hz/60Hz    AC Single phase 220V/380V 50Hz/60Hz
High efficiency power

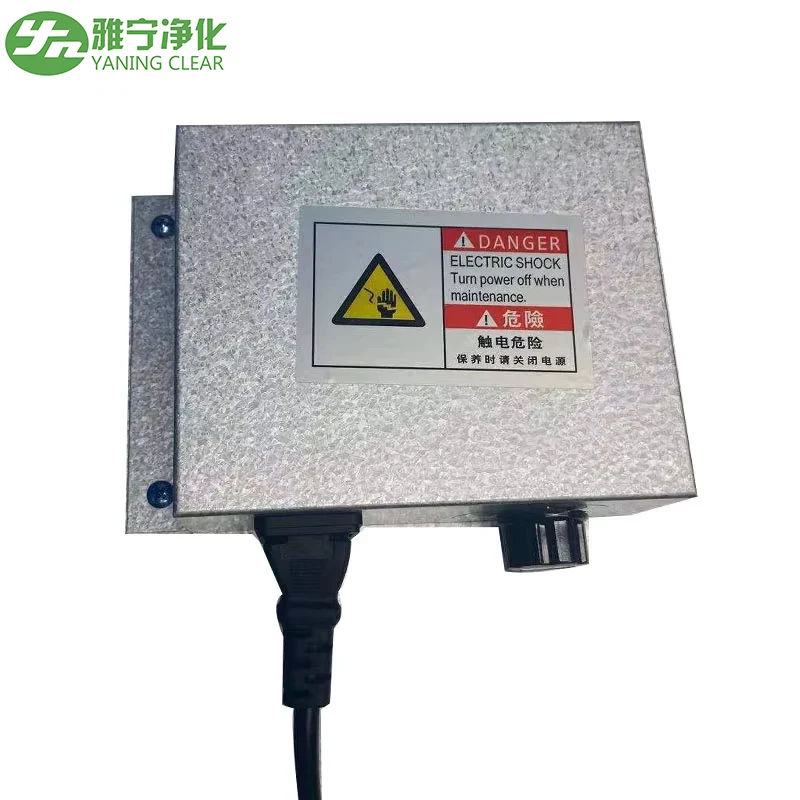

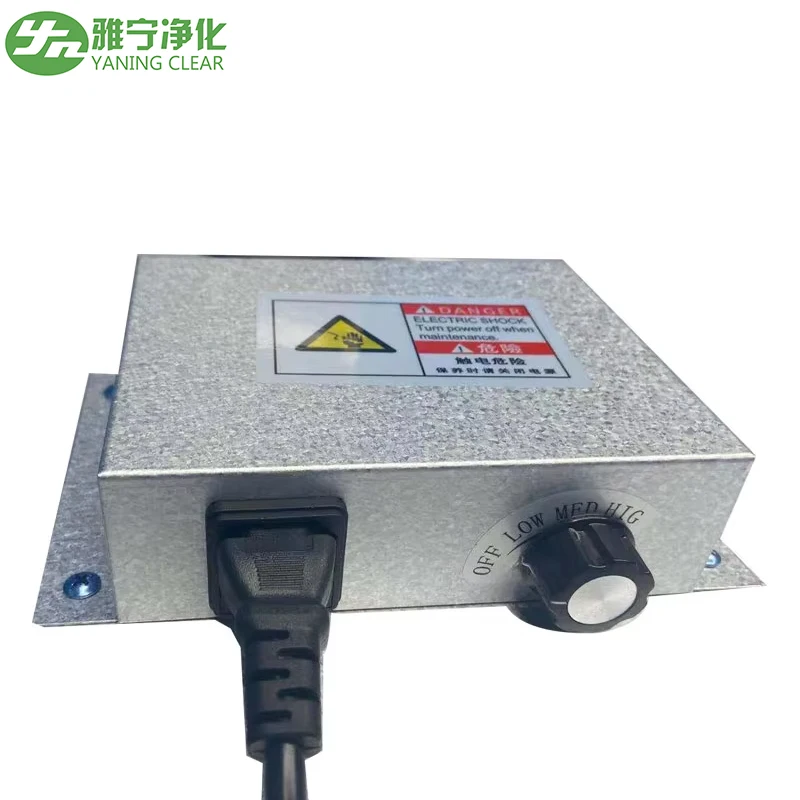

Three Section Adjustable/Five section adjustable
Filter Efficiency
≥HEPA 0.3um 99.99%/ULPA 0.12um 99.999%
Work Condition
Power Indicator Switch/Fault Indicating Lamp
Overload Protection
Motor Controller overload protection switch
Connection Type

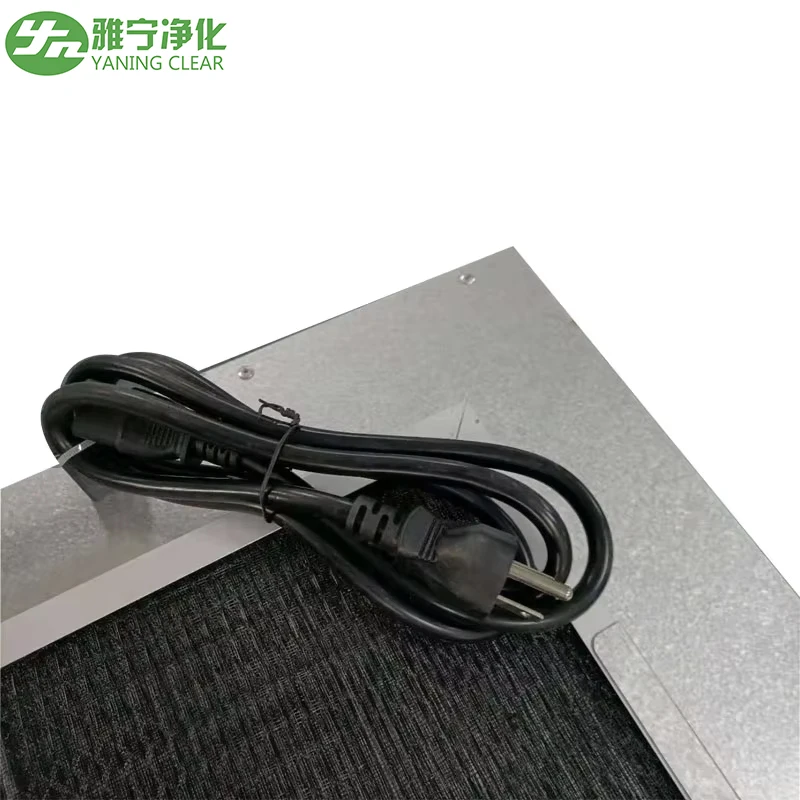

Terminal block/ male and female connector / power cord
Monitoring Contact
Reserved run and fault dry connection

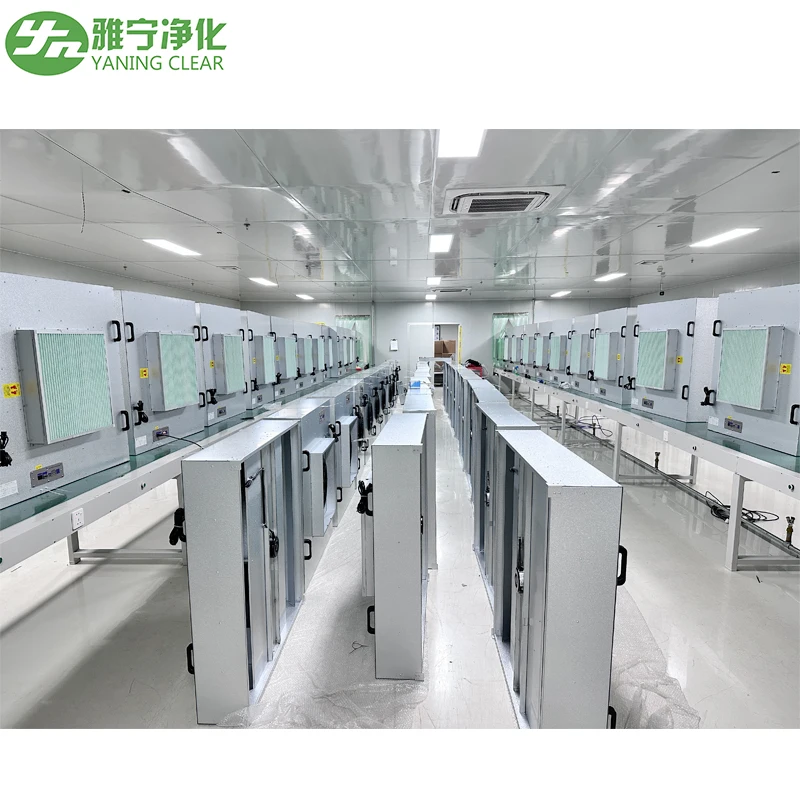

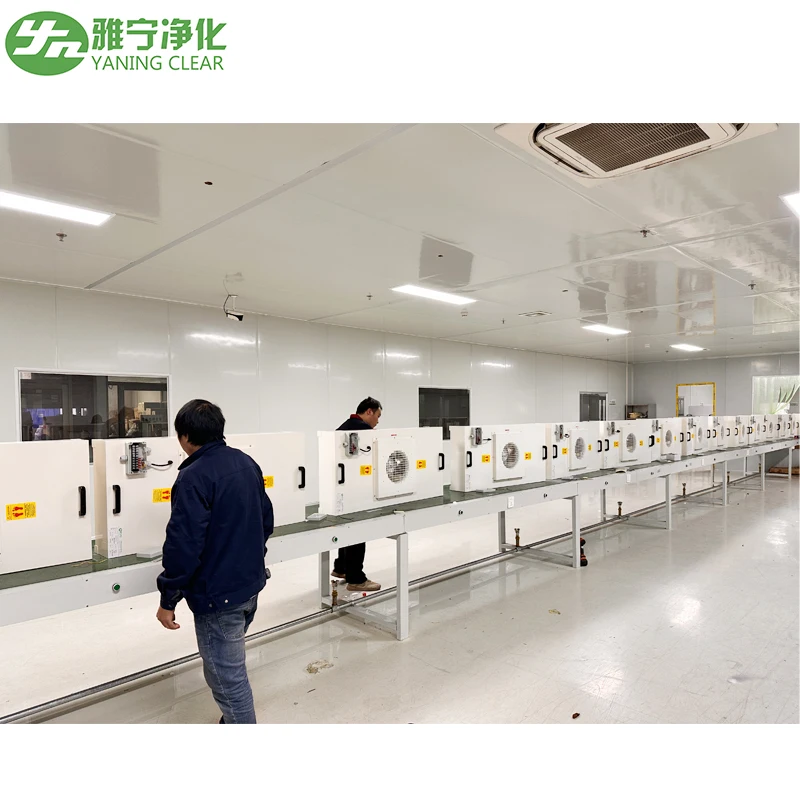

Our Factory


Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong




Packing&Delivery




Packaging
The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam,
and then fixed in the pallet or wooden box.
shipping
Samples be shipped by DHL/FedExUSP and so on
Mass production be shippinh by Air or Sea
