48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch
48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch

48V/DC 20amp THC-20A hot sailing lighting time switch programmable large LCD timer switch control switch

Share on:


Price:$5.39 - $7.97
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

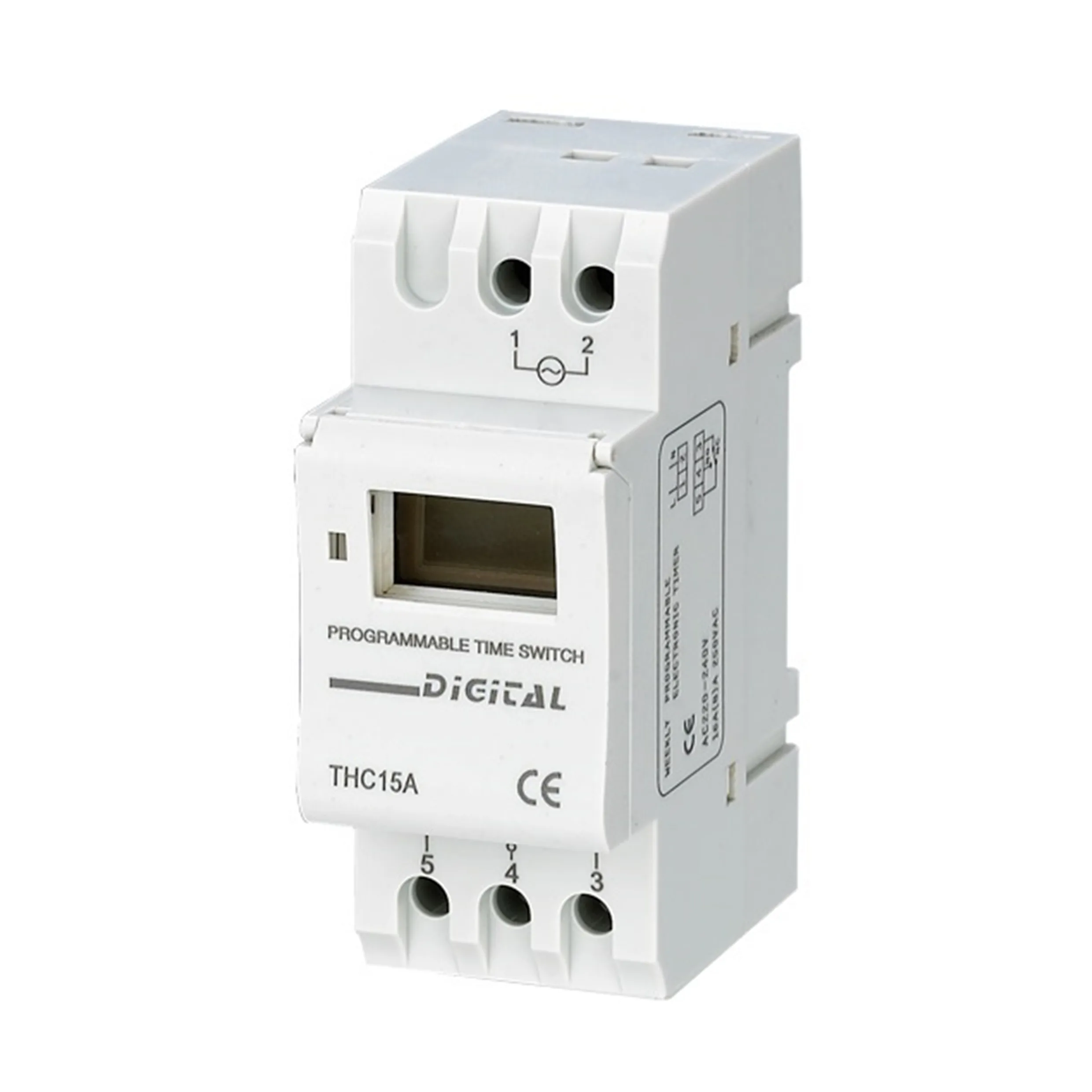

 Timer of THC15A/20A/30A series are cost-effective choice, there are very diverse features and flexible installation, and a wide range of applications including commercial and industrial lighting and equipment control.























































Product DescriptionDigital Timer progaramming
ModelTHC-20A
Current16 /20/25/30 amp
Voltage220-240vac ; others could be customized
Advantage16ON +16OFF ,during 24hours
Chips of Industrial, strong anti-jamming ;
650MA Lithium battery inside ,reserving 5 years;
Silver relay contactor(not silver covered or copper) ;
Lightning Surge protection  ;
PC new material cover ;
Packing1pc/ colour box ; 100pcs/ carton
Key colour

grey ,blue ,red and the butterfly blue(common  colour)


♣customized colour: light red ,dark red ,orange, grey and yellow


CertificationCE ,EESS (SAA)

Applications:


• Lighting Panel Control    • Landscape Lighting      • Light of billboard or showcase control


• Air-condition or Commercial Refrigeration          • General Electrical Circuits


• Pumps/Motor/Fan Control        • Hydroponic Systems     • Wastewater Treatment Systems


• Generator Exercising           • Boilers / Heater Control         • Hot Water Pump Circulation


  • Aerobic Waste Water Systems      • Pool & Spa   • Ventilation                 • Bug and Pest Control Systems





Technical data:



  1. Voltage rating: AC 220V 50/60Hz  (Note: 12V, 24V, 36V, 48V, 110V is customizable;)

  2. Voltage limit: AC 180V~250V

  3. Hysteresis: 1 sec/day (25℃)

  4. ON/OFF operation: 16ON & 16OFF

  5. Power consumption: 2VA(max)

  6. Display: LCD

  7. Service life:   a) Mechanical life:107    b) Electrical life: 105

  8. Minimum interval: 1 minute

  9. Weight: approx 150g

  10. Count down:1 sec-99 min 56 sec

  11. Pulse:1 sec-59 min 59 sec

  12. Load capacity:   a) Lamp load : 2000W   b) Resistive load: 16A/250V AC   c) Lagging load: 10A/250Vac

  13. Switching contact: 1 changeover switch

  14. Power reserve: 5 years (Lithium battery)

  15. Ambient temperature: -10~+40℃

  16. Ambient humidity: 35~85%RH










♣Taiwan chips :   strong anti-jamming, tested by EMC4000V;


♣have Lightning Surge protection


♣650MA Lithium battery inside: reserving for 5 years


♣30A Relay: Silver contacted


♣the Key colour:  grey ,blue ,red and the butterfly blue(common  colour)


♣customized colour: light red ,dark red ,orange, grey and yellow
