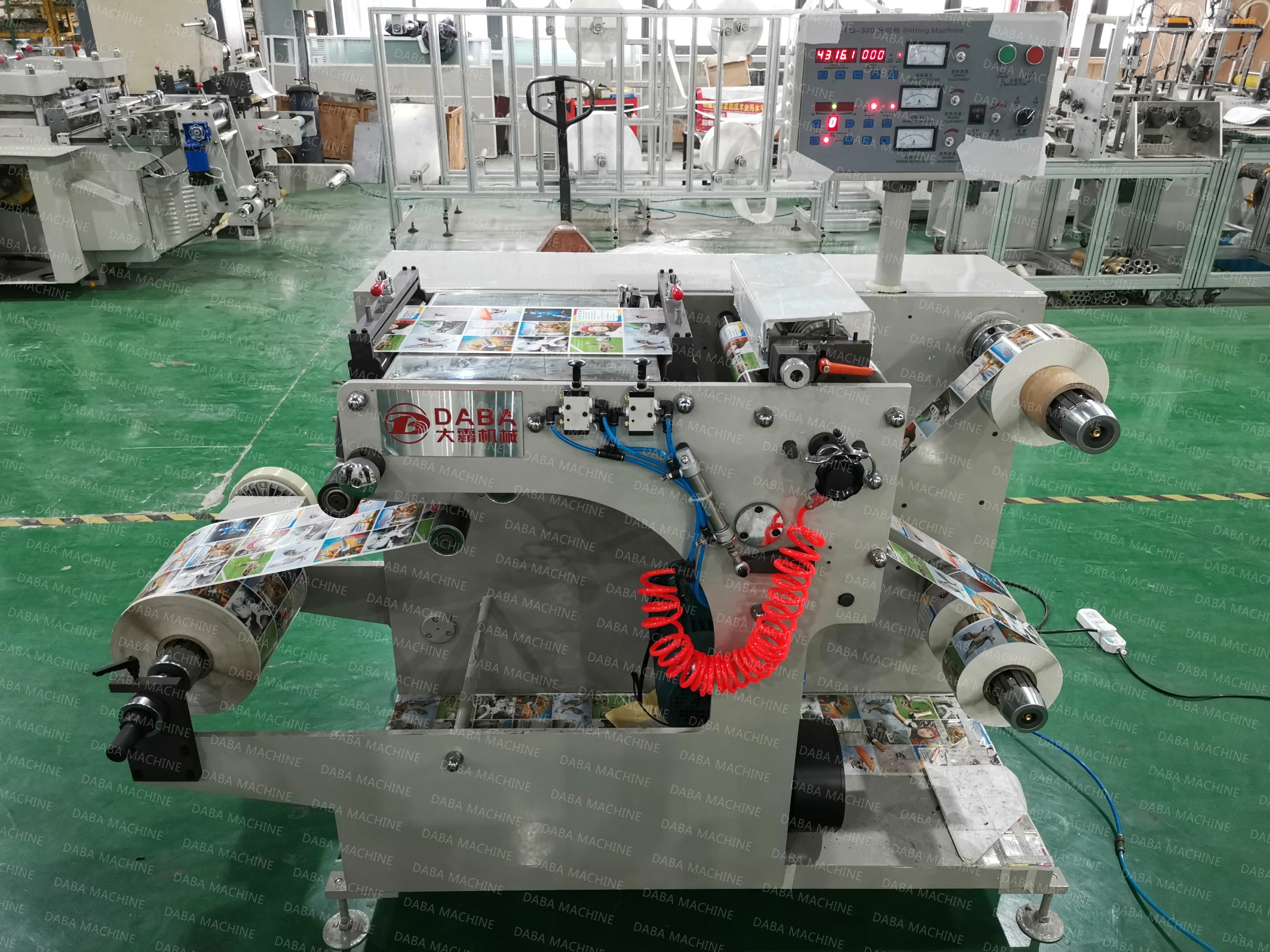

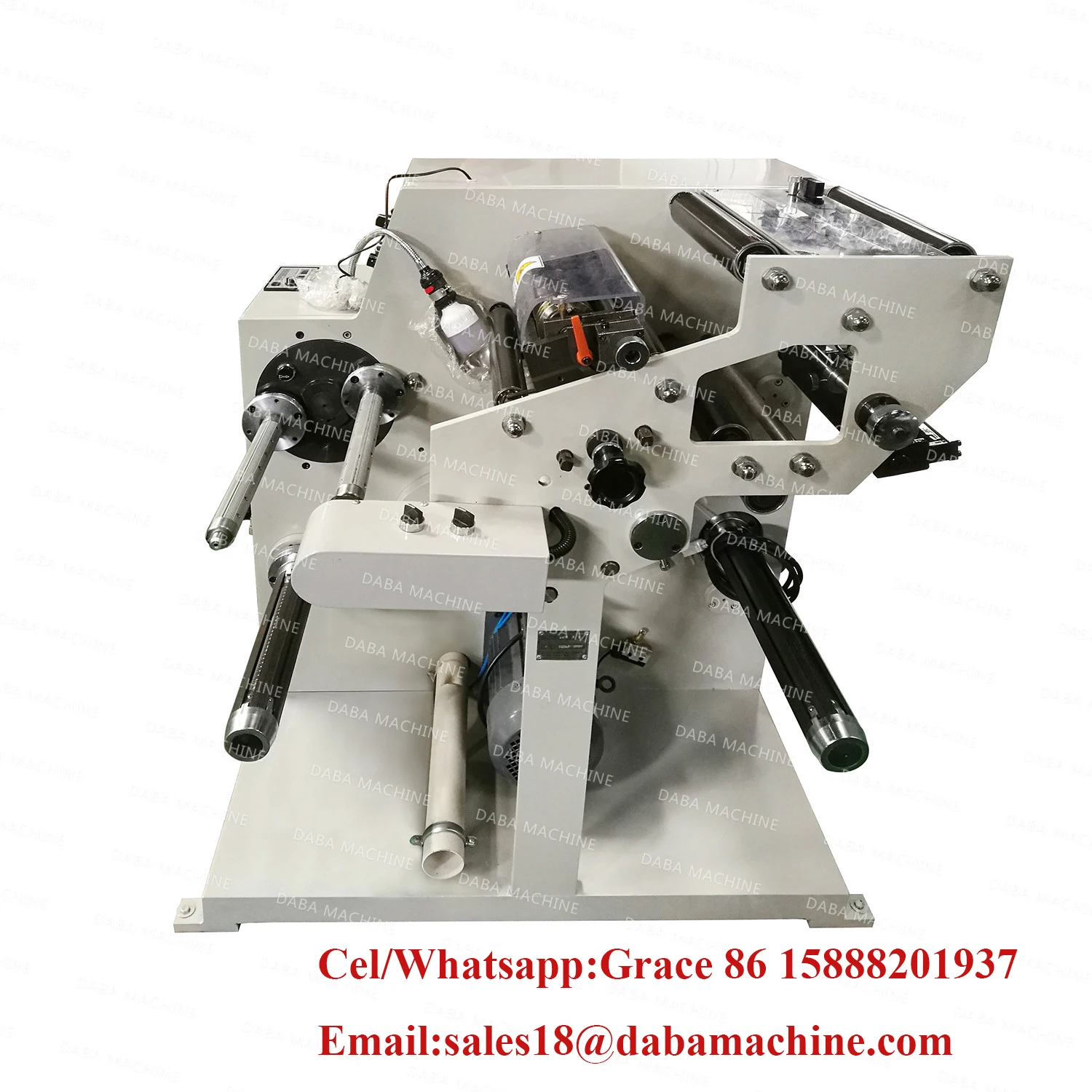

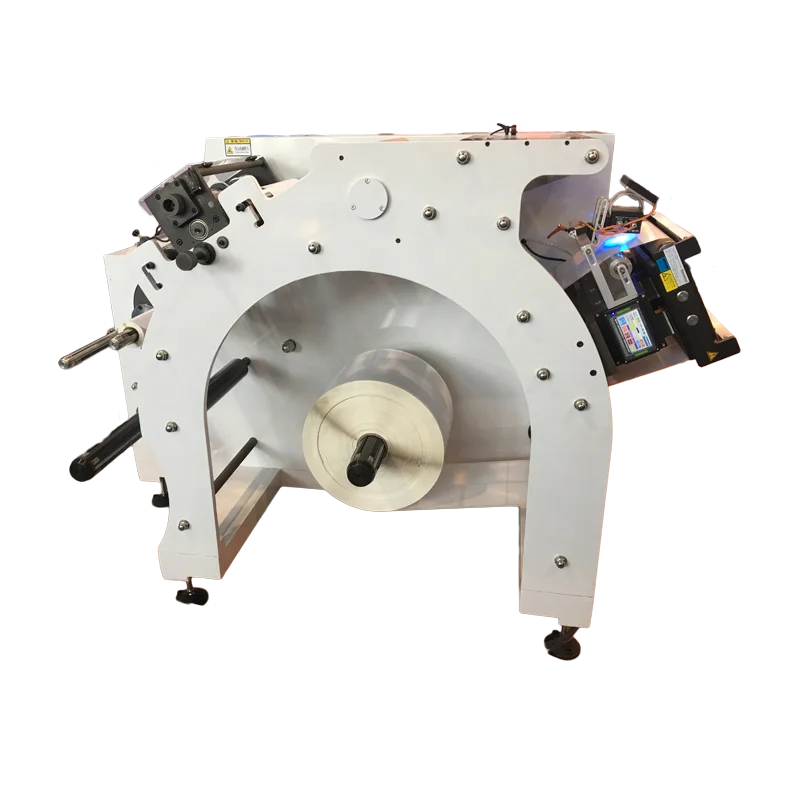

DBFQD-320A High quality low price die slitting machine for sale
The slitting machine is perfect national slitting equipment with the excellent characteristics of fined design, compact structure as well as favorable processing techniques.This machine is suitable for slitting narrow pieces of roll paper.The structure of complete machine is compact,with high speed,high efficiency,easy and steady operation.
1.Feature
1. Width of slitting roll material: 320 ㎜.
2. Max. unwinding diameter: φ600 ㎜, unwinding shaft adopts air type,the size is 3 inch.
3. Unwinding and rewinding are controlled by friction plate.(manual/automatic magnetic power control can be optional).
4. The paper receiving table can save time and bring convenience when changing materials.
5. Web guiding system,double photoelectric eyes auto control by computer, difference of deviation rectifying: ±0.1 ㎜.
6. With 8 sets of round slitting knives.
7. The min slitting width is 15 mm.
8. Max. rewinding diameter: φ600 ㎜, double position rewinding, rewinding shaft adopts air type.
9. Automatic meter counter and number counter.
10. There are air blower that can automatically discharge waste.
11. The speed can be 100-140m/min.
2. Max. unwinding diameter: φ600 ㎜, unwinding shaft adopts air type,the size is 3 inch.
3. Unwinding and rewinding are controlled by friction plate.(manual/automatic magnetic power control can be optional).
4. The paper receiving table can save time and bring convenience when changing materials.
5. Web guiding system,double photoelectric eyes auto control by computer, difference of deviation rectifying: ±0.1 ㎜.
6. With 8 sets of round slitting knives.
7. The min slitting width is 15 mm.
8. Max. rewinding diameter: φ600 ㎜, double position rewinding, rewinding shaft adopts air type.
9. Automatic meter counter and number counter.
10. There are air blower that can automatically discharge waste.
11. The speed can be 100-140m/min.
2.Technical Parameters
Model | DBFQD-320 |
Slitting Speed | 100-140m/min |
Max Web width | 320mm |
Max Unwinding Diameter | 600mm |
Max Rewinding Diamater | 600mm |
Precision Of Slitting | 0.1mm |
Power | 2.2kw |
Dimension(LXWXH) | 1200×800×1200mm |
Weight | 500kg |
Related Products

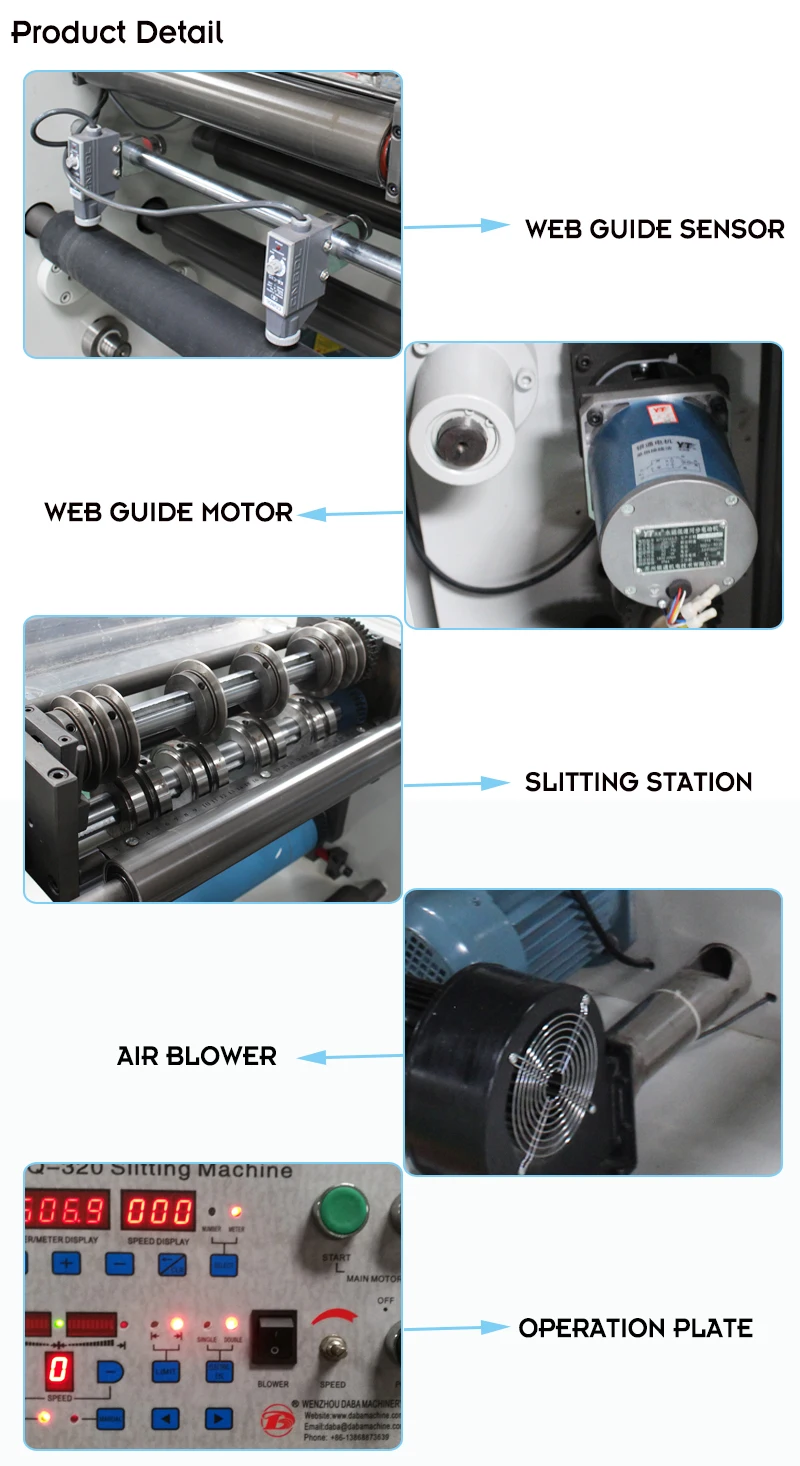

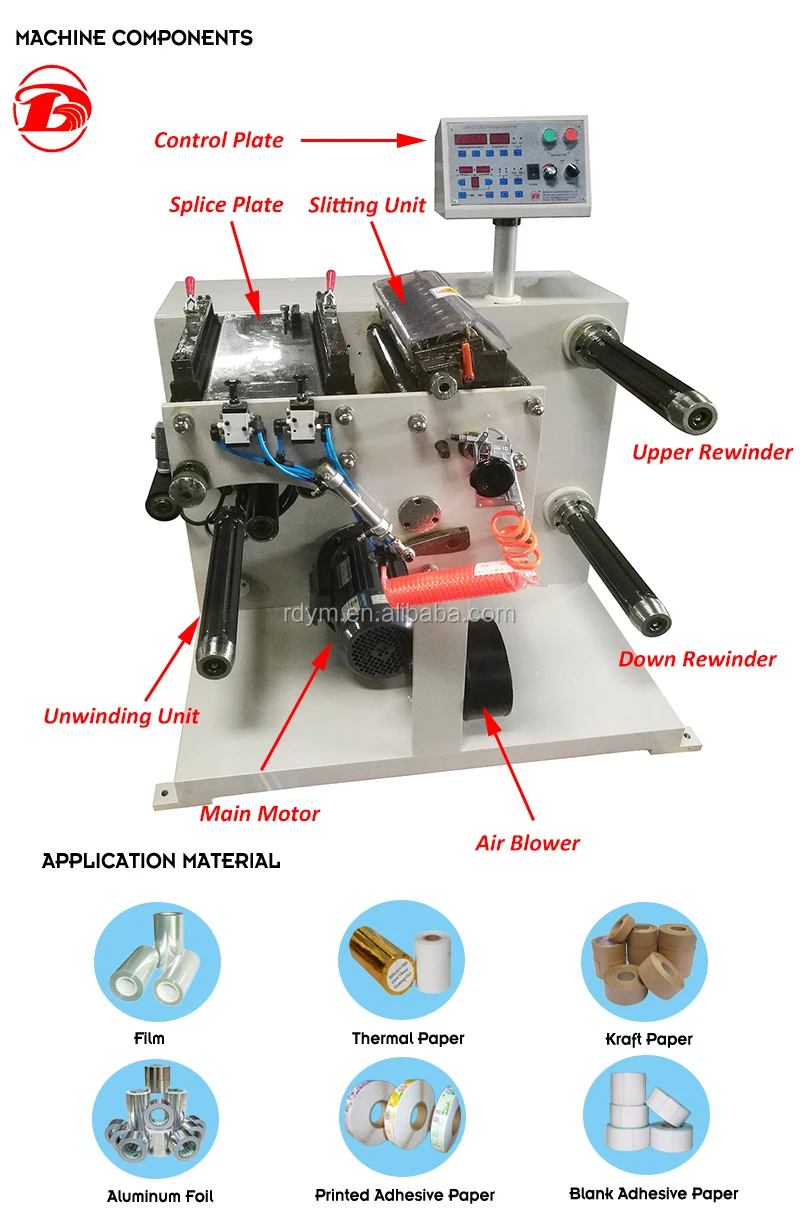

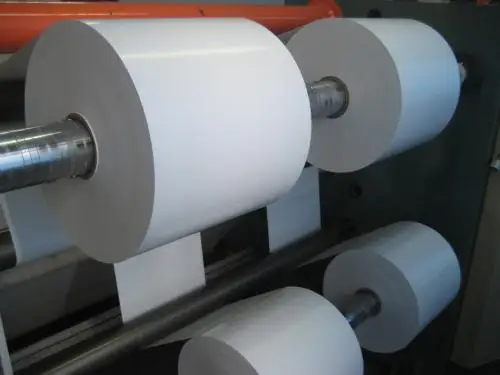

Detailed Images
THE MACHINE KEEP AUTOMATICAL TENSION SYSTEM AND WITH AUTOMATICAL METER/ PIECE COUNTER, YOU CAN SLITTING THE LABEL WITH SETTED DATA ACCORDING YOUR REQUIREMENT, IT’S EASY TO PERFORM THE MACHINE.

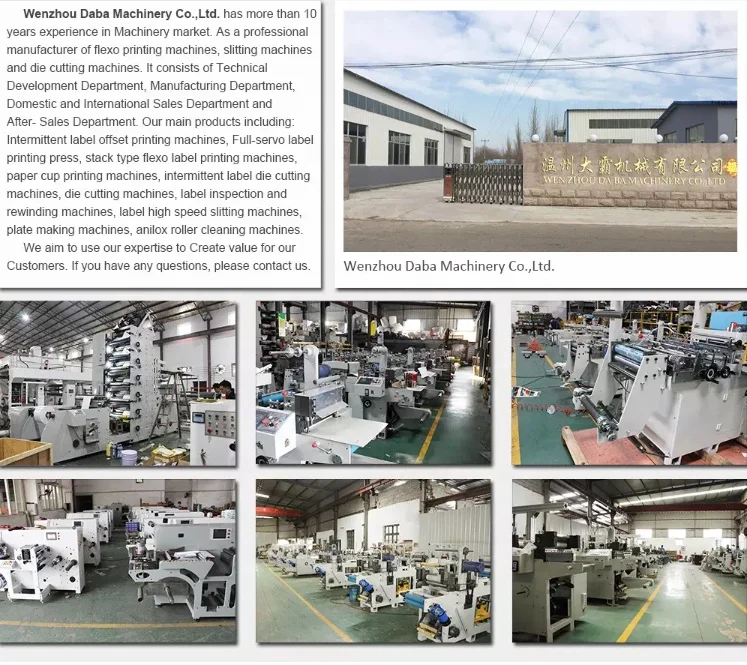

Company Profile
