Share on (1600221011925):


Price:$1,000.00 - $3,000.00

Quantity:


Product Overview

Description





PRODUCT OVERVIEW

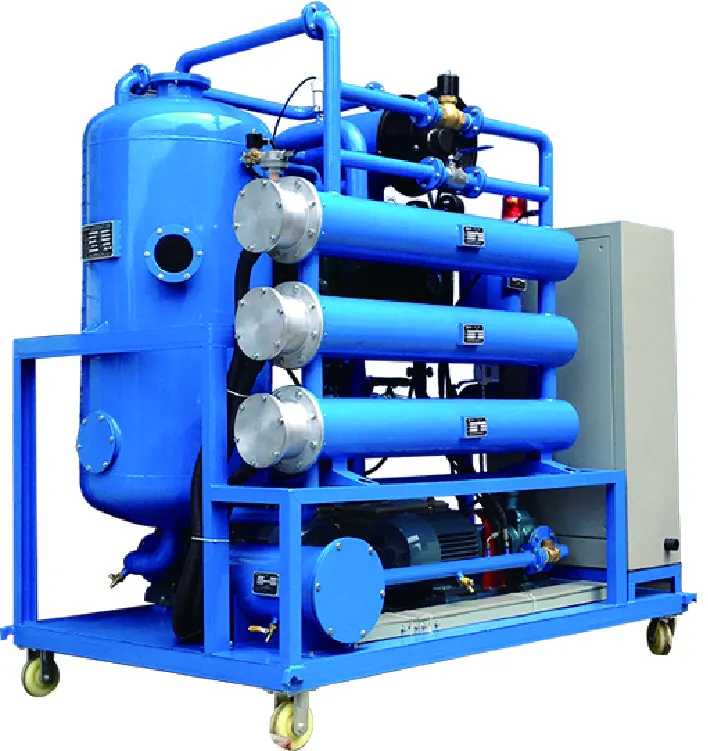

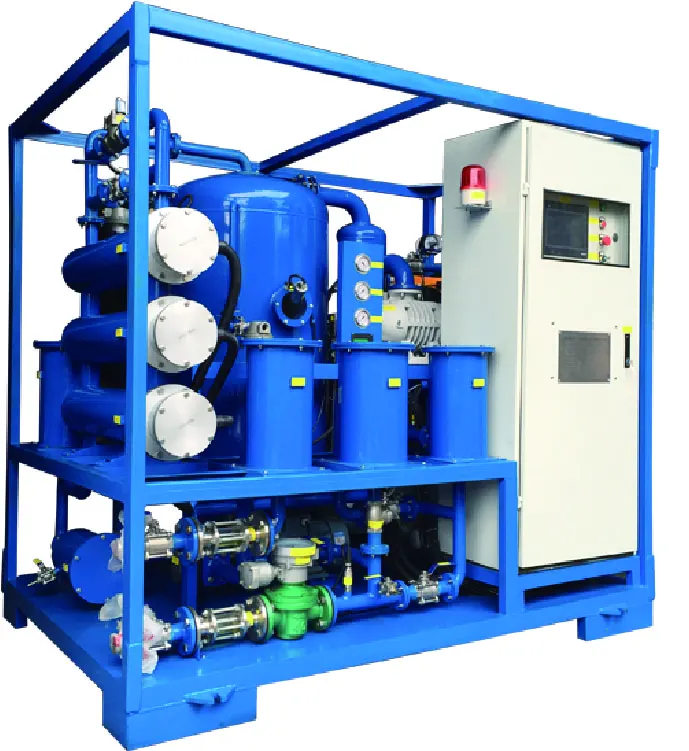

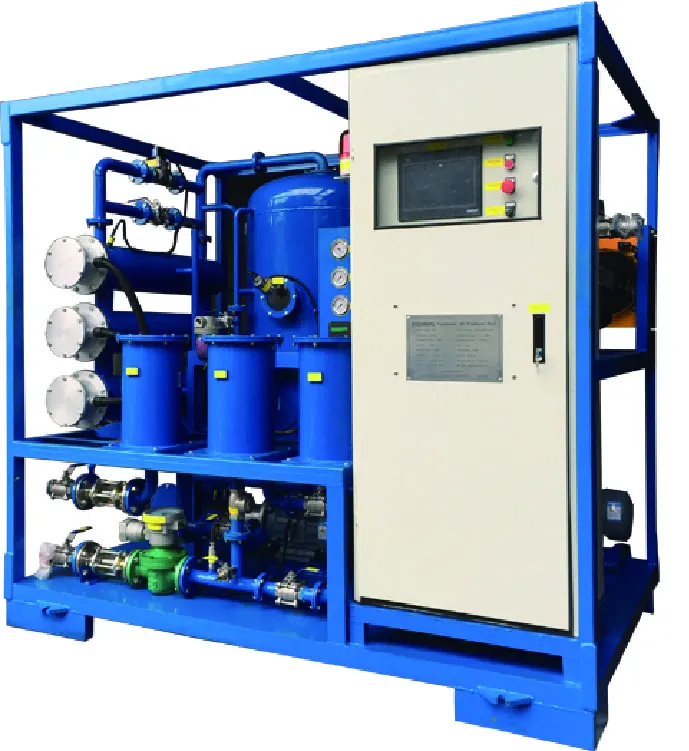

Double Stages Vacuum Transformer Oil Dehydration Degassing Purifier
1. It is widely used in oil purification for aging transformer insulation oil. it can remove water, gas, acetylene, acid, free carbon efficiently, and improve the BDV of transformer oil. Thus, the oil can meet the using standard again.
2. Besides it also can be used as an independent vacuum drying unit and oil refilling machine for transformer and GIS device.
3. Custom designs are available, like custom name plate, enclosure and trailer etc.


WORKING PRINCIPLE


The machine is developed for transformer oil degasification, dehydration and filtration processing onsite at outside, according to the principles of vacuum separation, precision mechanical filtration, molecular adsorption and vacuum drying etc, It can work without any auxiliary mechanical equipment. The vacuum drying principle of oil-water saturation temperature curve to carry out three-dimensional & multi-level oil-water separation technology, and multi-stages high-throughput deep-seated precision filtering technology to degas, dehydrate, filter and restores dielectric strength in insulating oil. Through the dehydrator, degassing, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed out.


FEATURES AT A GLANCE


Double Stages Vacuum Transformer Oil Dehydration Degassing Purifier
COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
MULTI FUNCTIONS

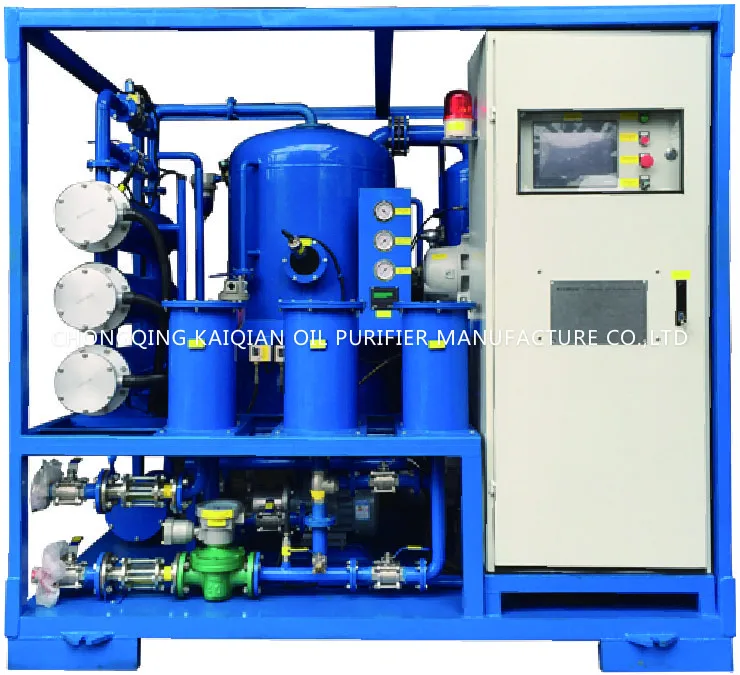

Front elevation

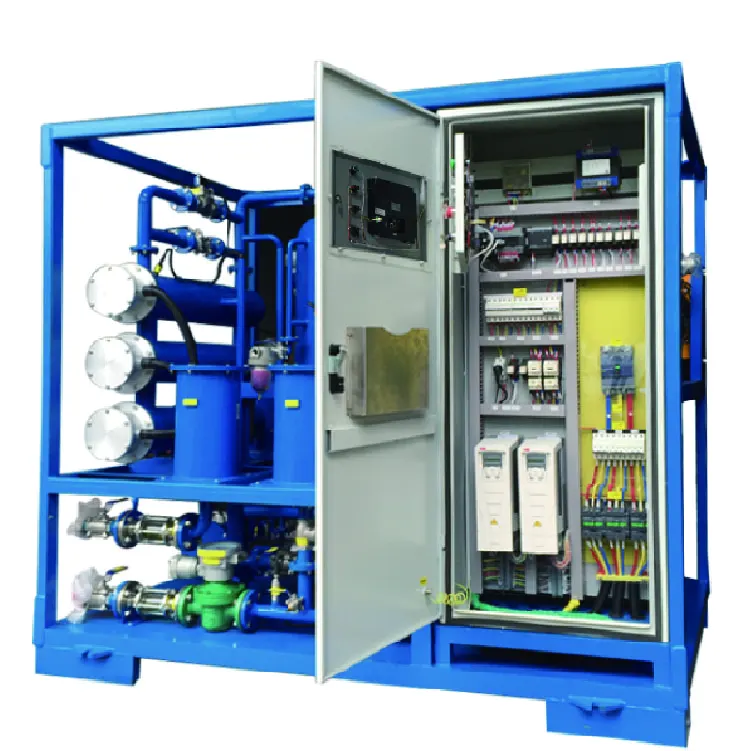

Cabinet elevation
Front elevation


PRODUCT SPECIFICATIONS


No
Item
Unit
Value
Test Method
1
Working vacuum
Mpa
-0.08-0.098
/
2
Working pressure
Mpa
≤0.5
GB/T264
3
Working temp.
°C
10-80
4
Impurities
%
No
GB/T511
5
Gas
%
≤0.1
GB/T423
6
Moisture
ppm
≤5
GB/T7600
7
BDV
KV
75--80
GB/T507
8
Cleanness
Grade
≤6
NAS1638


PRODUCT CONFIGURATION


Oil Pump
Triple Screen Pump
Vacuum Pump

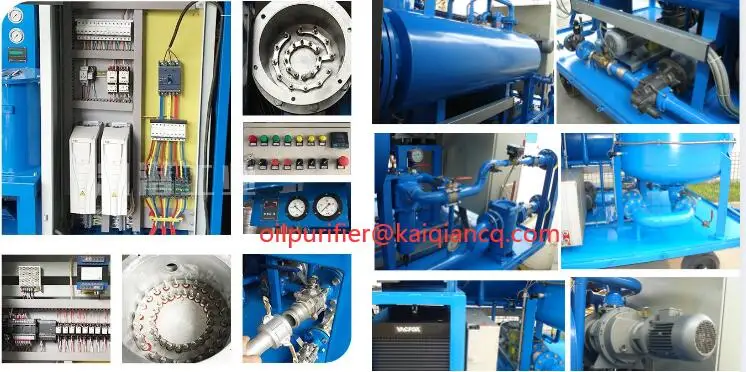

DETAILS IMAGES




SUCCESSFUL PROJECT


Transformer Oil Dehydration
Transformer Oil Dehydration
Transformer Oil Dehydration








FAQ


Q1：What is the functions for oil purification machine?
A1：The purification machine adopts physical principles for purification machine, so it can remove moisture, gas, acid, and impurities from oil, and restore the oil characterstics.

Q2: Is there any consumable element by using this machine?
A2: The consumable element in this whole machine is only filter.

Q3: What is the application for this oil purification machine?
A3: It can used for transformer oil, insulation oil, turbine oil, hydraulic oil, lubricant oil, fire resistant oil and fuel oil etc.

Q4: What's the capacity of this oil purification machine?
A4: This oil purification machine have flow capacity from 10L/Min to 300L/Min.

Q5: Who can i get contact for more infos？
A5: Email: oilpurifier@kaiqiancq.com Wechat/Whatsapp: 0086 132 2405 7938
