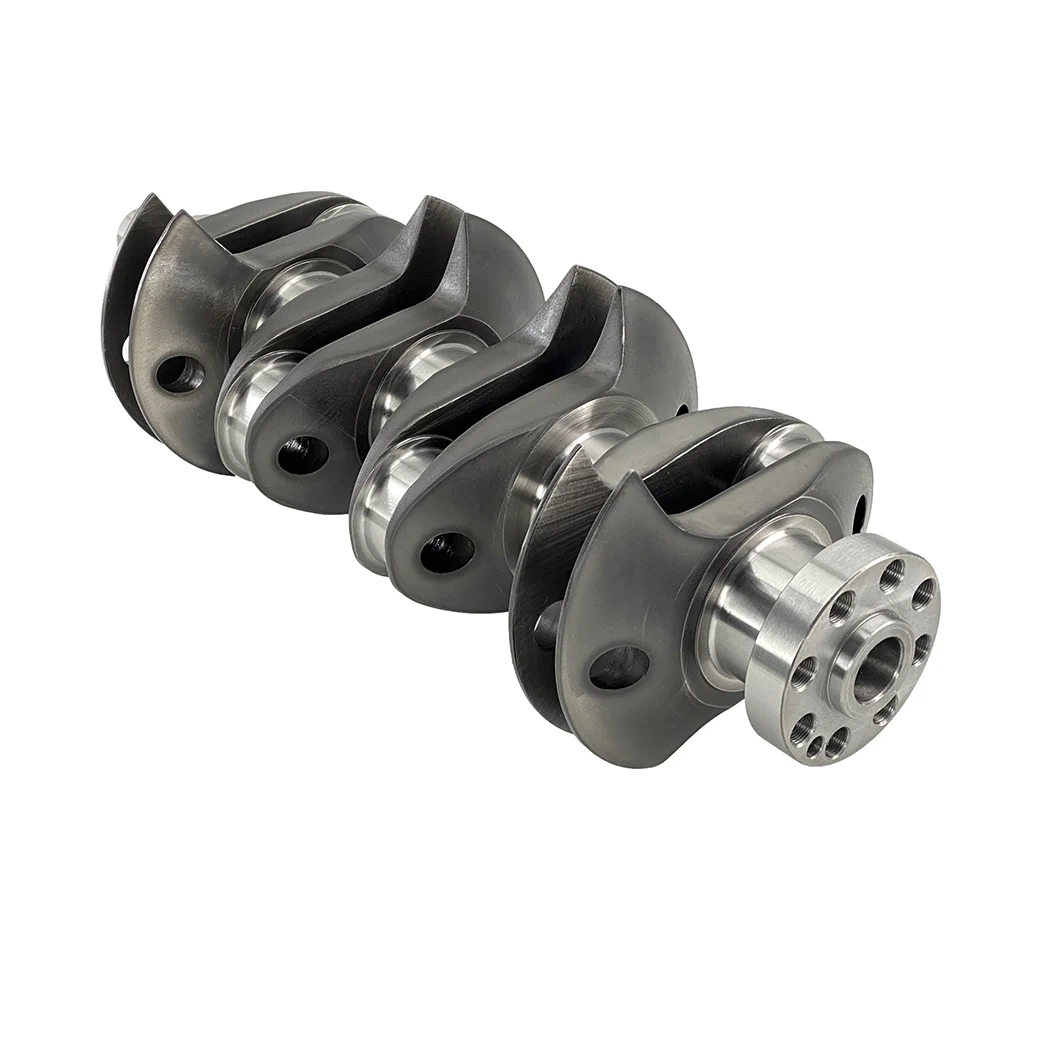

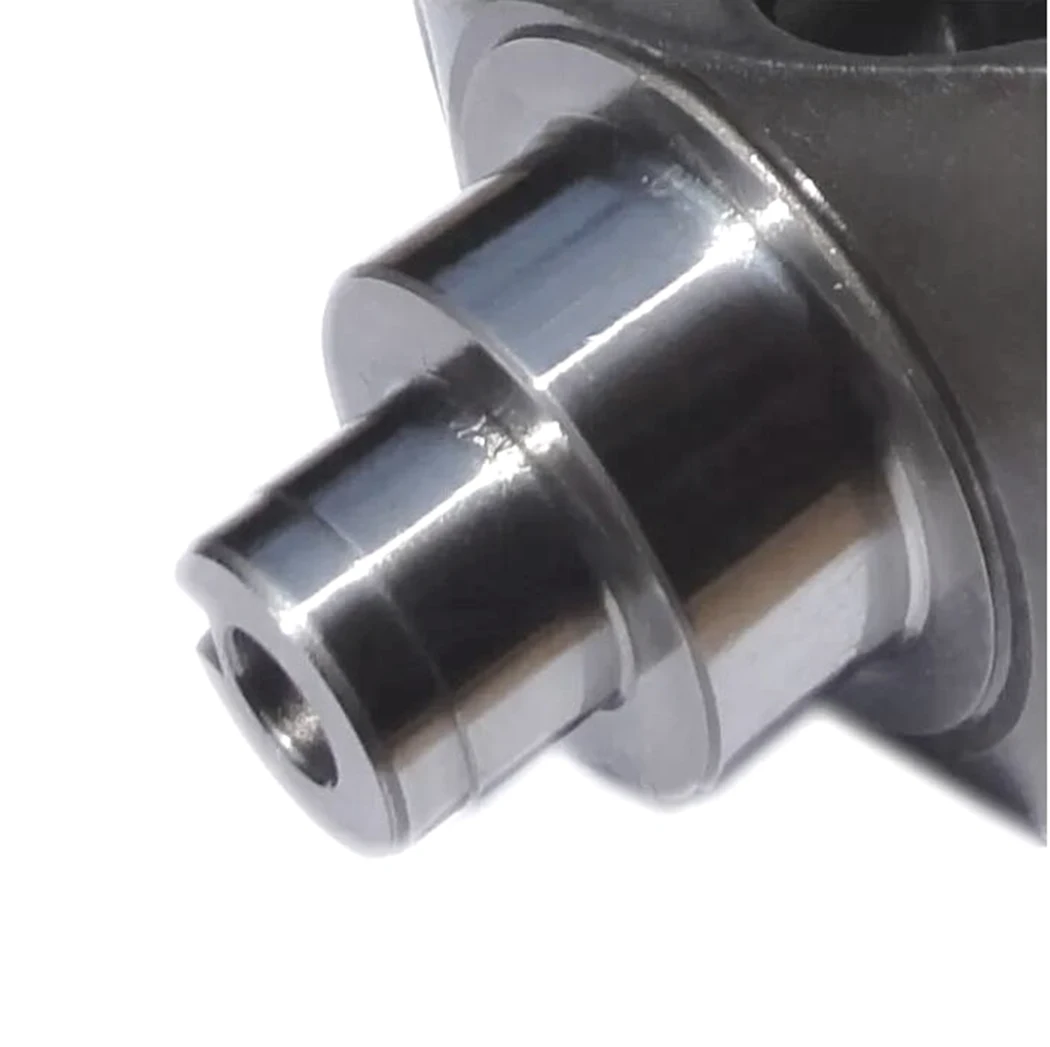

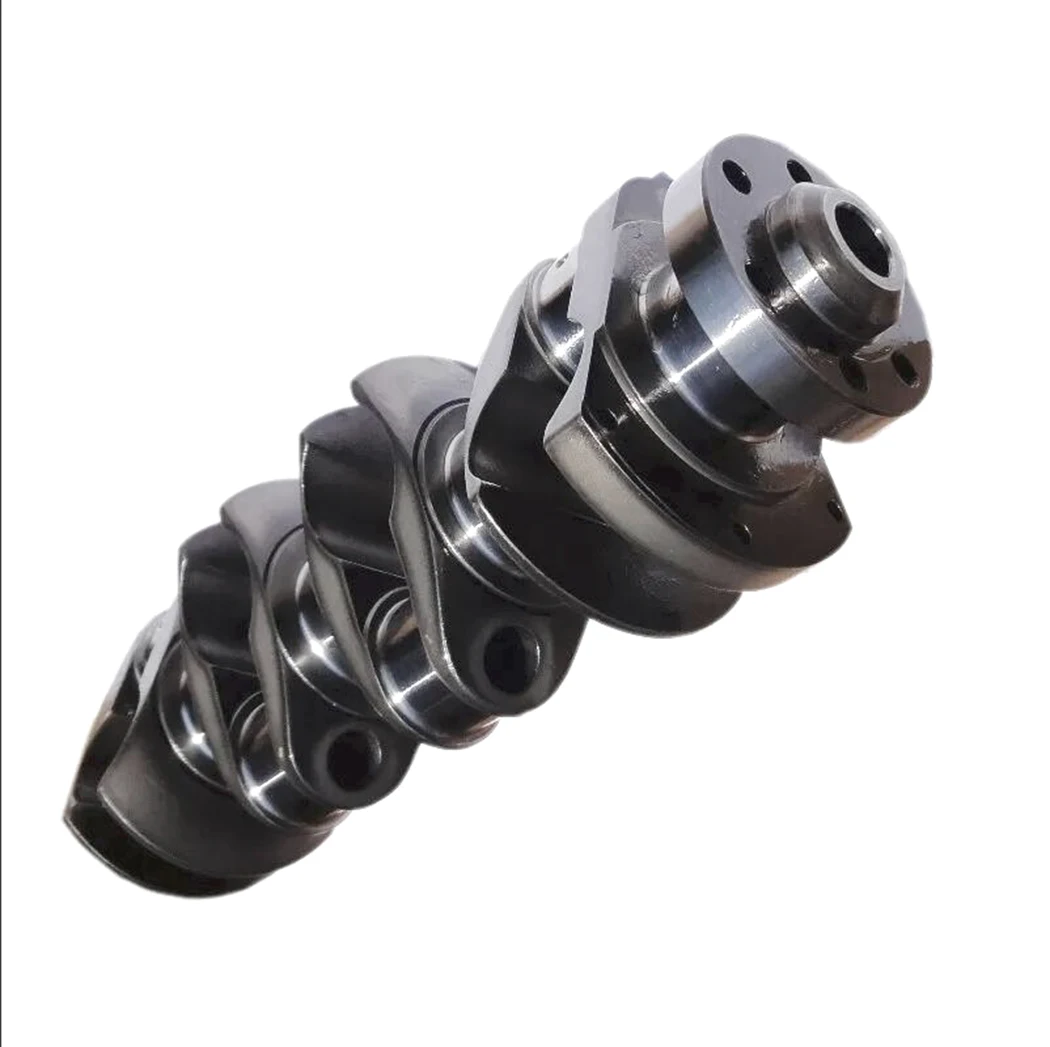

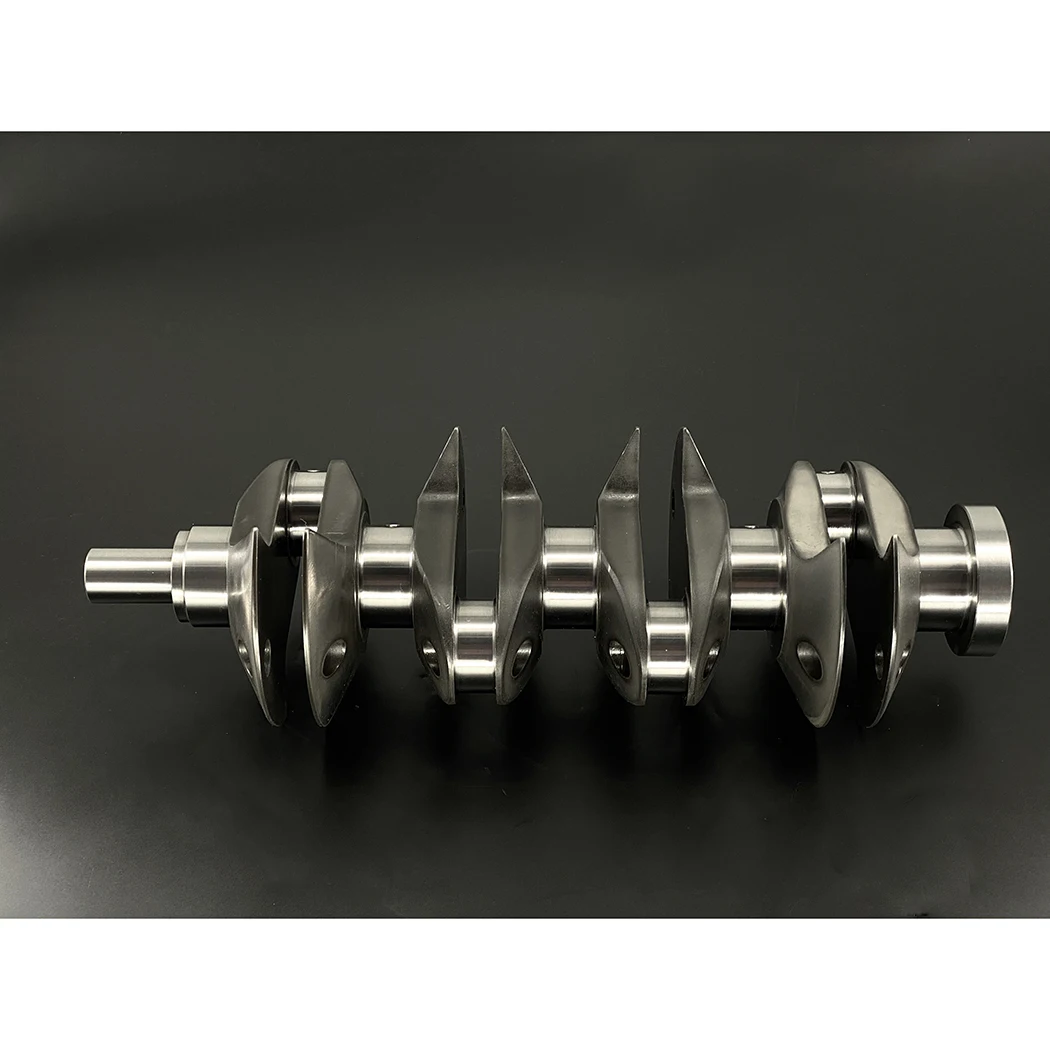

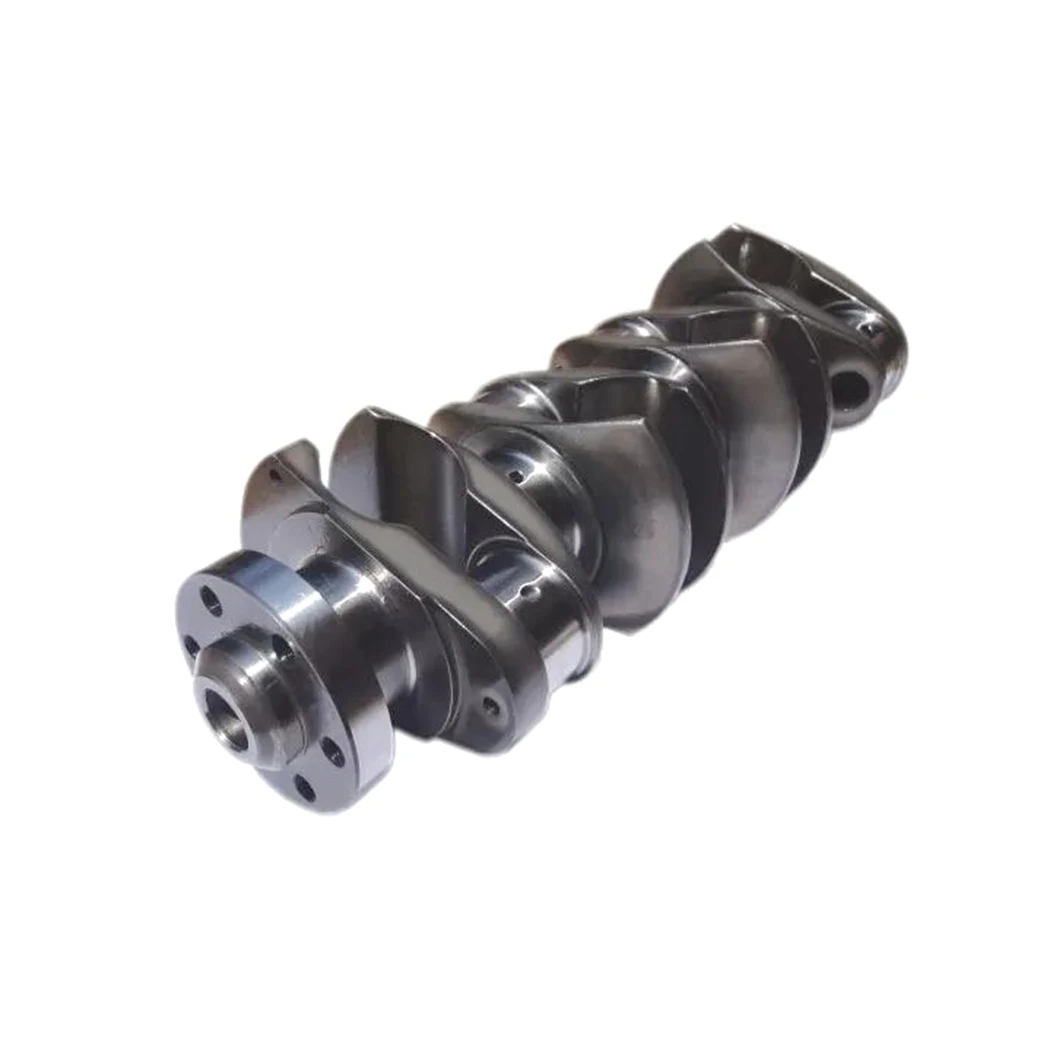

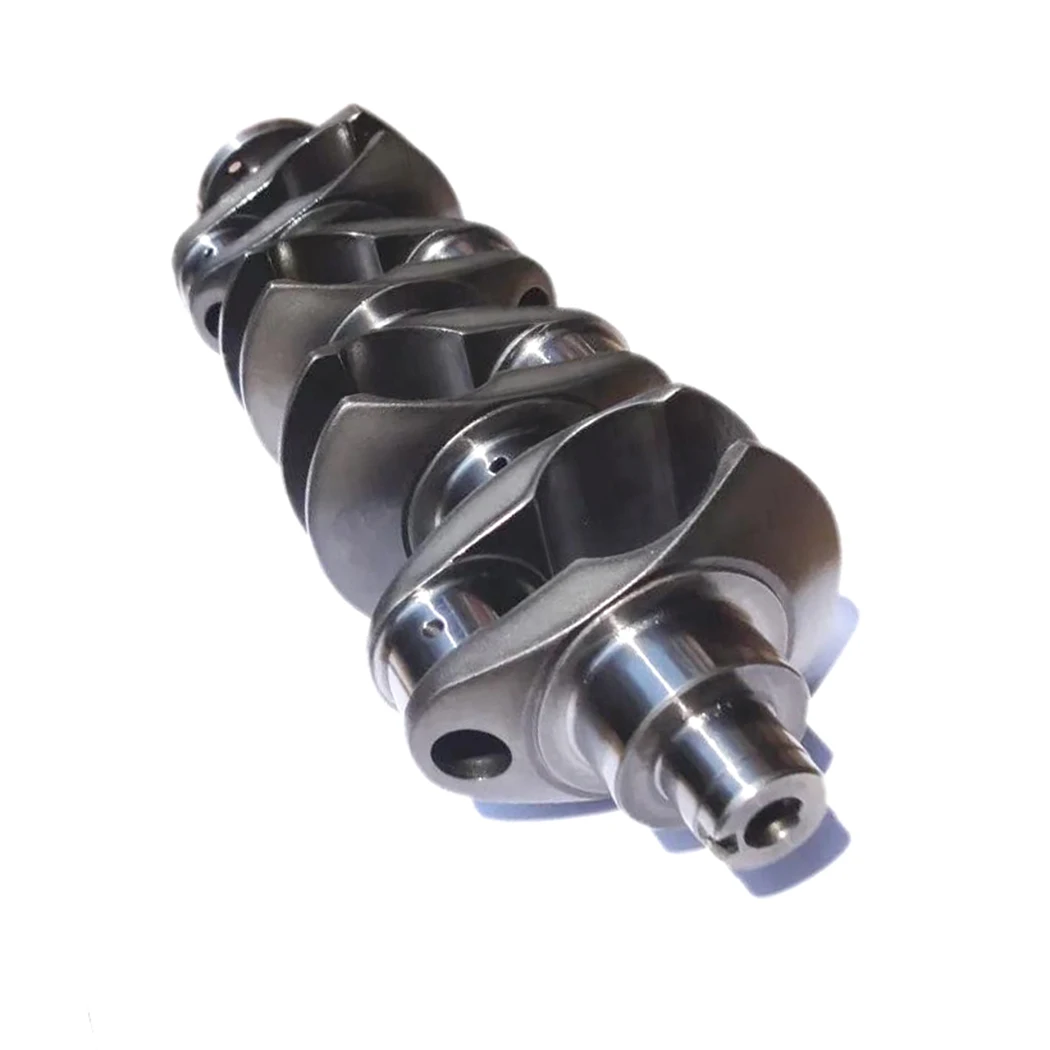

Adracing High Performance Billet Crankshaft for Audi for VW 2.0L TFSI (Belt Driven) EA113 EA827 1.8T 20v (06A) Stroker crank

Product Overview

Description

Adracing High Performance Billet Crankshaft for Audi for VW 2.0L TFSI (Belt Driven) EA113 1.8T 20v (06A) Stroker Crank









Brand:Adracing
Application(s)	For VW EA113 Crankshaft
Engine(s)	For Audi/VW EA113 engine
Material	Billet 4340 Steel
Stoker	80mm/86.4mm/90mm/92.8mm/98mm
Main Journal Diameter	54.00mm
Rod Journal Diameter	47.80mm





Technical Features



• Full CNC Machining


• Multi-step heat treatment process


• Knife-edged counterweights


• Gun drilled crank pin and counterweights to reduce weight and rotating mass


• Micro-polishing for longer bearing life


• Heating treatment:HRC34-38


• Peening treatment will be done after balance weight


• magnetic flaw detecting will be done according to standard JB/76729-93











Difference between Forged steel crankshaft and billet crankshaft:



• Forged steel crankshaft need to machine balance hole to keep good balance result


• Billet Crankshaft can get good balance by different design on counterweight. and Surface on counterweight will be more beautiful







Custom Service

• Our main business is to supply customized service


• we supply customized service based on your sample or drawing


• Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo



Delivery Time

• If the goods are in stock,the delivery time is 7-10 days


• If the goods are not in stock,the delivery time is 80-90 days
