Color screen, Touchpad Multi parameter Water Quality Monitor
- Category: >>>
- Supplier: Shaanxi Hybono Electronic Technology Co. Ltd.
Share on (1600221253946):
Product Overview
Description
Product Description

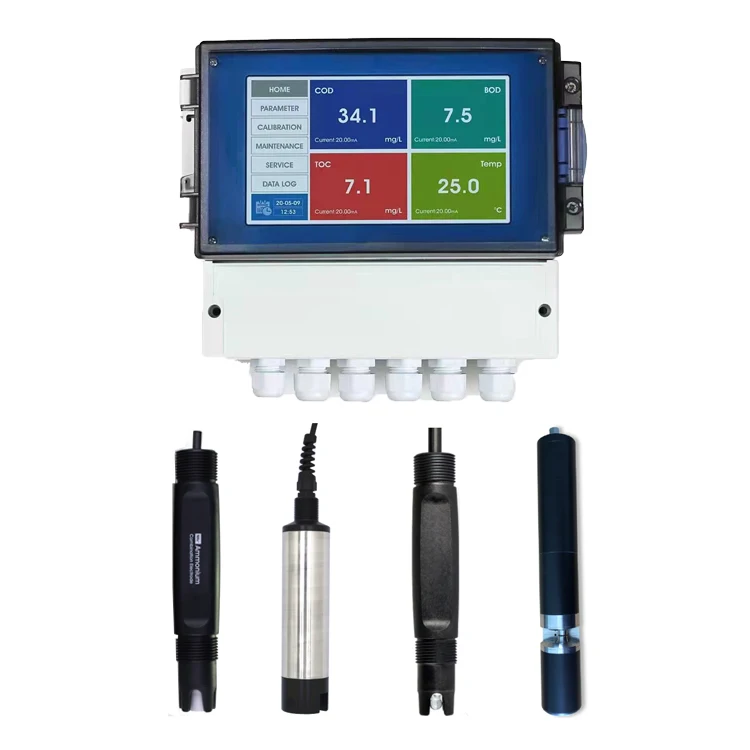

Multi-parameter Water Quality Monitor
| Item | Specification | |||

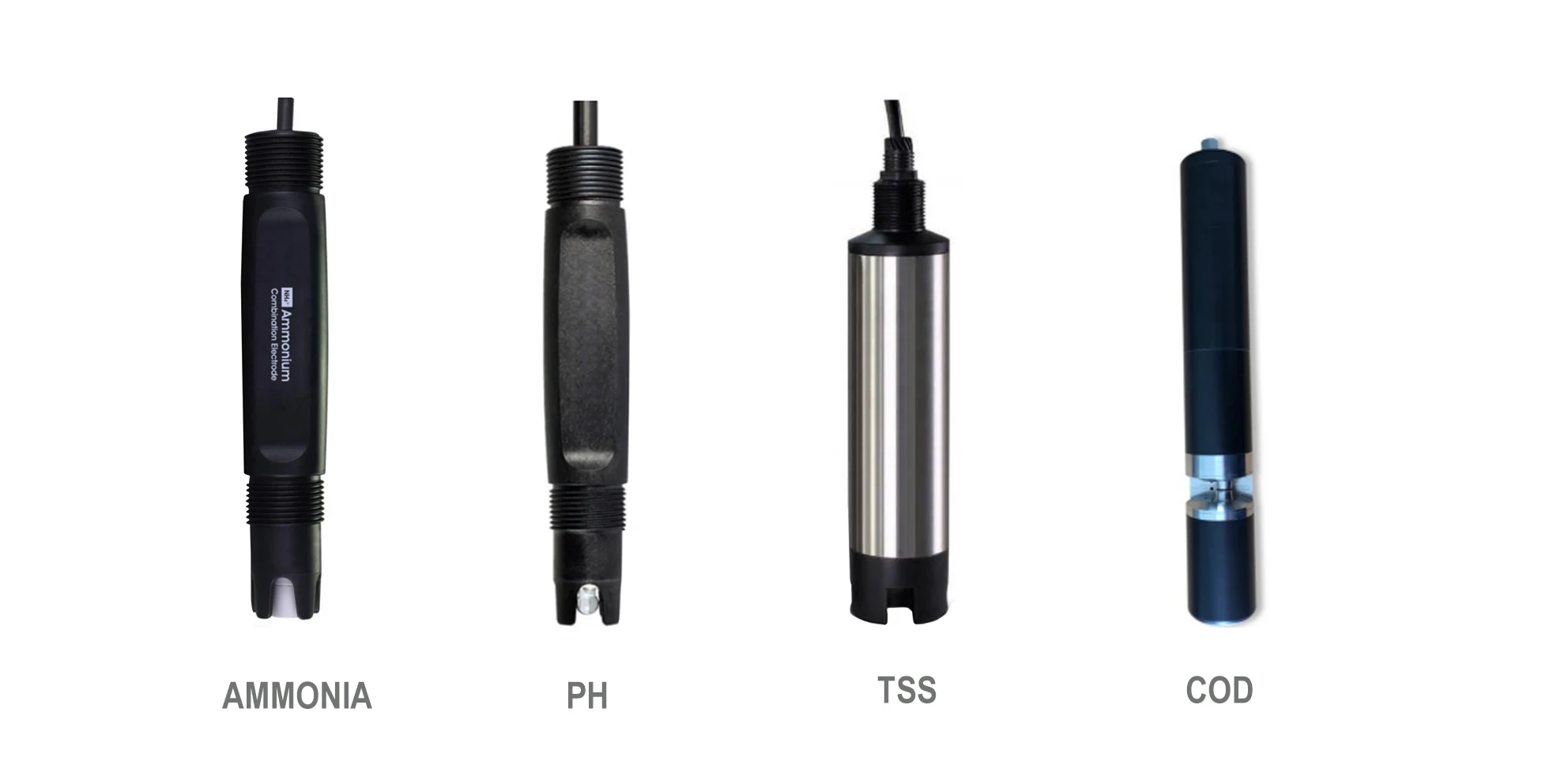

| Multi-parameter Water Quality Monitor Model: HY-T9050S | Screen: Color screen, Touchpad Outputs:0 / 4 ~ 20mA Communication output: RS485 Modbus RTU | HY-T9050 Multi-parameter Controller | ||
| HY- CS1753D Digital pH Sensor | ||||
| HY-CS7830D TSS Sensor | ||||
| HY-550C UV254 COD Sensor | ||||
| HY-CS6714D Digital Ammonia Nitrogen Sensor | ||||
| HY- CS1753D Digital pH Sensor | HY-Y550C UV254 COD Sensor |
| Power supply: 9 ~ 36VDC Output: RS485 Modbus RTU Waterproof grade: IP68 Measurement range: 0-14ph Measurement accuracy: ± 0.05ph Pressure range :≤ 0.6MPa Temperature compensation: NTC10K Temperature range: 0-80 ℃ Connection mode: 4-core cable Cable length Standard: 10 m cable Mounting thread: NPT3 / 4 ' | Optical path: 1 mm COD: 0 to 3000mg/L equiv.KHP +5 ~ 45 ℃; IP68 protection grade, RS-485; Modbus protocol compatible 1 or 2 point user calibration UV LED light source |
| HY-CS78300 Digital TSS Sensor | HY-CS6714D Digital Ammonia Nitrogen Sensor |
| Power / output: 12VDC / RS485 Modbus RTU Size: 60mm Diameter * 256mmLength Shell material: PVC + 316 stainless steel Waterproof grade: IP68 Measurement range:0.01-50000mg/l Accuracy: < ± 5% of the measured value Pressure range: ≤ 0.3MPa Measurement temperature: 0 to 45 ℃ Calibration standard: solution calibration, water sample calibration Cable length: standard 10 m cable Installation thread: 1 inch | Power supply: 9 ~ 36VDC Output: RS485 Modbus RTU Measurement method: Ion electrode method Resolution: 0.02mg/L Waterproof grade: IP68 Measurement range: 0-100mg / L, expandable Measurement accuracy: reading ± 2.5% Pressure range: ≤ 0.3MPa Temperature compensation: NTC10K Temperature range: 0-50 ℃ Calibration: standard solution calibration Connection mode: 4-core cable Cable length: 10 m standard Mounting thread: NPT3 / 4 ' |
Packing & Delivery

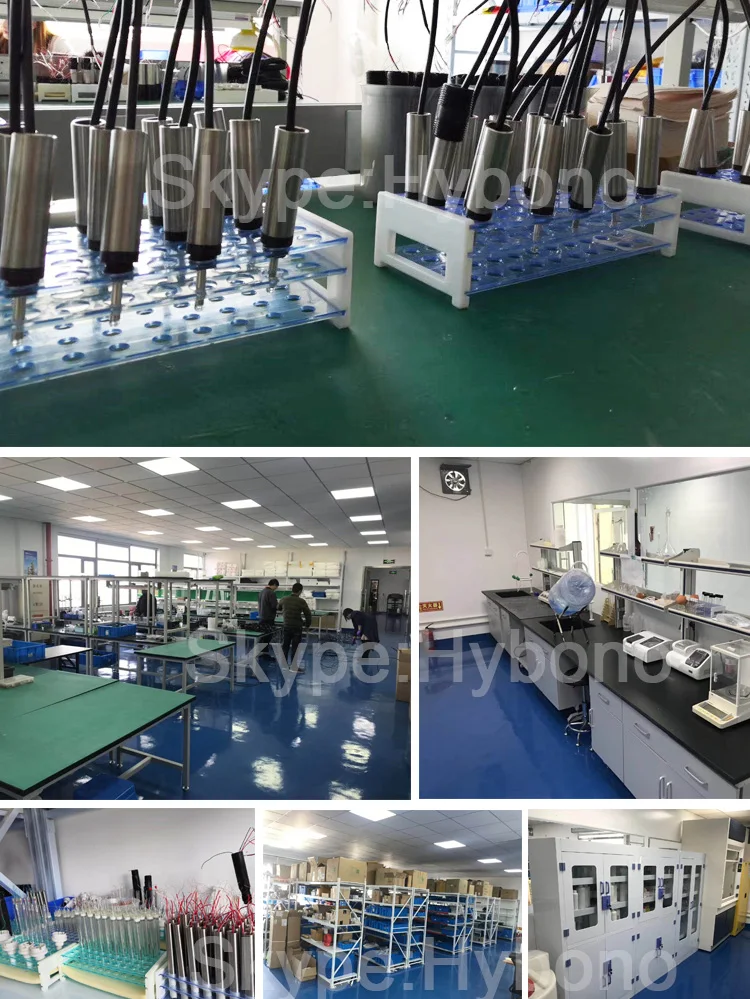

Production workshop
Product Case
FAQ
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
