OLED дисплей 0,91 дюйма KWH0091UX01 драйвер SSD1316 128x32
- Category: OLED\/E-Paper Module >>>
- Supplier: Formike Electronic Co. Ltd. (Dongguan)
Share on (1600221287643):
Product Overview
Description

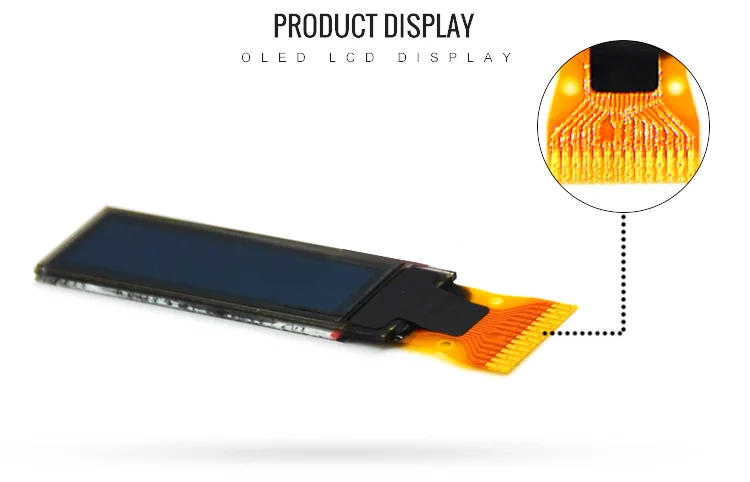

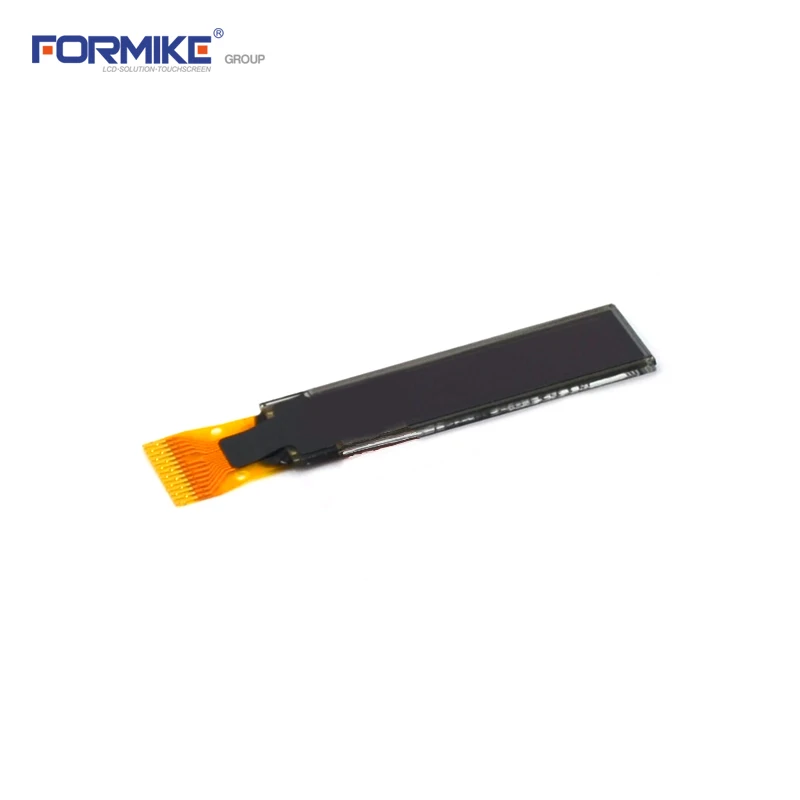

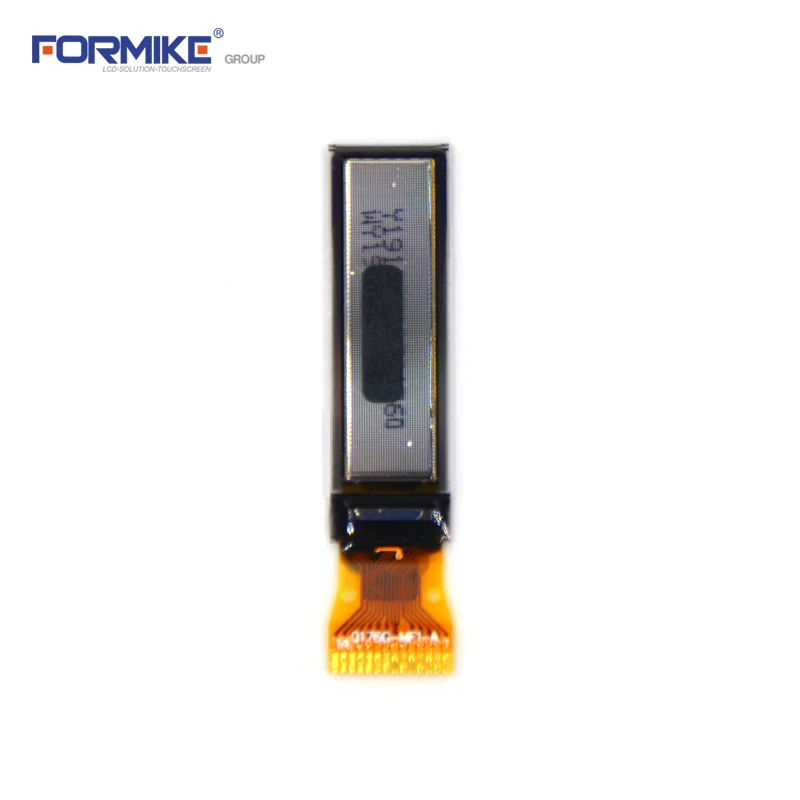

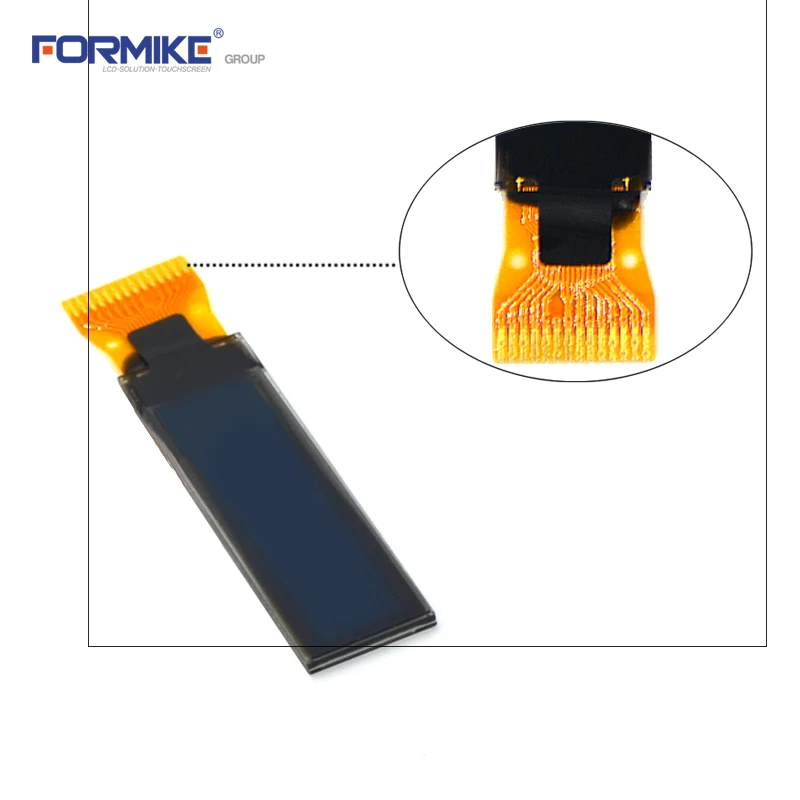

0.91 Inch OLED Display KWH0091UX01 Driver SSD1316 128x32
Product Details
| Name | 0.91 Inch OLED Display KWH0091UX01 Driver SSD1316 128x32 | ||
Size | 0.91 inch OLED Module | Resolution | 128(RGB)X32 Resolution |
Color | 262K | Dark Room Contrast Ratio | 2000:1 |

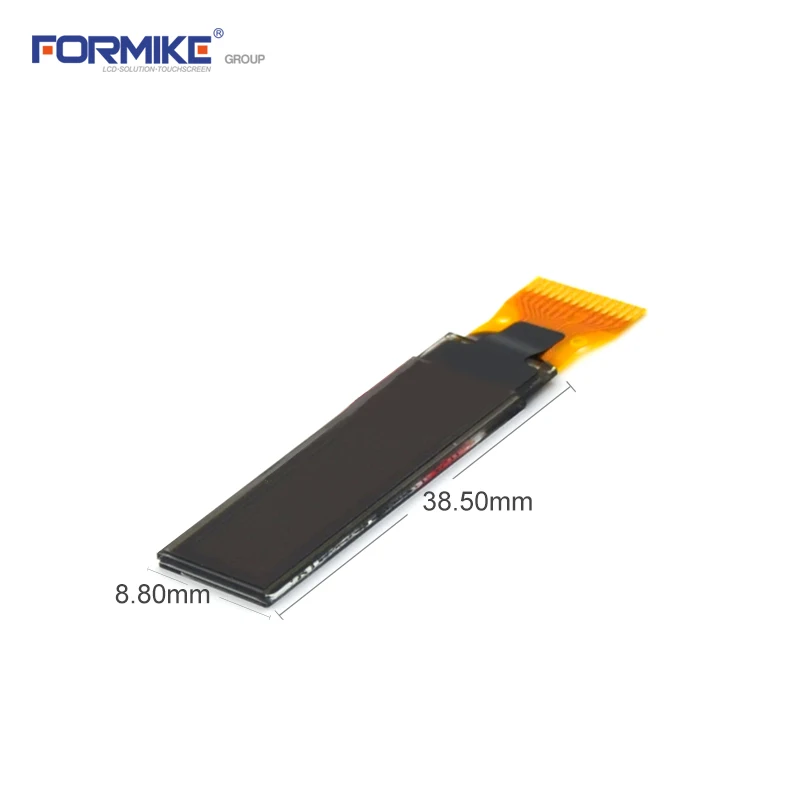

Outline Dimension | 38.50 x 8.80 x 1.28mm | Active Area(HxV mm) | 22.38 x 5.58mm |
Response Time | 10 μs | Interface | I2C, 14pins |
Backlight | / | Brightness | 200cd/m2 |
IC Driver | SSD1316 | Backlight Supply Current/Voltage | 20mA,3.7V |

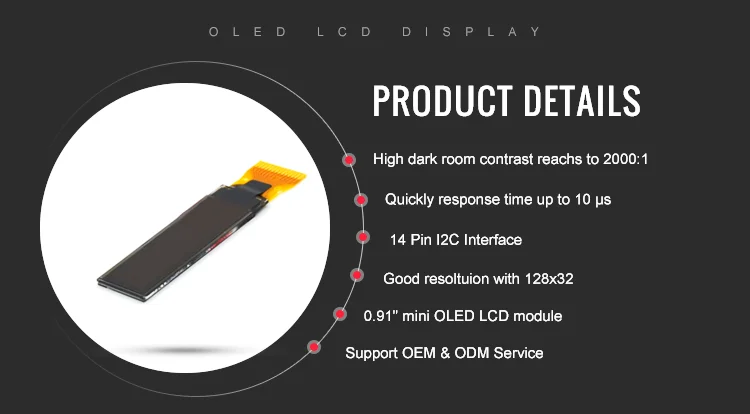

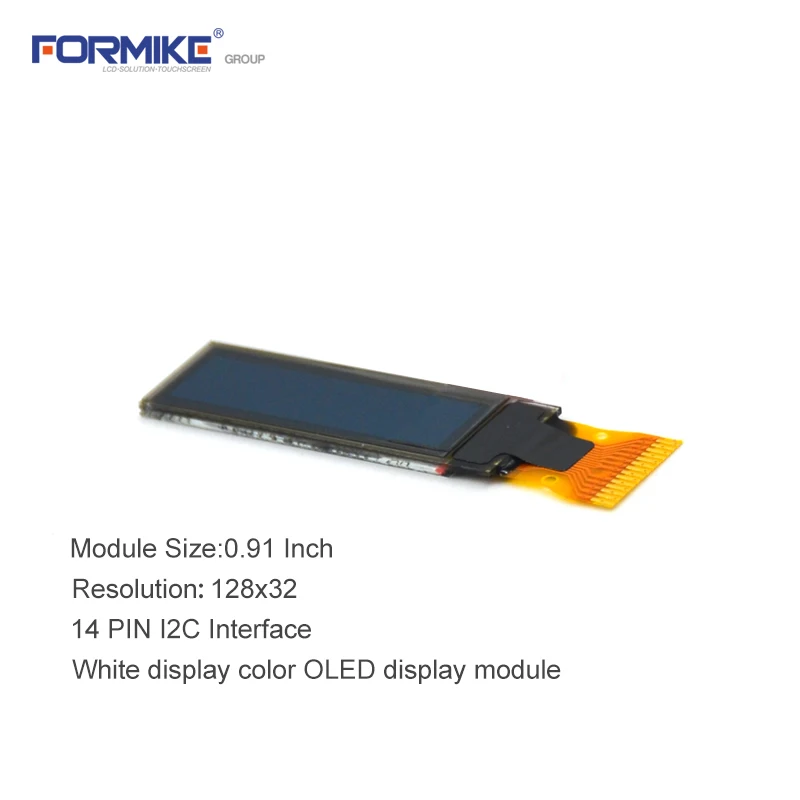

* KWH0091UX01 is a Monochrome OLED display module with 128×32 dot matrix.
* The characteristics of this display module:
1)Micro;
2)Self-emission;
3)High contrast ratio is over 2000:1.
4)Slim/thin outline
5)Wide viewing angle is over 160 degree;
6)Wide temperature range is nearly -40℃~85℃;
7)Low power consumption reaches to 74mW;
8)Fast response time reaches to 10µS.
* It is 128x32 resolution OLED module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
