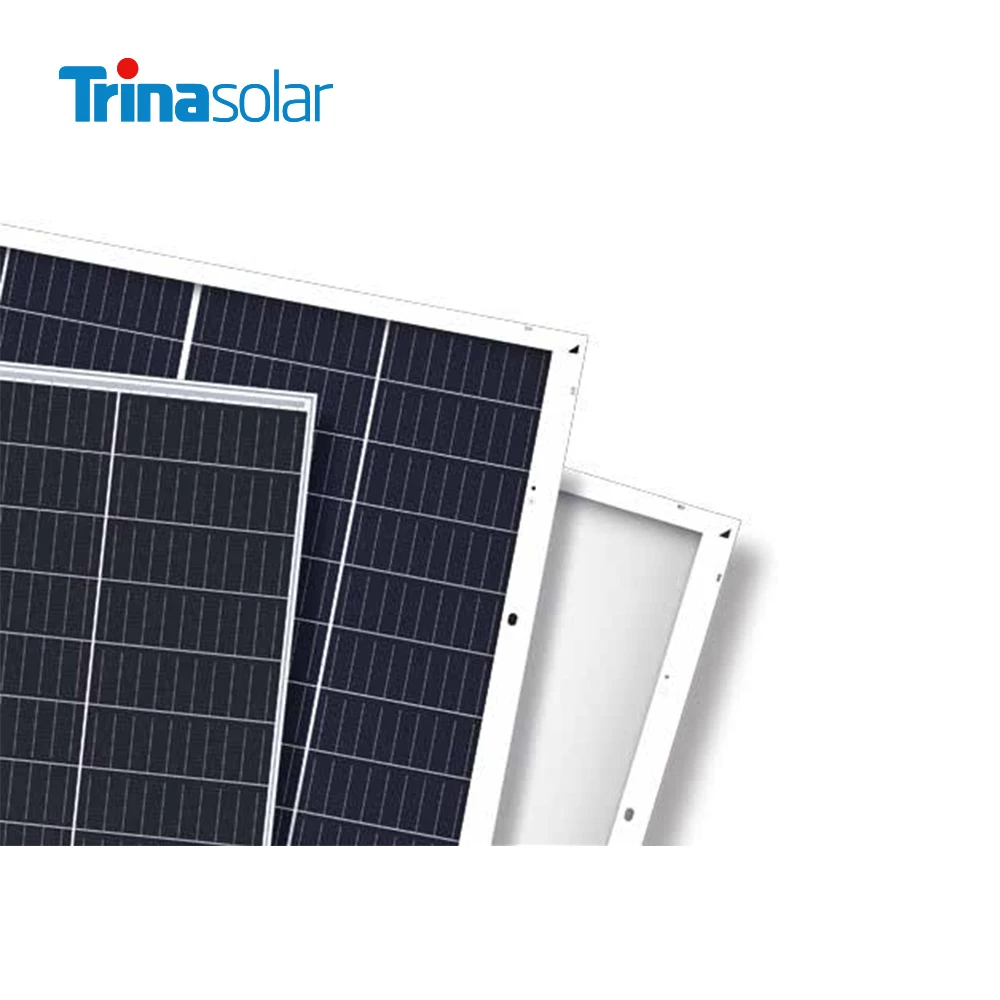

Solar Trina 545wp 550wp 555wp 500w trina germany import solar panel monocrystalline panel solar costo price with 210mm cells
- Category: Solar Energy Products >>>
- Supplier: BLUESUN,Outdoor,Energy,CO.,LTD
Share on:
Product Overview
Description
Popular Products
Our Company
Products Description
Advanced Technology
CUTTING-EDGE TECHNOLOGIES BRING
HIGHER POWER AND EFFICIENCY
HIGHER POWER AND EFFICIENCY
* Non-destructive cutting and high-density encapsulation technologies
* Eliminating the potential risks : thermal overload as well as micro cracks

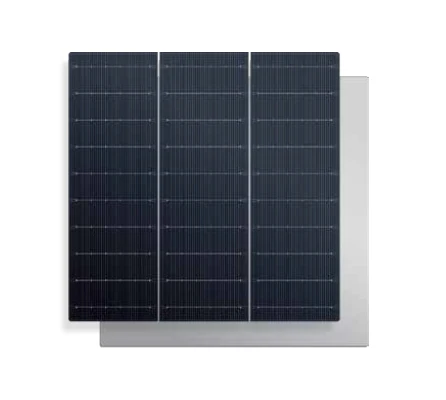

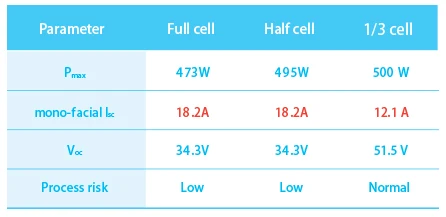

1/3-CUT TECHNOLOGY
* Help to achieve higher power while minimizing hotspot issues
* Eliminating power loss associated with inverter current limitation
Product Paramenters
ELECTRICAL DATA (STC) | ||||||||||||
Peak Power Watts-PMAx (Wp)* | 530 | 535 | 540 | 545 | 550 | 555 | ||||||
Power Tolerance-PMAx (W) | 0~ +5 | |||||||||||
Maximum Power Voltage-VMPP(V) | 30.8 | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | ||||||
Maximum PowerCurrent-iMPP(A) | 17.21 | 17.28 | 17.33 | 17.37 | 17.40 | 17.45 | ||||||
Open Circuit Voltage-Voc (V) | 37.1 | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | ||||||
Short Circuit Current-lsc(A) | 18.31 | 18.36 | 18.41 | 18.47 | 18.52 | 18.56 | ||||||
Module Efficiency η m (%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.0 | 21.2 | ||||||
STC: Irrdiance 1000W/m2,Cell Temperature 25ºC , Air Mass AM1.5,. Measuring tolerance: ±3%. | ||||||||||||
ELECTRICAL DATA (NOCT) | ||||||||||||
Maximum Power-PMAx (Wp) | 401 | 405 | 409 | 413 | 417 | 420 | ||||||
Maximum Power Voltage- Vmpp (V) | 28.6 | 28.8 | 29.0 | 29.2 | 29.3 | 29.5 | ||||||
Maximum PowerCurrent-lwpp (A) | 14.01 | 14.06 | 14.10 | 14.15 | 14.19 | 14.23 | ||||||
Open Circuit Voltage-Voc (V) | 35.0 | 35.1 | 35.3 | 35.5 | 35.7 | 35.9 | ||||||
Short Circuit Current-lsc(A) | 14.76 | 14.80 | 14.84 | 14.88 | 14.92 | 14.96 | ||||||
NOCT: Irradiance at 800W/m2. Ambient Temperature 20ºC, Wind Speed 1m/s. | ||||||||||||

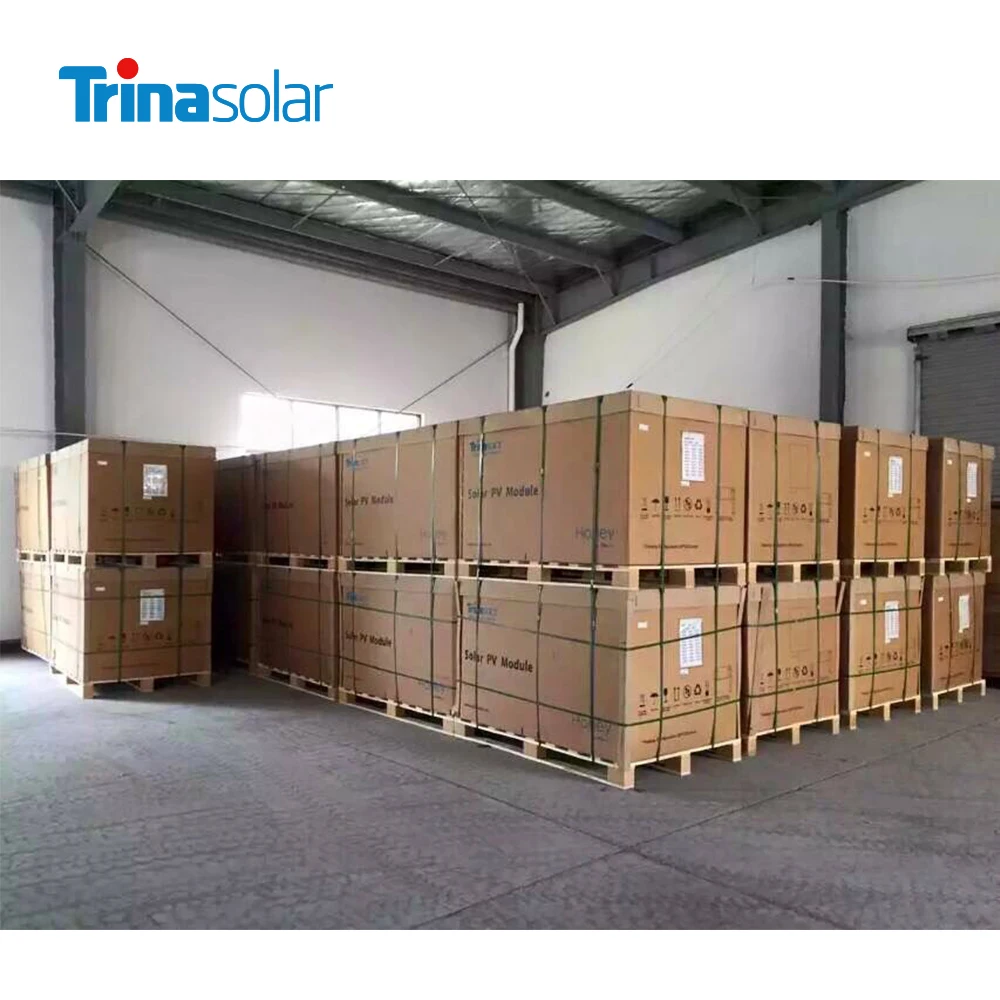

Packing&Delivery
PACKING CONFIGURATION | ||
Module per pallet | 31pcs/pallet | |
Module per 40'HQ container | 620pcs/40hq | |

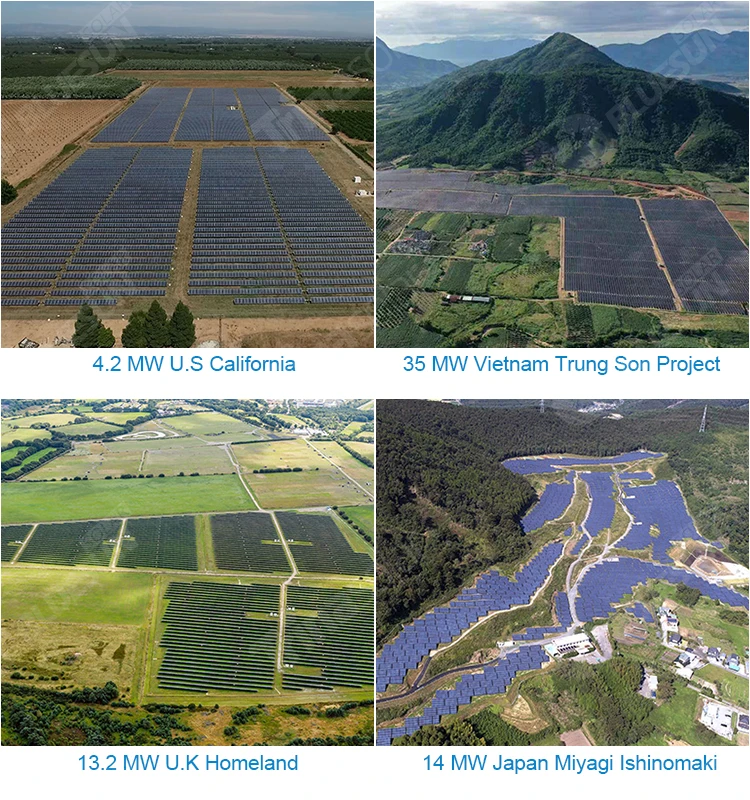

Project
