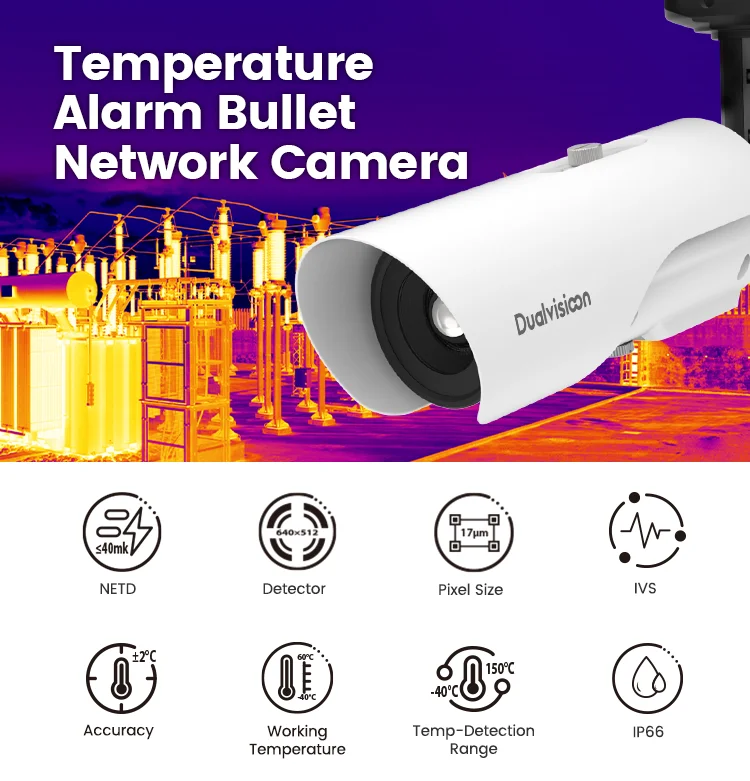

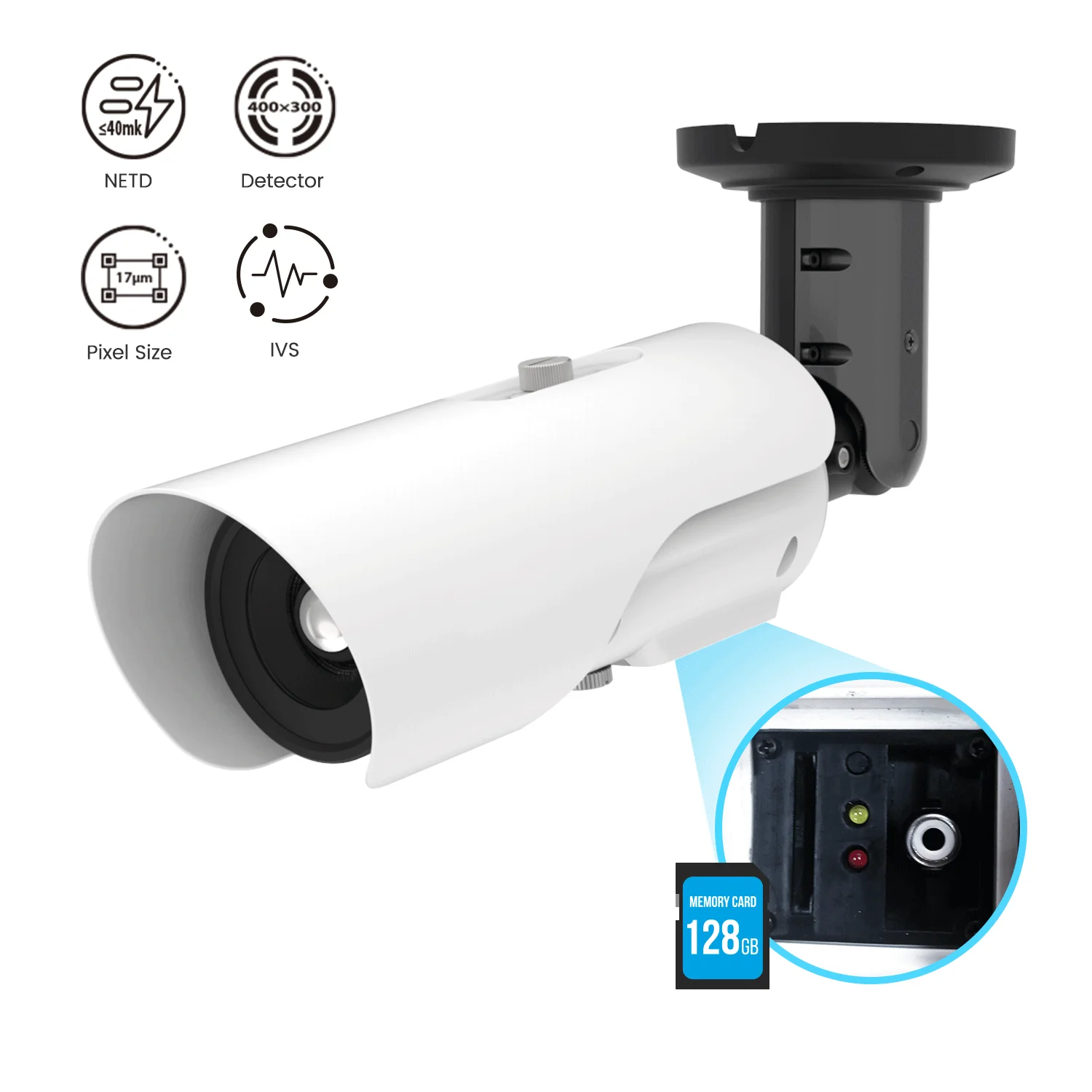

400*300/640*512 Warehouse Factory Industrial fire detection alarm camera 24h online thermal imaging monitoring infrared camera
- Category: >>>
- Supplier: Shenzhen VeeZoom Technology Corporation
Share on (1600221345572):
Product Overview
Description
400*300/640*512 Warehouse Factory Industrial fire detection alarm camera 24h online thermal imaging monitoring infrared camera
Features
* Support ONVIF, SDK, CGI protocol
* Support on line temperature correction
* 400*300/640*512 Resolution optional
* 15/25/35/50 mm fixed lens optional
* Measurement range is -40°C~150°C
* The measurement accuracy is up to 2°C
* Synchronize cameras with external trigger
Product Description
Heat Source Detection
< Multiple heat source detection, liquid level detection; trigger alarm when temp. exceeds the set threshold or abnormal temperature rise happens.
Intelligent Screening
< Static shielding and dynamic shielding preventing from false alarm; functions of every separated preset zone are independent.
Perimeter System
< Machine vision zones, area intrusion detection, stay detection, etc.

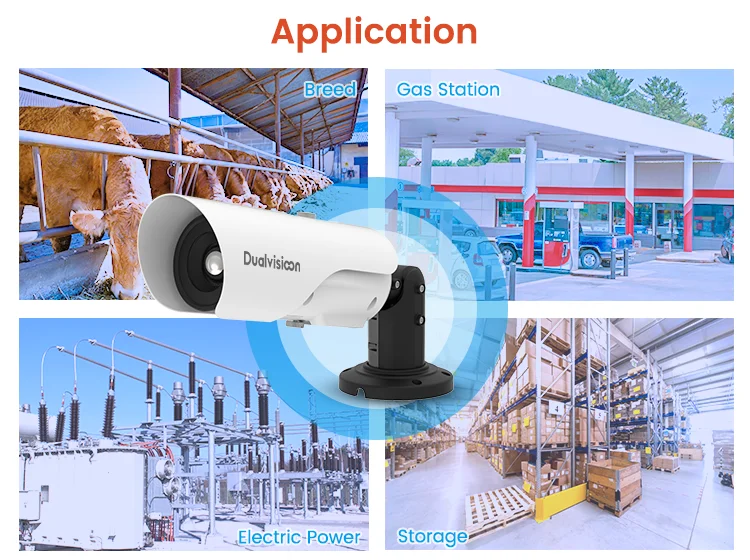

Application Fields
< Power stations, petroleum refineries, chemical plants, etc.
Intelligent Event Recognition
< Fire, spontaneous combustion, illegal intrusions, pipeline damage and leakage, equipment failure, etc.
Details Images
Specification

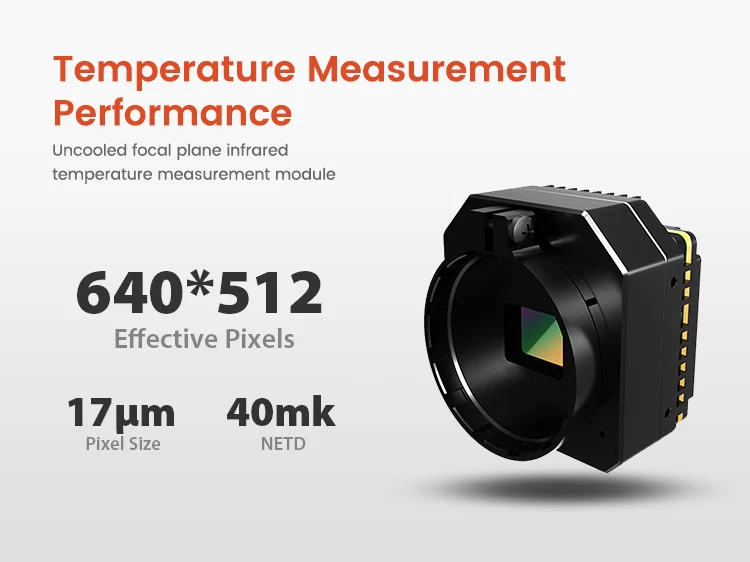

Detector | Uncooled VOx Micro bolometer with 640×5120 resolution | ||||||
Pixel Size | 17 um | ||||||
Thermal Sensitivity (NETD) | ≤40 mK @ F1.0, 300K | ||||||
Spectral Range | 8 ~ 14 um | ||||||
Lens Type | Manual Focus Fixed Lens | ||||||
Focal Length | 15 mm, F1.0 | 25 mm, F1.0 | 35 mm, F1.0 | 50 mm, F1.0 | |||
Angle of View | H:39.8°,V:32.3° | H:24.5°,V:19.7° | H:17.6°,V:14.1° | H:12.4°,V:9.9° | |||
Resolution | Sensor is 640×512. Image can be scaled up to 704×576 | ||||||
Frame Rate | Main Stream: 704×576 @ 25/30fps, Sub Stream: CIF @ 25/30fps | ||||||
Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI | ||||||

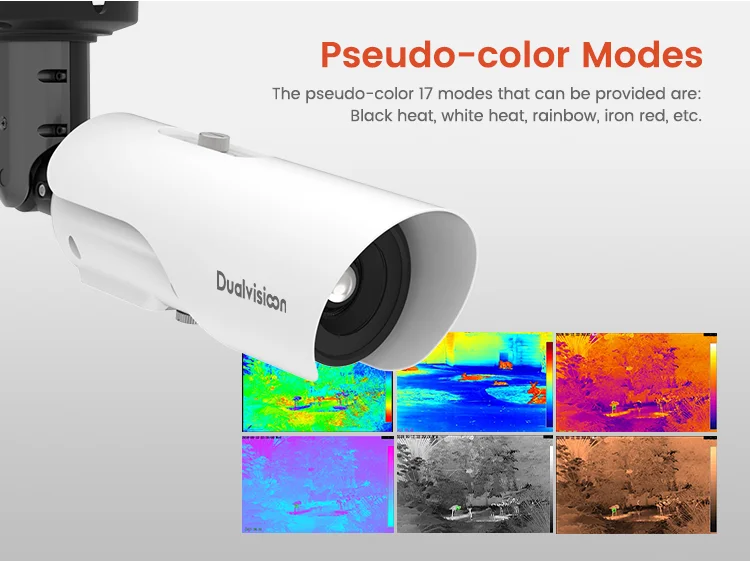

Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes | ||||||
DVE Image Enhance | Support | ||||||

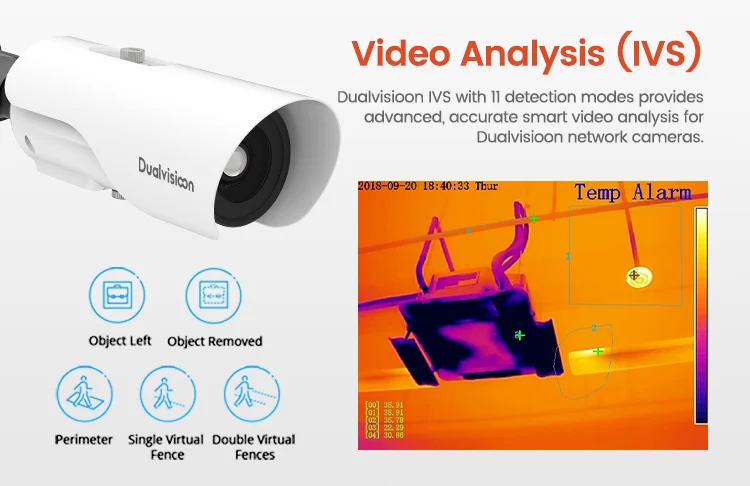

IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed | ||||||

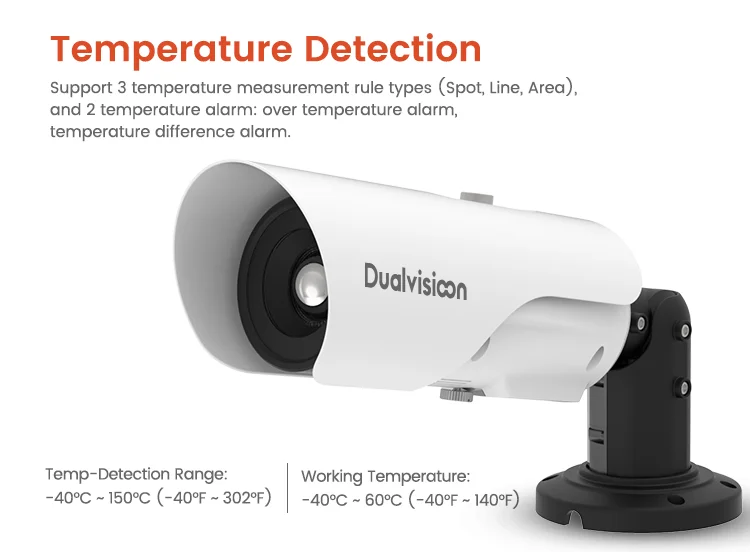

Temperature Detection | Support 3 temperature measurement rule types (Spot, Line, Area) | ||||||
Temperature Alarm | Over temperature alarm, Temperature difference alarm | ||||||
Accuracy | ±2℃ / ±2% | ||||||
Response Time | ≤ 30ms | ||||||
temperature measure range | -40°C ~ 150°C (-40°F ~ 302°F) | ||||||
Protocols | IPv4/IPv6,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x | ||||||
Interoperability | ONVIF, CGI, SDK | ||||||
Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian | ||||||
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | ||||||
Audio Interface | 1ch Audio In,1ch Audio Out | ||||||
Alarm | 2ch Alarm In,2ch Alarm Out | ||||||
RS485 | Support | ||||||
Power Supply | DC12V/POE (IEEE 802.3af)，Max 5 W | ||||||
Working Temperature | -40°C ~ 60°C (-40°F ~ 140°F), 0~ 90% RH | ||||||

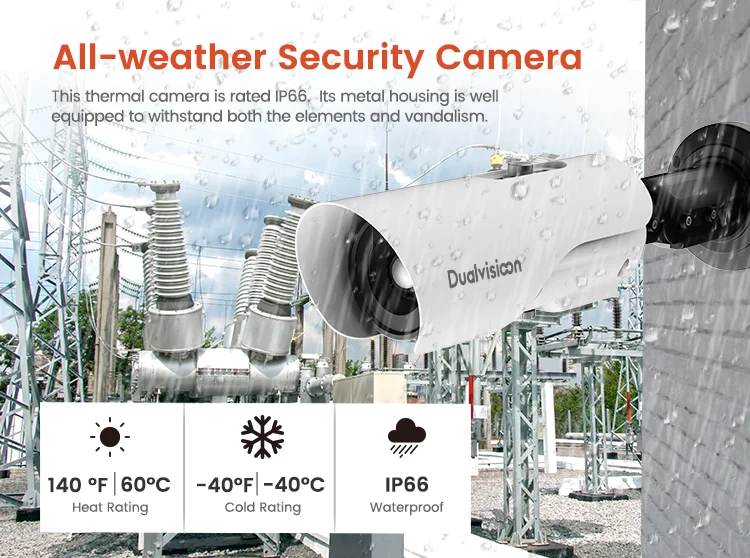

Ingress Protection | IP66 | ||||||
