2 degree 2D flood 250W RGBWW TUNABLE WHITE DMX512 DALI IP66 Tower WATERPROOF LED PROJECTOR LIGHT

Share on:


Price:RUB 68,975.55
Price in USD:Details

Quantity:


Product Overview

Description



Our Services

We are luminaire manufacturer for lighting projects, not only to offer products you require as OEM/ODM, but also to offer whole lighting solution as consultant.

1.Lighting design---rendering picture / video / presentation

2.Standard products without MOQ requirement, and 3-7days lead time

3.Customized products for your sole / exclusive project

4.Site measuring, wiring diagram / layout to Bill of quantity

5.Programming,commissioning for DMX512 / RDM / DALI on site

6.Long term service after sale

 ALI  how to projectALI  .png

Product Description

5 degree spot 60W 2200K RGBW RGBA dynamic white DMX512 RDM IP66 BUILDING FACADE waterproof outdoor LED SPOT LIGHT

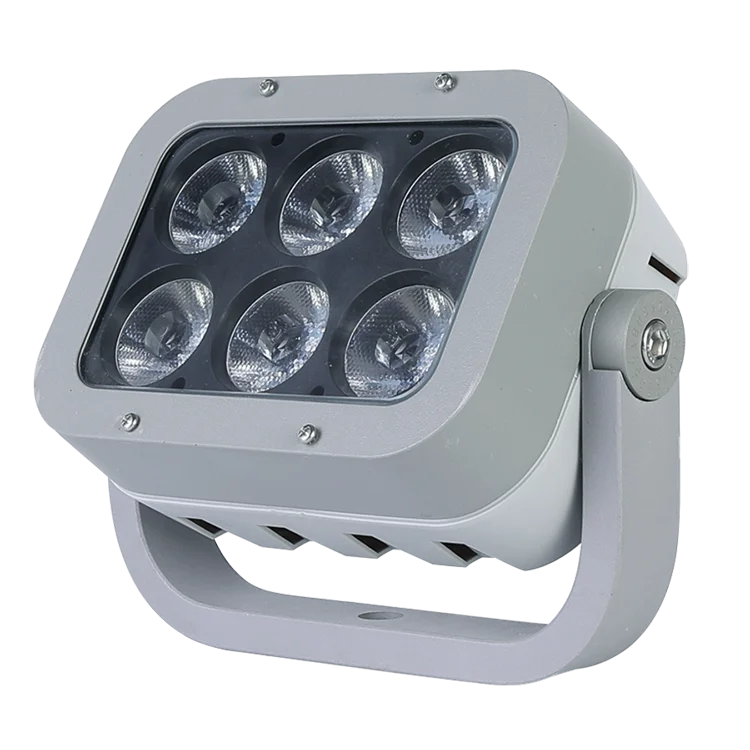

TS1701 SIDE



ELECTRICAL



PHYSICAL



Power Consumption

45W

Dimension(mm)



 150x258x238mm

LED brand

Cree / Osram / Epistar

Main Material



 Aluminum, glass

CRI

 >80

Fixture Finish



 silver / grey / black / white

Lumen output

 60lm/w@ 4000K

OPTICS



LED color

 2200K,2700K,3000K,3500K,4000K, 5700K, 6500K, R,G,B, Y, A,RGB,RGBW

Beam Angle



 5°  8° 10°  12° 15°  20° 25°  30°  45°  60° Asymmetric

Life maintenance

 >50,000  hours

Reflector/Diffuser



 glass (options: honey comb louvre, visor)

Input voltage

24Vdc, 100-240Vac 50/60Hz

SAFETY &PROTECTION

Power factor

 >0.9

Ingress Protection

 IP66

Driver options

 Meanwell / MOSO / DONE

Operating Temperature

 -10℃~50℃

Interface

 ON-OFF / PWM / TRIAC / 0/1-10V / DMX512 / DALI / RDM

Accessory

 surface mounting bracket

Wire connection

 1x30cm cable without connectors

Warranty

 3 years

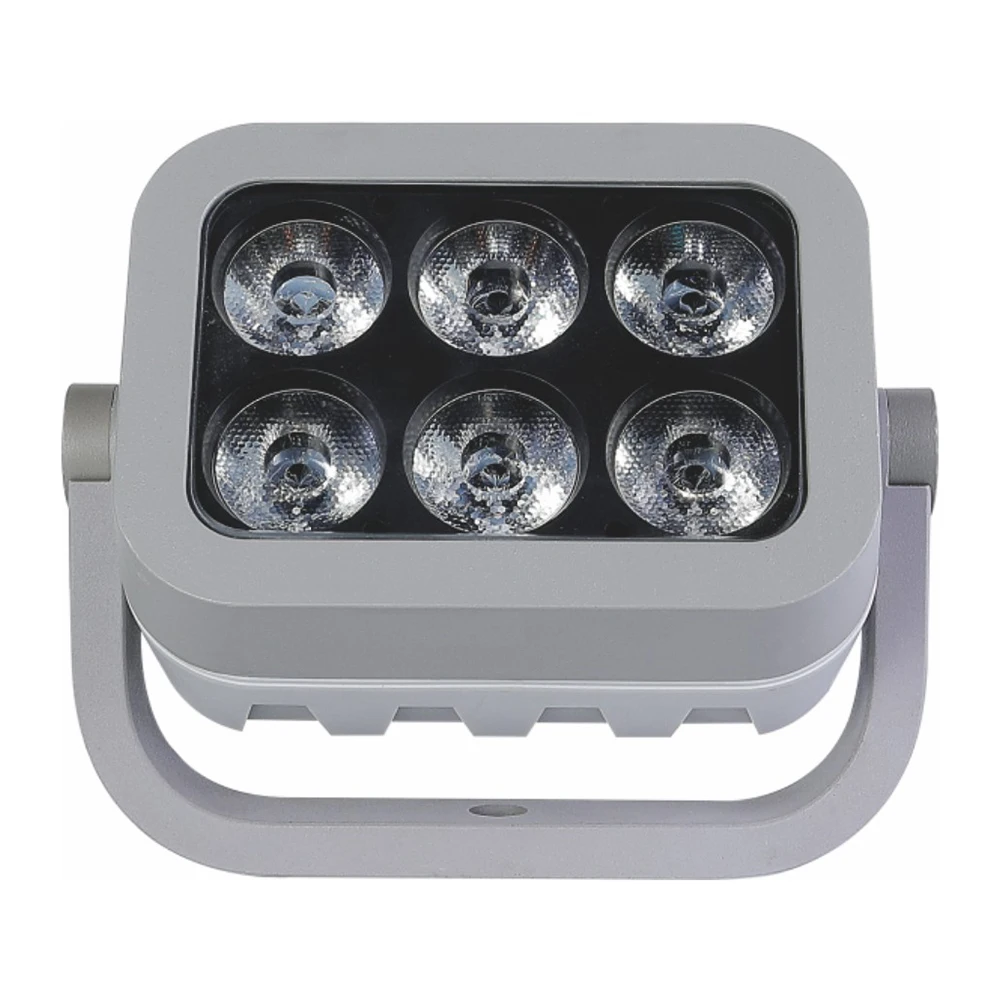

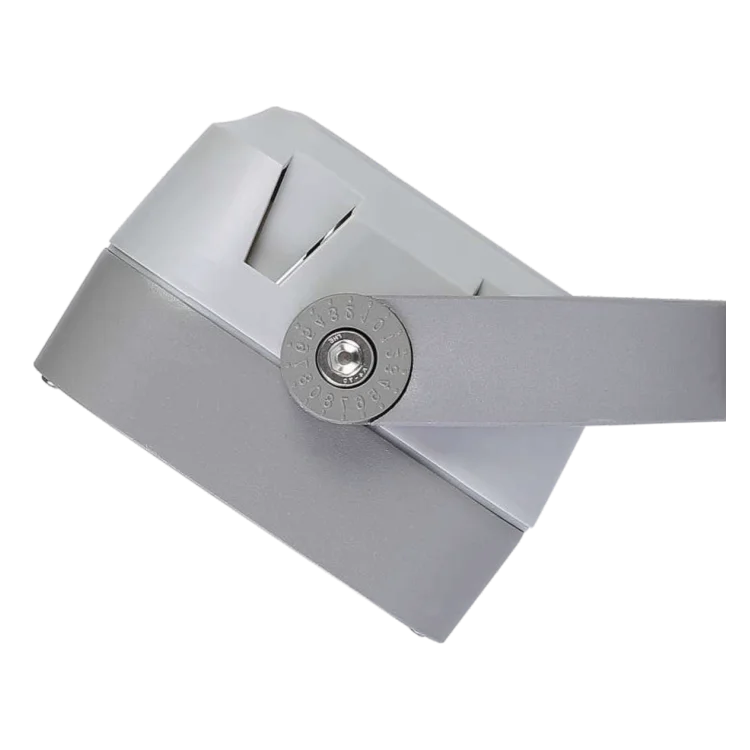

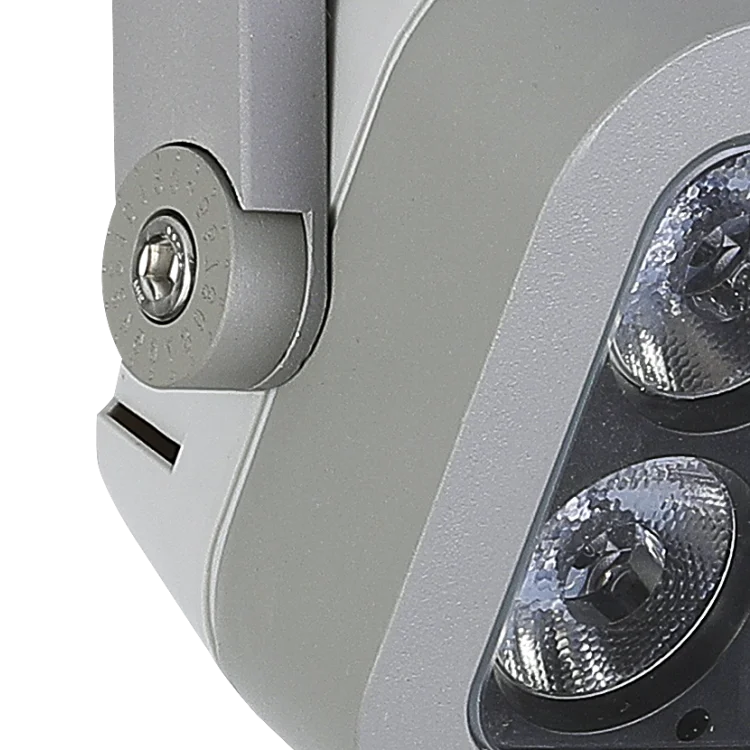

TS1701TS1701ATS1701D2

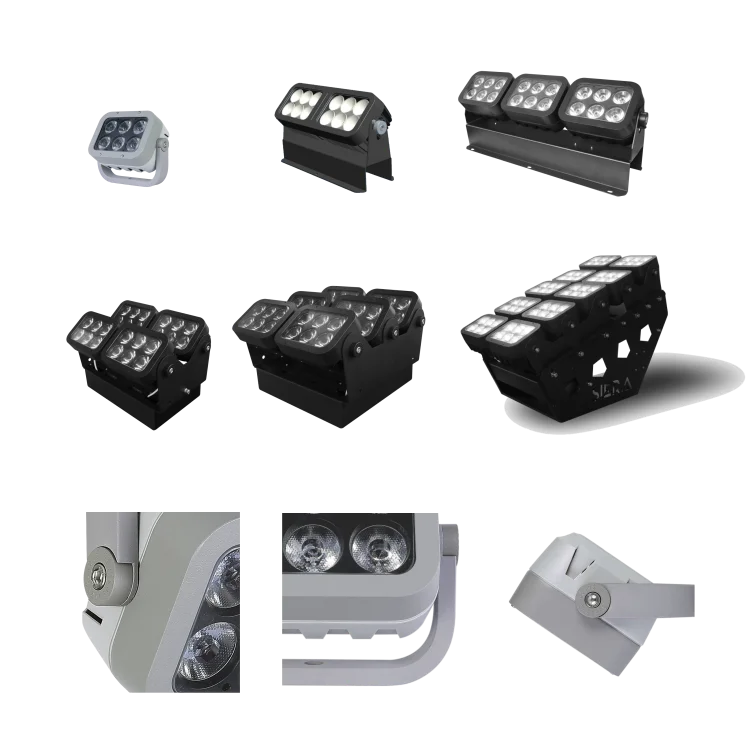

TS17 GROUP


TS17 SIZEAALI  optical


Item NO#

Power

Lumen output

Dimension(mm)

Input Voltage

Beam angle

LED color

Interface

TS1701

45W

2700lm@4000K

150x258x238mm

24Vdc

100-240Vac 50/60Hz

5°

10°

12°

15°

20°

25°

30°

45°

60°

Asymmetric

2200k

2700K

3000K

3500K

4000K

5700K

6500K

R,G,B,Y,A

RGB

RGBW

ON/OFF

PWM

TRIAC

0/1-10V

DMX512

DALI

RDM

TS1702

45W*2

5400lm@4000K

150x443.8x265.5mm

TS1703

45W*3

8100lm@4000K

150x652x4234.5mm

TS1704

45W*4

10800lm@4000K

444x316x425mm

TS1706

45W*6

16200lm@4000K

444x482x425mm

TS1708

45W*8

21600lm@4000K

814x443.8x606mm

TS SPOT LIGHT 1 (2)





Wire&Installation

wiring  LOGO 1.png
