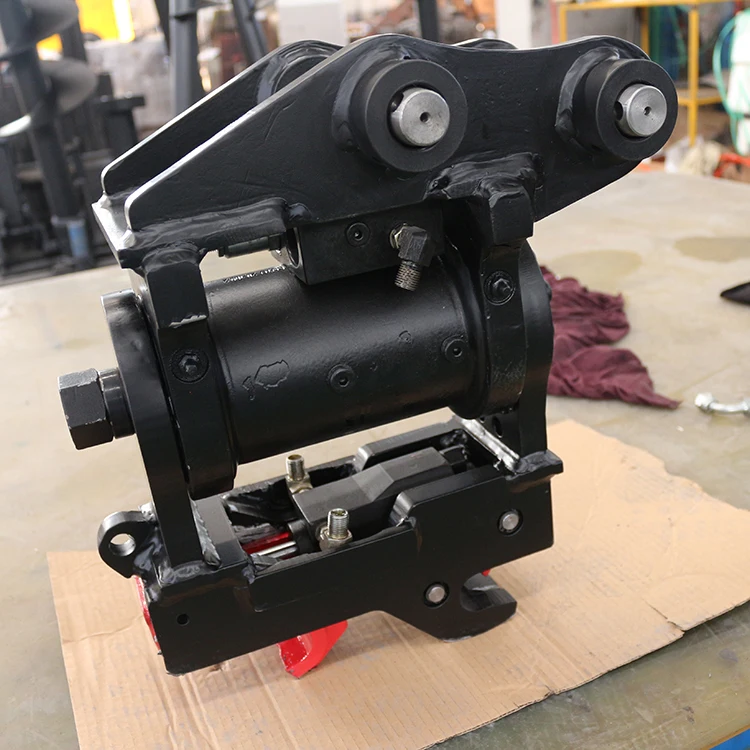

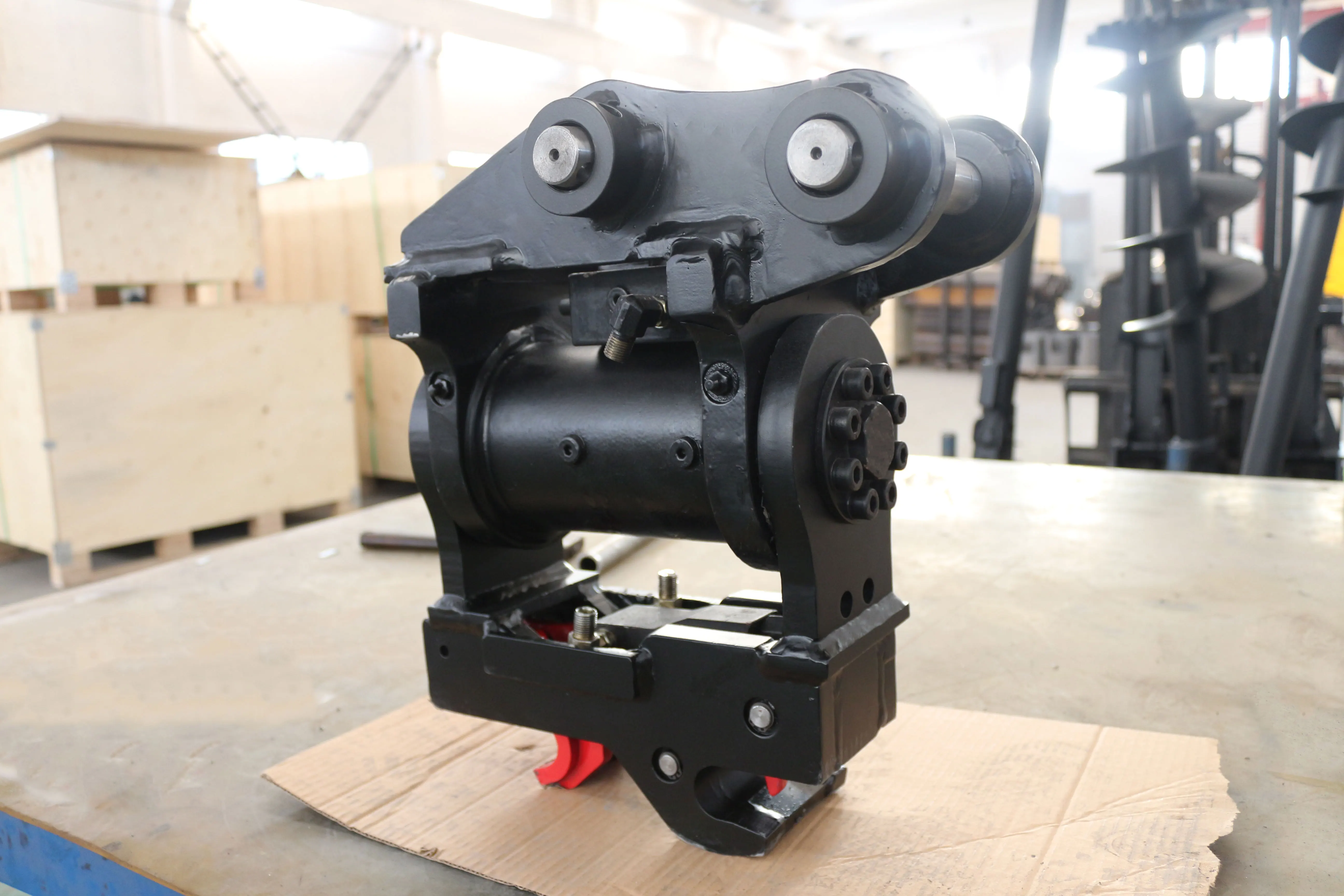

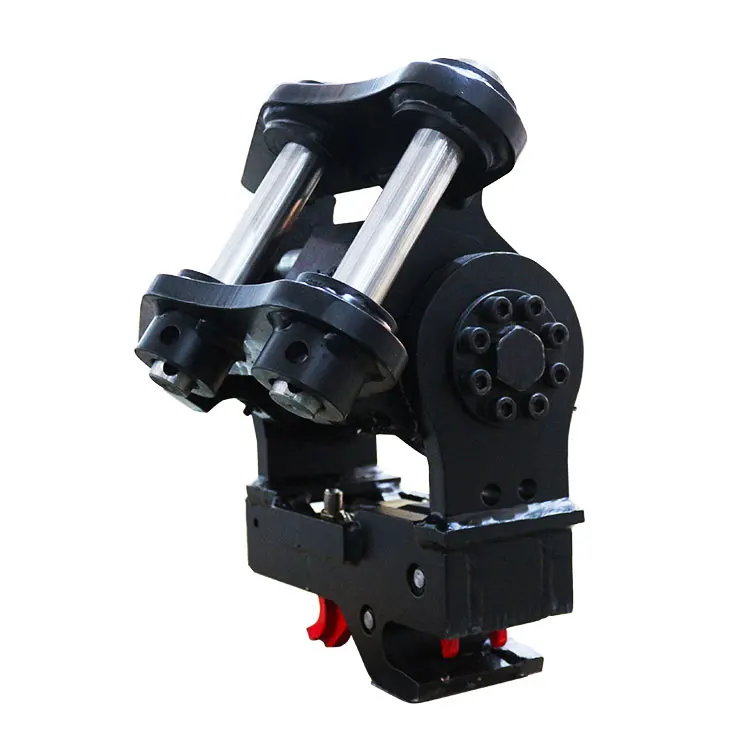

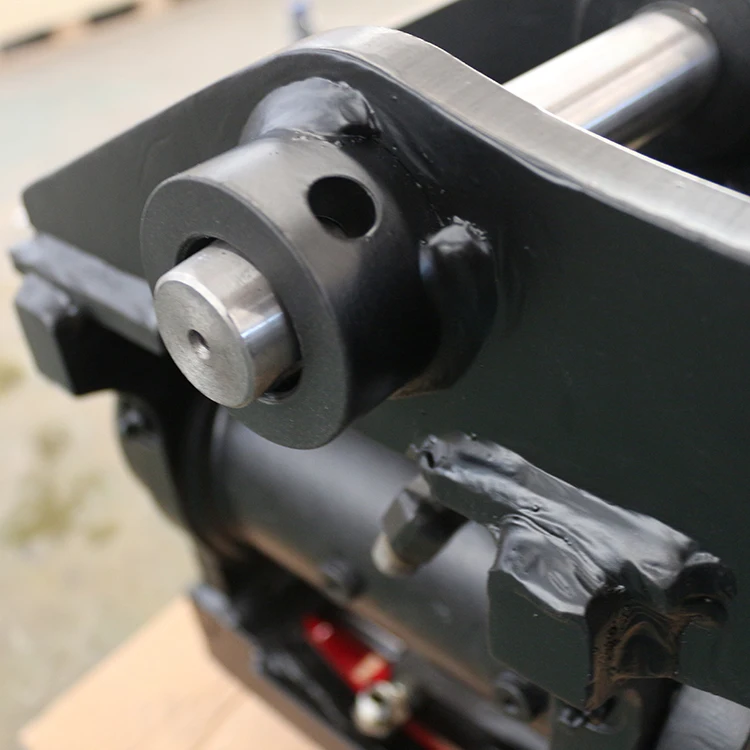

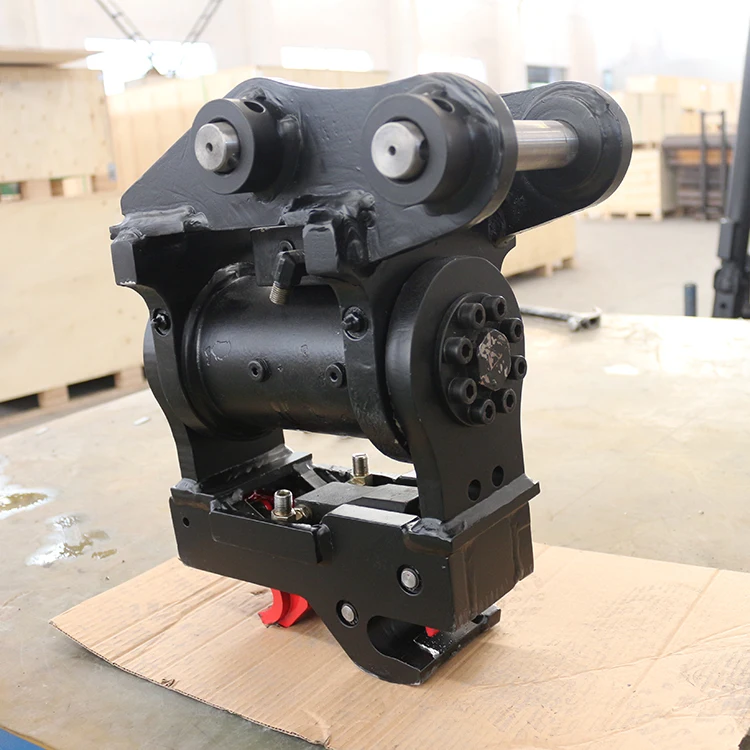

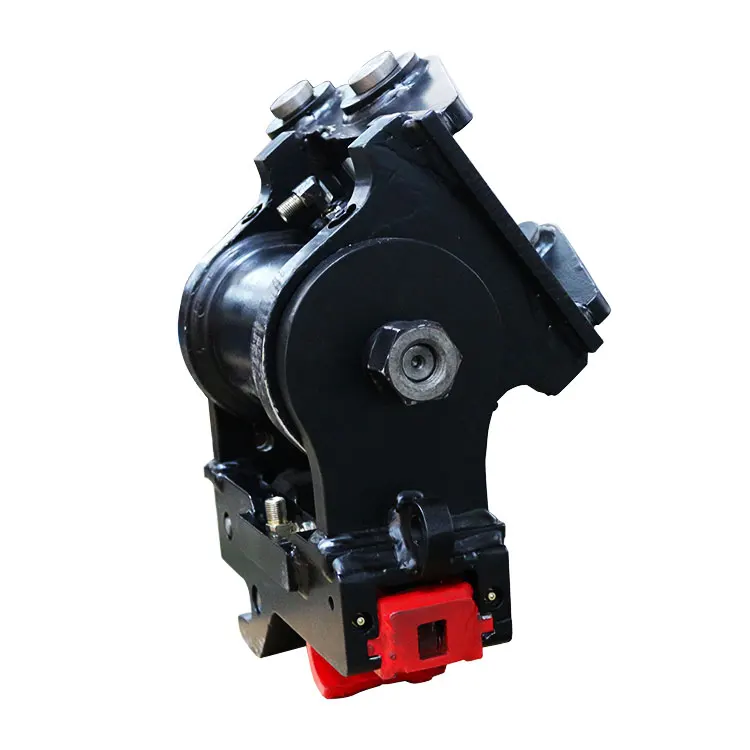

Новый дизайн Рэй вложения Экскаватора гидравлический наклон вращающийся сцепное устройство для навесного оборудования наклона Быстрый Hitch для От 1 до 3 лет)
- Category: Quick Hitch >>>
- Supplier: Changzhou Chuangcheng Precision Machinery Co. Ltd.
Share on (1600221587567):
Product Overview
Description
Product Description
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and
attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
1.Tilt any bucket or attachment up to 180 degrees
2.Better stabilty, increased productivity, more secure
3. Available with common couplers
4.Adaptable to a variety of buckets and attachments
4.Adaptable to a variety of buckets and attachments

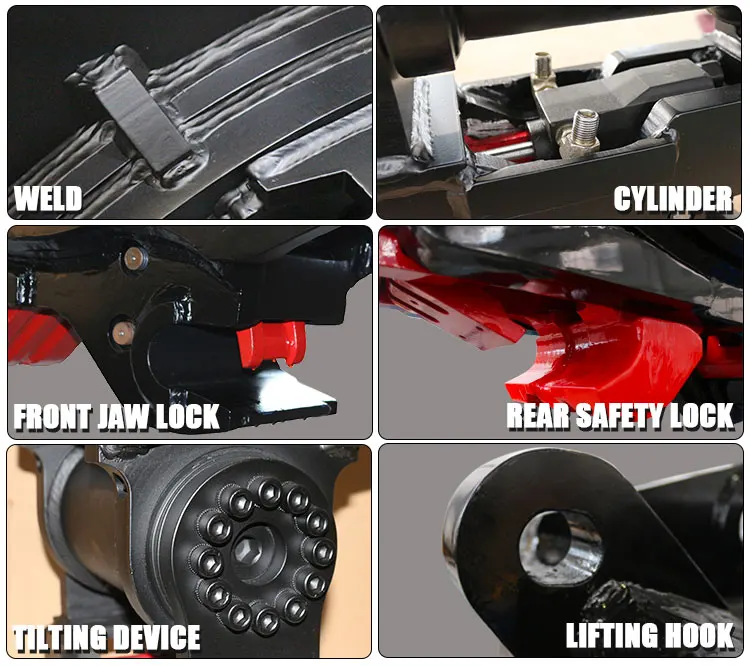

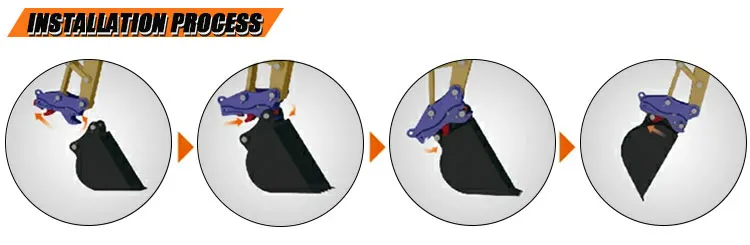

1. Open the cylinder, and ensure slide is fully extended with front jaw safety lock open.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front
attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
2. Line up attachments and engage front attachments pin.
3. Close the cylinder. This will retract the slide mechanism and this will visibly lock the front jaw safety latch around front
attachment pin.
4. Open the cylinder again. The sliding mechanism will extend and engage the rear slide hook onto the rear attachment pin.
5. Proceed with connection test.
OEM

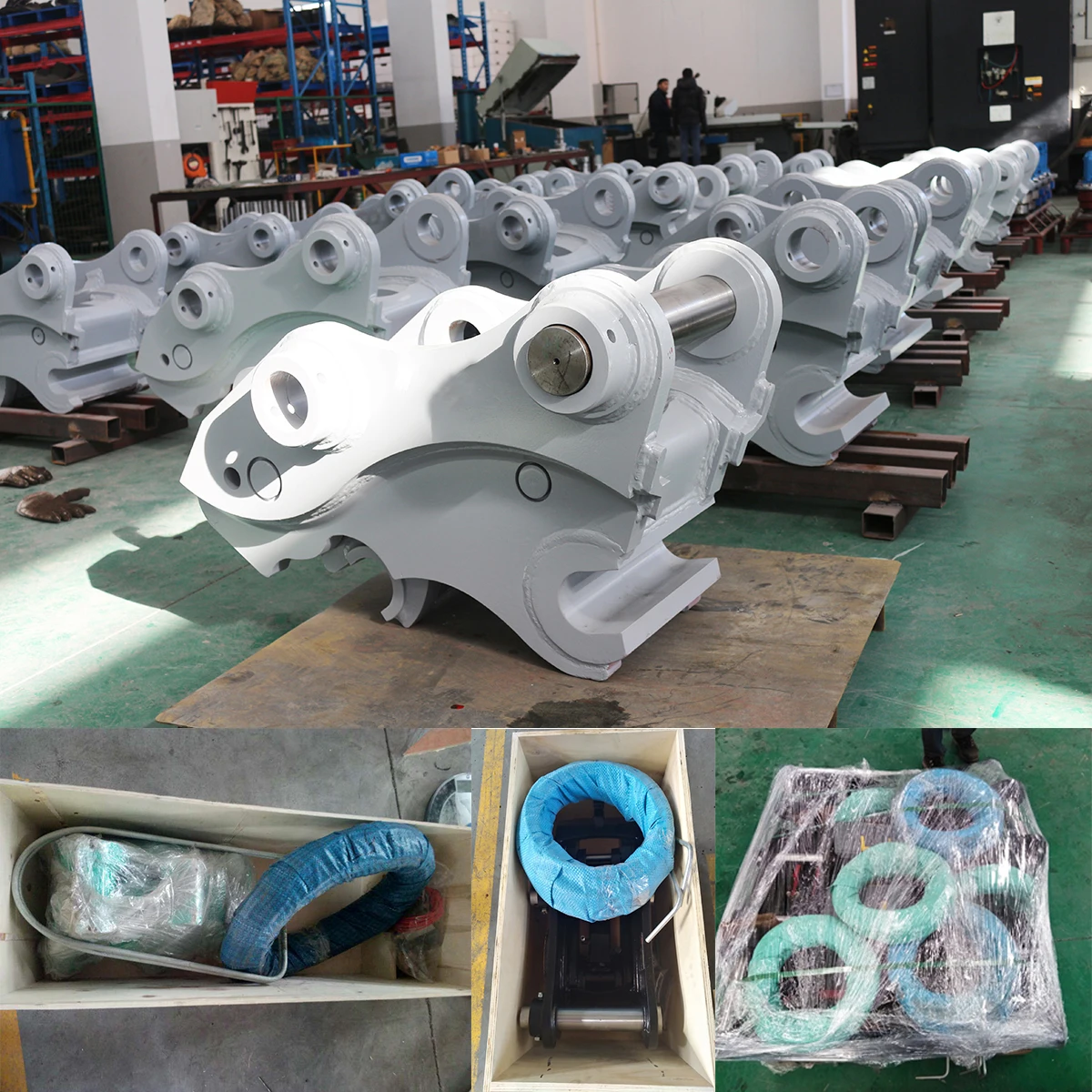

Packing & Delivery
Standard Exported Wooden Case or as customers' requirement

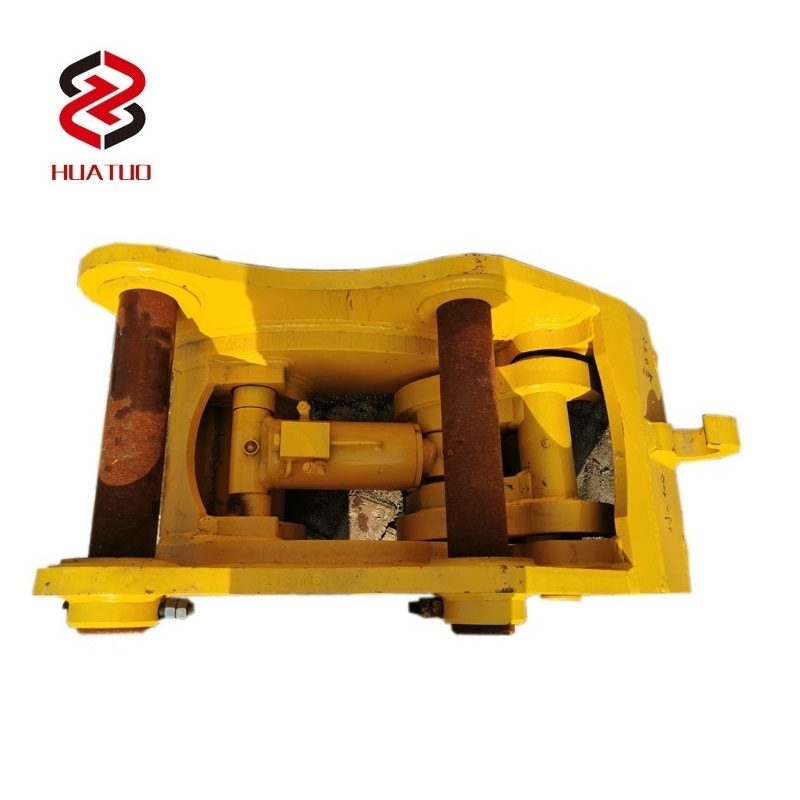

Recommend Products
Specification
Model | Unit | RQH01T | RQH02T | RQH04T | RQH06T | RQH08T | |
Excavator | T | 1-3 | 4-6 | 6-8 | 10-15 | 15-23 | |
Cylinder | Max pressure | Bar | 200 | 200 | 200 | 200 | 200 |
Psi | 2900 | 2900 | 2900 | 2900 | 2900 | ||
Operation flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | |
Gpm | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | 2.6-5.2 | ||
Tilting cylinder | Max pressure | Bar | 210 | 210 | 210 | 210 | 210 |
Psi | 3046 | 3046 | 3046 | 3046 | 3046 | ||
Oil flow | L/min | 2-3 | 6-10 | 15-20 | 20-25 | 25-32 | |
Oil flow | Gpm | 0.52-1.79 | 1.6-2.6 | 3.9-5.3 | 5.3-6.6 | 6.6-85 | |
Tilt Angle | 140/180 | 140/180 | 140/180 | 140/180 | 140 | ||
Tilt Torque | N.m | 900 | 3200 | 7000 | 9000 | 15000 | |
Remaining Torque | N.m | 2400 | 7200 | 20000 | 26000 | 43000 |

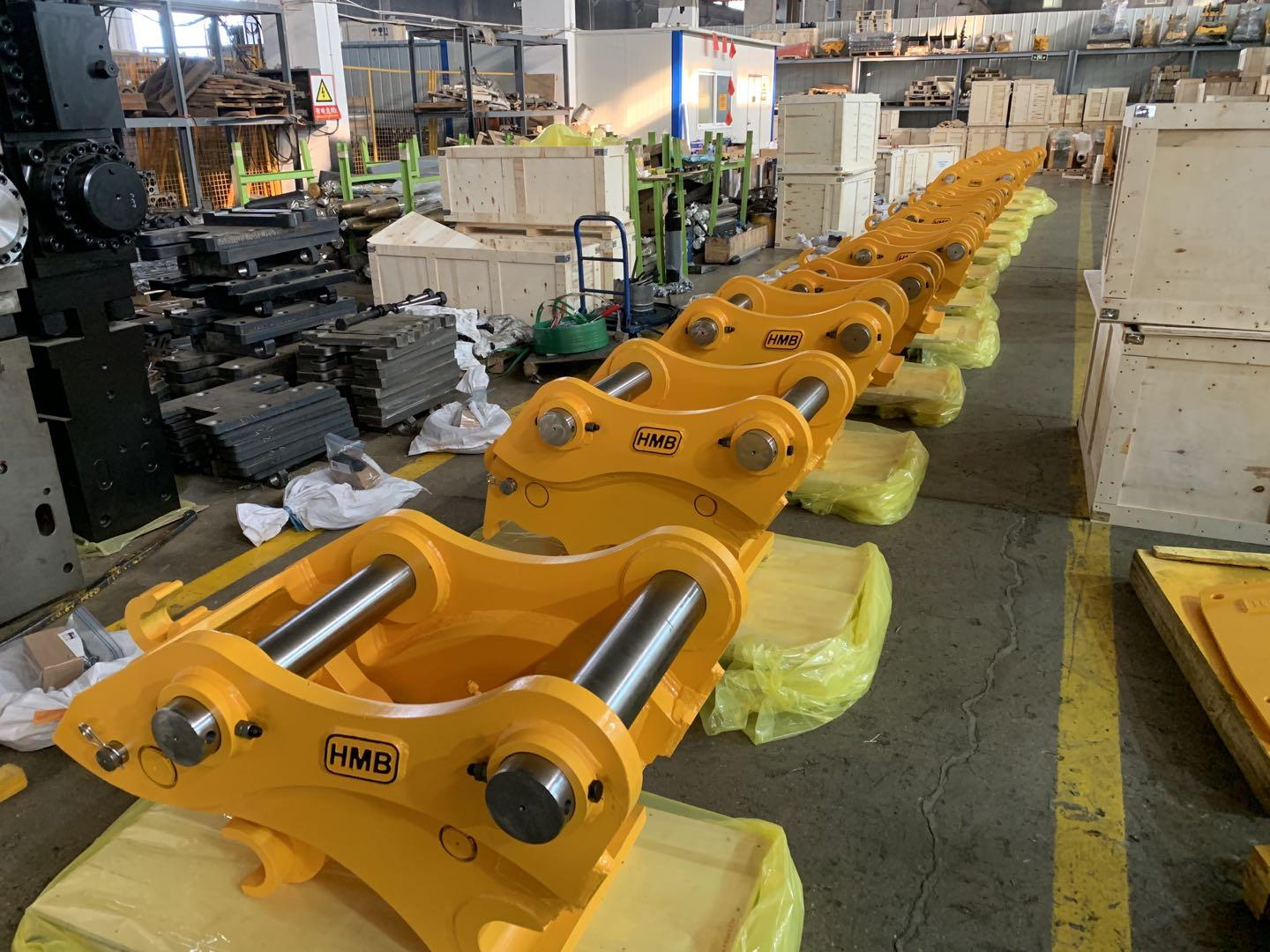

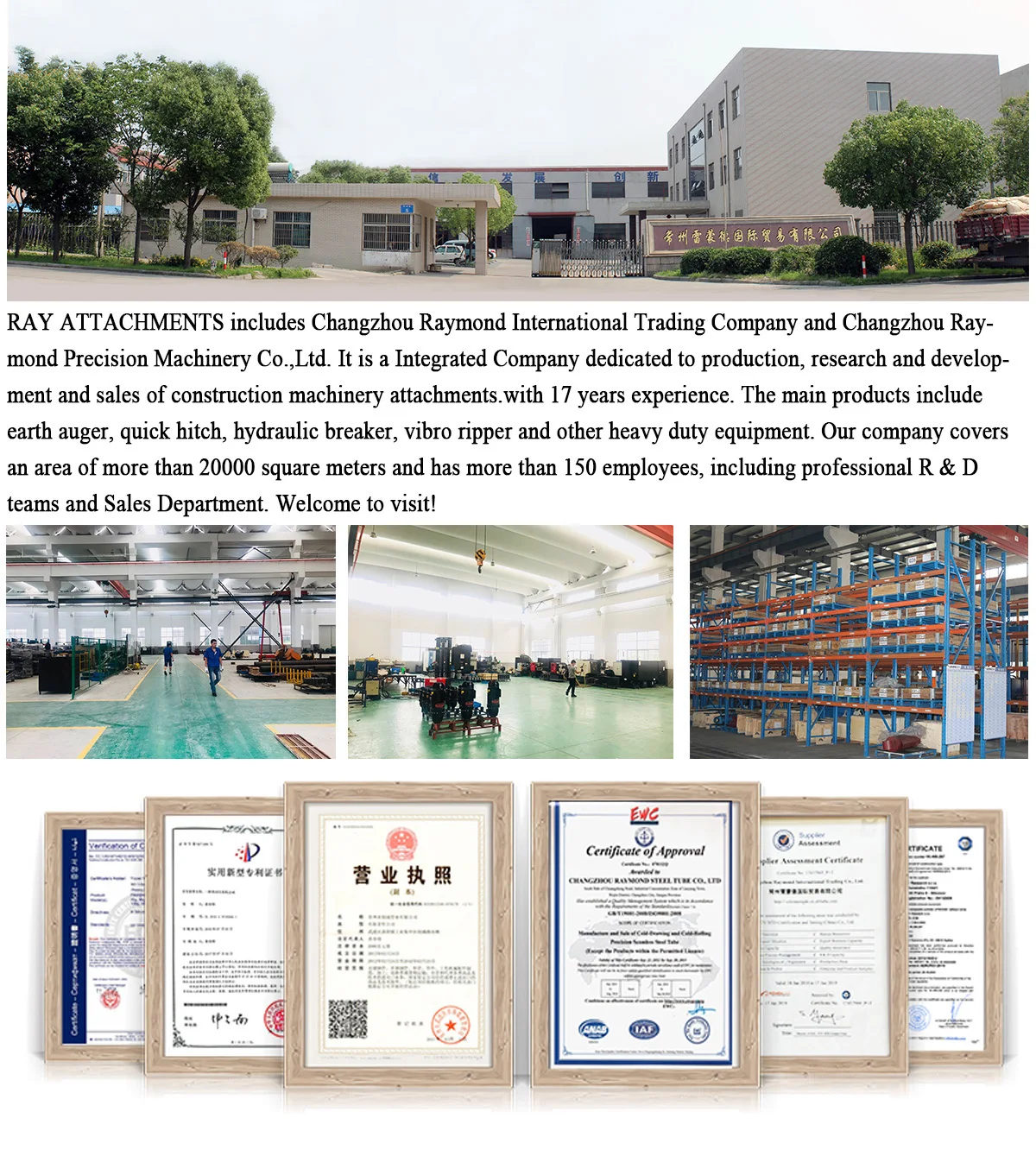

Company Profile
Exhibition
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2012,sell to Southeast Asia(20.00%),Eastern Europe(12.00%),North America(12.00%),South America(10.00%),Eastern Asia(10.00%),Oceania(7.00%),Mid East(7.00%),Africa(5.00%),Western Europe(5.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),South Asia(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

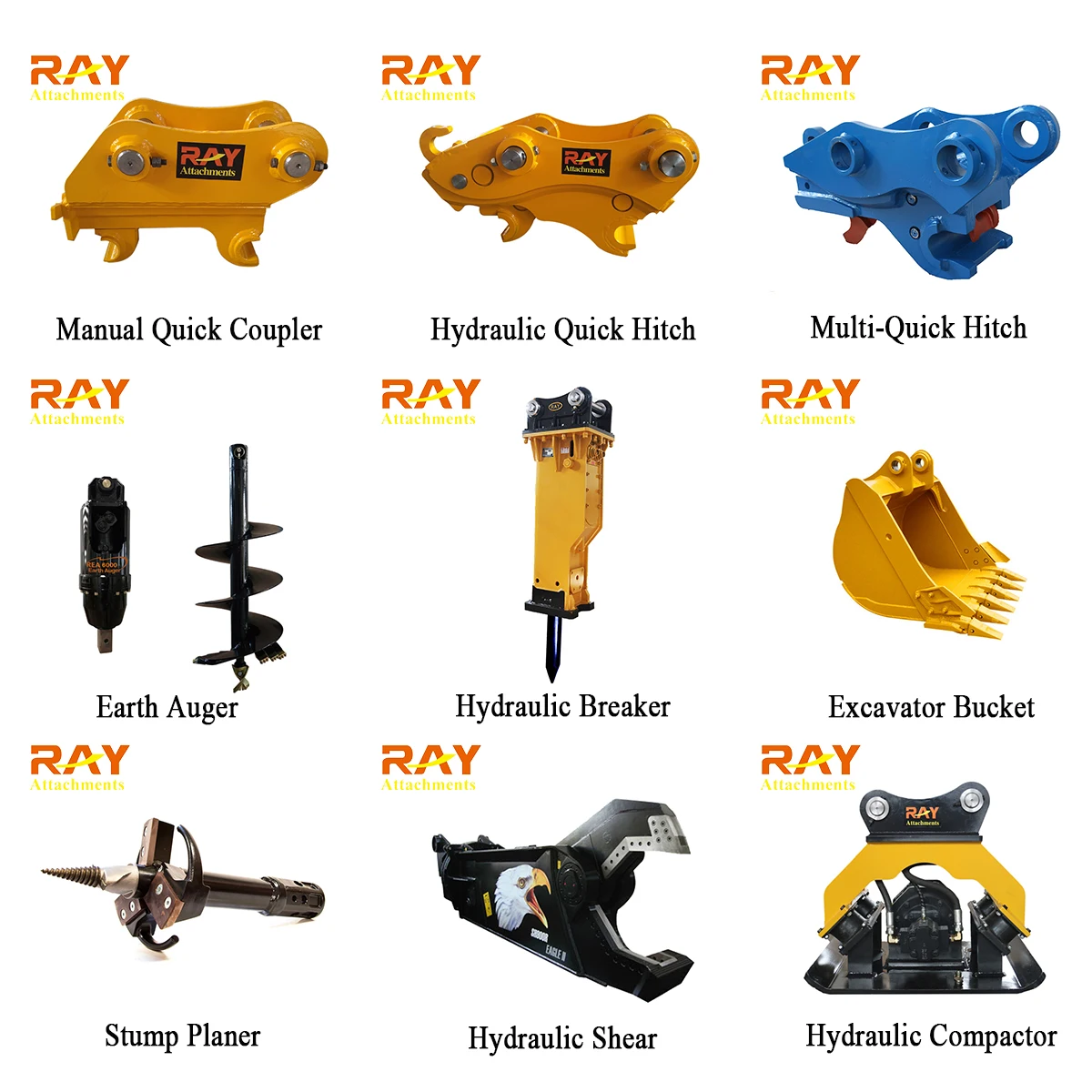

3.what can you buy from us?
Earth Auger Drill,Hydraulic Quick Hitch,Hydraulic Breaker,Pile Breaker,Multi Coupler
4. why should you buy from us not from other suppliers?
Changzhou Chuangcheng Precision Machinery Co., Ltd. is a professional manafacture and supplier of construction machinery products,established in 2002.
Our products was awarded ISO9001-2000 certificate,also CE certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2012,sell to Southeast Asia(20.00%),Eastern Europe(12.00%),North America(12.00%),South America(10.00%),Eastern Asia(10.00%),Oceania(7.00%),Mid East(7.00%),Africa(5.00%),Western Europe(5.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),South Asia(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Earth Auger Drill,Hydraulic Quick Hitch,Hydraulic Breaker,Pile Breaker,Multi Coupler
4. why should you buy from us not from other suppliers?
Changzhou Chuangcheng Precision Machinery Co., Ltd. is a professional manafacture and supplier of construction machinery products,established in 2002.
Our products was awarded ISO9001-2000 certificate,also CE certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
