Product Overview

Description

Stainless steel TCH SS cartridge filter housing bag filter housing

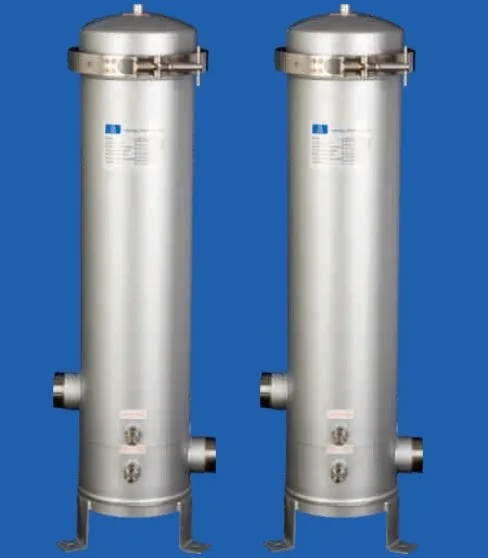

TCH SS CARTRIDGE FILTER HOUSING



TCH 3 – 7 Rounds



I. Features





V-Band clamp top closure to allow quick filter cartridge changing.

Side inlet and outlet.

Designed for commercial and industrial applications. Different connection such as NPT,flange and victaulic coupling are available.

Built in 1/2” air vent,1/2” gauge ports and 1/2” drain.

Construction material of SUS304 and SUS316L are available.

Cups and springs are supplied as standard to eliminate by pass filtration.

Standard housing accepts 2.5” DOE filter cartridge.



II. Specification

Max. Operating pressure: 150 psi(10 bar) at 250 ℉(120 ℃).

Max. Operating temperature: 250 ℉(120 ℃).

Sealing material: standard Buna-N ( EPDM/Viton/Teflon is available).

Finishing: standard poly coat ( glass bead blasting/ electro polishing is available).

Connection: standard MNPT (MBSP/Victaulic coupling/RF flange is availble).

Cartridge length: 10”/20”/30”/40”

Quantity of cartridges: 3,4,5 and 7 rounds.

Cartridge type: 10” to 40” melt blown and string wound type.

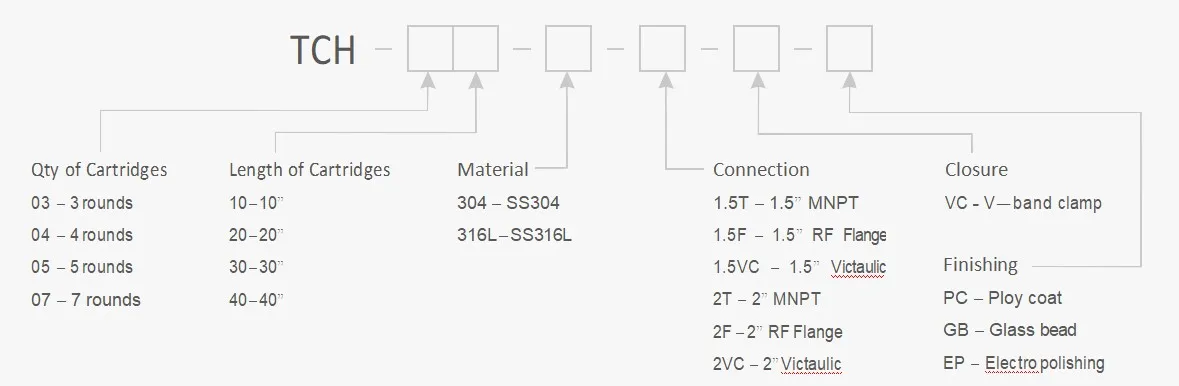

III. Product Selection



TCH 12 & 22 Rounds

I. Features



 Same as TCH 3-7 rounds

II. Specification

Same as TCH 3-7 rounds,





Cartridge length: 30” and 40”

Quantity of cartridges: 12 and 22 rounds.

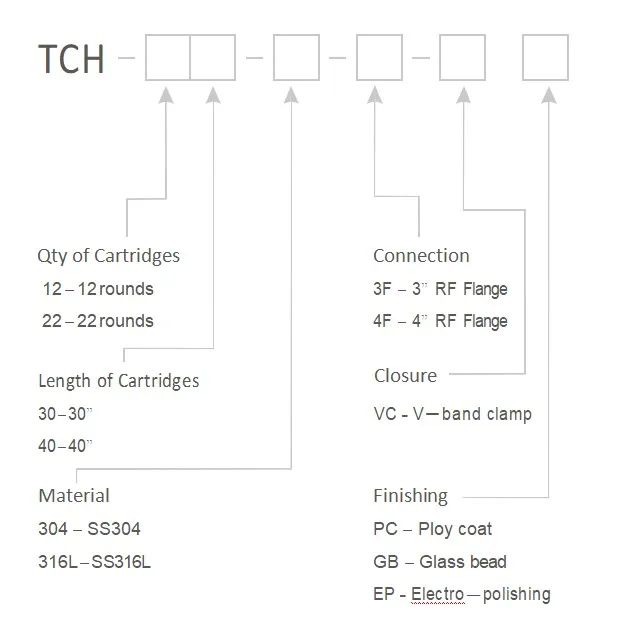

III. Product Selection
