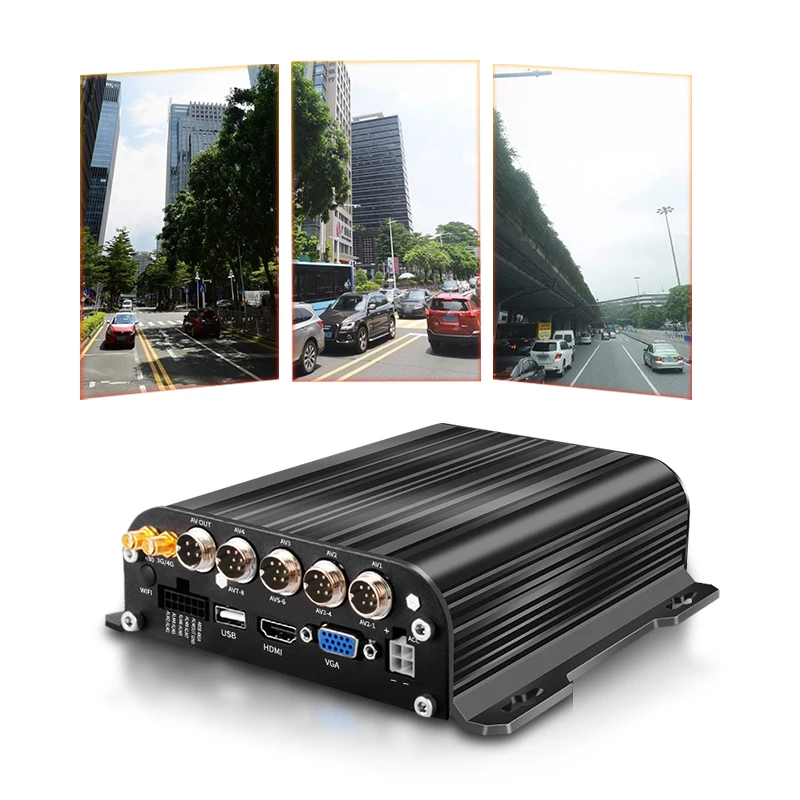

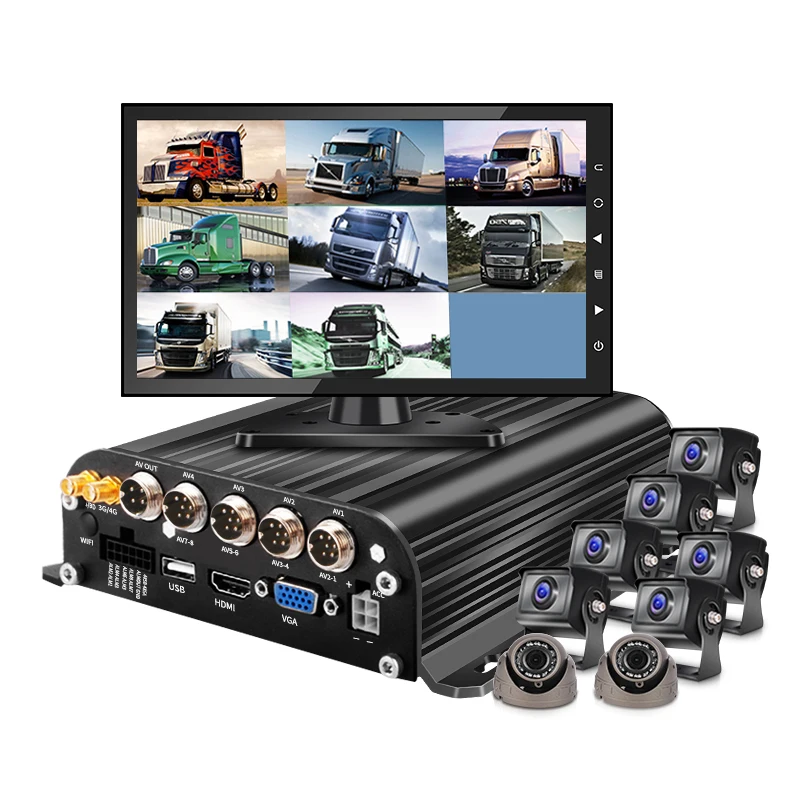

CCTV Car Video Recorder 8CH 1080P 720P MDVR Support 128GB SD Card Mobile DVR For Truck Bus Taxi Black Box

1080P MDVR Specification

Power

Voltage Input:   DC8-48V

Voltage Output:   DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)

System

Main Processor:   Hi3520DV300

Operating system:   Embedded Linux OS

Language:   Chinese/English

OSD:   Graphical User interface OSD menu

Password:   Users Password/ Administrator Password

Video

Video input:   4CH (8CH)AHD or Analog Video Inputs

Video output:  1CH Video Inputs (1.0Vp-p/ 75 Ohms), 1CH VGA output

Preview:  1 CH/ 4 CH Preview.

Recording Ratio:  PAL: 25 Frame/s; NTSC: 30 Frame/s

Image Compression:   H.264 or H.265 Main profile/MJPEG

Video Standard:   PAL/NTSC

Image Resolution:   1080P/1080N/720P/960H/D1/CIF

Playback quality:   1080P/1080N/720P/960H/D1/CIF

Audio

Audio input:   4-CH( 8CH)

Audio output:   1-CH

Audio Bit Rate:   8KB/S

Recording mode:   Audio & Video sync.

Image processing & Storage

Video Quality:   1080P/720P/960H/D1/CIF each channel; Highest Video Quality: 4CH Full 1080P

Bit Rate:  1080P:  2048Kbps~6144Kbps; D1: 512Kbps~1536Kbps; 6 levels optional.

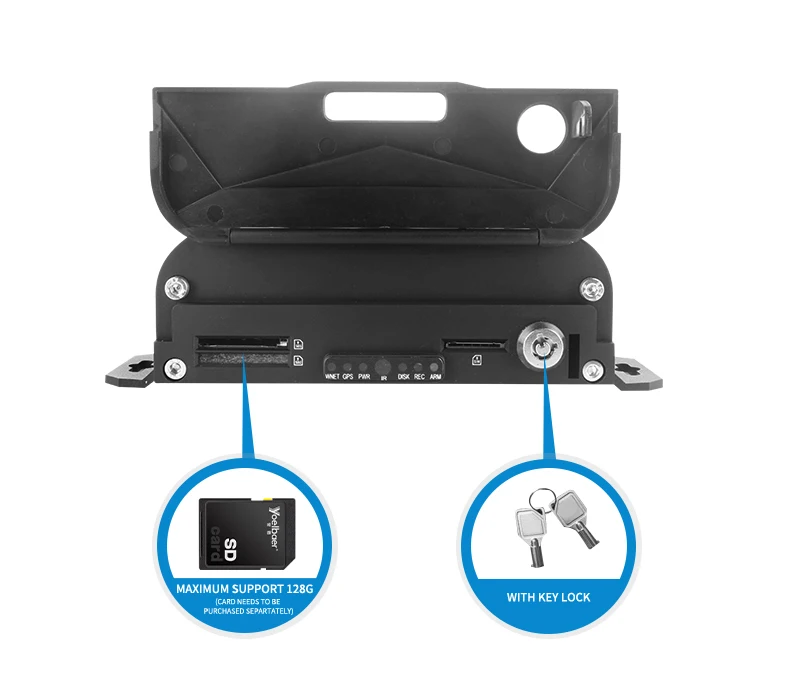

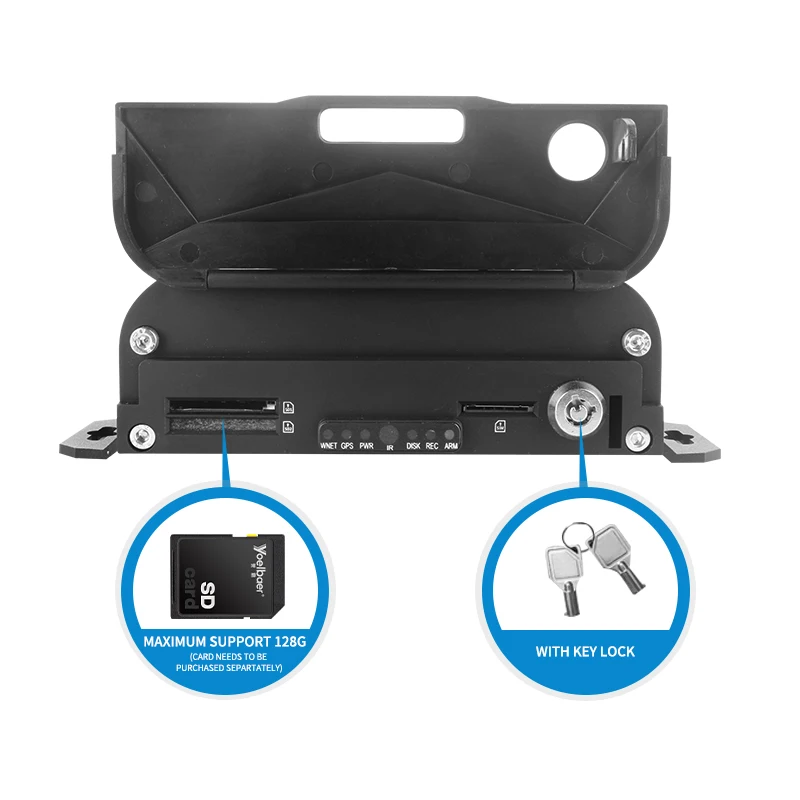

Storage:   2TB Hard Disk & 128GB SD Card (maximum)

Alarm

Alarm input:   4 alarm inputs

Alarm output:   1 alarm output

Firmware Upgrading

Upgrading mode:   Manual/Automatically/Remote/Emergency Recovery

Upgrading method:   USB disk/Wireless network/SD card

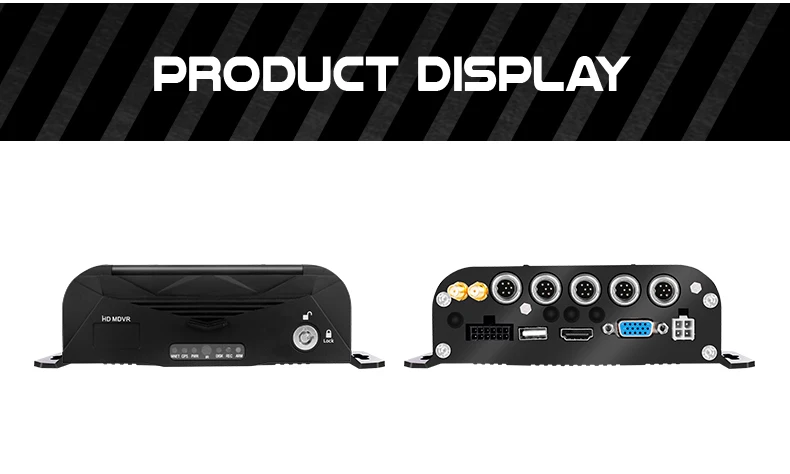

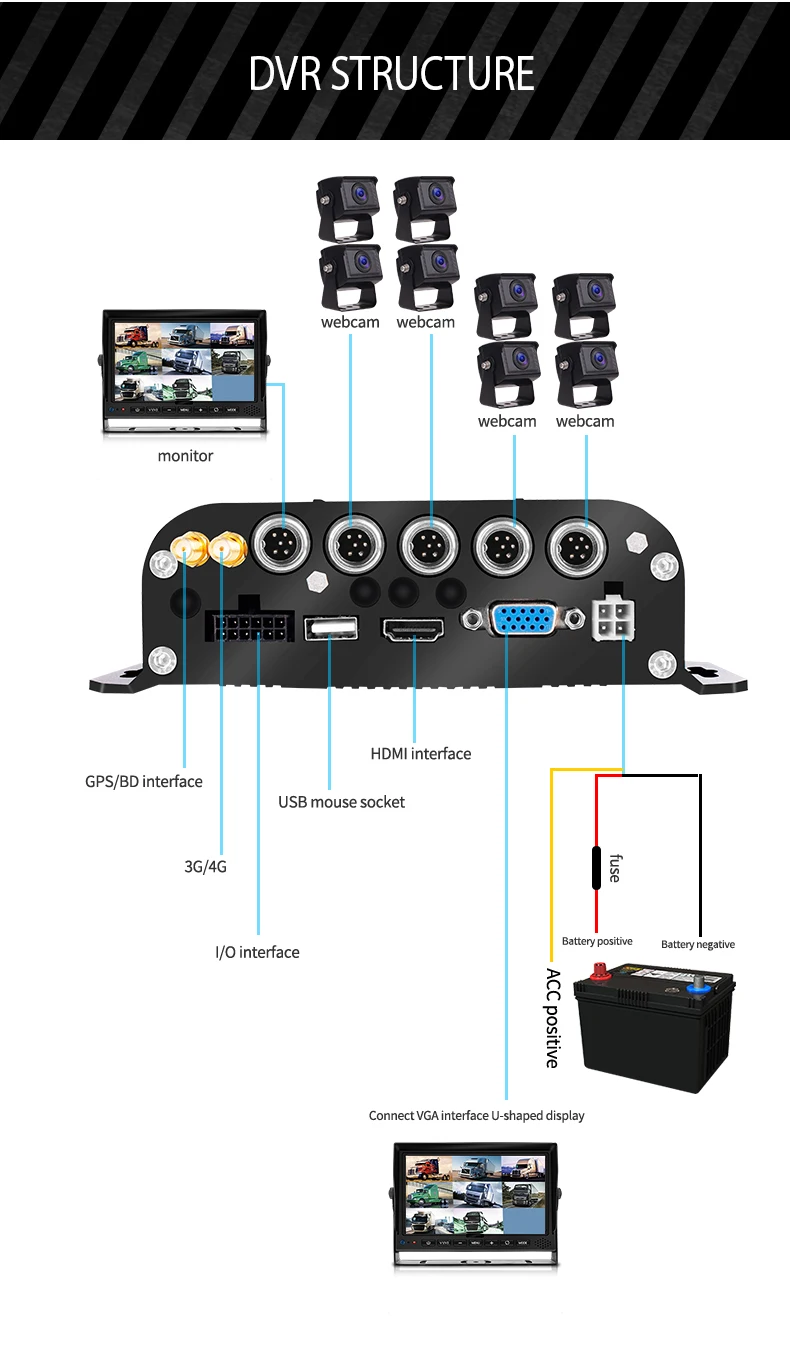

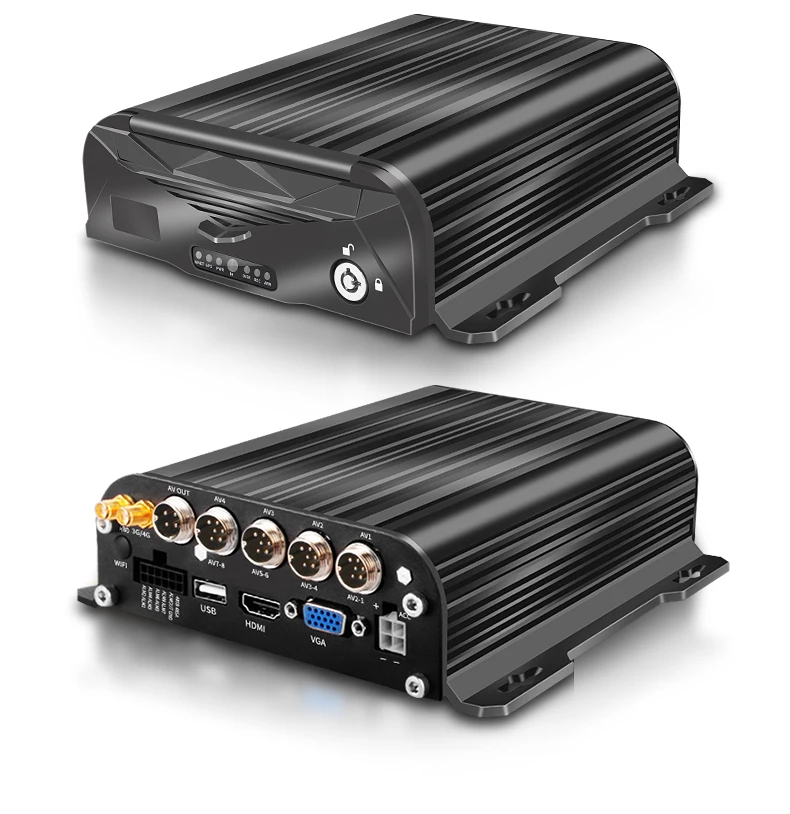

Interface

RJ45 Interface:  No

AV input:   4/8 ch Aviation interface

AV output:   1ch VGA video output, 1ch Aviation AV output

Ignition input:   1 ACC signal

UART:   1 LVTTL Level

USB 2.0 Port:  Yes

RS232 Interface:   1-RS232 interface

Wireless

3G/4G:   Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD; LTE/TDD LTE

Wi-Fi:   Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz

External GPS Module:    (Optional) ,Support detecting antenna Plug in/Unplug/Short

Operation Environment

Temperature:  -20°~70°

Humidity:  10% to 95%
