Performance parameters: Single set of water treatment range: 15- -1800t/h Minimum working pressure: 0.1Mpa Maximum working pressure: 1.0Mpa Pressure loss: ≤0.01Mpa Filter element accuracy: 100-5000um Conventional pressure: 1.0Mpa/1.6Mpa (customizable 2.5Mpa/4.0Mpa) Filter mesh material: 304/316L filter element form: stainless steel wedge mesh/sintered mesh Maximum temperature: 95C Control electric box: relay control/PL C control Control mode: manual / differential pressure / time Rated operating voltage: three-phase, 380V single-phase, 220V, 50HZ Special pressure and special high temperature can be customized according to customer needs

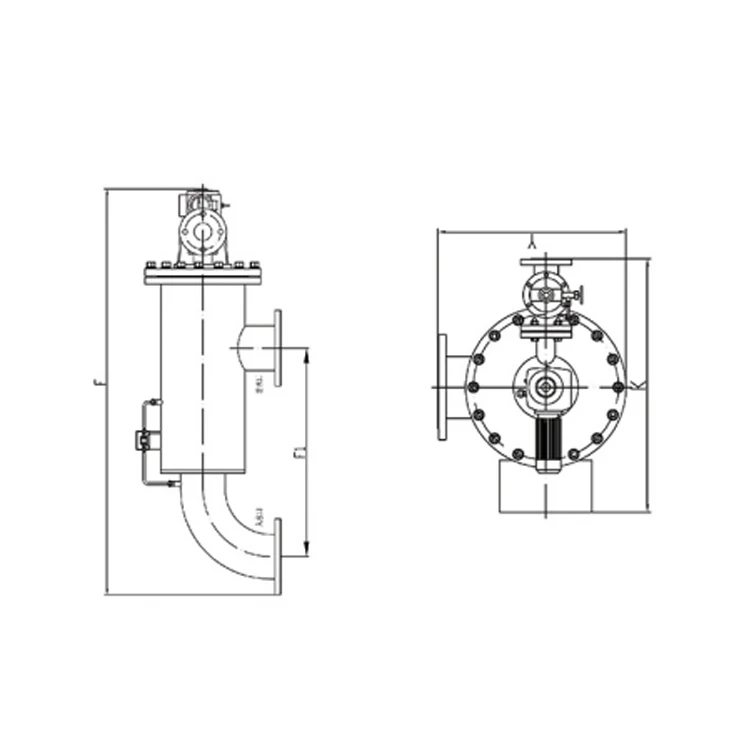

Model
Pipe diameter (mm)
Filter flow rate (t/h)
Filter area(cm2)
F(mm)
F1(mm)
Y(mm)
K(mm)
Weight (kg)
SCF-B20-1.0
50
15-35
2750
1125
515
688
678
88
SCF-B30-1.0
80
40-50
2750
1125
515
688
678
97
SCF-B40-1.0
100
50-80
3014
1223
588
688
678
115
SCF-B50-1.0
125
80-115
4236
1358
676
688
678
160
SCF-B60-1.0
150
115- 180
4958
1511
781
749
730
243
SCF-B80-1.0
200
180-285
6000
1822
939
825
782
260
SCF-B100- -1.0
250
300-450
7635
2165
1131
879
831
367
SCF-B120-1.0
300
450-620
11730
2375
1274
944
913
444
SCF-B140-1.0
350
650-870
16000
2725
1476
1031
1015
650
SCF-B160-1.0
400
870 1150
20100
3081
1670
1103
1116
811
SCF-B180-1.0
450
1150-1460
24986
3438
1874
1204
1218
973
SCF-B200-1.0
500
1500-1800
32900
3812
2082
1293
1255
1001
