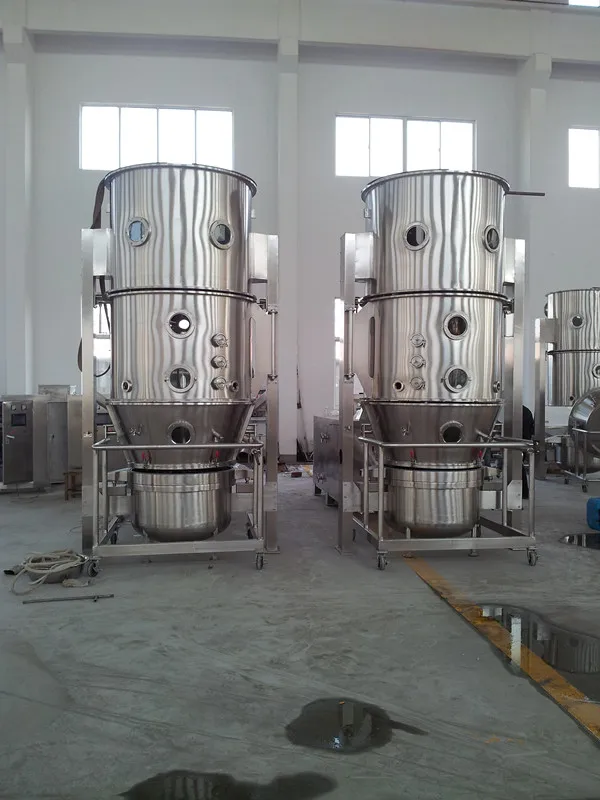

Hot Sale Fluidized Bed Dryer / Fluidization Bed Reactor
Product Description
TECHNICAL DATA
Model
FG-60
FG-100
FG-120
FG-150
FG-200
FG-300
FG-500
Capacity(kg)
60
100
120
150
200
300
500
Blower air volume(m³/h)
2361
3488
3488
4901
6032
7800
10800
Blower pressure(mm)
494
533
533
679
787
950
950
Blower power(kw)
7.5
11
15
18.5
22
30
45
Sitrring power(kw)
0.55
1.1
1.1
1.1
1.1
1.1
1.5
Sitrring speed(r/min)
11
11
11
11
11
11
11
Steam Consumption(kg/h)
141
170
170
240
282
366
451
Application:
1, Drying of wet granule and powder materials in pharmaceutical, food, feed, chemical and other fields.
2, Drying of screw extrusion particles, shaking particles and high-speed mixing grain.
3. Drying of large particles and small blocks, viscous grains.
Fetures:
1. Circular structure of fluidized bed avoiding the blind angle.
2. In-bed stirring, avoiding the agglomeration of lake wet material and forming channel flow during drying
3. The bag filter for anti-static is special fiber cloth for safe operation.
4. Adopt tipping discharge, conveniently , quick and completely.
5. Seal negative pressure operation, in accordance with the GMP standard design.
Working principle:
The purified and heated air is introduced from the bottom by the draft fan and passed through the screen plate. The fluidization is formed through stirring and negative pressure in the working room. The moisture will be rapidly evaporated and exhausted so the material can be dried very fast.

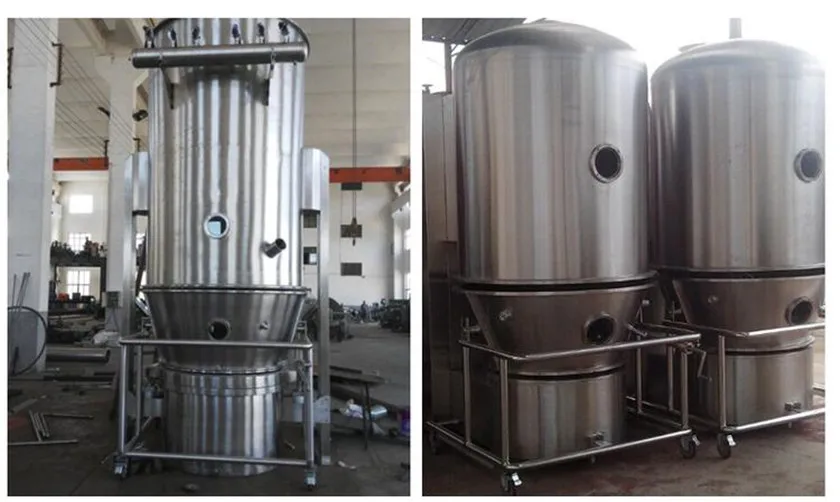

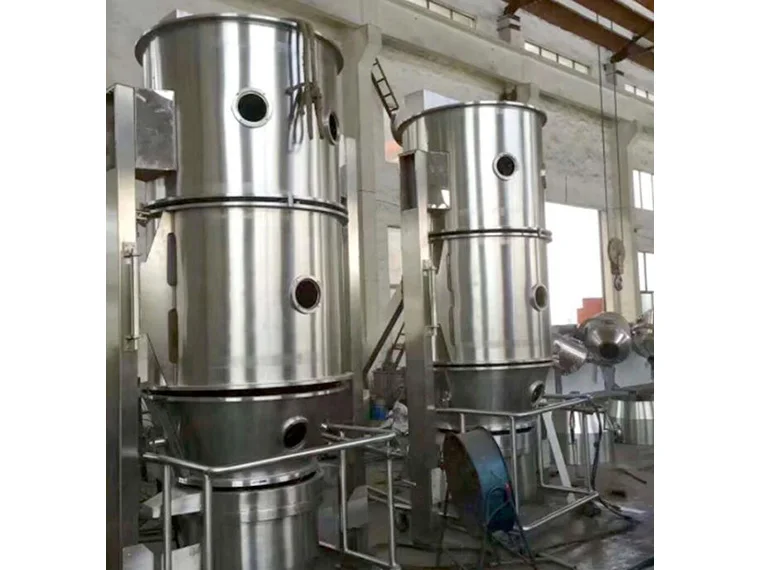

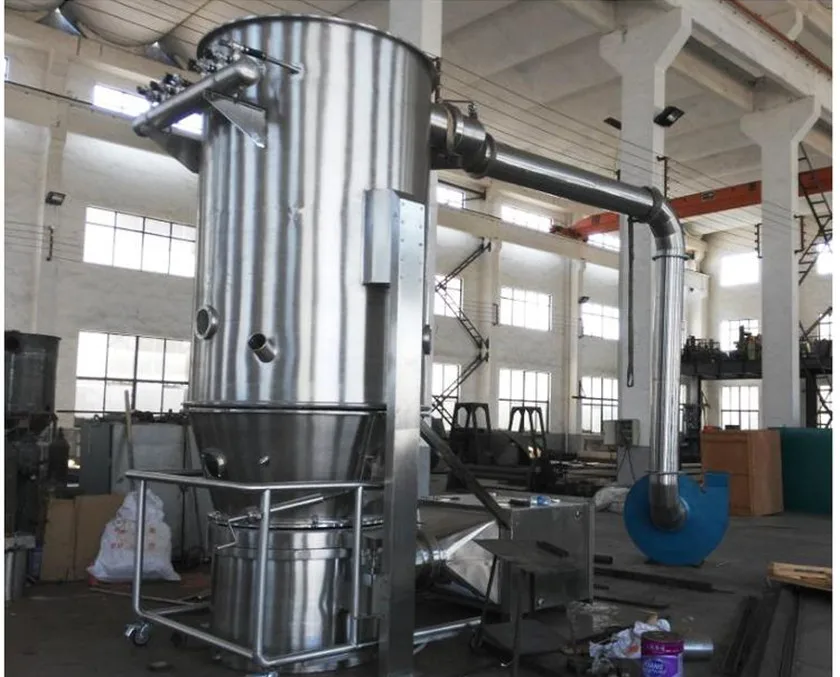

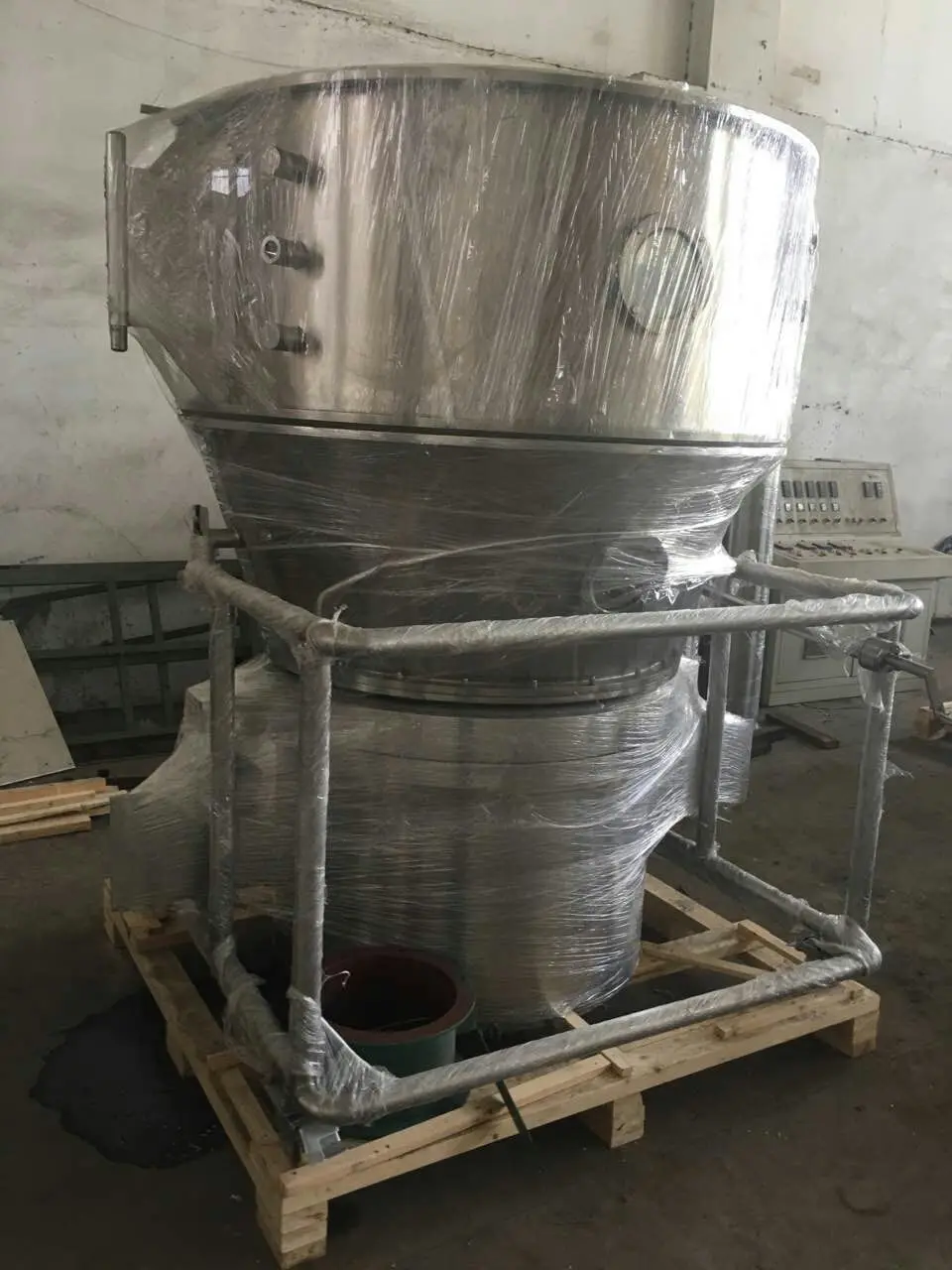

Detailed Images
Company Information

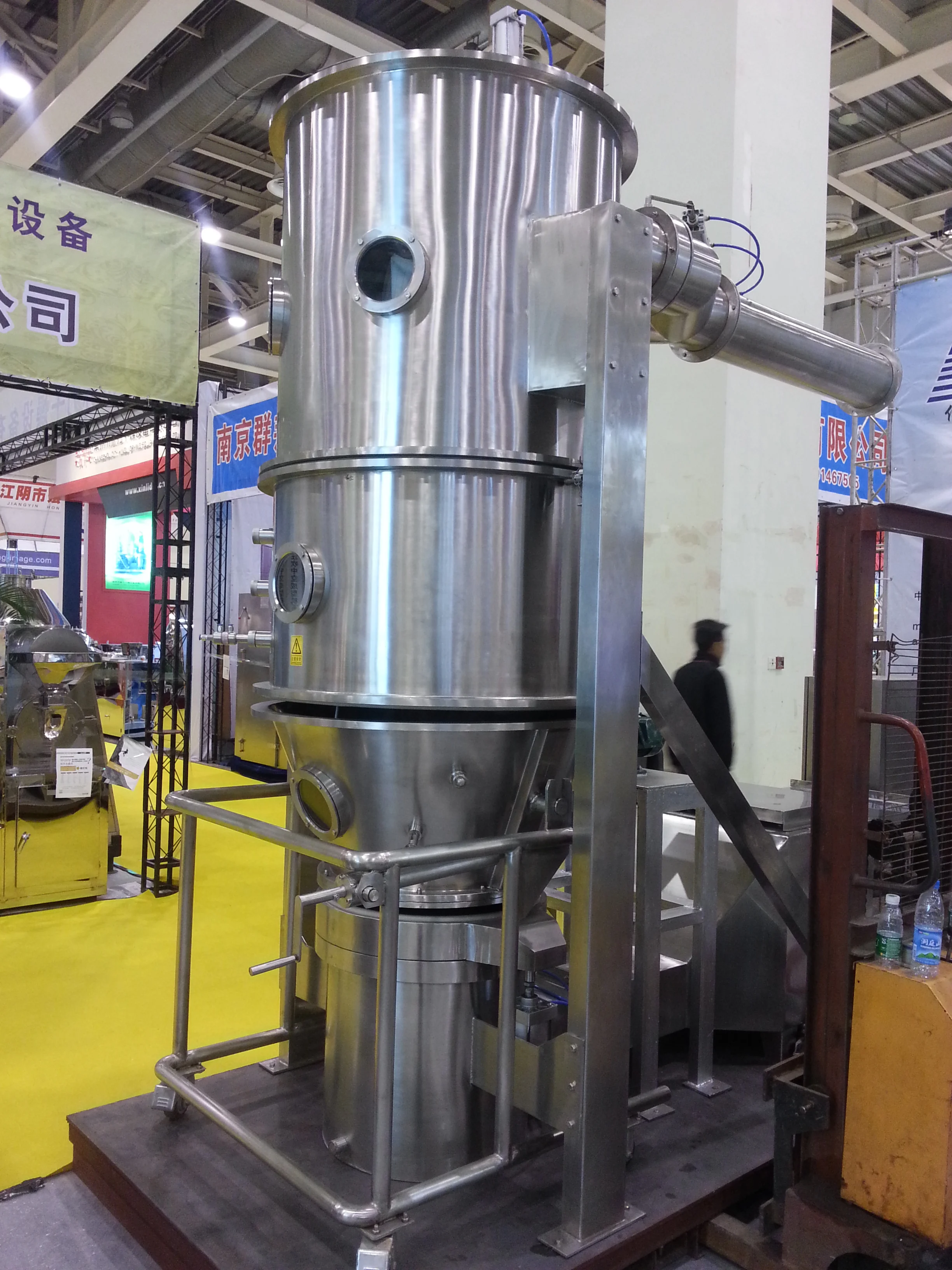

Exibition show

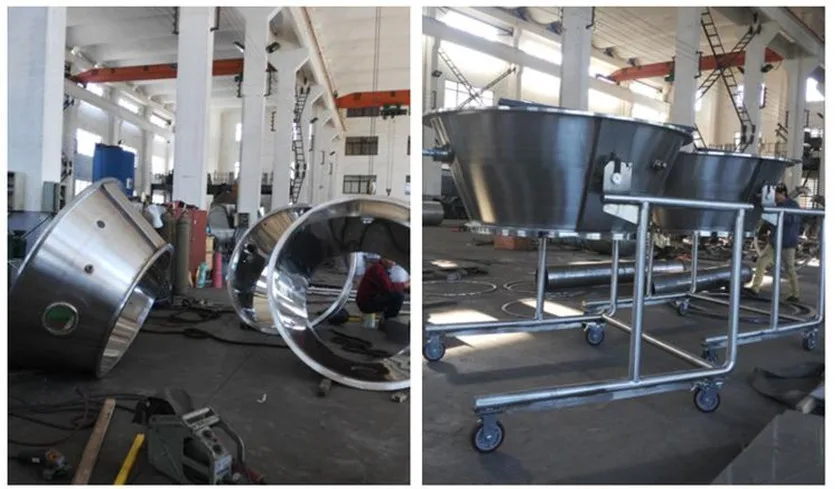

Welcome to our factory
