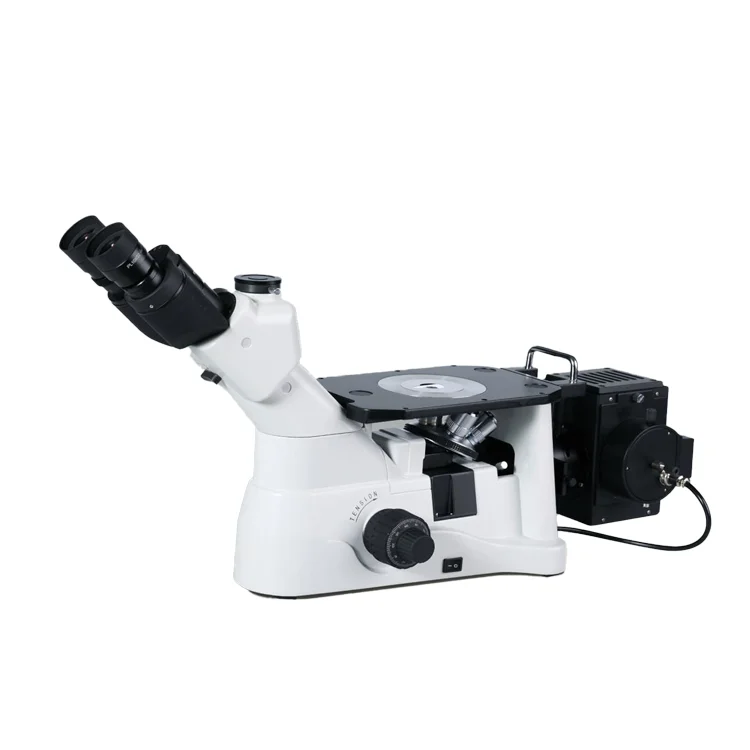

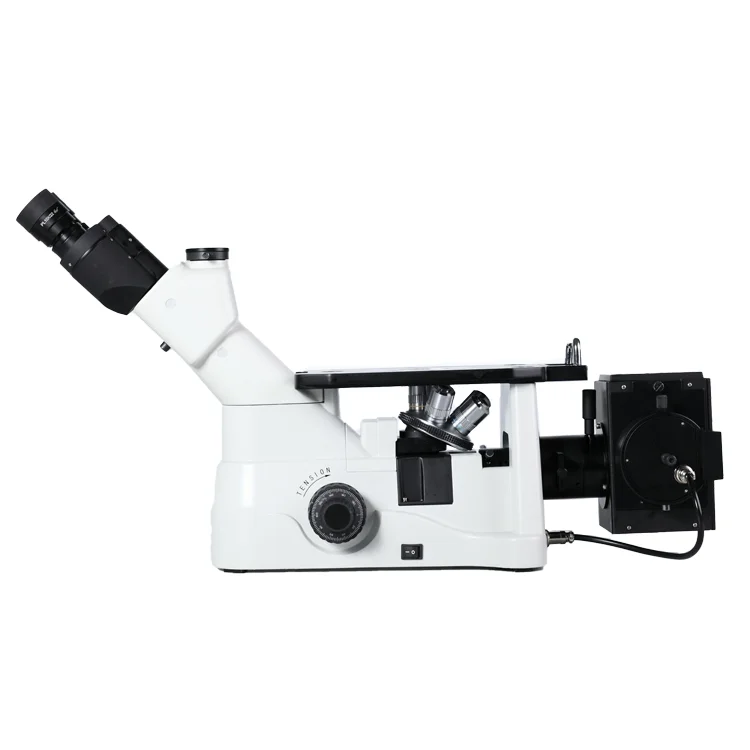

Jinuosh Professional Manufacture Optical Polarizing Inverted Metallurgical Microscope
MASS_APP4_2260_BEGIN
Main Character
Optical system: Infinity chromatic aberration correction optical system (CSIS), with better image quality, higher resolution, and more comfortable observation

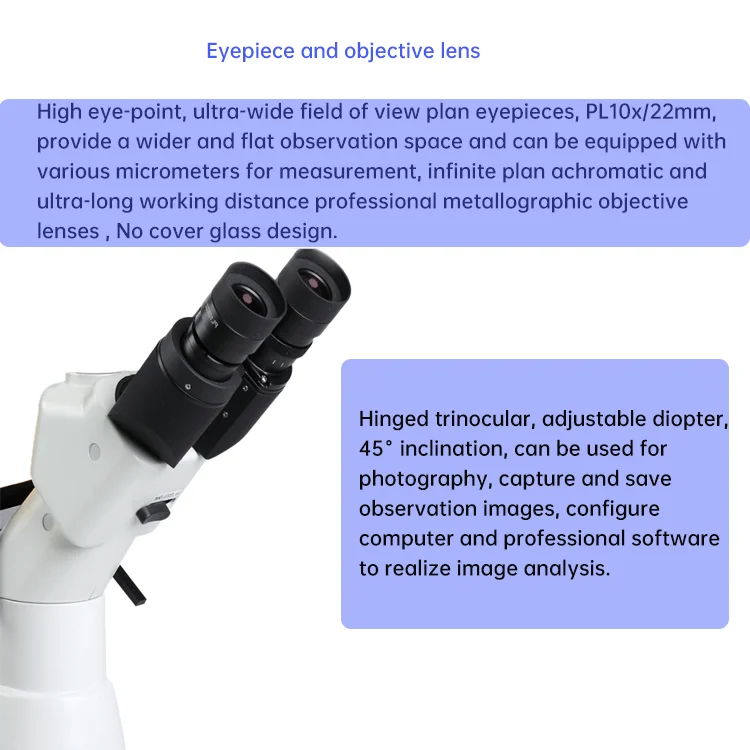

Eyepieces and objective lenses: high eyepoint, ultra-wide field of view plan eyepieces, PL10x/22mm, provide a wider and flat observation space and can be equipped with various types of micrometers for measurement, infinite plan achromatic long work Distance to professional metallographic objective lens, no cover glass design

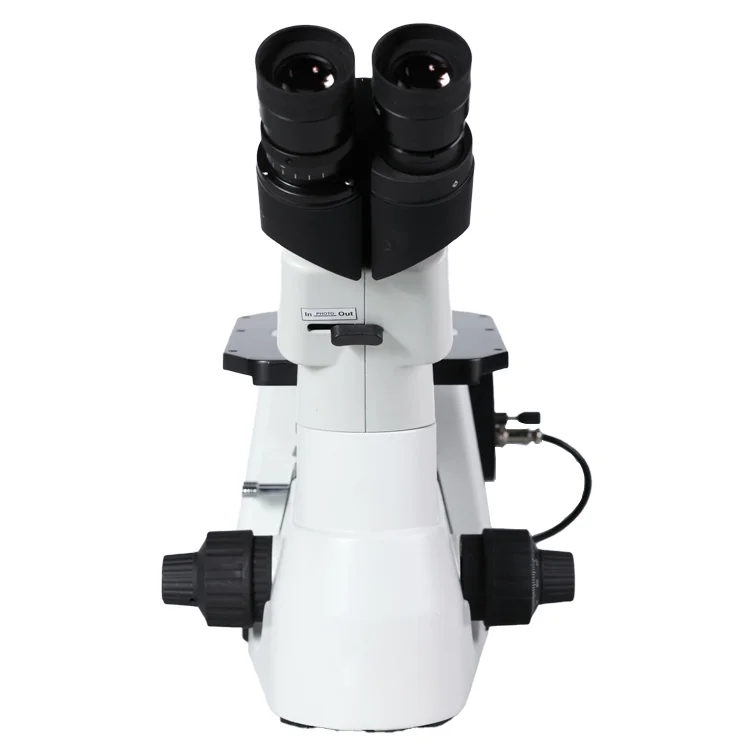

Observation tube: hinged trinocular, adjustable diopter, 45° tilt, can be used for photography, capture and save observation images, configure computer and professional software to realize image analysis

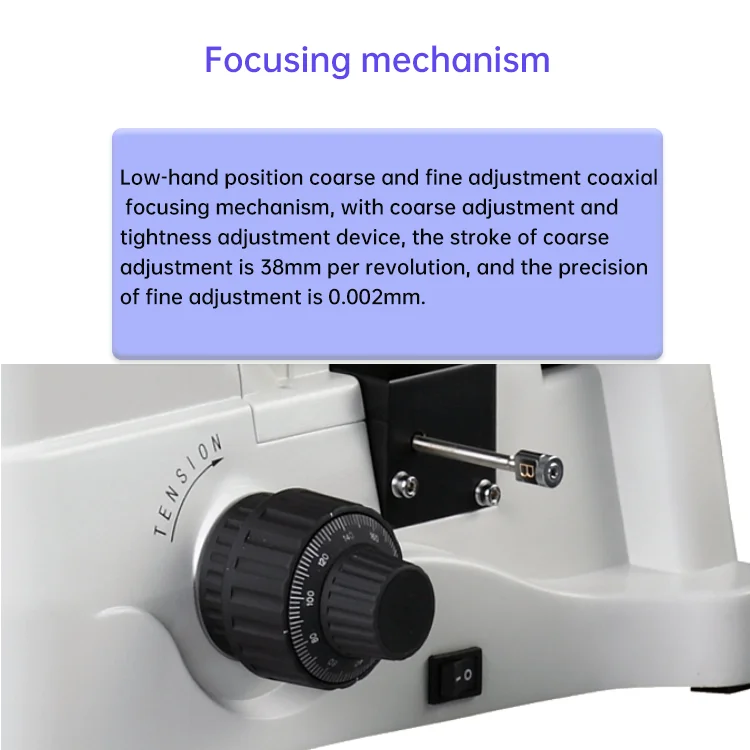

Focusing mechanism: low-hand position coarse and fine adjustment coaxial focusing mechanism, with coarse adjustment device for tightness adjustment, the stroke of coarse adjustment is 38mm per revolution, and the precision of fine adjustment is 0.002mm.
Illumination system: Reflective Kola illuminator with iris diaphragm and center adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the service life of halogen bulbs.
Stage: Coaxial low-hand position adjustment movable ruler and stage extension board can be added to expand the application space and meet the needs of customers with different needs
Infinite long working distance plan semi-cancellation metallographic objective lens:
LMPLFL50X/0.55 /WD7.8 LMPLFL100X/0.80 /WD2.1
Nosepiece
5 Holes Revolving Nosepiece
Focusing
Low position coaxial focus system with tension adjustable,coarse:38mm per rotation, fine precision 0.002mm(2µ)
Stage
Fixed stage, Size:175mmX145mm, can mount specimen fixtrue, extension plate and the coaxial mechanical mobile ruler
llluminator
Reflection Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V. 12V/50W halogen bulb, with continuous intensity
Polarizing kit
360° rotary analyser,the polanzer and polarizer both can shift out the optical way
Camera adapter
Metal stage plate, Slides holder(φ54 and 26.5X76.5), Terasaki holder(φ64mm and 56X81.5 ), Mechanical mobile ruler 120*78, Stage extension plate
