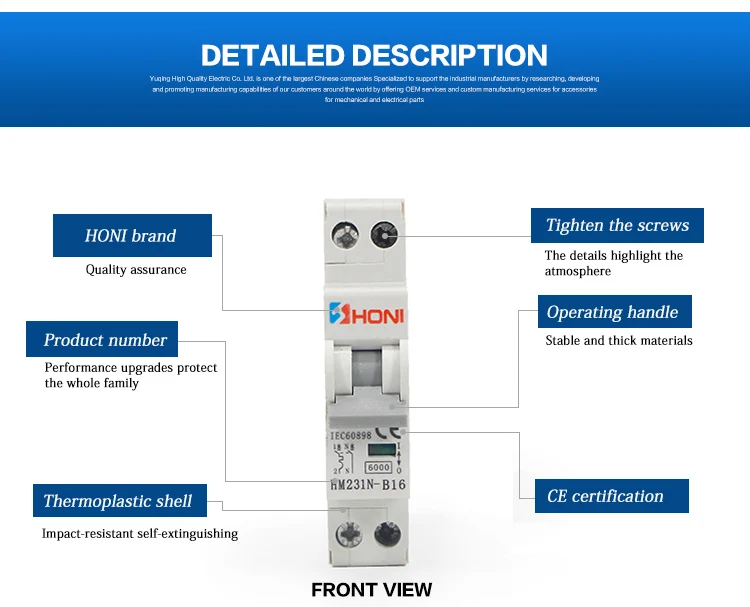

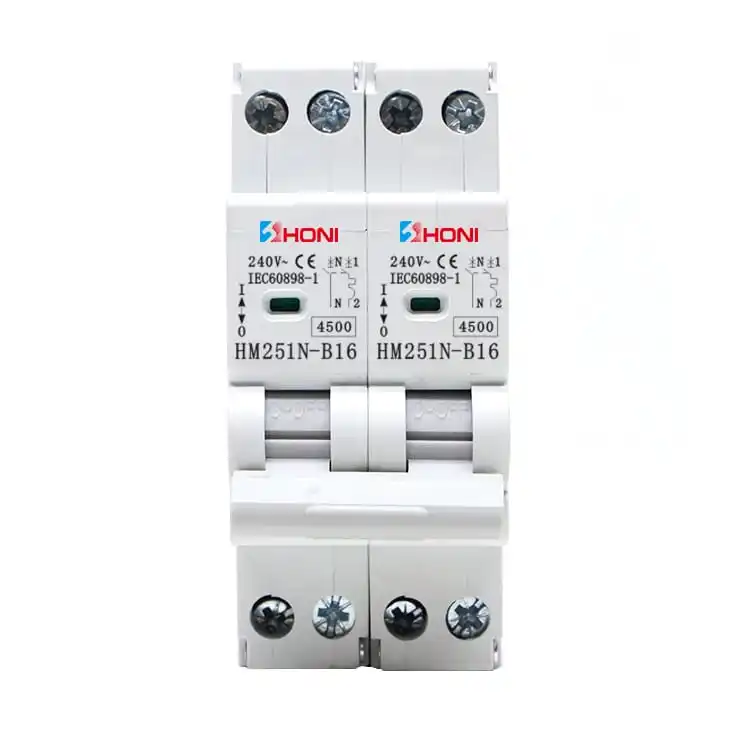

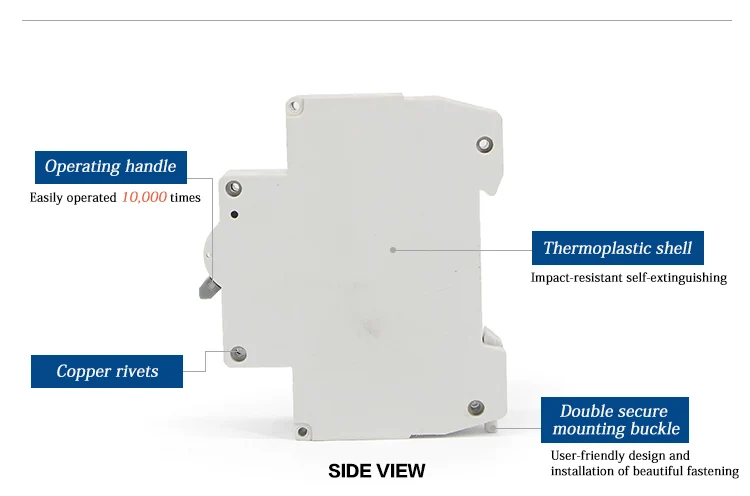

China factory HONI BRAND big stocks 2P+2N MCB HOLLAND MARKET DPN MCB
Specification:

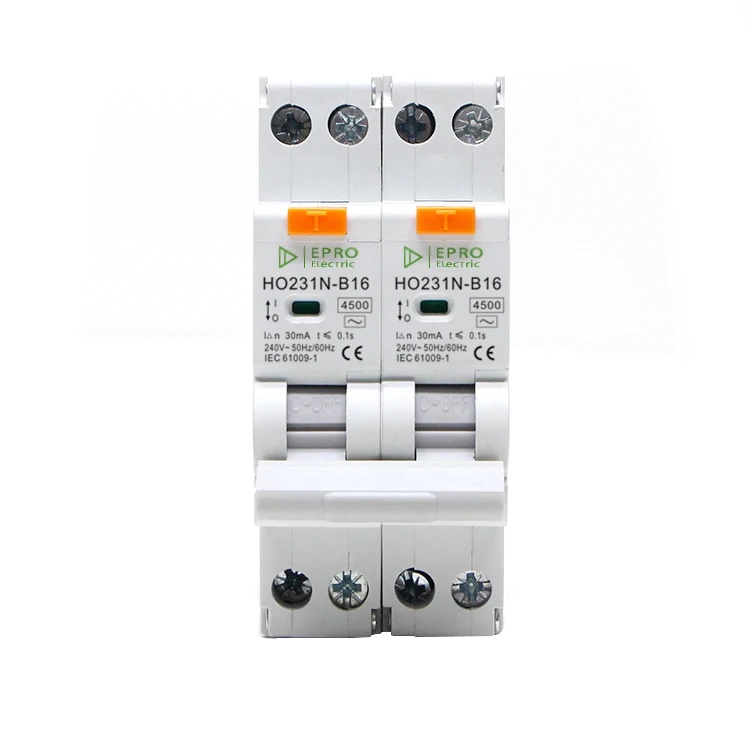

The 2P+2N DPN MCB and 2P+2N RCBO special for Holland Netherlands,the Netherlands dutch Market.

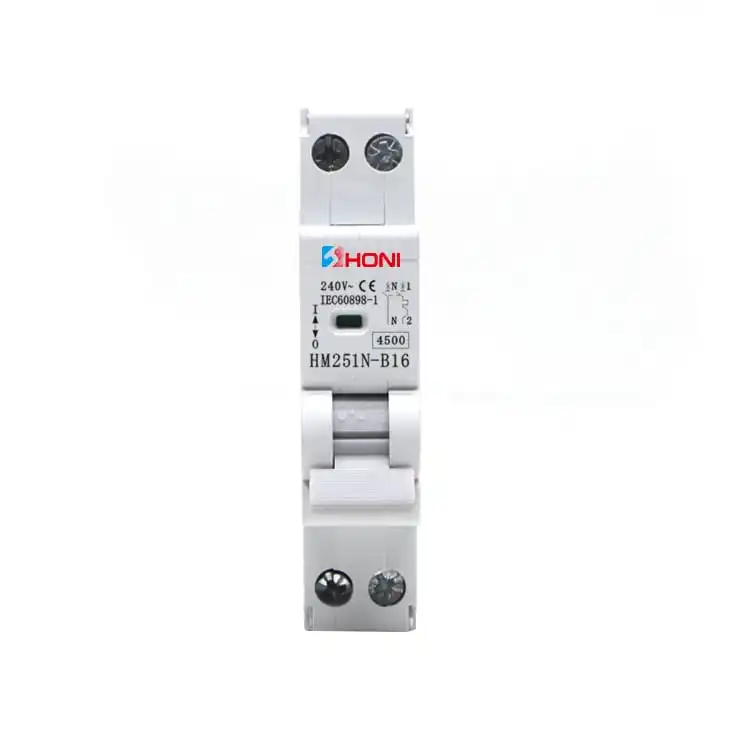

DPN MCB is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.
In complicance with IEC/EN60898-1
| Protection | overload and short circuit |
| Pole No. | 1P+N |
| Rated voltage | AC230V |
| Rated current | 6, 10, 16, 20, 25, 32,40 |
| Tripping curve | B,C |
| Rated short-circuit capacity (Icn) | 6KA |
| Rated service short-circuit capacity(Ics) | 6KA |
| Rated frequency | 50/60HZ |
| Electro-mechanical endurance | 4000 |
| Connection terminal | Pillar terminal with clamp |
| Connection capacity | Rigid conductor up to 10mm2 |
| Fastening torque | 1.2Nm |
| Installation | On symmetrical DIN rail 35mm/Panel mounting |
| Terminal Connection Height | H1=19mm H2=22mm |
