Epower EPR10 BPM electric bicycle conversion kit 1000w wholesale for 20' 26' 700c rim
- Category: >>>
- Supplier: Changzhou Epower Technology Co. Ltd.
Share on (1600222222698):
Product Overview
Description
Product Description

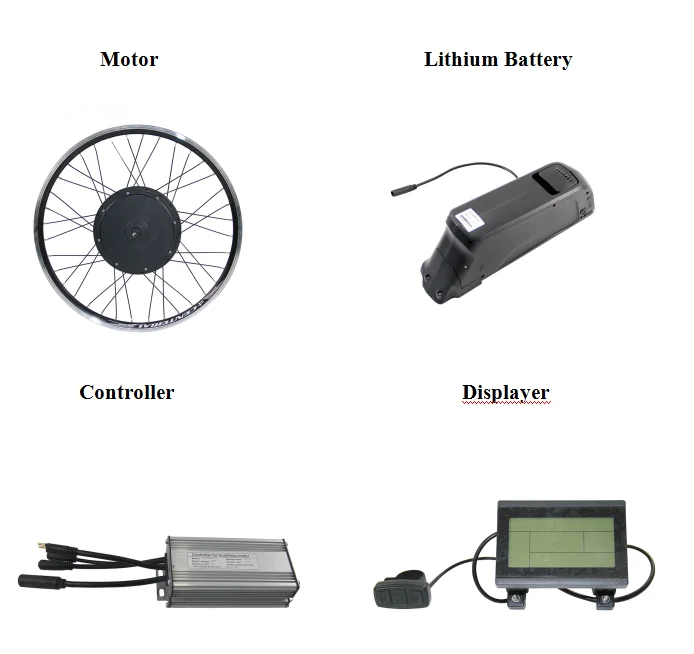

48v 1000w/1500W Ebike Conversion Kit
Motor | 48V 1000W/1500W geared brushless hub motor with 9 pin waterproof cable |

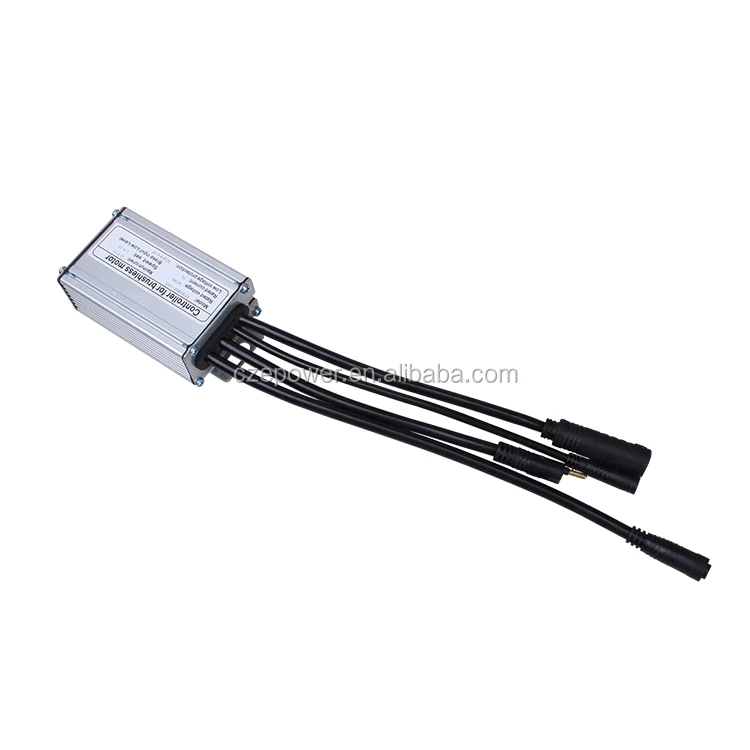

Controller | Kunteng 48V 30A/ Inteligent controller(Other model can made according your request) |
Rim | Aluminium double wall rim 1.95-2.25 with 13G spokes(Optional) |
PAS | 8 magnent PAS, 12 magnent PAS |
Battery | Tube,Tigershark,Hailong and Rack battery Optional;36V 10Ah/13Ah/14.5Ah lithium-ion battery (Samsung 29E/Chinese brand18650cell) All battery including 2A/3A charger and smart BMS |
Display | LCD3,LCD5.LCD8.LCD8H,LCD8S,LED880 |
Ebrake | Wuxing high quality electric brake with sensor |
Throotle | Thumb throttle/Twist throttle |
Other parts | Front/Rear Light. Extension cables are available |
Detailed Images

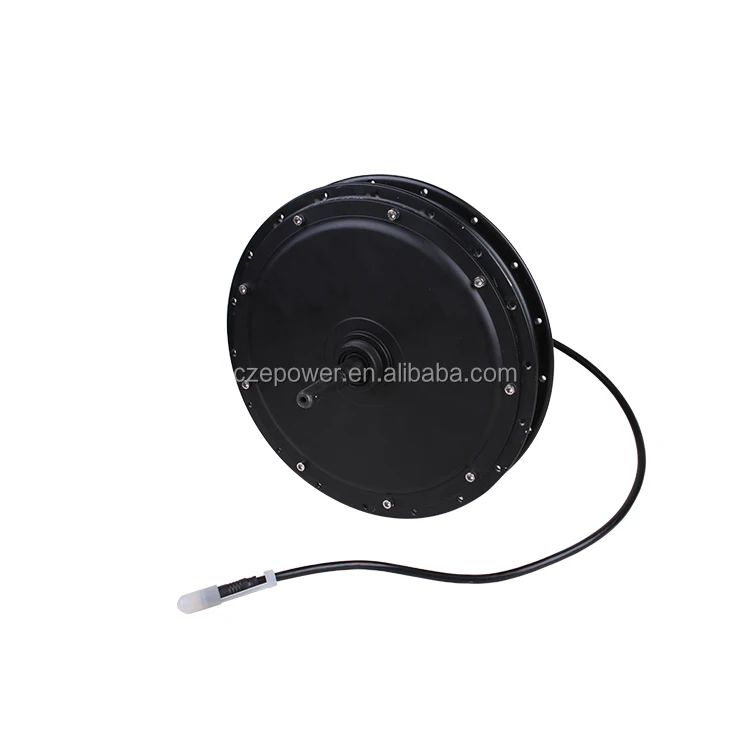

1000W big power brushless Geared Hub motor
3.Waterproof,IP65
4.Certified,Rohs/CE
5.RPM 350-500
6.Reduction Ratio:1:1
Brake: V/Disc BrakePosition:Front Motor
Installation Width:135mm
Housing Diameter:242mm
Cable:Shaft Center/Left
Spoke:12G
Gear shift:Screw Freewheel (6s-7s)
2). Normal or Anti-water connector for options
3).Fast response and consistent with rider’s pedal action to achieve the effect of the torque boost.
4).Multiple protection features :stalled,over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase etc.

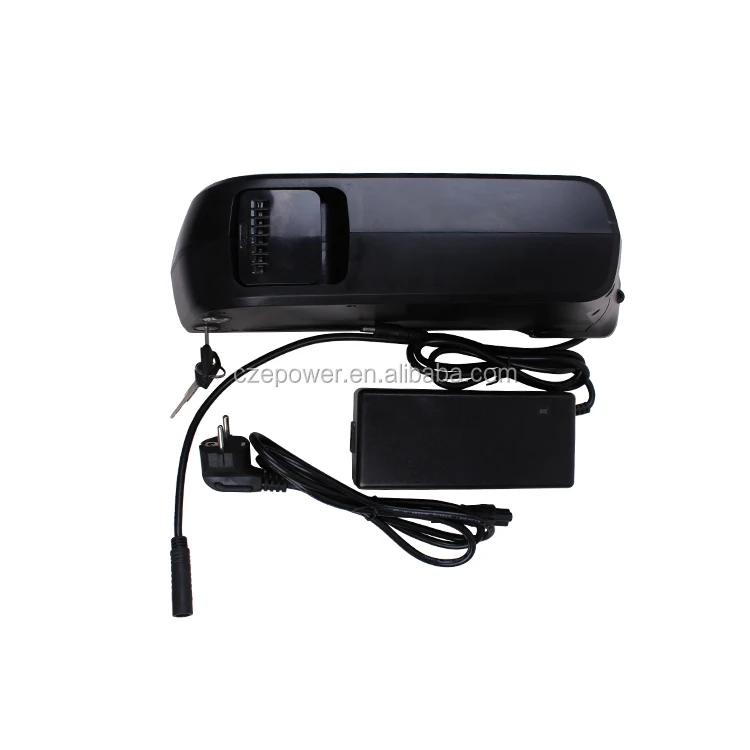

Lithium Battery
2)Capacity from 8.8AH to 19.2AH
3) Chinese cell, Samsung cell, Panasonic cell and LG cell for option

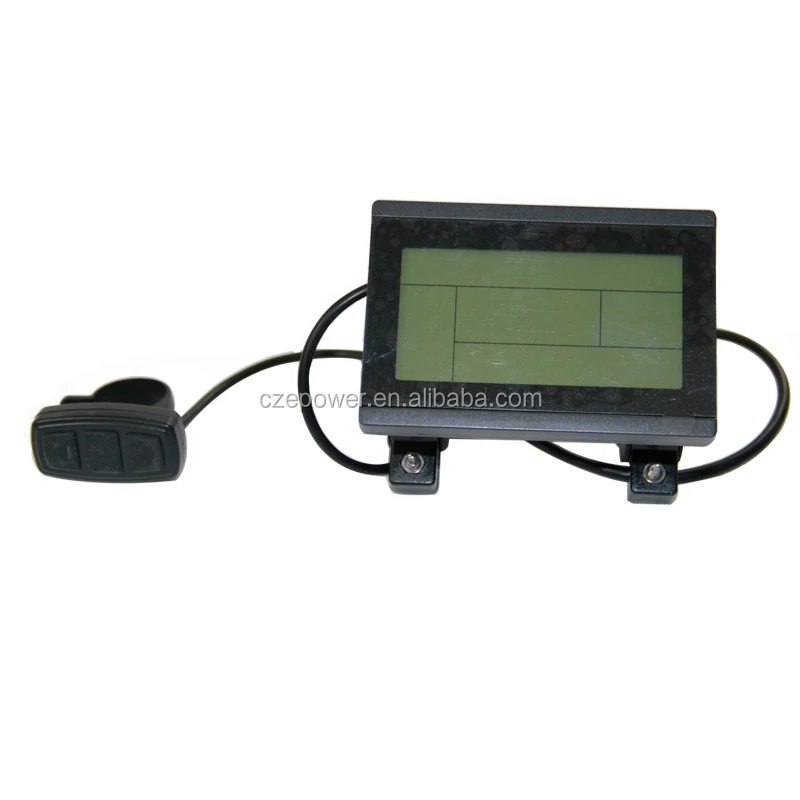

** Attention** Display need match with controller. Please check with me beofre order.
2) Single Max speed(MXS)+single Average Speed(AVS)
3) Single trip distance(DST)+Total Trip distance(ODO)
4)6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5) torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6)24V,36V,48V compatiable.
7) Controller can be reprogrammed by Parameter setting.

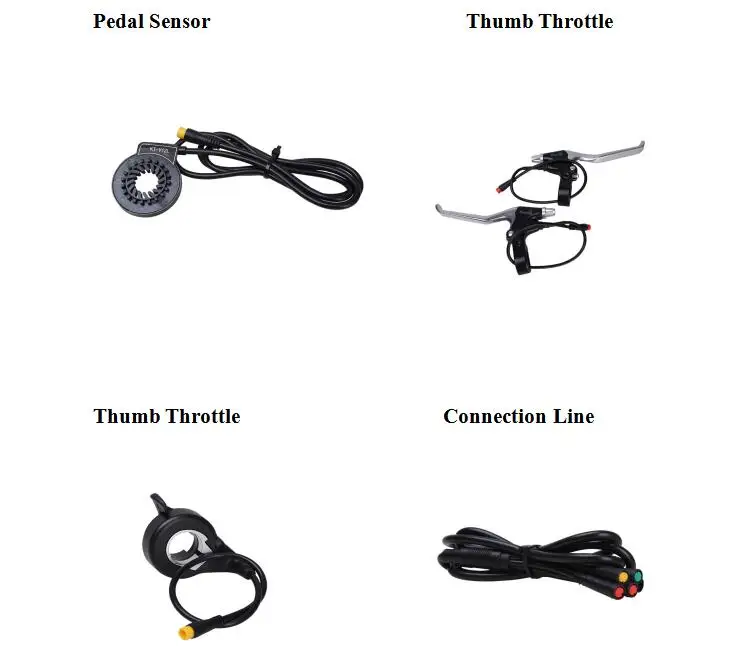

Brake Lever
High quality e-brake and hydraulic ebrake sensor for optionPAS
8 magnent PAS, 12 magnent PAS for option
8 magnent PAS, 12 magnent PAS for option

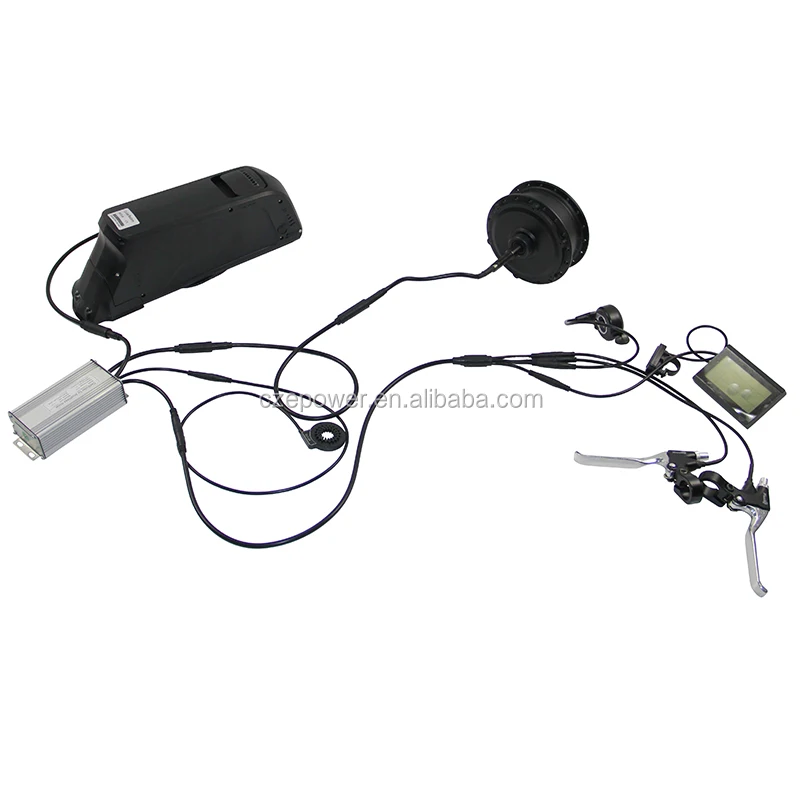

Product Presentation

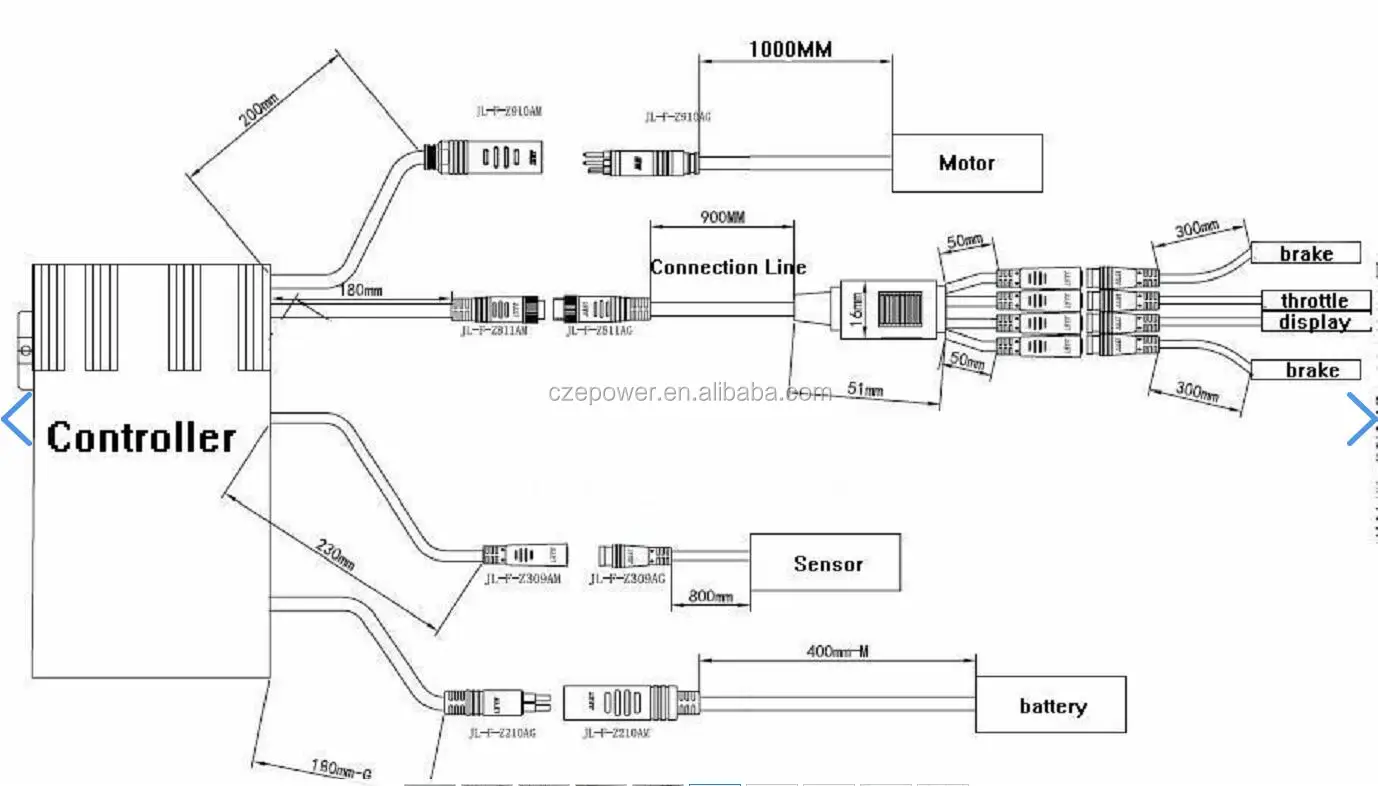

Connection Information

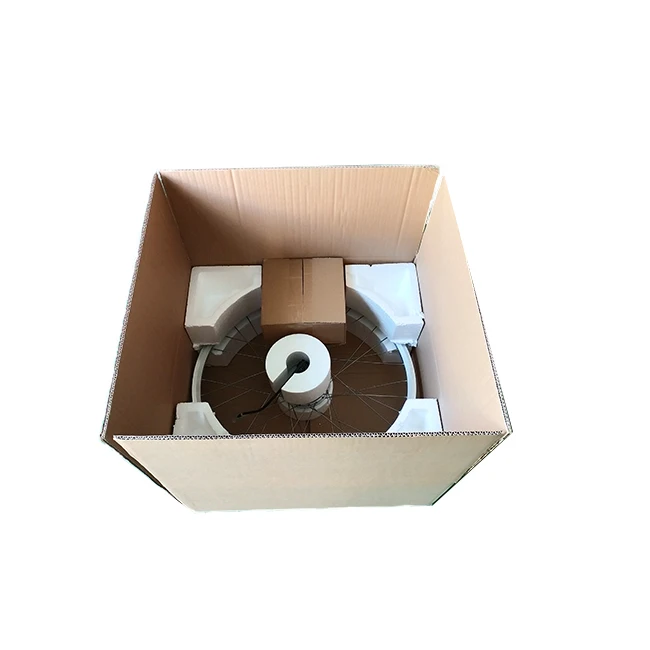

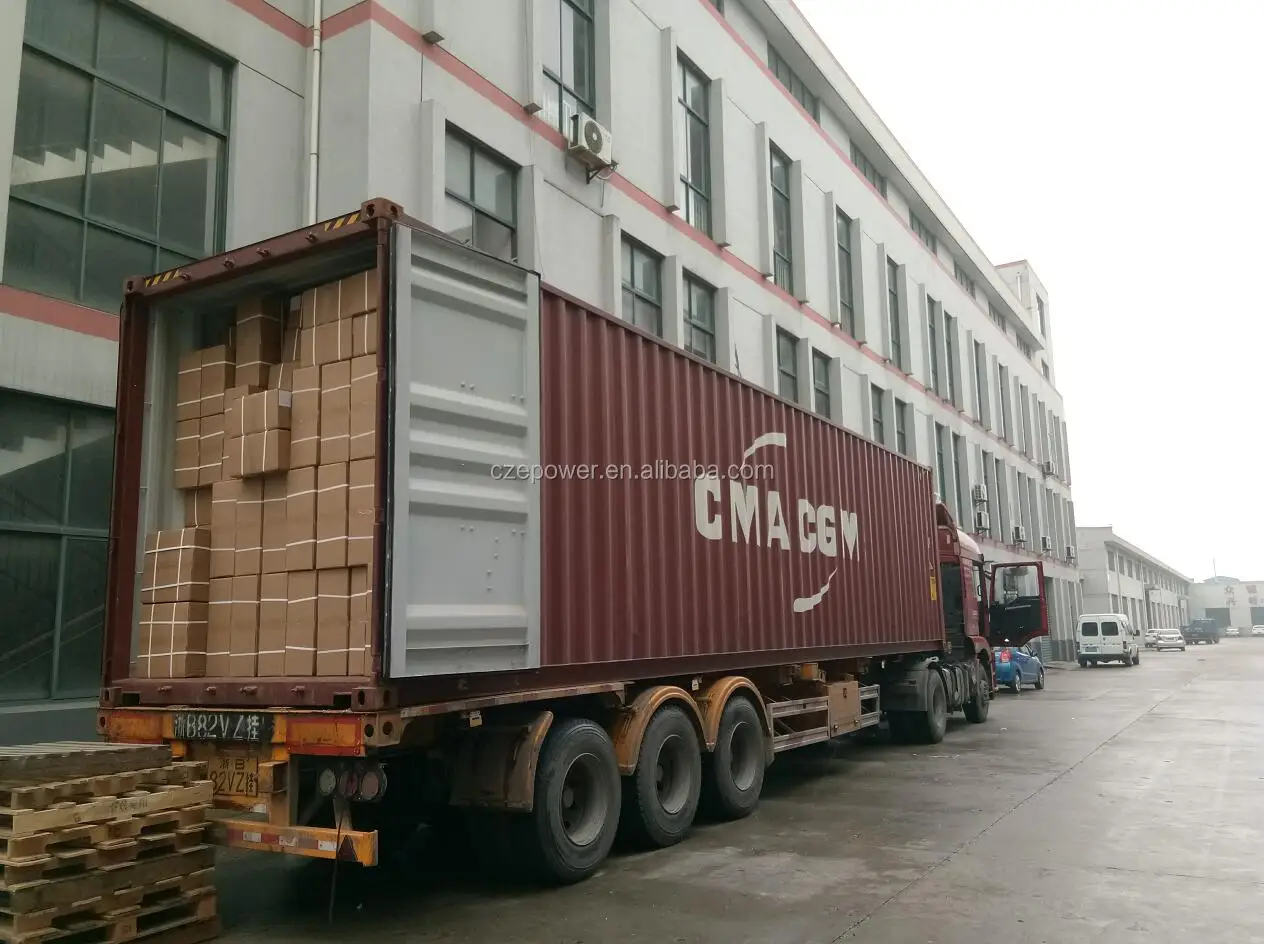

Packing&Shipping
Package information:
53X34X20 cm
Package Type: standard packing box with foam
Certificate

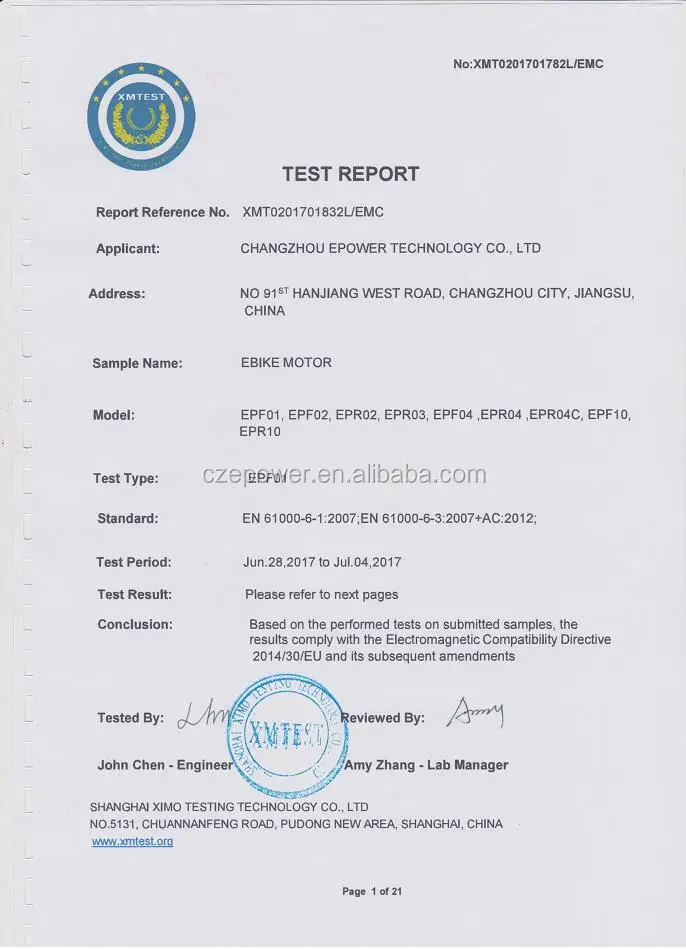

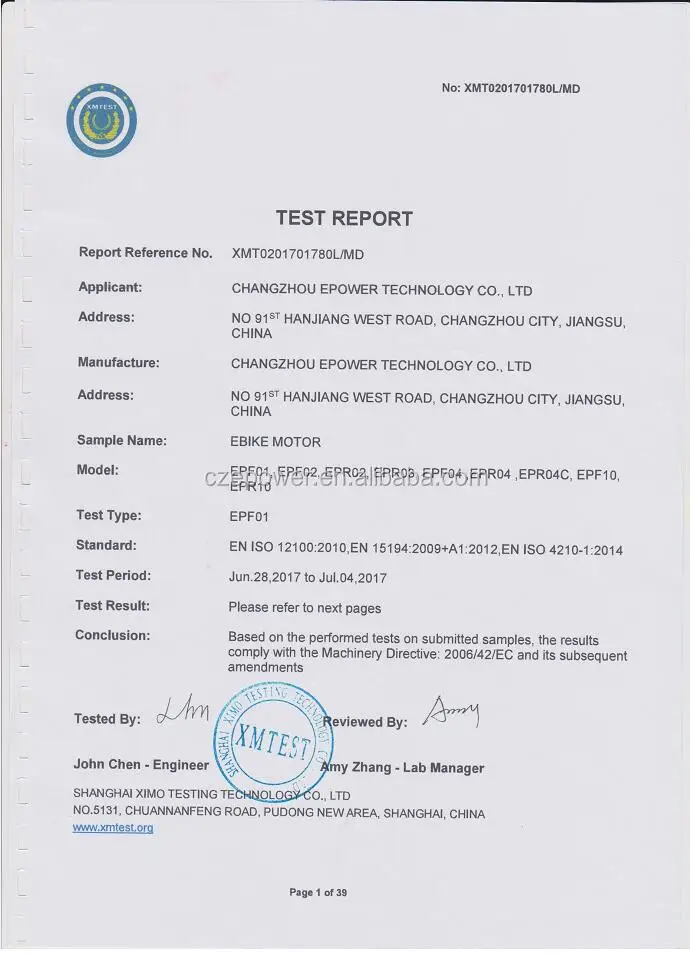

CE Certificate and Test report

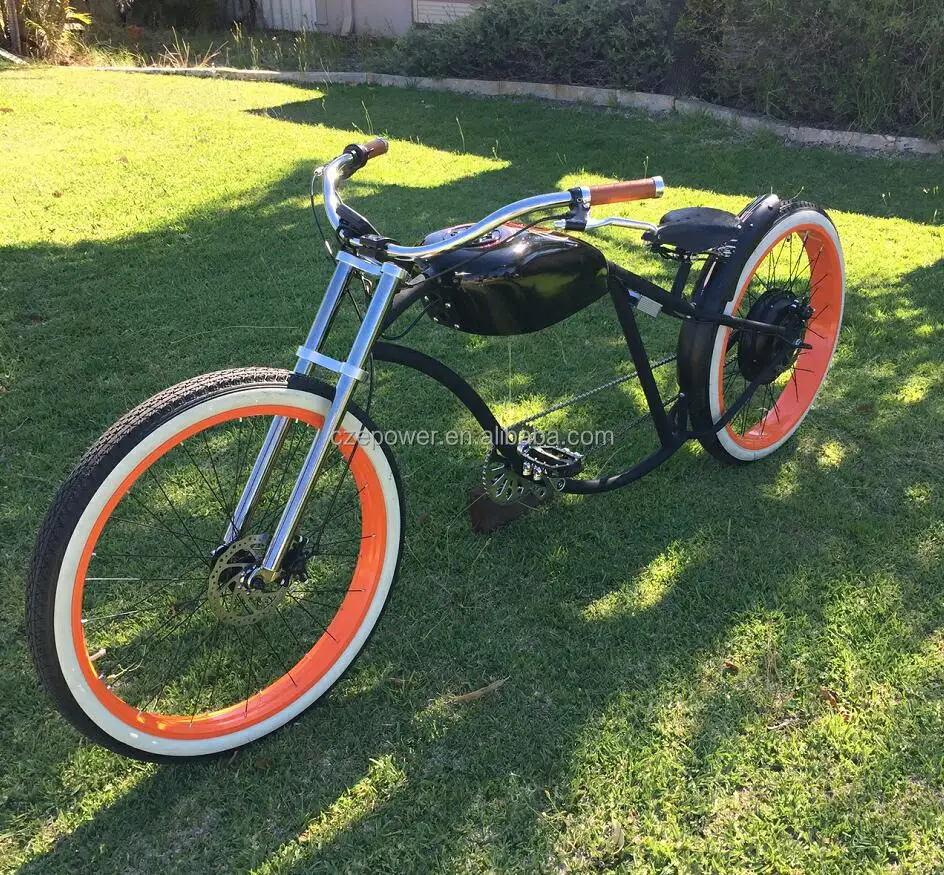

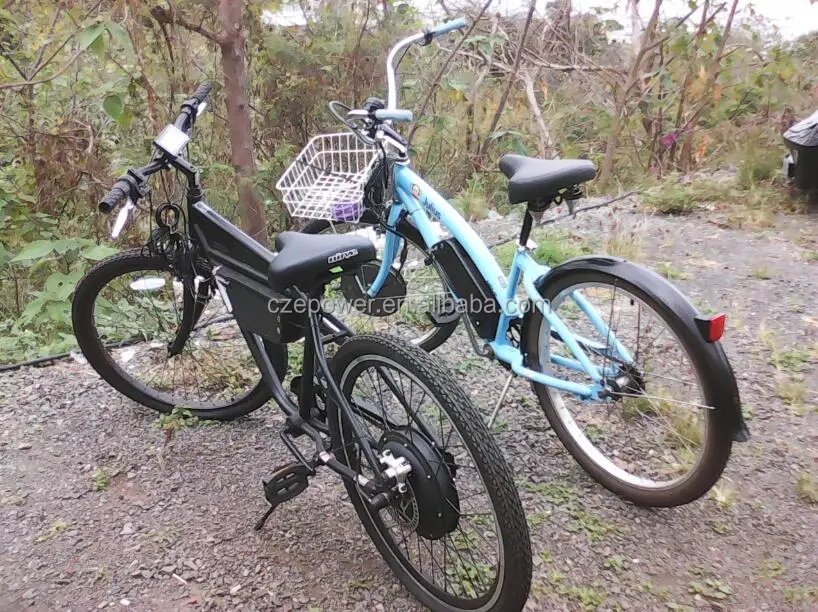

Customer Photos
Customer feedback:

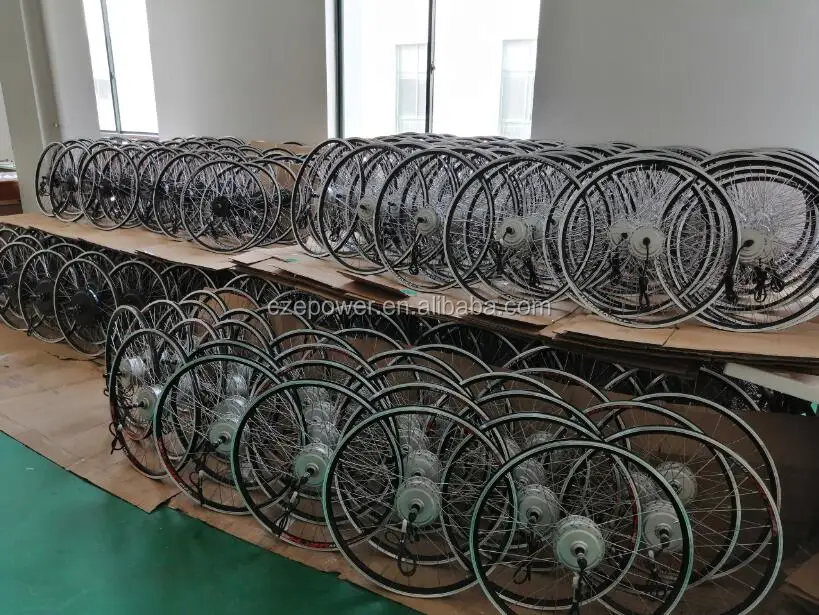

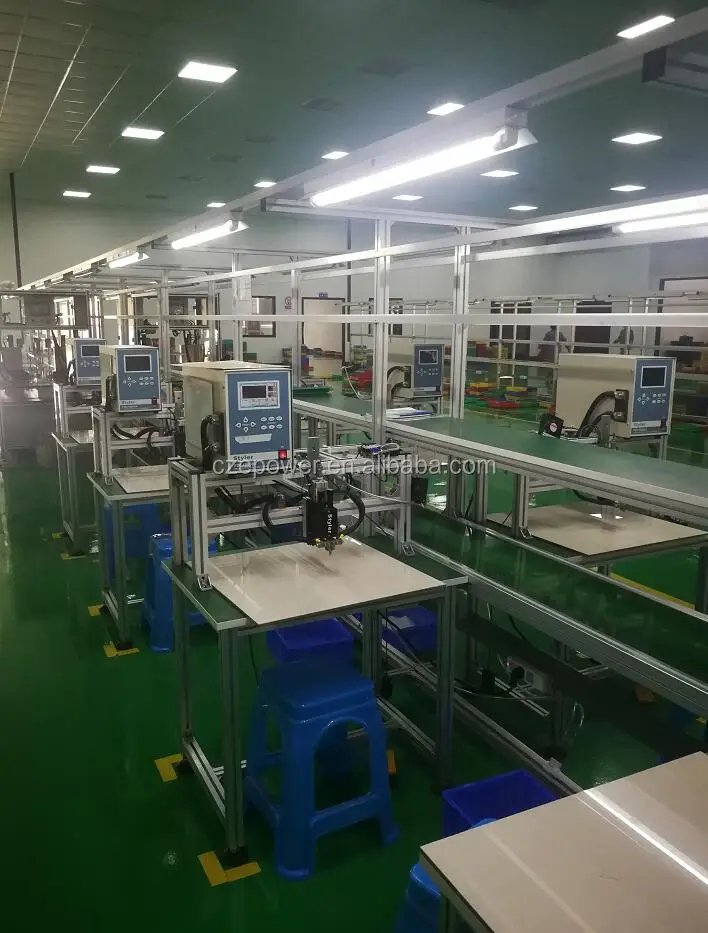

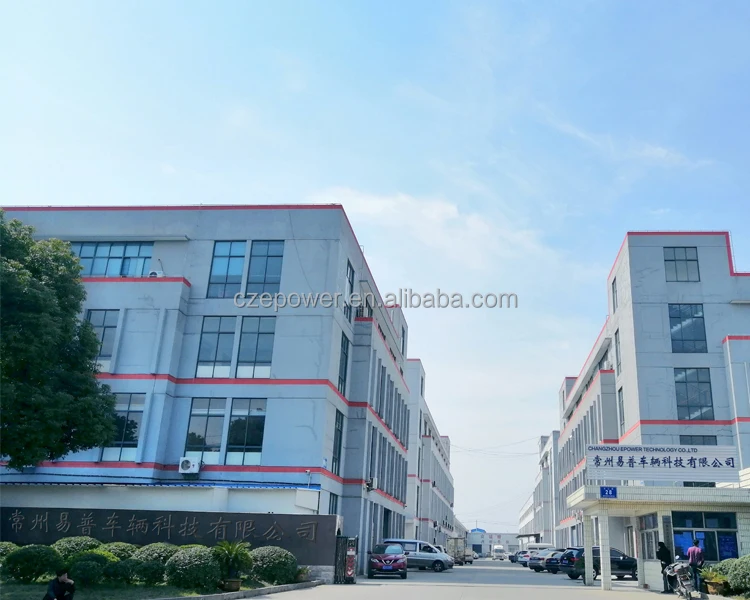

Company Introduction
Who we are?
Changzhou Epower Techonology Co.,Ltd a professional enterprise that specialises in researching, producing and selling electric bicycles,Ebike conversion kits and other relevatnt spare parts for ebike.Quality first is our principle, all products are seriously tested before packing. We have passed all necessary certification, such as CE, CCC, EN15194. Electric power bring green future.Why us:
1.Profesional:10 years experience in ebike conversion kit industry, suggest you suitable system for your bike.
2.Fast response.All your questions will be replied within 8 hours.
3.Fast deliver. some model can do ready for delivery.
4.Good service. 24/7 online for your inquiry.
5.Flexibility: Small MOQ needed, OEM for bulk order.
