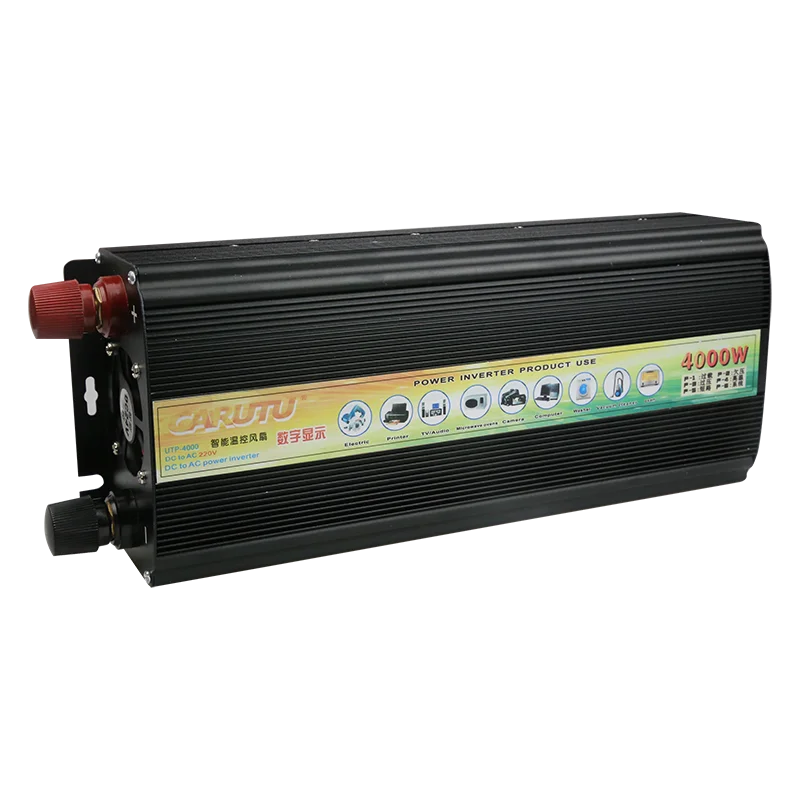

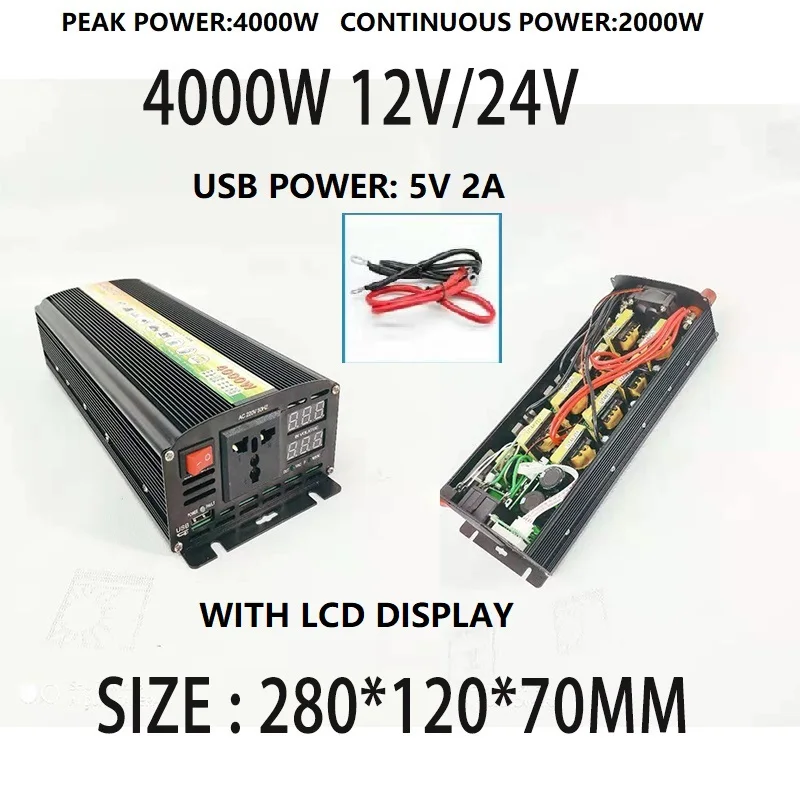

Car Power Inverter Converter Peak 4000W 12V to 220V Voltage Transformer Modified Sine Wave
- Category: >>>
- Supplier: Yueqing Youwang Electronic Co. Ltd.
Share on (1600222265601):
Product Overview
Description
4000Watt Modified Sine Wave Power Inverter 12V 24V 48V DC to 110V 220V AC with LCD Display
Provides 2000 Watts continuous modified sine wave power and 4000 Watts surge power., featuring 1 universal AC sockets, 1
intelligent cooling fan ,1 USB charging port and 2 digital displays.The modified sine wave inverter is ideal for charging laptop,
fan, game console, kindle, TV, Christmas lights, Breast Pump and Ideal for use on vacations, work trips, home or outdoors for
emergency, outdoor activities, camping and power failure emergencies.Featured with 2 digital displays,which not only can let users
know AC/DC voltage, power ,temperature etc, but also know failure cause via error codes. When the inverter works abnormally, it
will be remind by digital displays,indicator light and alarm
Model:UTP-4000W
Output Waveform:Modified Sine Wave
Rated Power: 2000W
Peak Power: 4000W
USB Port: 5V 2.1A
Output voltage: AC100/110/120/220/230/240
Input voltage:DC12/24/48/60/90/110
Frequency:60HZ/50HZ

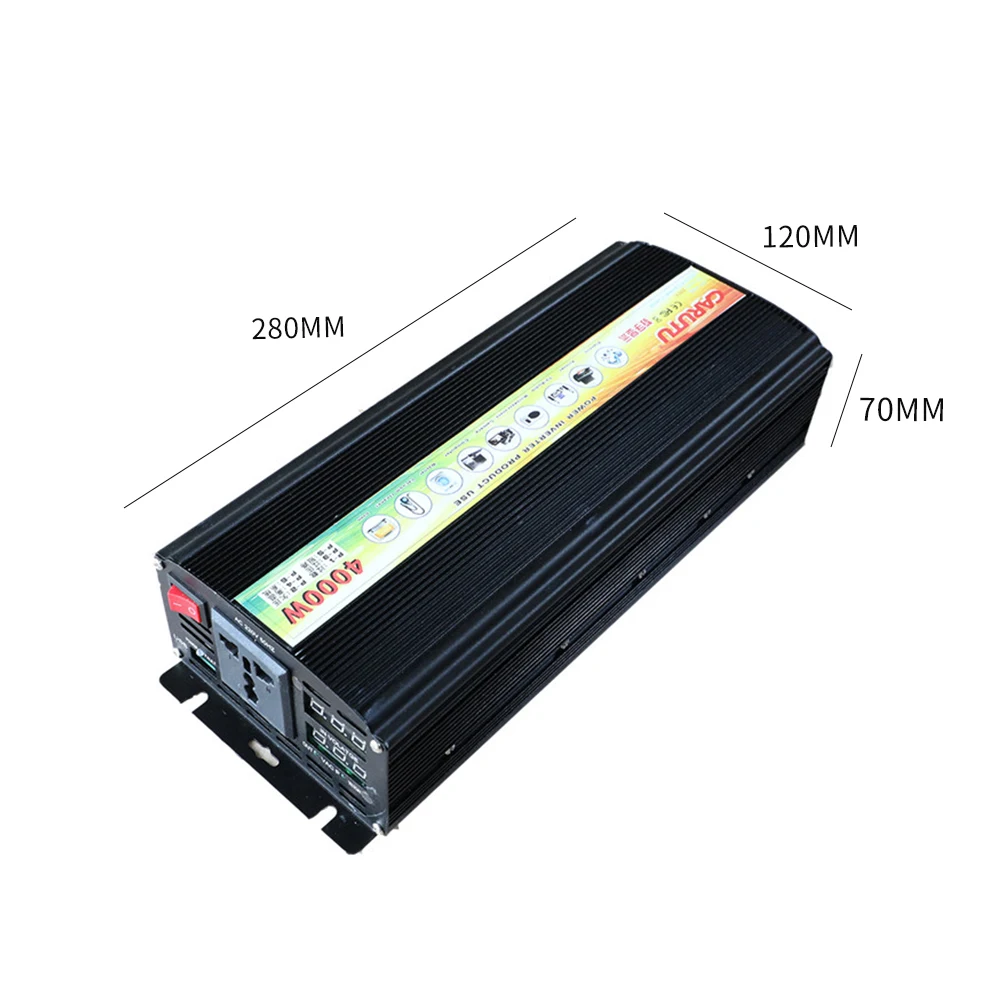

Size:280*120*70mm
1. :1.95KGS
Provides 2000 Watts continuous modified sine wave power and 4000 Watts surge power., featuring 1 universal AC sockets, 1
intelligent cooling fan ,1 USB charging port and 2 digital displays.The modified sine wave inverter is ideal for charging laptop,
fan, game console, kindle, TV, Christmas lights, Breast Pump and Ideal for use on vacations, work trips, home or outdoors for
emergency, outdoor activities, camping and power failure emergencies.Featured with 2 digital displays,which not only can let users
know AC/DC voltage, power ,temperature etc, but also know failure cause via error codes. When the inverter works abnormally, it
will be remind by digital displays,indicator light and alarm
Model:UTP-4000W
Output Waveform:Modified Sine Wave
Rated Power: 2000W
Peak Power: 4000W
USB Port: 5V 2.1A
Output voltage: AC100/110/120/220/230/240
Input voltage:DC12/24/48/60/90/110
Frequency:60HZ/50HZ
Size:280*120*70mm
1. :1.95KGS

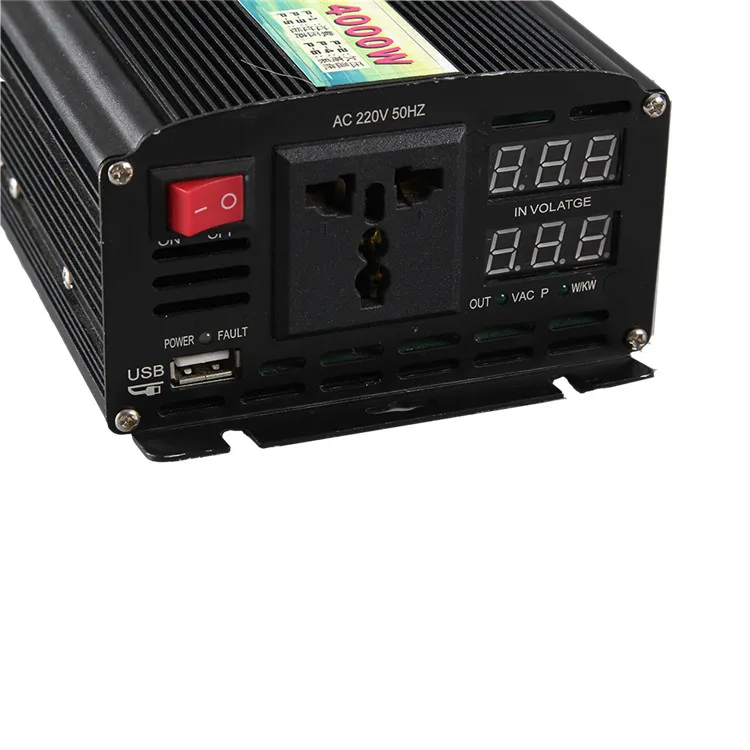

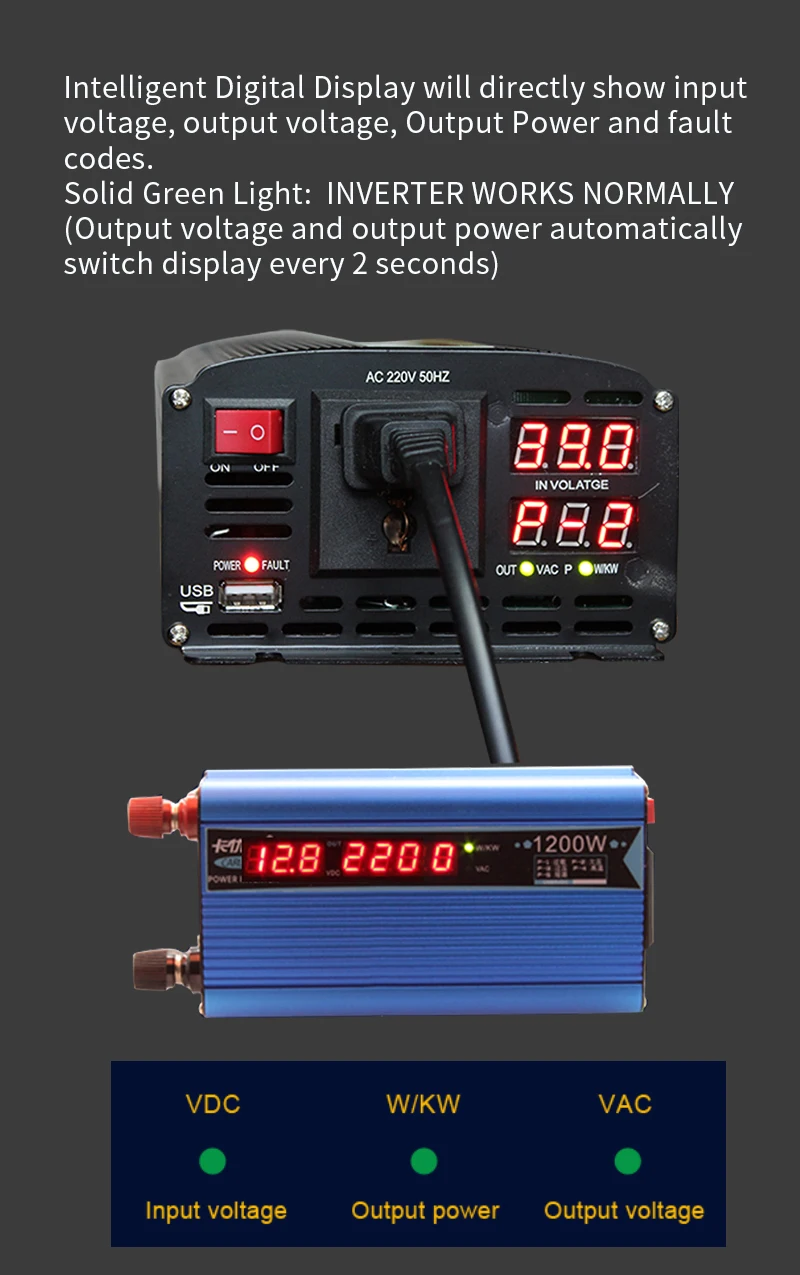

Intelligent Digital Display will directly show input voltage, output voltage, output power and fault codes.
Solid Green Light: Inverter works normally (Output voltage and output power automatically switch display every 2 seconds)
Solid Green Light: Inverter works normally (Output voltage and output power automatically switch display every 2 seconds)
Model | UTP-4000W-12V | UTP-4000W-24V | UTP-4000W-48V | |||||
Output | AC voltage | 100/110/120/220/230/240VAC | ||||||
Rated power | 2000W | |||||||
Surge power | 4000W(for few seconds) | |||||||
Waveform | Modified Sine Wave | |||||||
Frequency | 50/60Hz±3Hz | |||||||
Input | DC voltage | 12V | 24V | 48V | ||||
Voltage range | 10~15VDC | 20~30VDC | 40~60VDC | |||||
Efficiency | >89.0% | >92.0% | >92.0% | |||||
Protection | Bat.low voltage alarm | 11±0.5VDC | 22±1VDC | 44±2VDC | ||||
Bat.low voltage shut down | 10±0.5VDC | 20±1VDC | 40±2VDC | |||||
Overload | Shutdown,then start automatically. | |||||||
Over voltage | 15±0.5VDC | 30±1VDC | 60±2VDC | |||||
Over temparature | Shut-off output voltage, recover automatically after temperature goes down | |||||||
Short circuit | Shut-off output voltage, restart to recover | |||||||
Bat.reverse polarity | By fuse open | |||||||
Main Features:
1. It is easier to find input voltage, output voltage, output power and error codes from digital displays.

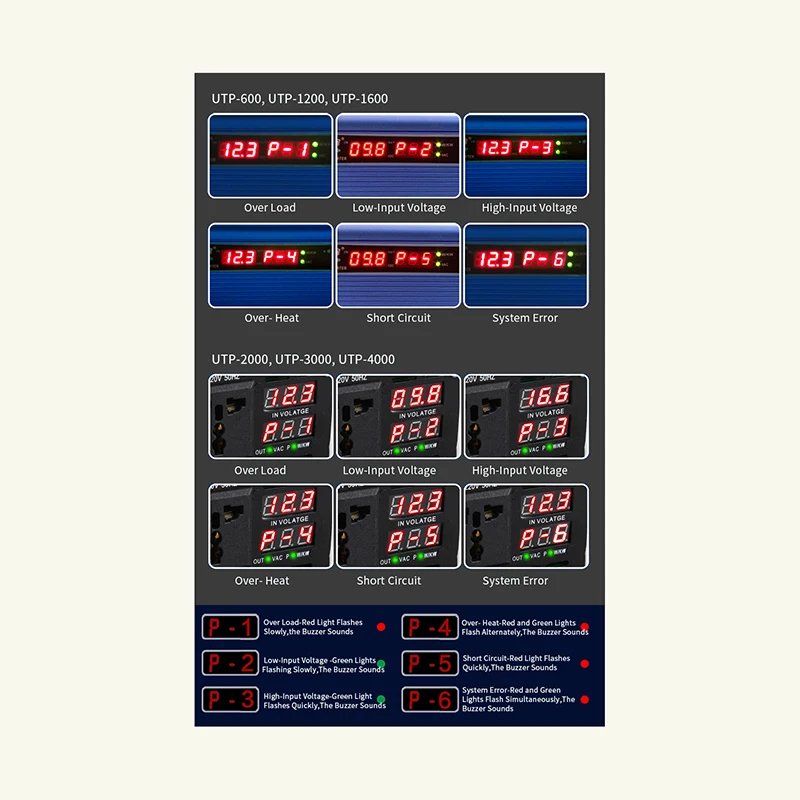

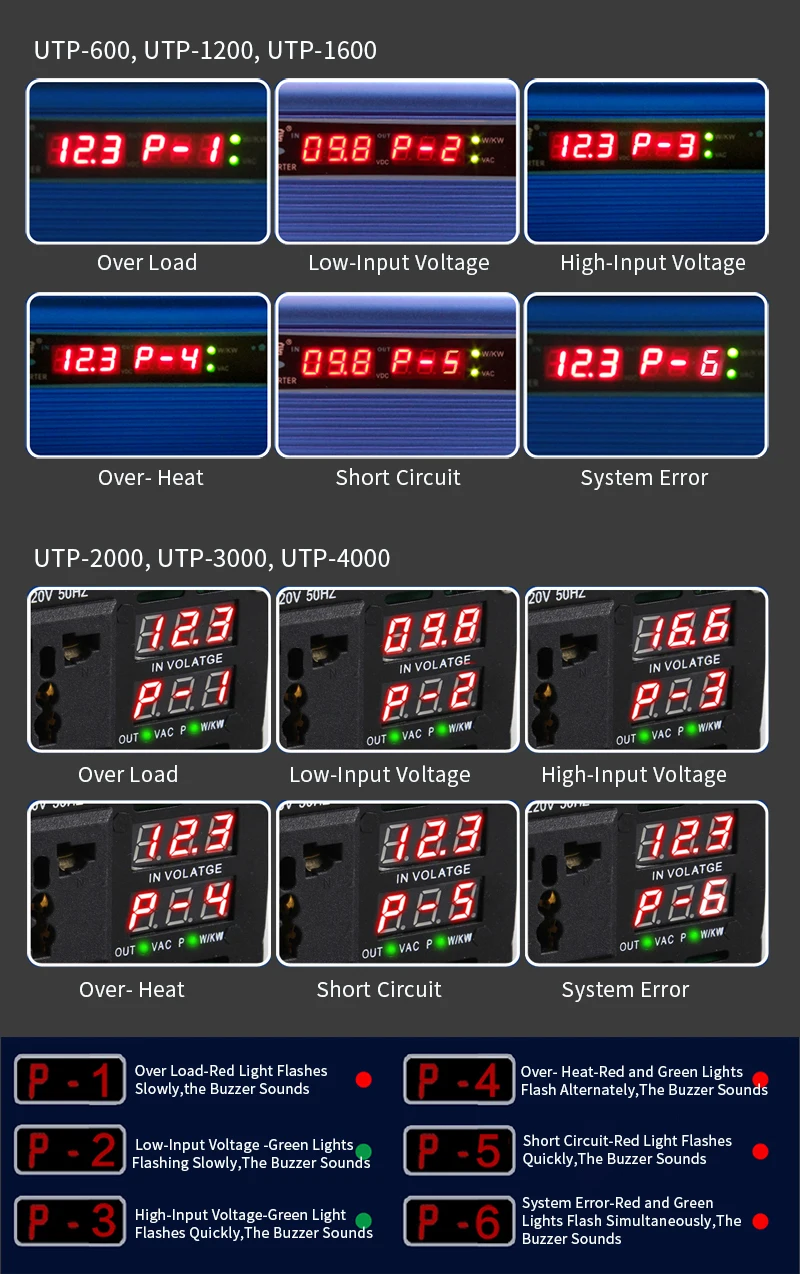

2. It has 6 error codes: P-1means OVER-LOAD ; P-2 means LOW-INPUT VOLTAGE ;P-3 means HIGH-INPUT VOLTAGE; P-4 means OVER HEAT ;P-5
means SHORT CIRCUIT; P-6 means SYSTEM ERROR
3. Except 6 error codes, we also can find fail cause from indicator lights
4: USB CHARGING PORT: It is great for Christmas gift, charging string lights, laptop, speakers, camera, nebulizer, game console,
kindle, iPad and other

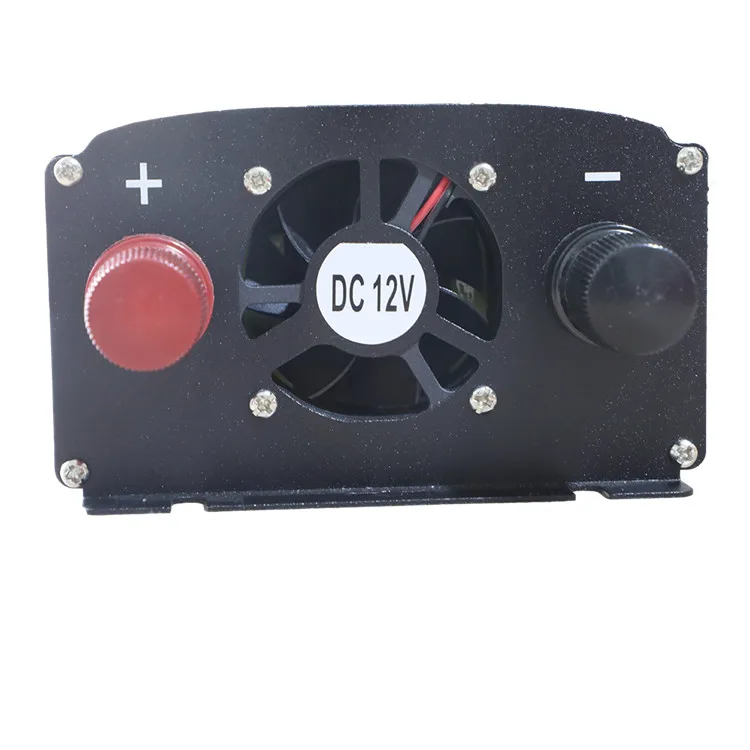

5: Intelligent Cooling Fan: It works when the working temperature of the inverter become high
The higher the temperature, the faster the speed
6: There are 6 kinds of intelligent protection which can protect your electrical equipment considerately.
1. Over Load Protection:
When connected load exceeds the inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection:
As the internal temperature of the inverter or the ambient temperature is too high, the inverter output will automatically stop to
ensure the safety of electrical equipment.
3. High-Voltage Protection:
When the DC input voltage exceeds the normal range of the inverter will automatically shut down to stop the output voltage is too
high note when there may be damage to the machine.
4. Low-Voltage Protection:
When the battery or power supply voltage is too low, the inverter will stop output automatic shutdown protection to protect the
battery or power supply is not compromised.
5. Reverse Protection:
When the inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace
the fuse. (UTP-600W, UTP-1200W,UTP-1600W, UTP-2000W, UTP-3000W :A reverse protection circuit no burning fuse. UTP-4000W,
UTP-6000W: Fuse will be burn out and you need to replace the fuse)
6. Short Circuit Protection:
2. It has 6 error codes: P-1means OVER-LOAD ; P-2 means LOW-INPUT VOLTAGE ;P-3 means HIGH-INPUT VOLTAGE; P-4 means OVER HEAT ;P-5
means SHORT CIRCUIT; P-6 means SYSTEM ERROR
3. Except 6 error codes, we also can find fail cause from indicator lights
4: USB CHARGING PORT: It is great for Christmas gift, charging string lights, laptop, speakers, camera, nebulizer, game console,
kindle, iPad and other
5: Intelligent Cooling Fan: It works when the working temperature of the inverter become high
The higher the temperature, the faster the speed
6: There are 6 kinds of intelligent protection which can protect your electrical equipment considerately.
1. Over Load Protection:
When connected load exceeds the inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection:
As the internal temperature of the inverter or the ambient temperature is too high, the inverter output will automatically stop to
ensure the safety of electrical equipment.
3. High-Voltage Protection:
When the DC input voltage exceeds the normal range of the inverter will automatically shut down to stop the output voltage is too
high note when there may be damage to the machine.
4. Low-Voltage Protection:
When the battery or power supply voltage is too low, the inverter will stop output automatic shutdown protection to protect the
battery or power supply is not compromised.
5. Reverse Protection:
When the inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace
the fuse. (UTP-600W, UTP-1200W,UTP-1600W, UTP-2000W, UTP-3000W :A reverse protection circuit no burning fuse. UTP-4000W,
UTP-6000W: Fuse will be burn out and you need to replace the fuse)
6. Short Circuit Protection:
1.
Q: What’s the main differences between a pure and modified sine-wave inverter?A: there are two main differences between a pure and modified sine-wave inverter: efficiency and cost. Pure sine wave inverters are good at two things: efficiently powering devices that use AC, and powering devices like radios that can suffer from interference. But, they can be expensive. On the other hand, a modified sine wave inverter may produce some interference, resulting in a less-than-pure current, but they are less expensive than their pure-sine counterparts.
2.
Q: Which type of inverter do i need,pure sine wave or modified sine wave?
A: If you are in need of an inverter that is going to power sensitive electronics such as: medical devices, computers, anything with a dimmer/variable speed, heater/heating coil, or just needs clean power; buy the pure sine inverter…
On the other hand, if you need temporary power while tail-gating, camping, road-trips or to charge your laptop/two-way radios, power fans, run a blender, power a microwave, etc., the modified sine wave inverter is smart and affordable choice
If you are not sure which one is suitable for your appliances, please contact with us.
3.
Q: How to choose an inverter?
A:For Inductive Load : If connecting with inductive loads (e.g. Compressor, Pump, old CRT TV, Refrigerator, Ice conditioner, Air conditioner, Relays,Fluorescent lamp, Vacuum cleaner), please choose inverter whose rate power is 3-7 times higher than the load's rate power. For example, for a 150w refrigerator, please choose a 1000w inverter or higher; for a 800w air conditioner, please choose 2500w inverter or higher.
For Resistive Load : If connecting with resistive loads (e.g. Computer, LED TV, Fan, Scanner, Fax machine, Duplicator, Sound system, Juice extractor, Heater, Electric cooker, Coffee maker, microwave, crock pot), please choose inverter whose continuous power is a little higher than the load's rate power. For example, for loads near 700w, it's better to choose inverter with continuous power more than 800w.
