Price:$80.00 - $85.00
Price in USD:Details

Quantity:


Product Overview

Description

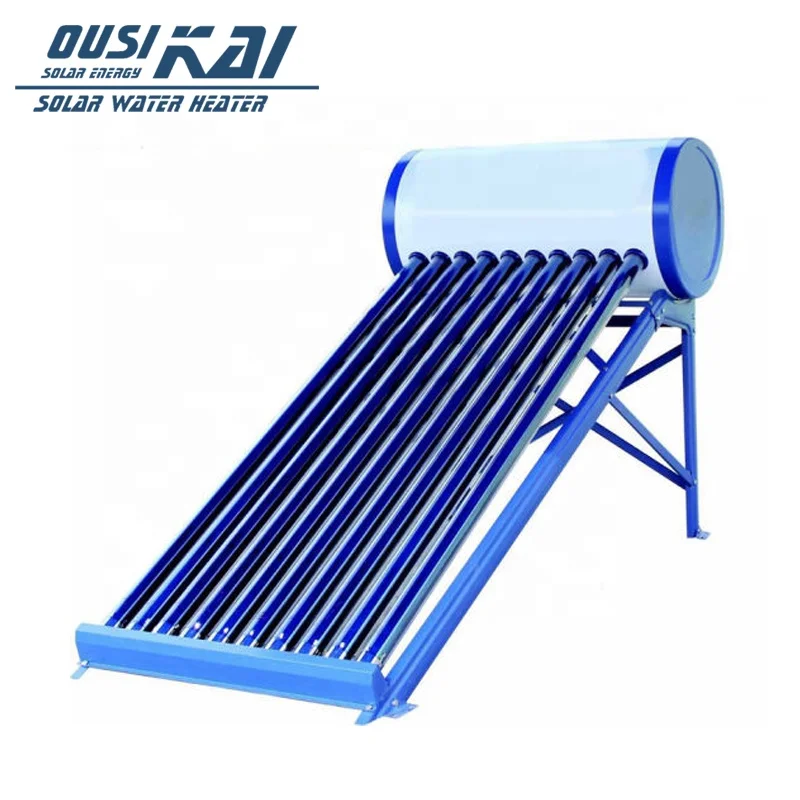

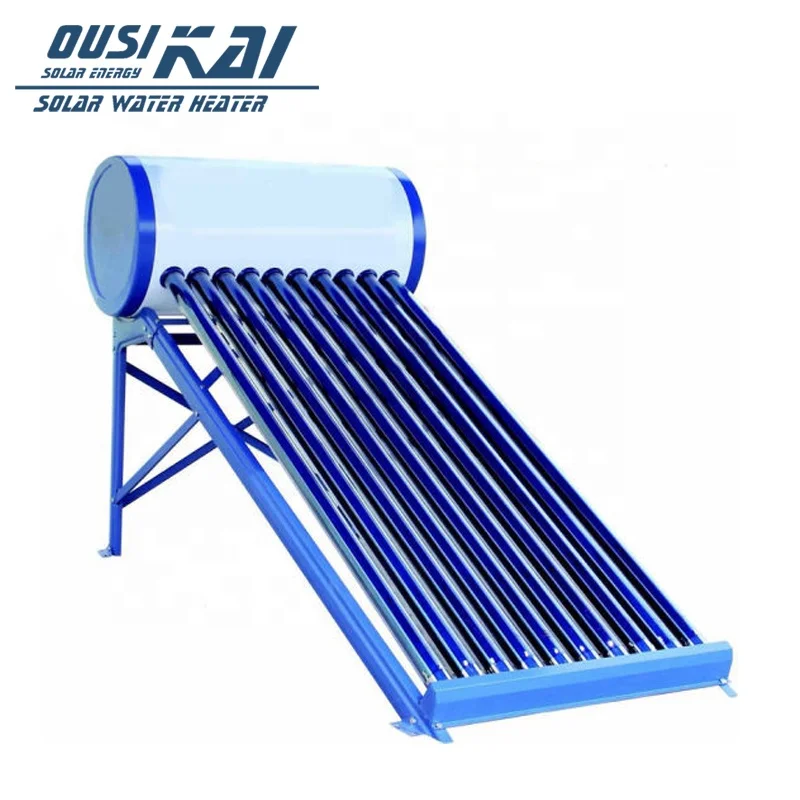

calentador de agua solar calentador solar 8 tubos solar water systems for hot spring

Low Pressure Solar water heater is very popular in many countries and area, such as India, Mexico, Vietnam, China, Chile ,Africa Middle East etc.

A:Features and advantages:

1. High efficient and economical system.

2. Suitable for projects and home use.

3. Designed for commercial solar water heating applications.

4. Reliable and efficient with twin-glass solar tubes.

5. Polyurethane insulation ensures a good heating performance and minimal heat loss.

6. Easy plug-in installation.

7. Can be connected in series to increase water heating capacity.

B.Technical data



Description
Low Pressure solar water heater
Material of out tank
0.31-0.4mm thickness color steel
Material of inner tank
Food grade 0.31-0.5mm mm thickness SUS304 stainless steel
Tank insulating layer
50-65m³ high-density polyurethane foamed
Inlet and outlet hole
Male G 3/4, 3/4
Max pressure
0.05Mpa
Solar collector tube
3.3 Borosilicate glass with three target  coating
Thickness of glass tube
actual  1.6mm
weight of glass tube
actual 2kg
Vacuum tube tightness
P<=0.005 Pa
Absorption
AS=0.93-0.96(AM1.5)
Emission ratio
0.04-0.06(80C+-5C)
Idle sunning property parameters
Y=220~260m2.C/KW
Average heat loss coefficient
ULT=0.6~0.7W/(m2.C)
frame
1.5mm thickness Galvanized Steel
Design of tank:

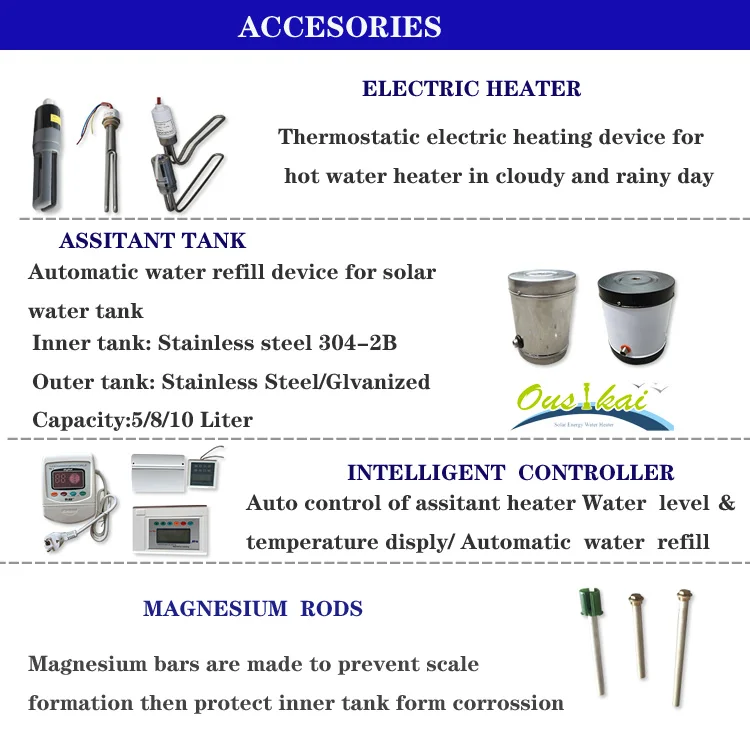

5 holes for air vent,water inlet and outlet,electric heater,Mag Rod
Welding:
Argon arc welding
Fastening pieces
Made of stainless steel screw
Absorber area
1.29m²
Tube quantity
30 tube 58x1,800mm solar vacuum tube
Tank capacity
250L

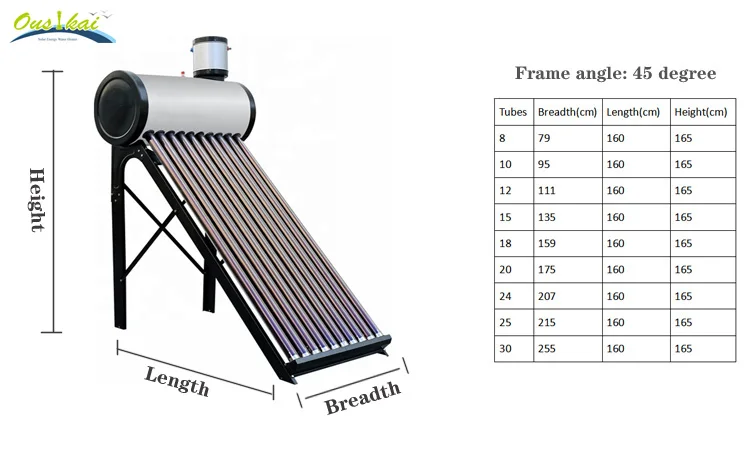

Model
vacuum tubes
Absorb
area
Capacity
suitable for
container
container
pcs
size
M2
tank(L)
tube(L)
system(L)
person
20'GP
40'HQ
NPC-8
8
58*1800
1.064
71
24
95
1-2
85
210
NPC-10
10
58*1800
1.33
87
30
117
2
73
179
NPC-12
12
58*1800
1.596
103
36
139
2-3
64
157
NPC-15
15
58*1800
1.995
128
45
173
4
53
128
NPC-18
18
58*1800
2.4
152
54
206
5
46
109
NPC-20
20
58*1800
2.66
168
60
228
5-6
42
101
NPC-24
24
58*1800
3.2
200
72
272
6
34
81
NPC-30
30
58*1800
4.02
250
90
340
8-9
29
68
NPC-36
36
58*1800
4.78
299
108
407
10-11
22
53











What is the difference between Non-pressurized Solar water heater and pressurized type?

1. The pressurized hot water loses less energy than the normal one.
2. The pressurized can be used in cold winter,
3. strong pressure water makes your bathe more comfortable.

Why choose Ousikai?

1. We have both vacuum tube factory and water tank factory for more than 8 years, professional.
2. We provide 10 years warranty for the whole system. Others normally with 5 years.
3. Keep the delivery time exactly.

Payment Terms:

1) 100% T/T in advance (sample)

2) L/C at sight

3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder

4) 30% Deposit in advance and balance should be paid after receiving the B/L copy.
