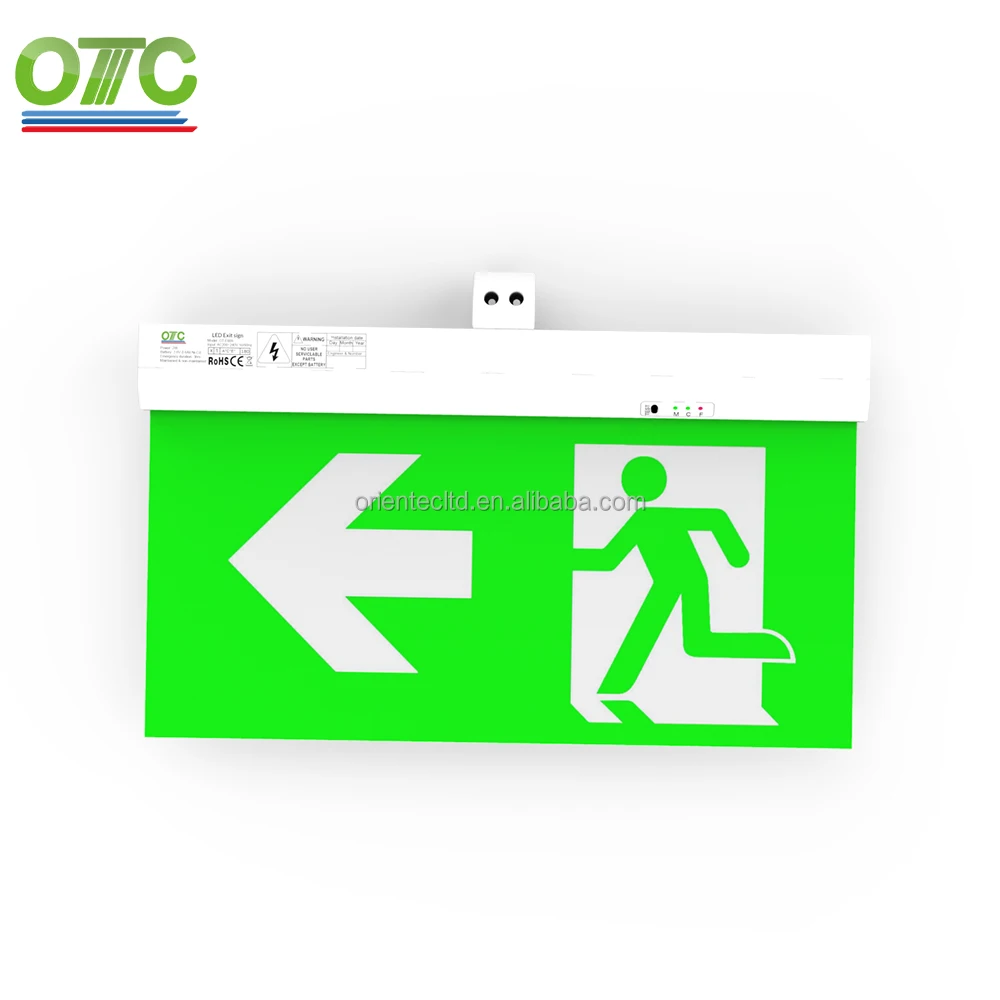

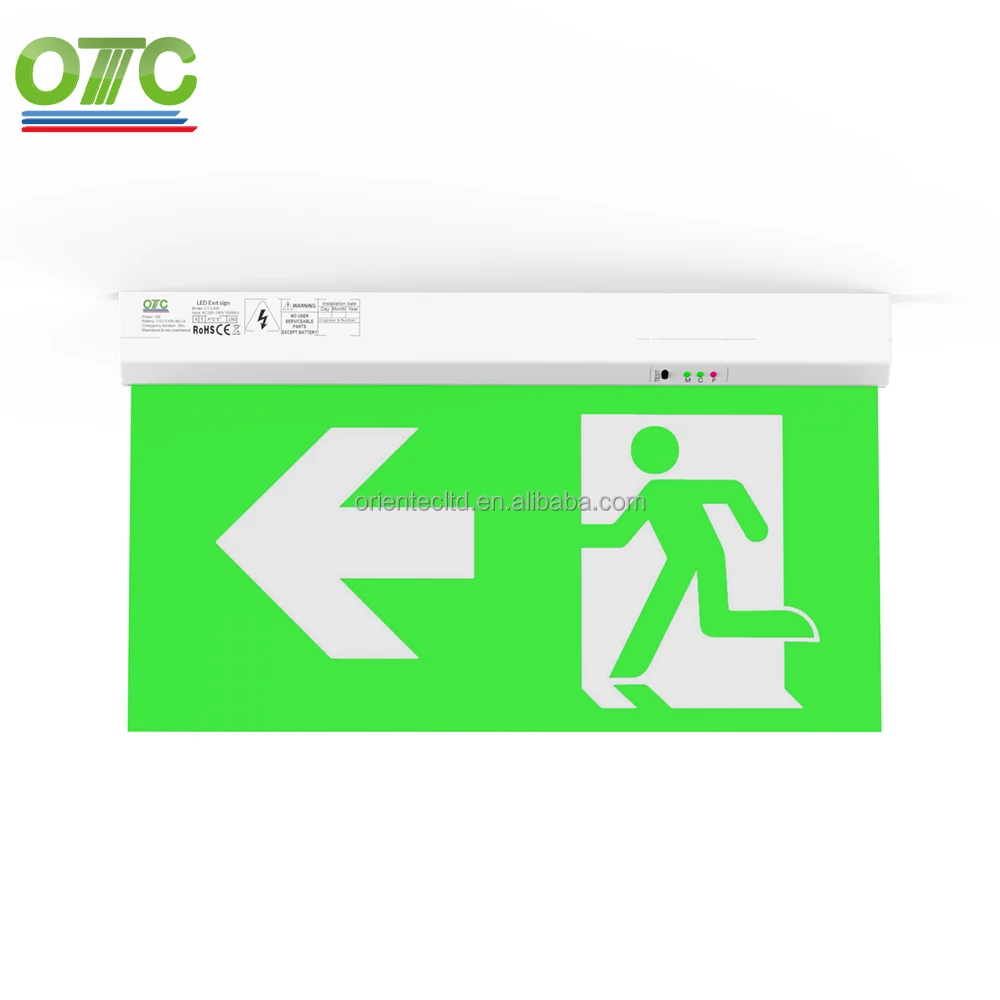

OT ES809ST led self test LED Exit sign
- Category: Emergency Lights >>>
- Supplier: OTC (Shaoxing) Electronic Co. Ltd.
Share on (1600222572147):
Product Overview
Description
Details of OT-ES809ST led self test LED Exit sign
Bureau Certi
Product Description
Dear Engineers, Installers,
The latest OT-ES809ST is according Latest ISO7010 request.
White LED light and greed PVC film.
| Model | Art Nr. OT-ES809 | ||
| ES809 |
ES809ST Item in the page |
ES809RST | |
| Material | polycarbonate + PMMA | ||
| LED Chips | 10 pcs F546 bulb | ||
| Color Rendering Index | >80 | ||
| Degree of protection | IP20 | ||
| Input Voltage | AC200-240V 50/60HZ | ||
| Input power | 2.0W | ||
| Power factor | >0.5 | ||
| Emergency change over | <0.5S | ||
| LED lifespan | 50,000 hrs | ||
| Standard | 60598-2-22:2014 | ||
| Emergency Pack | 3.6V 0.6Ah | ||
| Emergency time | 3 Hours | ||

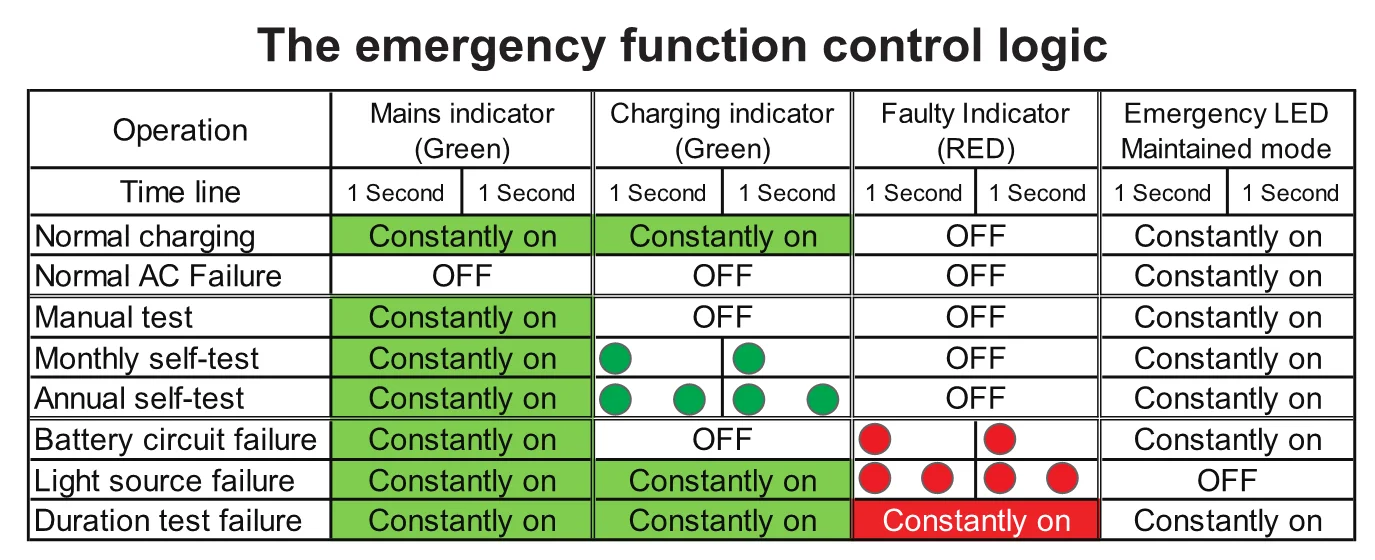

| Test | Manual Test | Self-test | Remote+self test |
| Mains indicator | NO | RED | |
| Charging indicator | Green | ||
| Faulty indicator | NO | RED | |
| Luminous Flux(Mains) | 40LM | ||
| Luminous Flux(EM) | 40LM | ||

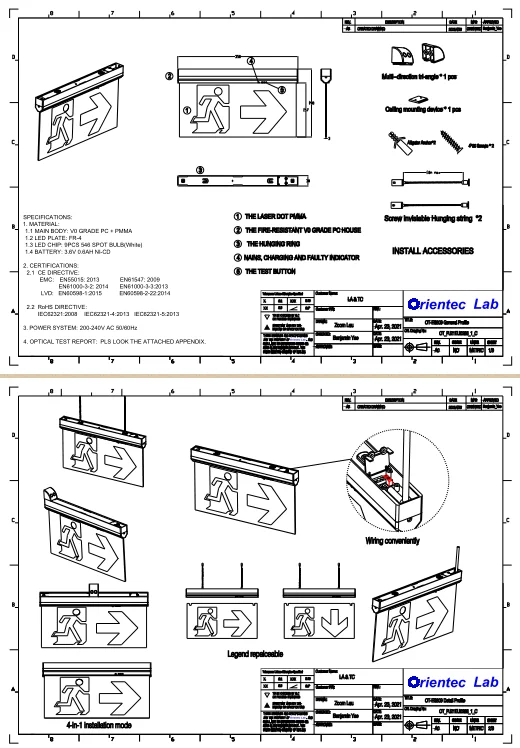

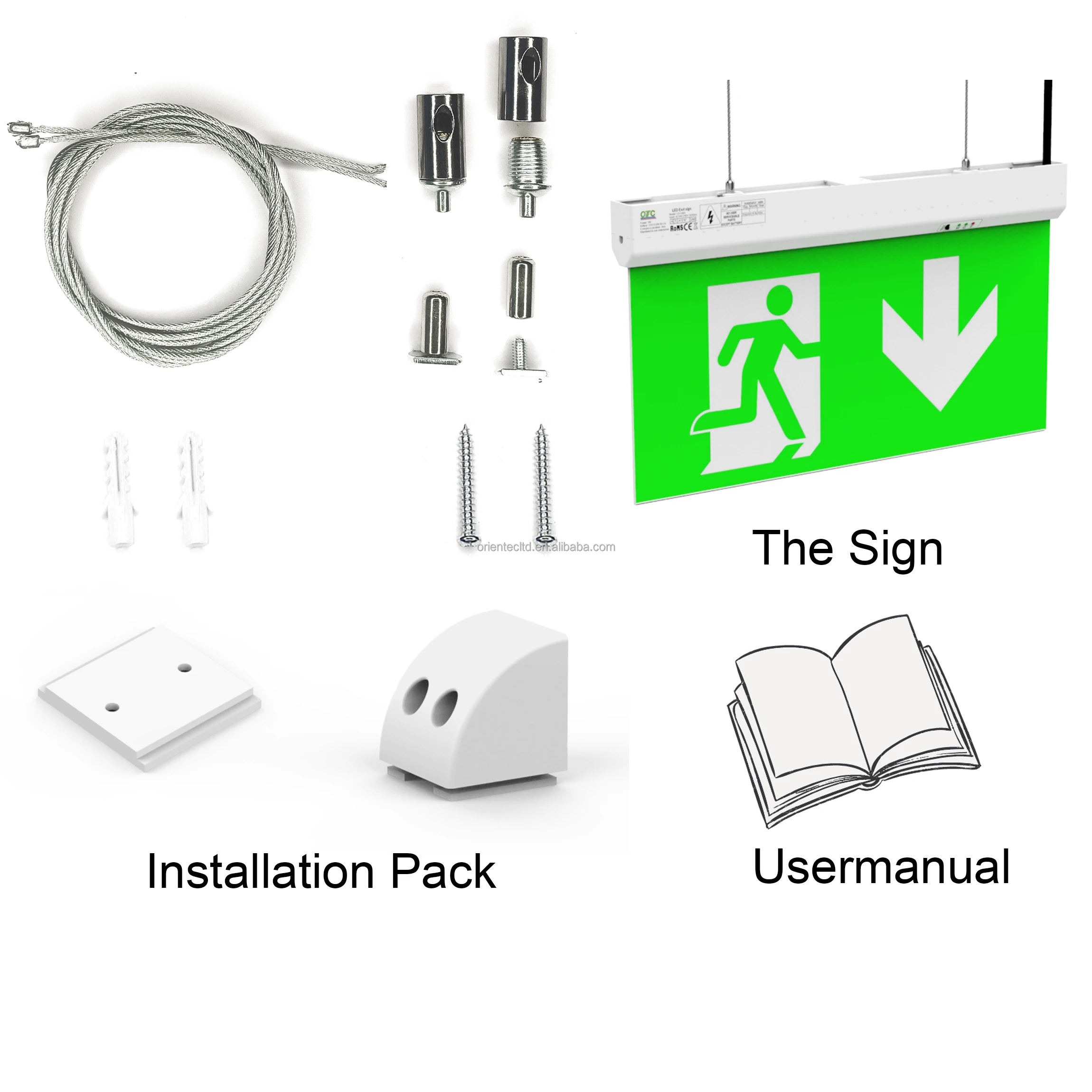

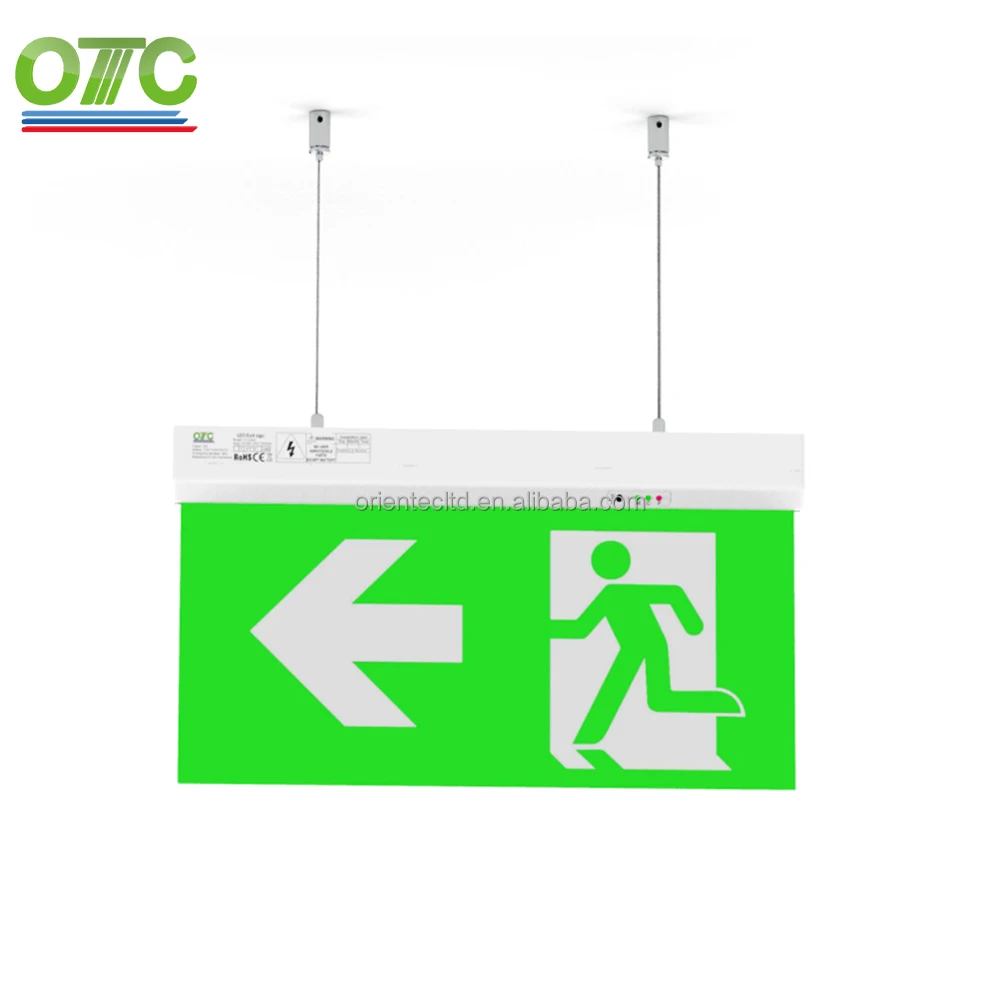

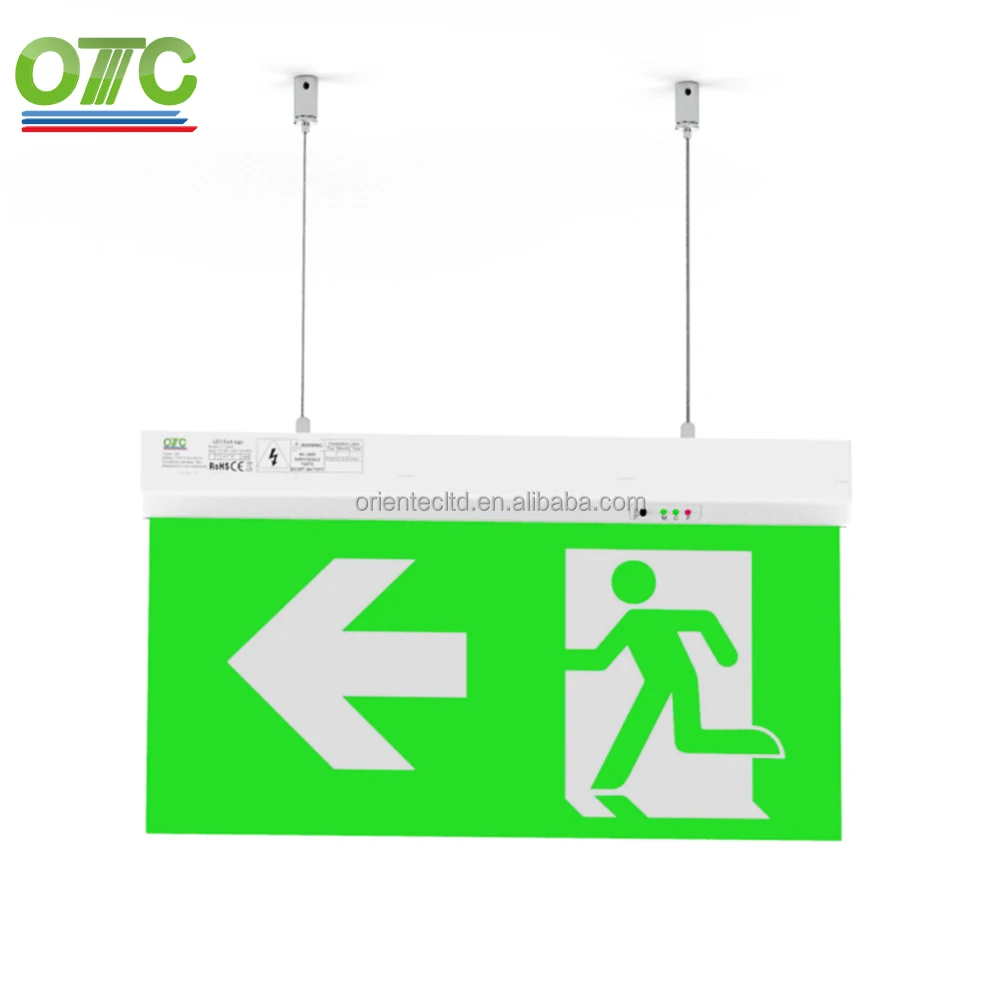

Install mode 1: hunging mode

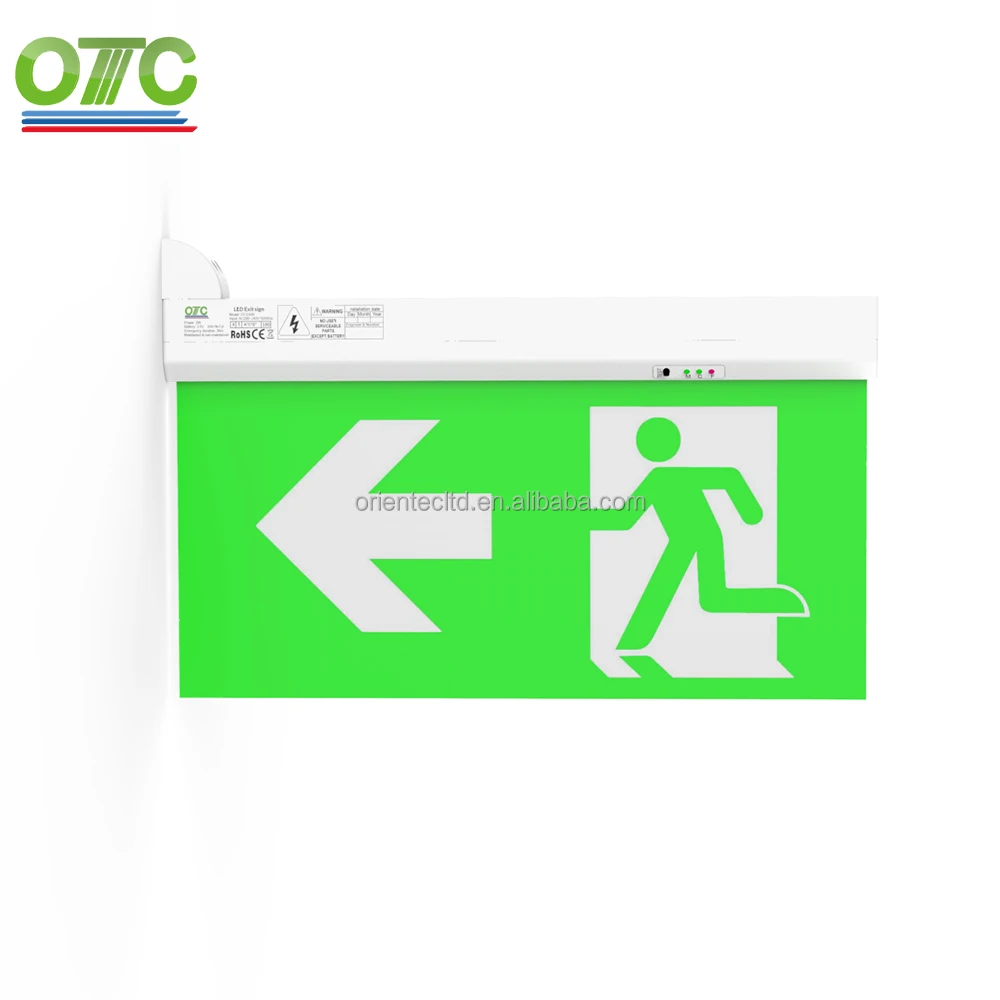

Install mode 2: Wall mounting install
Install mode 3: Side mounting install
Install mode 4: Ceiling mounting install
Company Information
General instruction of OTC Electronic:
1. OTC(Shaoxing) Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22:2014 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
Packaging & Shipping
PACKING INFORMATION of this OT-ES809ST led self test LED Exit sign
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20 pcS/CTN |
| Carton Size: | 46*41*47.5cm |
| cG.W.: | 12KGS |
| N.W.: | 10GS |
Our Services
1. Projects & Technology Creating
2. Professional Technology support of self test LED Exit sign
3. OEM & Stratage service
FAQ
1. Q: What is the quality standard?
ALL rhe emergency light in From OTC is full IEC compliant. Please don't try to persuade OTC use Li-ion battery as battery system.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt. Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 4 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution cost will be refund.
3. Q: MOQ, main market
A: The MOQ is 200pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
