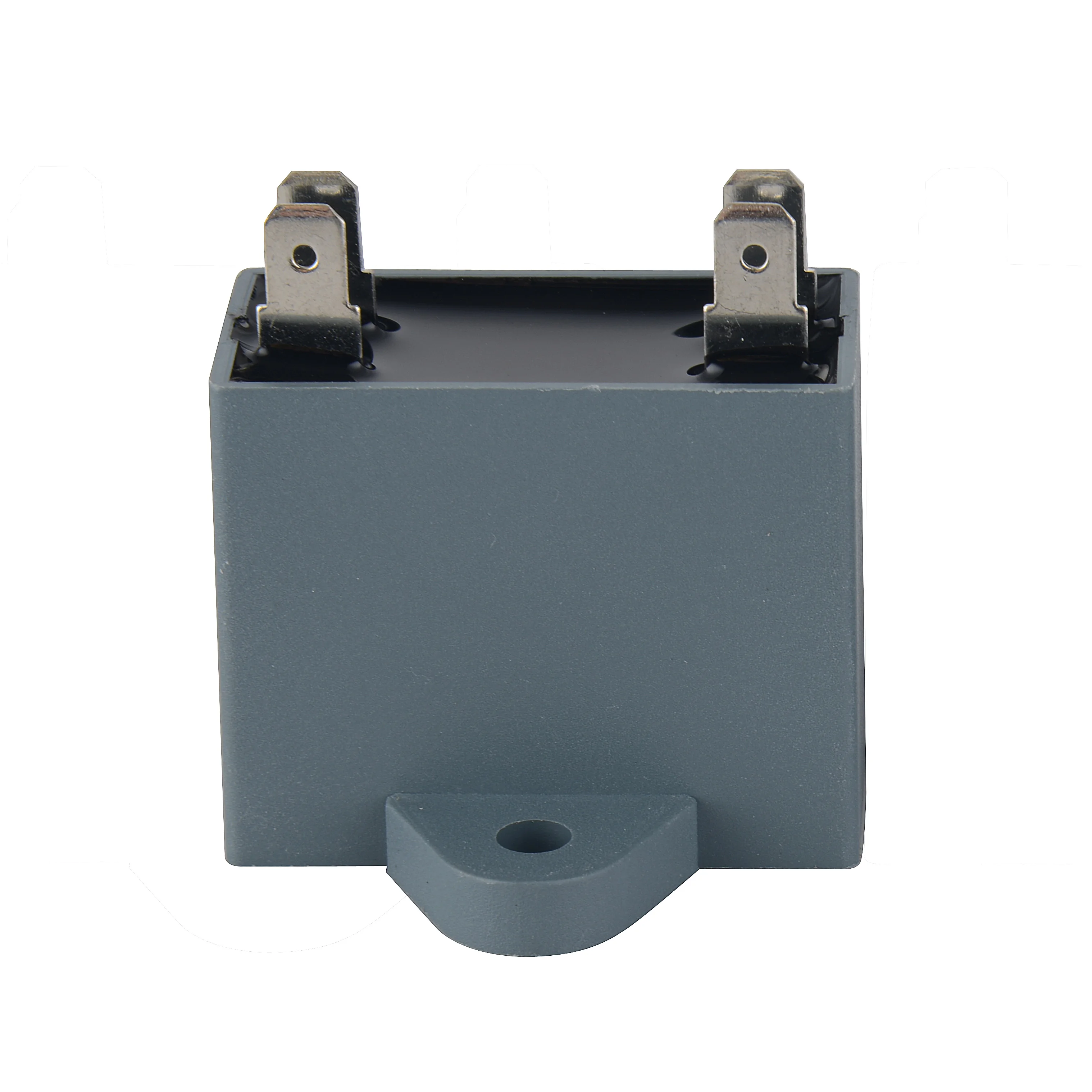

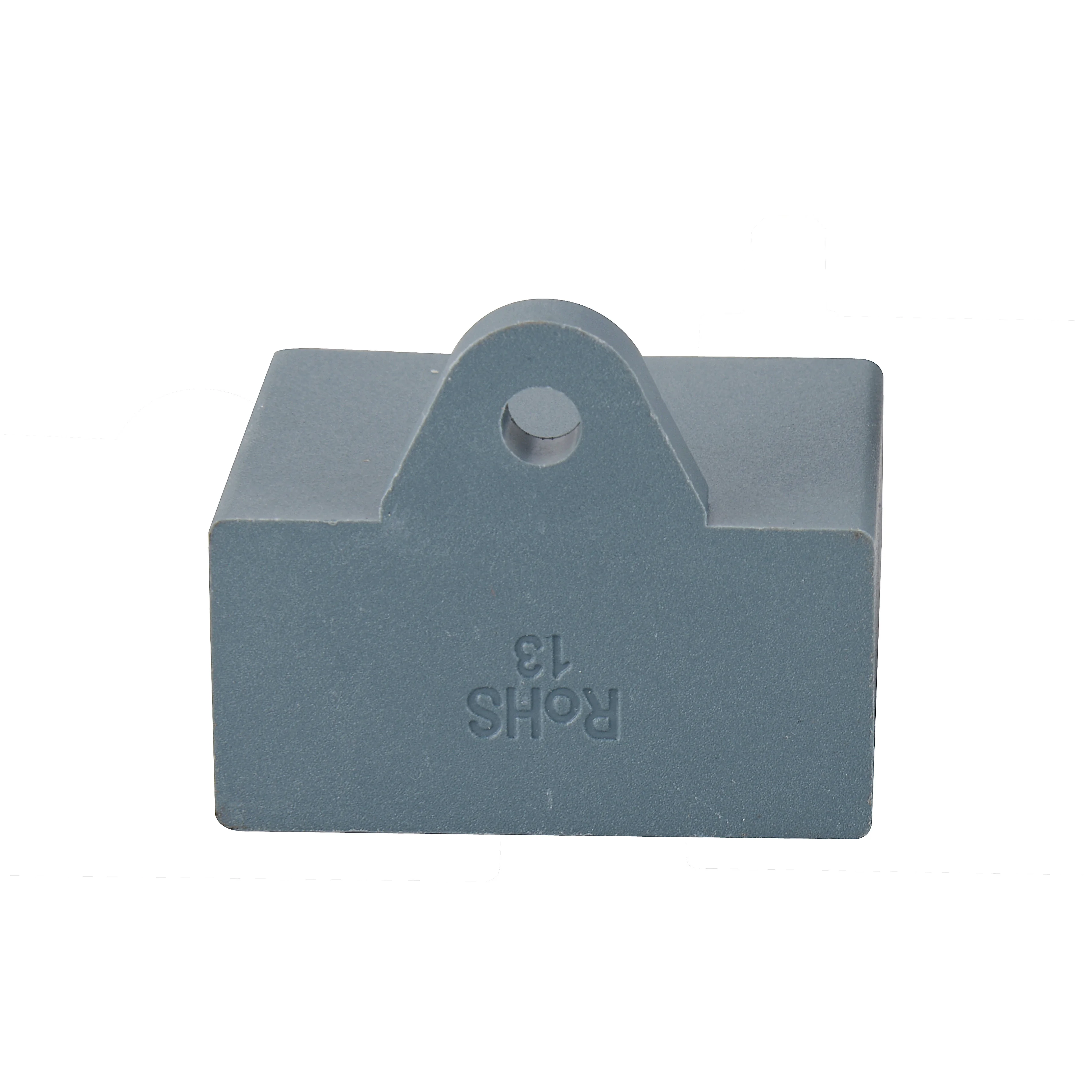

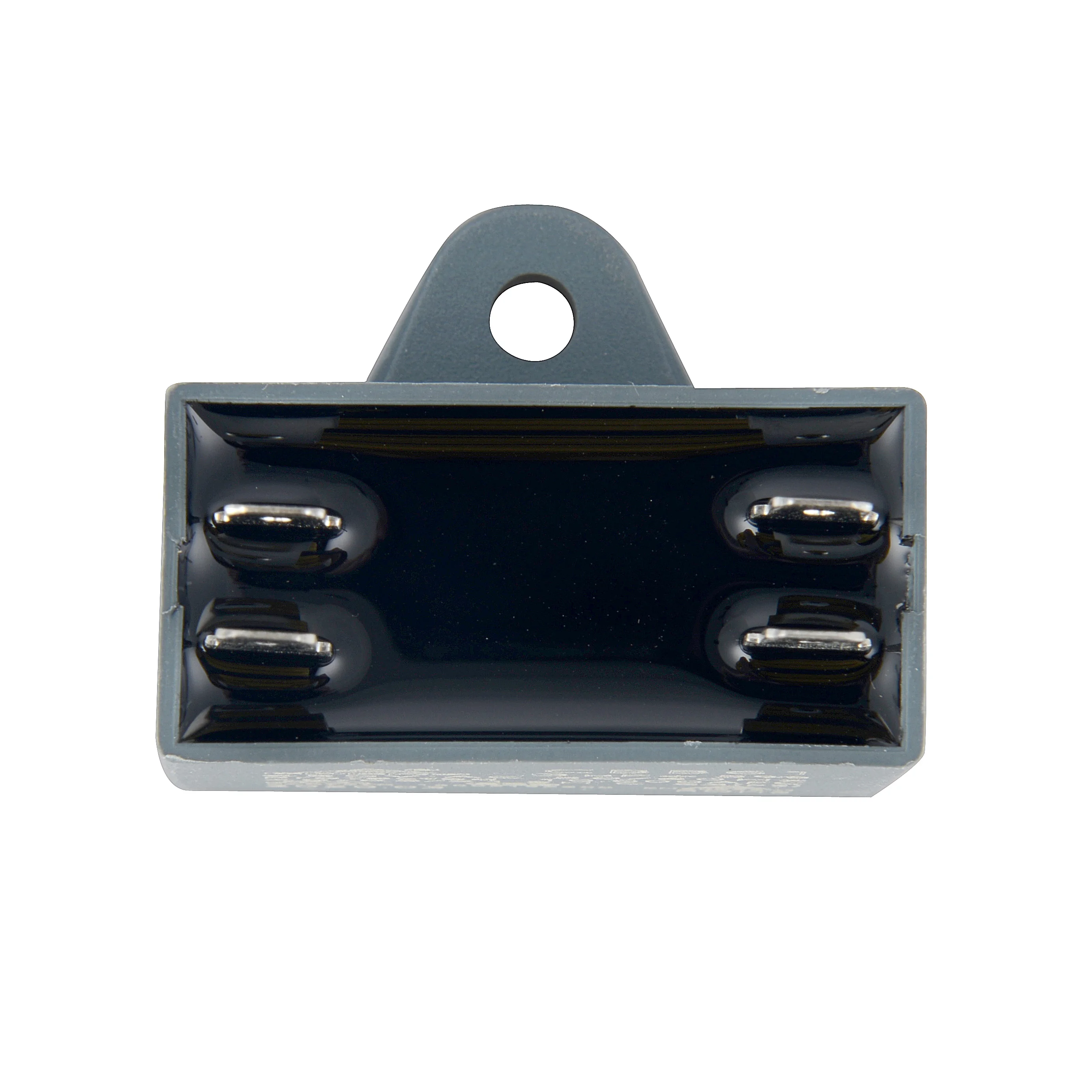

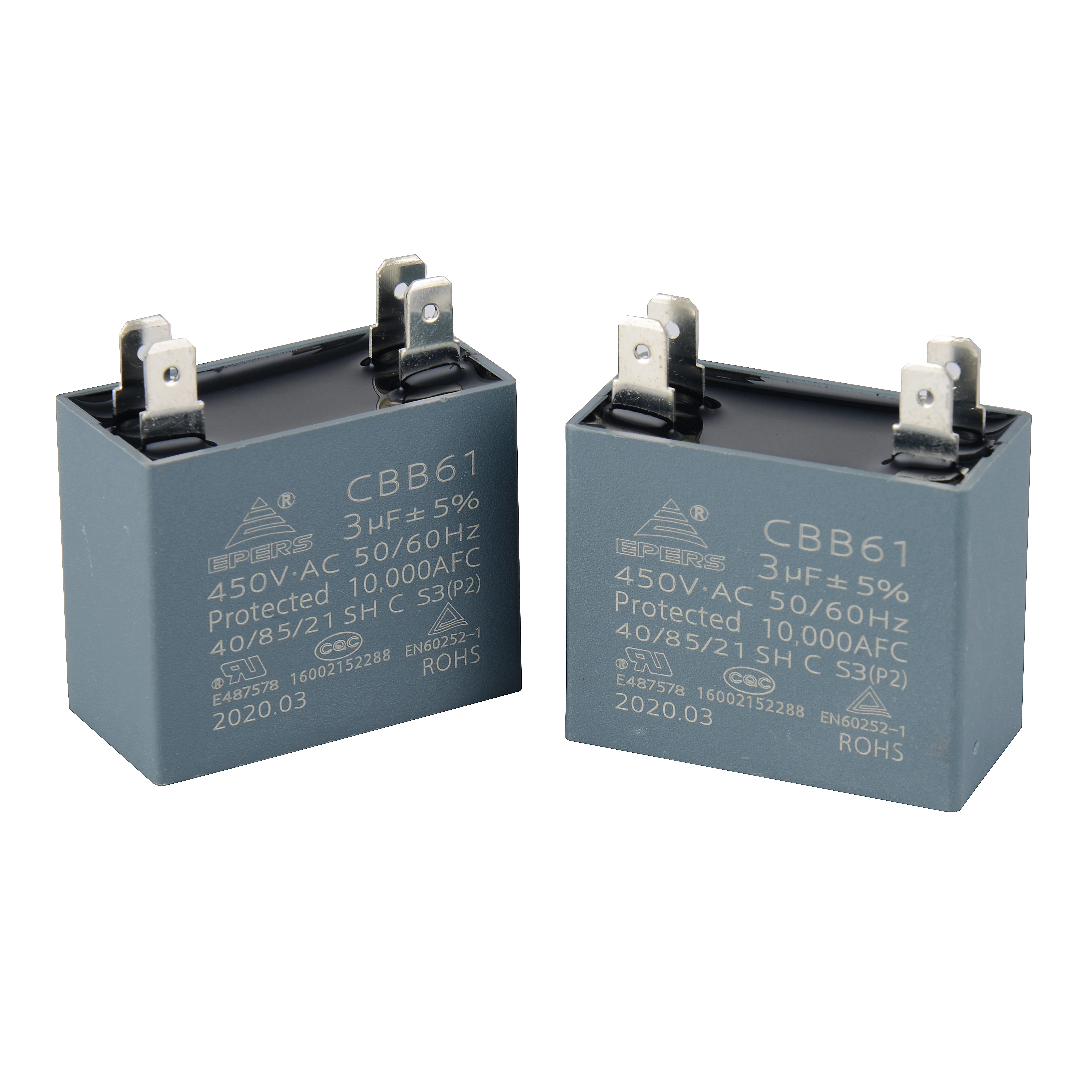

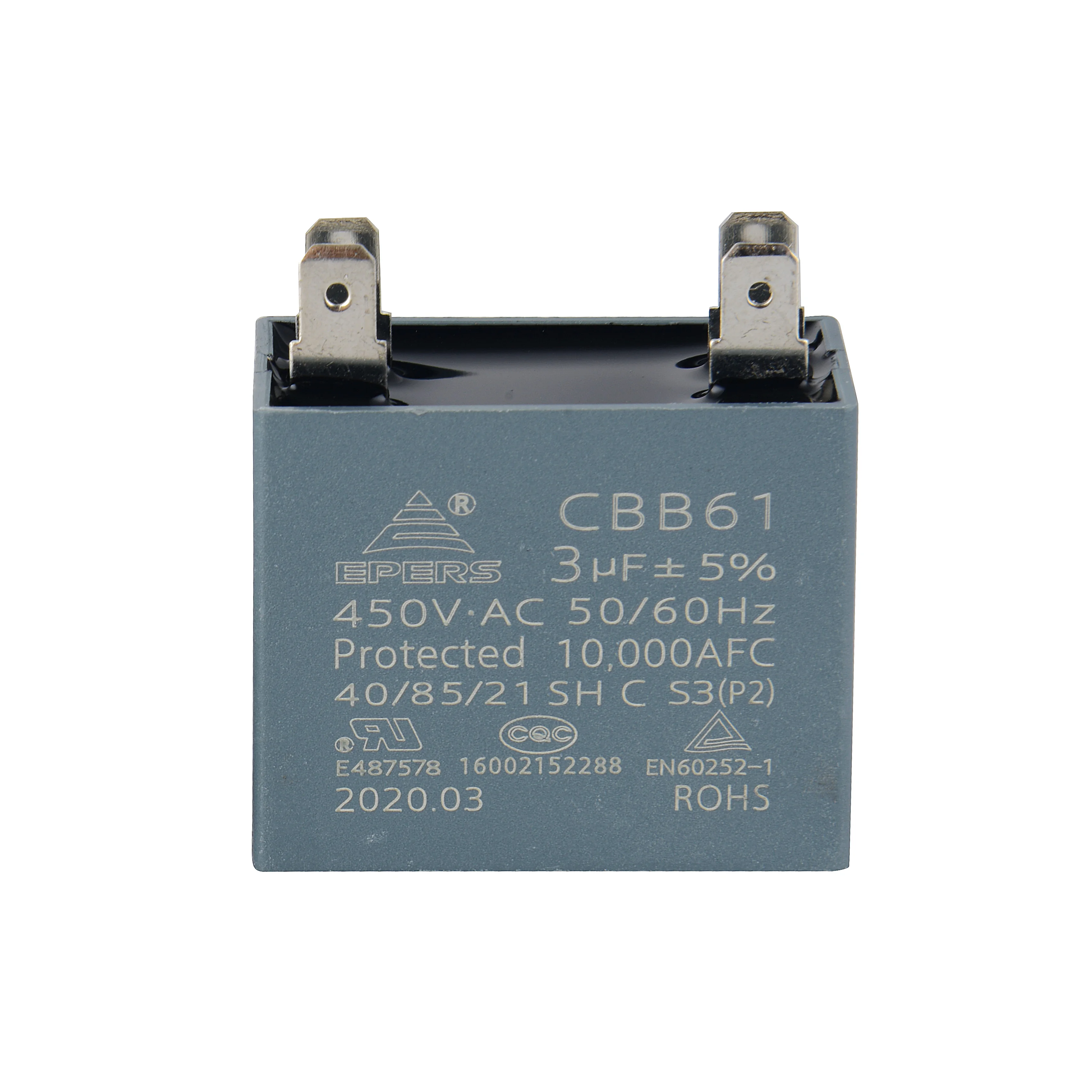

AC motor running capacitor CBB61 450VAC 3uf 4pins for air conditioner
- Category: >>>
- Supplier: Zhongshan Epers Electrical Appliance Co. Ltd.
Share on (1600222761663):
Product Overview
Description
Product Description

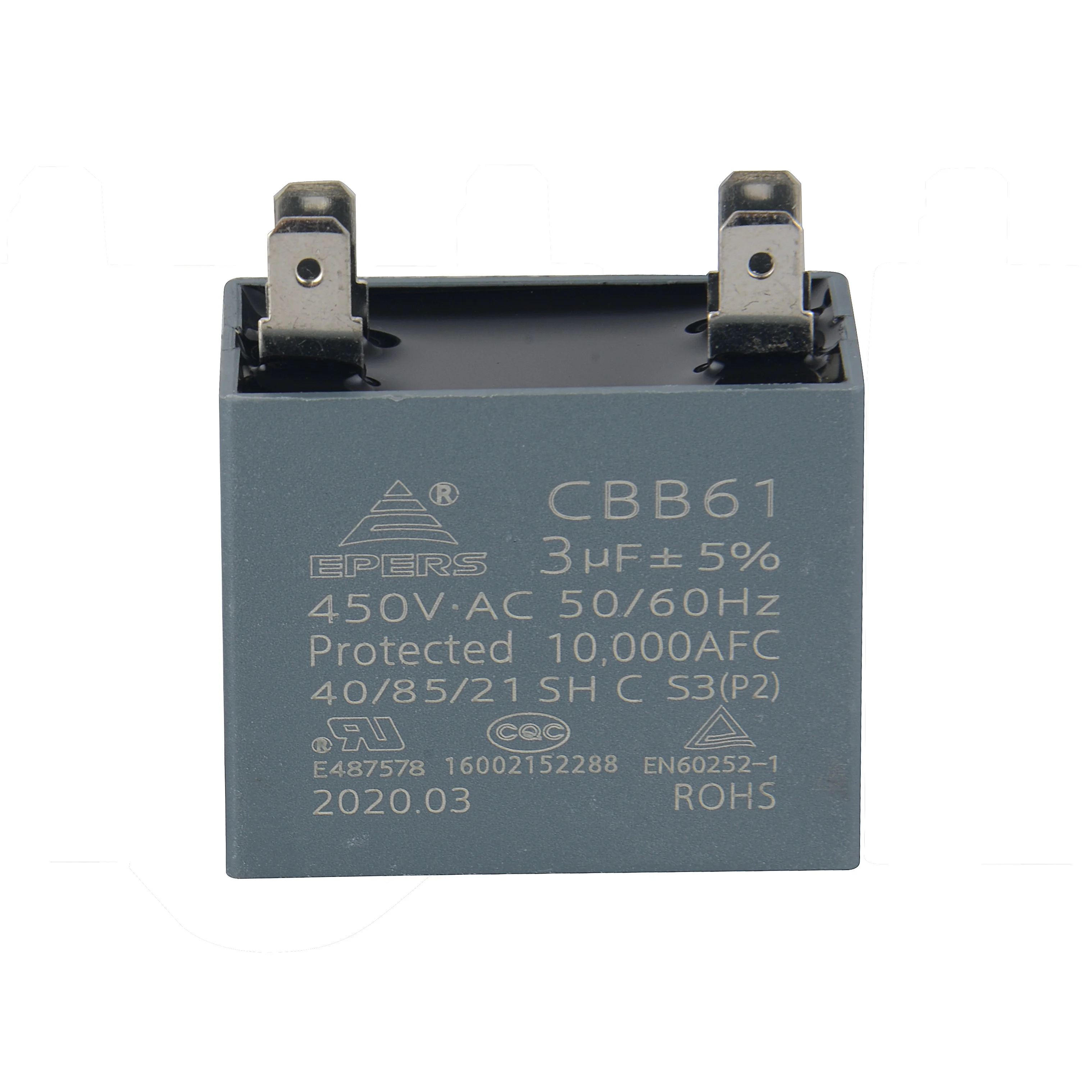

CBB61-S3(P2)
- Metallised polypropylene (MPP) film capacitor and thickened electrode;- 94V0 retardant plastic box and epoxy filling;
- Standard terminal lead;
- P2 safety class film and special engineering process;
- Designed for high-end air conditioner.
Application | Fans, air conditioner |
Product name | CBB61 AC Motor Capacitor |
Certificate | CQC, TUV, UL, CB, CE |
Material | Metalized Polypropylene |
Size | Negotiable |
Package | Cartons, pallets |
Terminal | 187# / 250# |
Implemented standard | GB/T3667.1, EN60252-1 |
Climatic category | 25/70/21,25/85/21,40/70/21,40/85/21 |
Dissipation factor | ≤0.002(100Hz ) |
Class of Operation | B(10000h), C(3000h) |

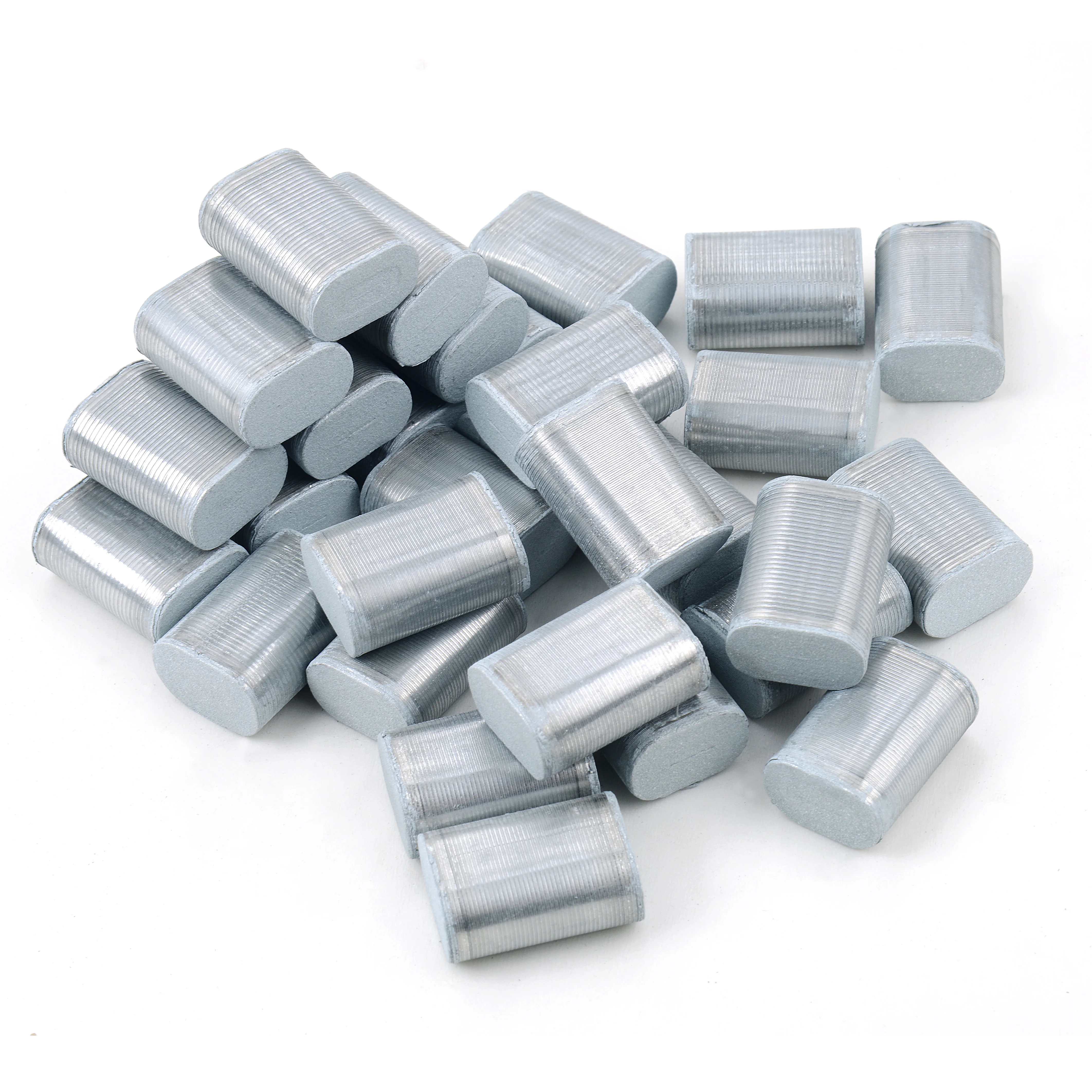

Work flow
Pressure explosion-proof theory

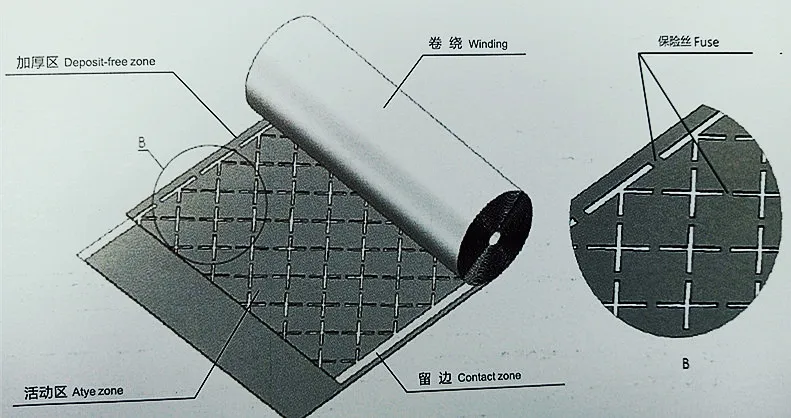

The metallization electrode adopting micro fuse mesh structure (pictured), and in the capacitance operation is at fault, through the micro fuse disconnect, which cut off power supply,prevent fault expand to self protection safety purposes.

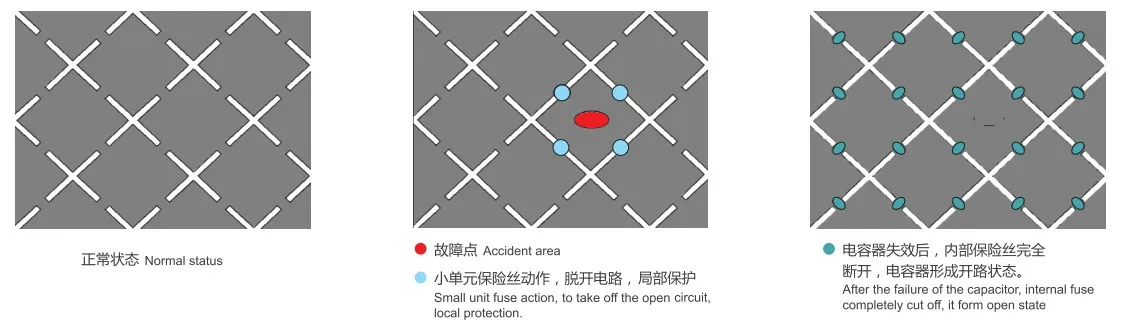

Different status of the segmented films
Applications
luxury ceiling fan
exhaust fan
table fan
floor fan
ceiling fan
heater
smash paper machine
air conditioner
Company Profile
Zhongshan Epers Electrical Appliance Co., Ltd. was founded in 2004. It is a high-tech enterprise specialized in capacitor research and development, design, manufacturing and sales of film capacitors. Products have passed CQC, UL, CE, CB, TUV, and other domestic and foreign certification, and obtained a number of national patents. It takes" enlivening the world, quality future" as the business philosophy, "quality-oriented, responsibility in mind" as the management quality policy, the constant pursuit of excellence and progress, continue to provide customers at home and abroad with the most appreciated products, the most satisfactory service!
Certifications
Our equipment
Packing & Delivery
Carton/pallet
