LoRaWAN iron no magnetic wet wireless remote 3 inch smart water folw meter

Product Overview

Description

Appearance

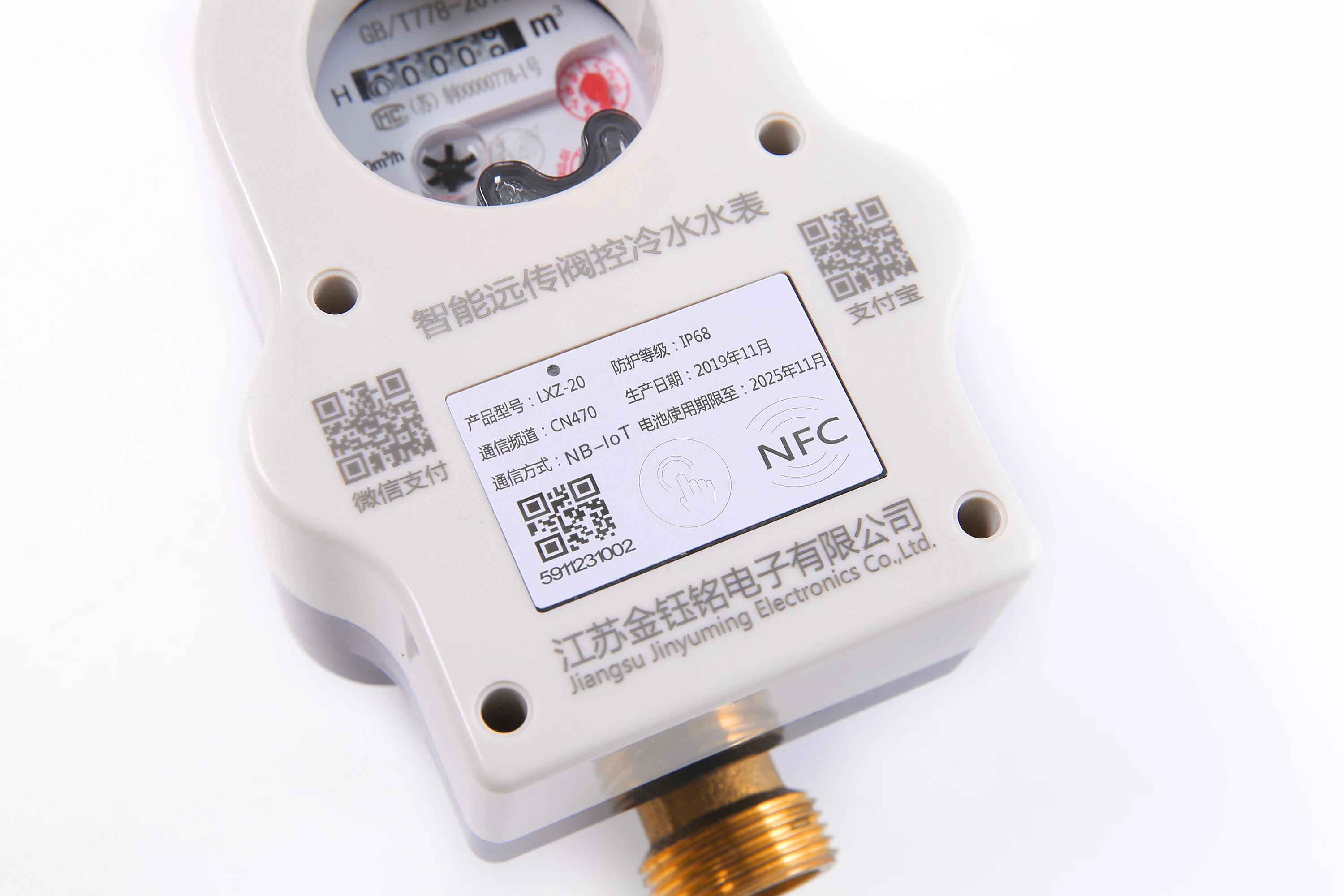

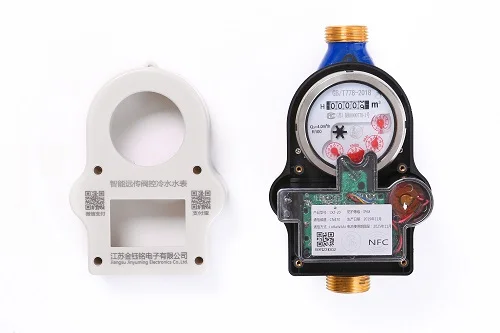

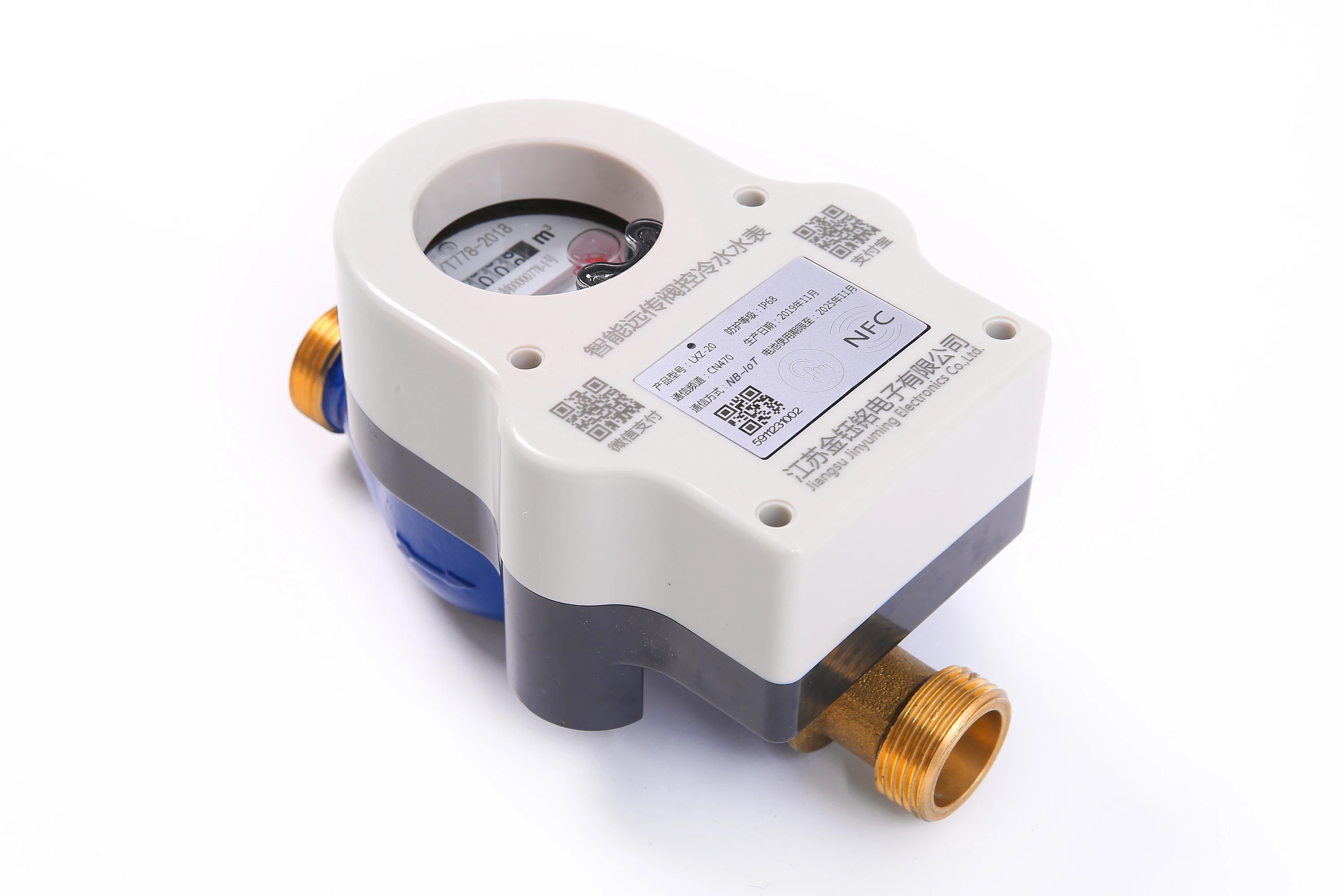

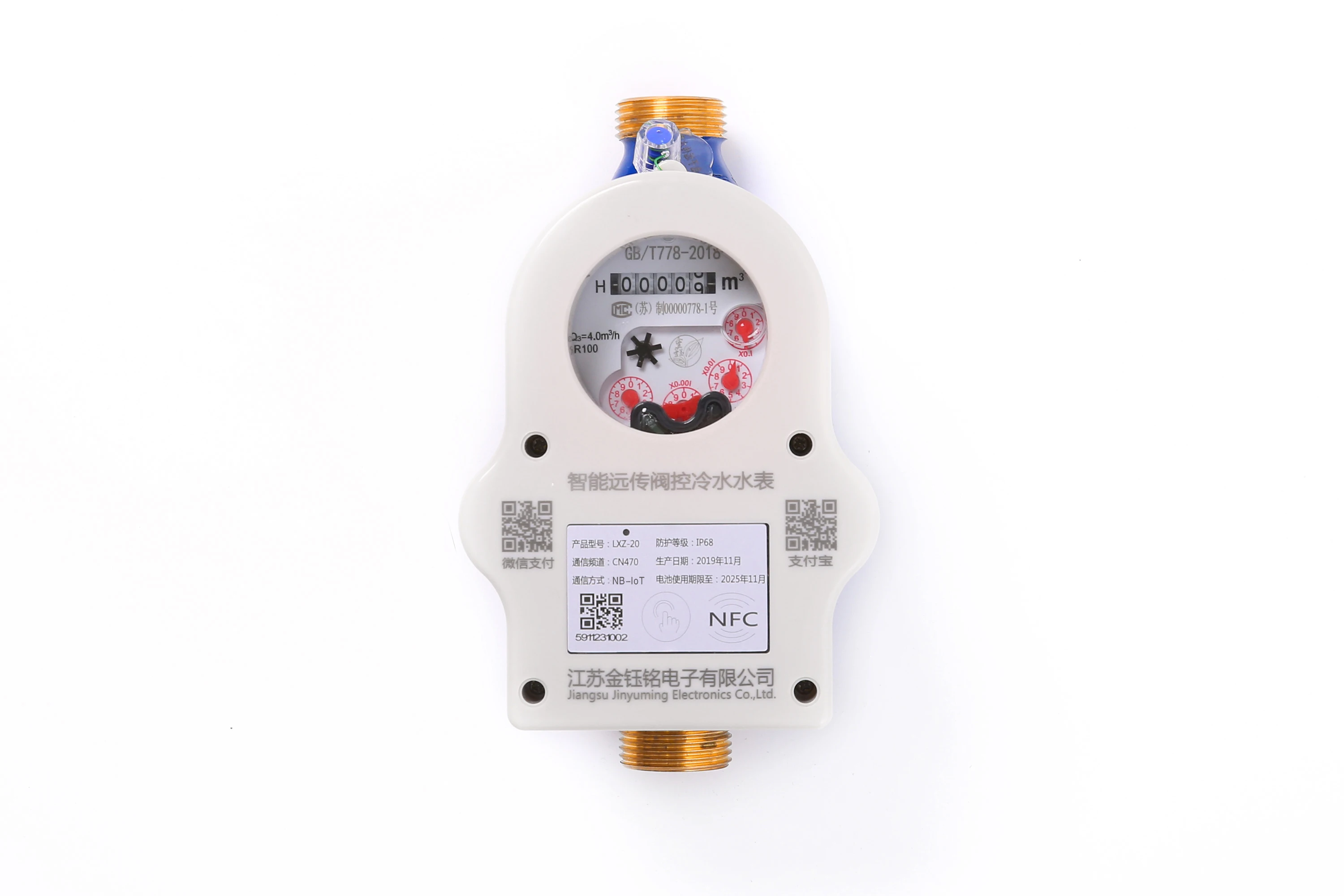

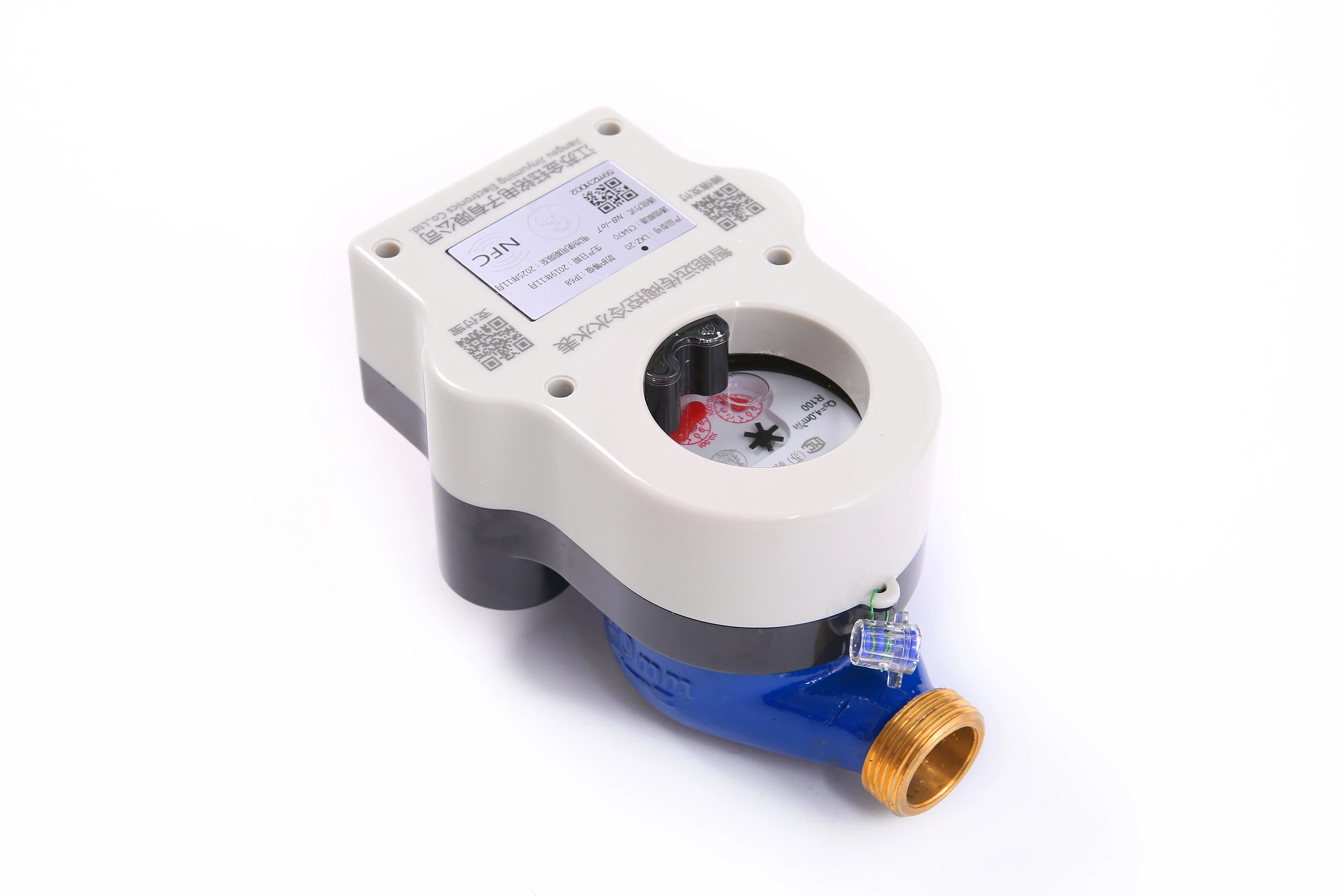

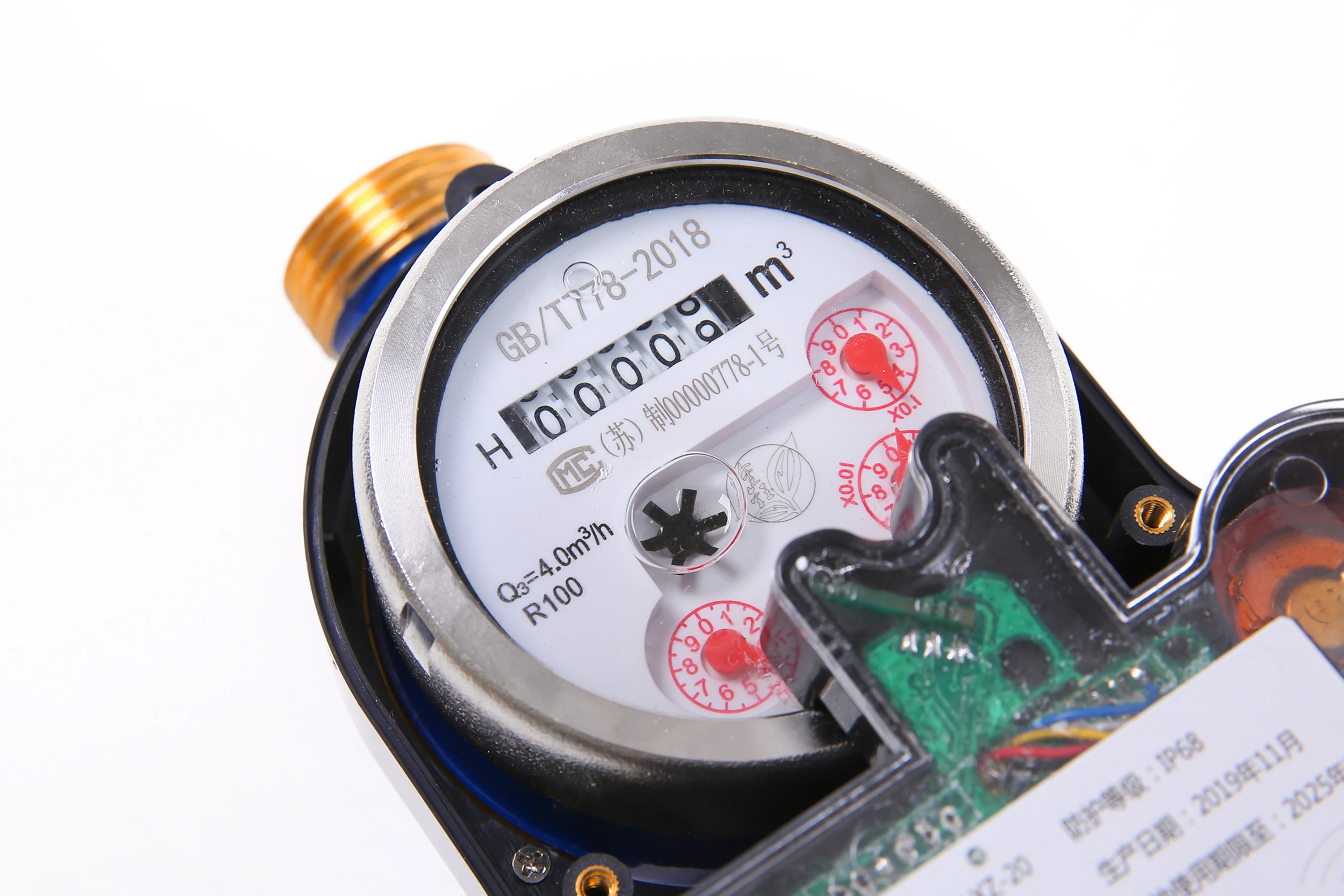

     The overall appearance of Kinmy-LXSZ-FL LoRaWAN water meter is as follows, mainly including the main body and the wireless module.

Features:

Multi-flow calibre, small starting flow and high measurement accuracy;
Integrated module, low power design, measurement process is completed in the main body;
The meter is mainly measured in a magnetic-stop way, and the charging can be done on the server or system;
Portable installation, no wiring required, no external power supply required;
Stable and reliable: Provides carrier-class reliability access, effectively supporting IoT applications and smart city solutions;
Based on LoRa wireless spread spectrum technology, it supports multi-band communication, 470Mhz, 868MHz, 923MHz and so on;
Built-in NFC function module, with mobile app terminal can easily and quickly modify parameters;
The mobile app supports DevEUI, APPEUI, and ABP/OATT mode changes for easy maintenance and management;
The mobile app supports the modification of the water meter base for easy maintenance;
30-45 days of long time data storage;
Long-distance transmission, non-complex environment, transmission distance>1km;
Low power consumption, large capacity lithium battery, ER18505 (4000mAh) or ER26500 (8500mAh) can be used, and the service life is 8-10 years;
IP68 waterproof design, three waterproof technology, to ensure that the water meter works properly in harsh environments;
Working temperature 0-50 ℃;
The electronic module of the water meter has built-in alarm output, overload, small flow, low voltage (less than 2.7v trigger), reverse flow and other alarms, which is convenient for remote maintenance for the water company;
Water meter with valve control, can easily open or close the valve.
