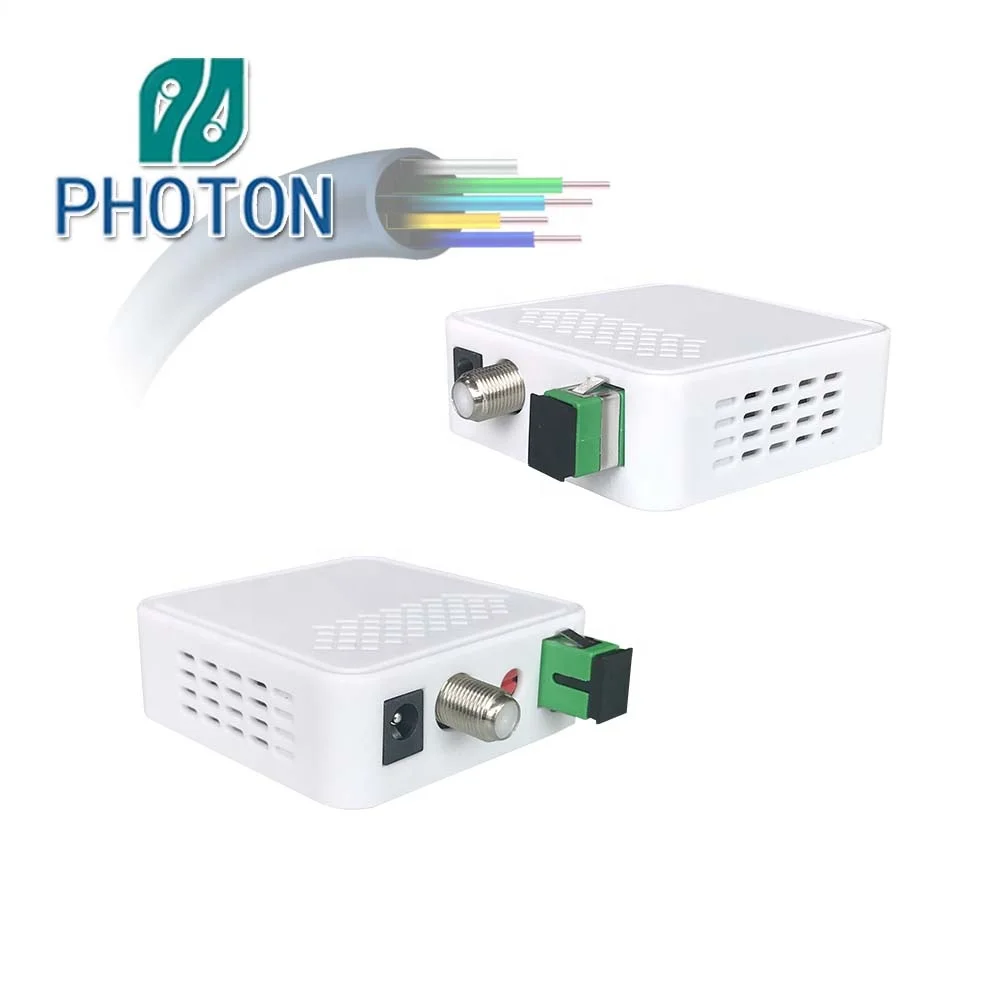

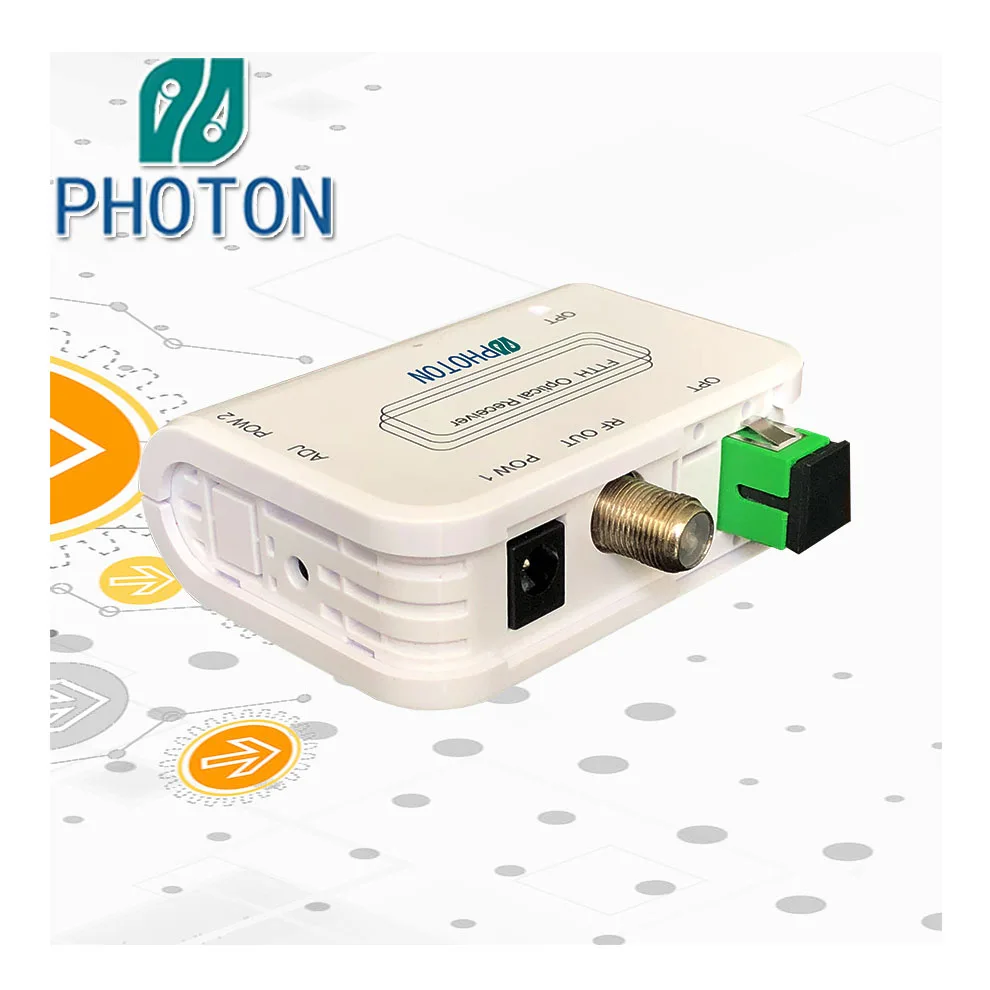

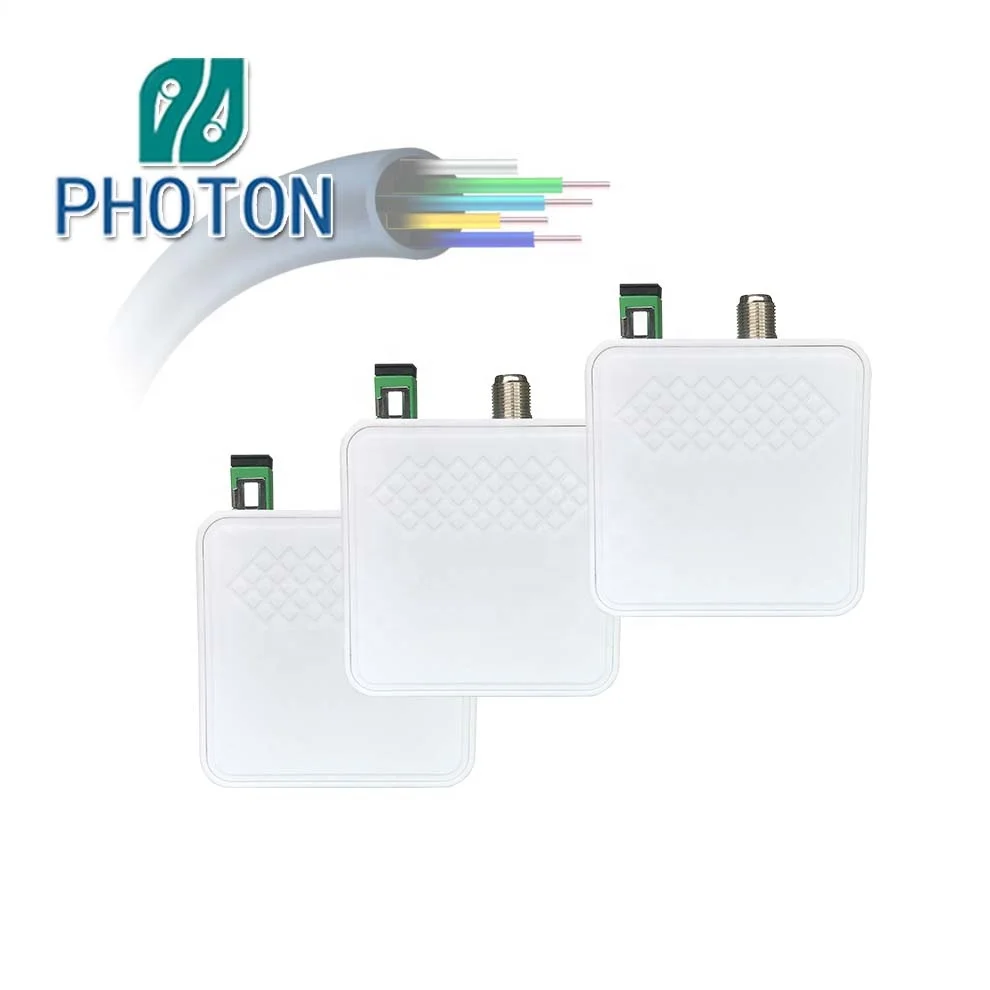

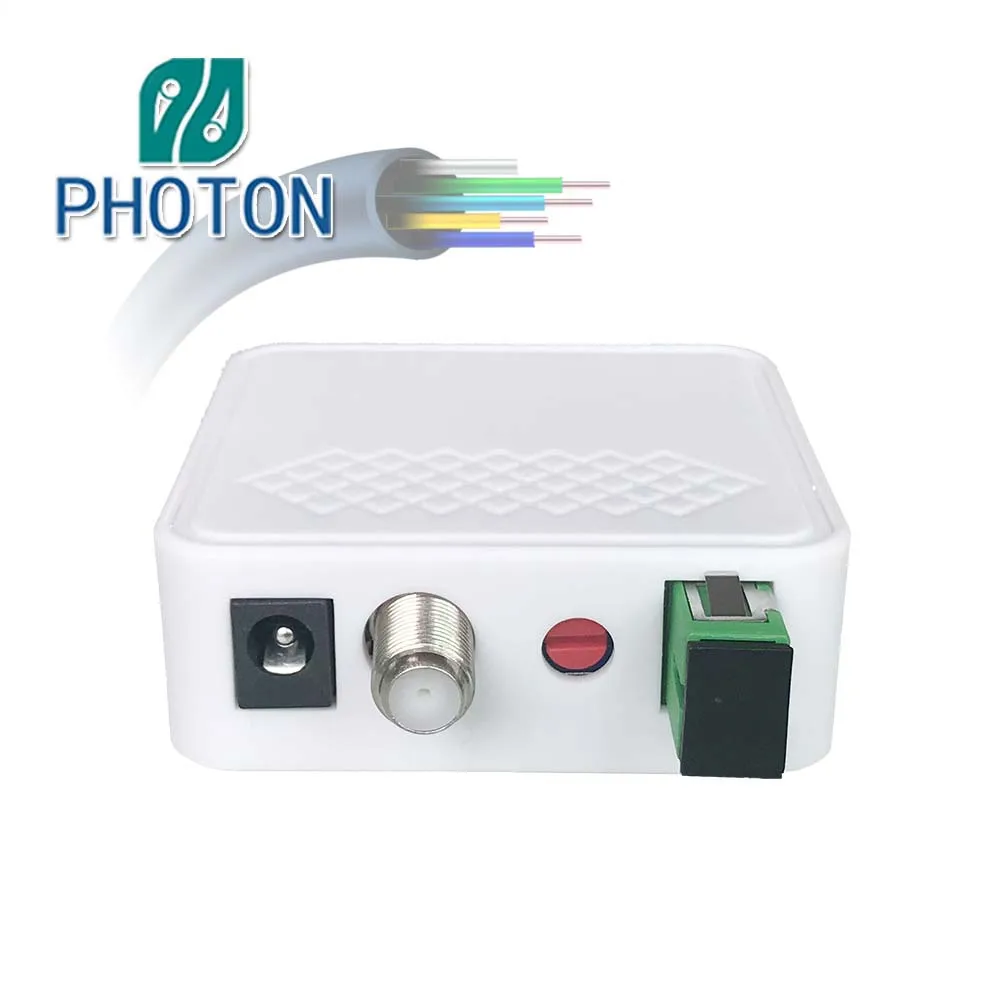

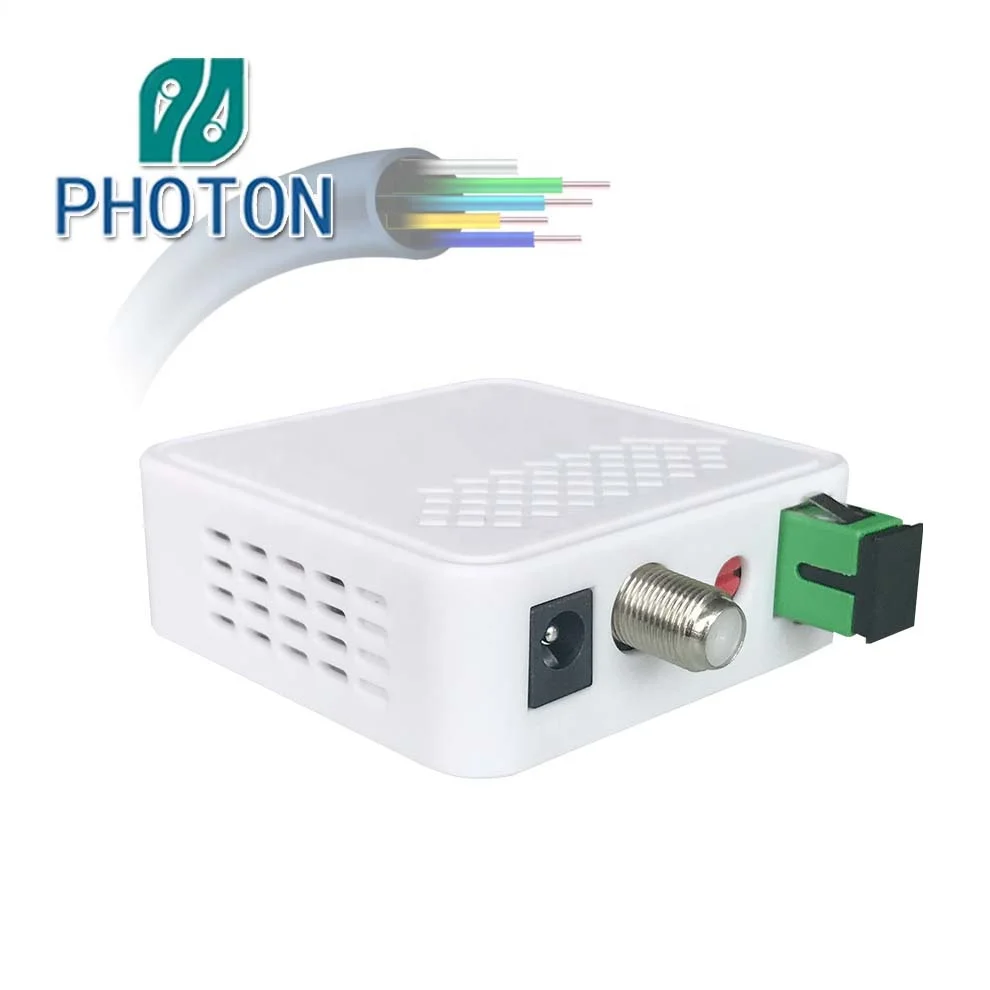

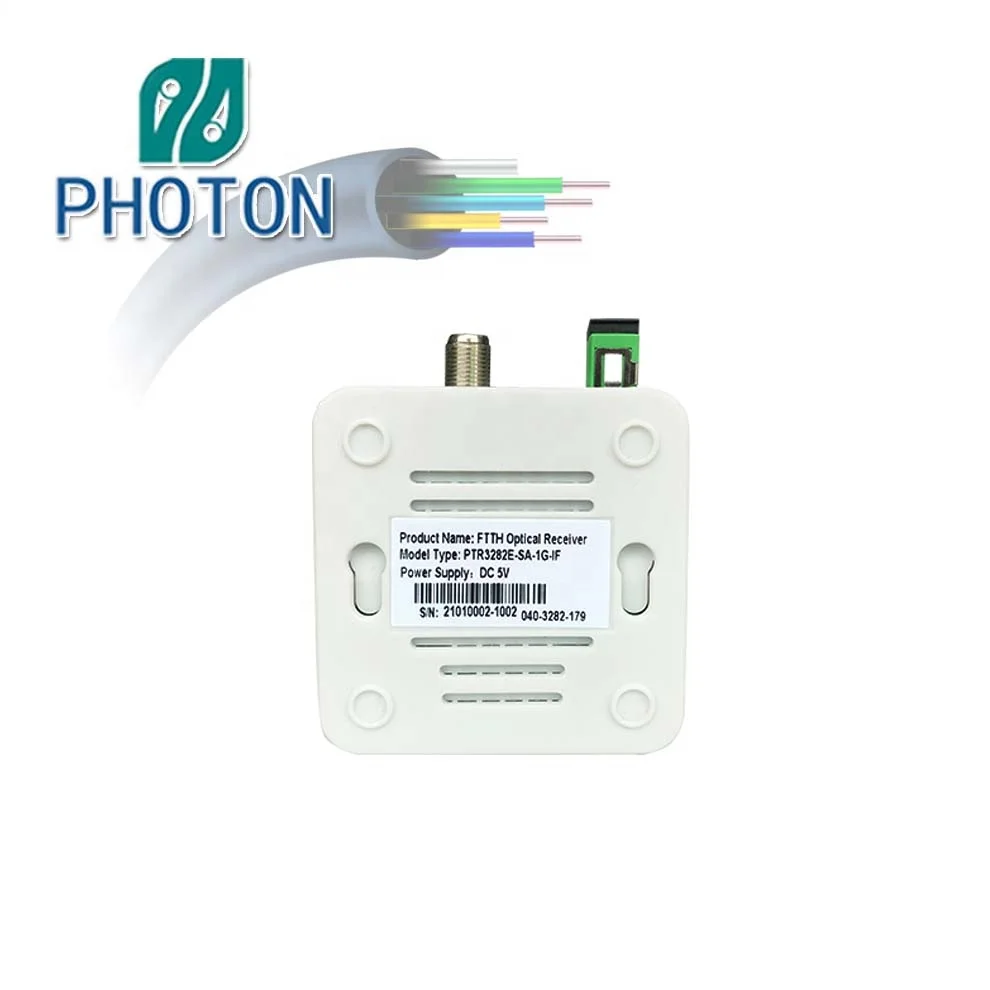

FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E
Product Description
1. Description(FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E)
PTF3282E is an FTTH optical receiver whose RF output level can be adjusted manually. It can receive 1310/1550nm optical signal, or it can be customized to receive only 1550nm optical signal for triple-play applications. It has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution. Product schematic diagram as below:m

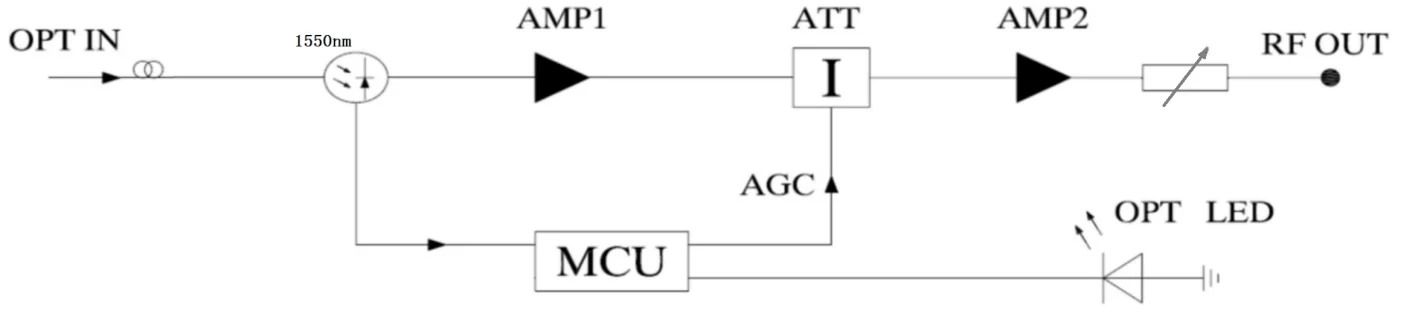

Block Diagram
2. Features(FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E)
1 GHz operating bandwidth
RF output level adjustable, 20dB
Optical AGC range:0 to -15dB
Wide optical power input range -18~+2dBm
Low power consumption<1.0W
1550nm /1100-1600nm Wavelength Optional
3. Specification(FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E)
No | Description | value | Unit | Conditions / Notes |
1 | Wavelength | 1100-1600 | nm | normally |
| 1550 | nm |
| |
2 | Optical Power Input Range | -18~0 | dBm | Recommend -15 to 0 |
3 | Optical Input Return Loss | ≥45 | dB |
|
4 | Bandwidth | 47~1003 | MHz |
|
5 | Flatness | ±1.0 | dB | 47~1000MHz,@ 25 ℃ |
6 | Slope | 0~1.0 | dB | 47~1000MHz,@ 25 ℃ |
7 | Temperature Stability | ±1.0 | dB | In the operating temperature range (-25 ~ +65 ℃) |
8 | Output Level | 78±2 | dBuV | -15 to 0dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, @ 25 ℃ |
9 | MGC (RF adjustment) | 20 | dB | 0~20dB adjustable, 55~75dBuV |
10 | Impedance | 75 | Ohm |
|
11 | Return Loss (47~1000MHz) | ≥14 | dB | @25 ℃ |
12 | MER | ≥35 | dB | -10~0dBm input optical power |
13 | Power | < 0.8 | W |
|
14 | Optical Connector Type | SC/APC |
| FC/ST Optional |
15 | RF Output Connector | F connector |
| Metric or imperial,2 out optional |
4. Packing List(FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E)
Ø One Optical Receiver
Ø One Power Supply Adapter
Ø One User Manual
Packaging & Shipping

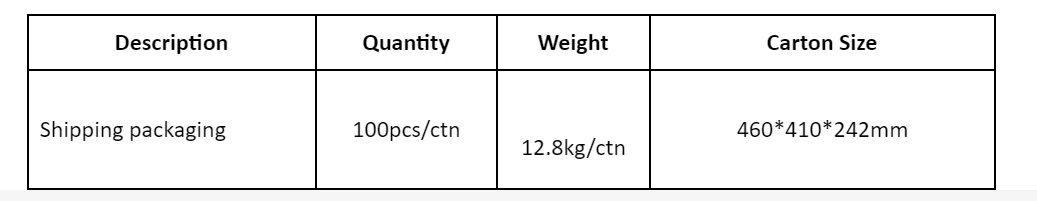

5. Shipping packaging(FTTH AGC CATV Mini Optical Receiver FTTH Node PTR3282E)
