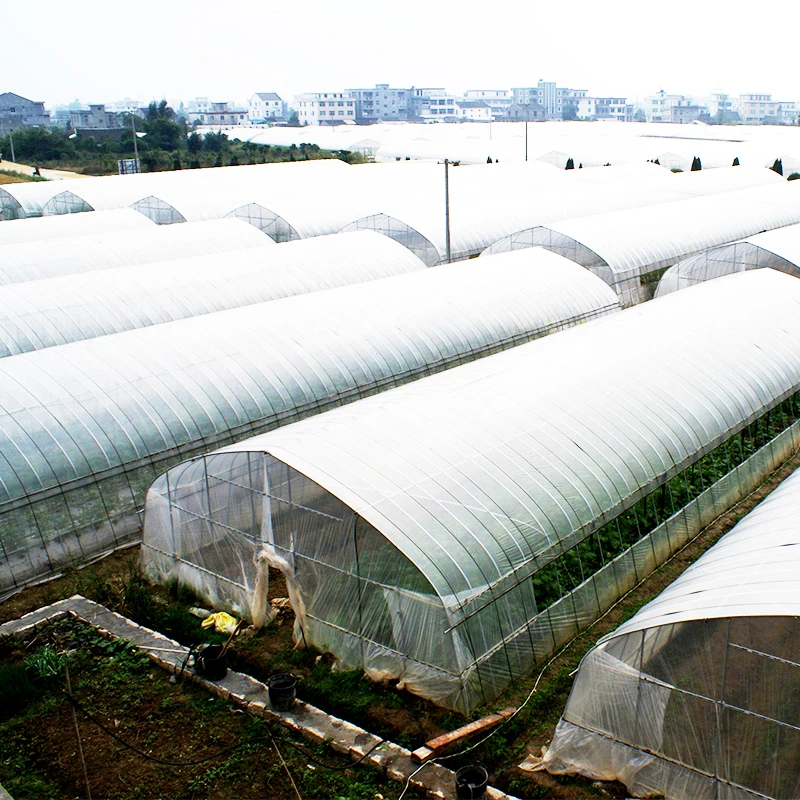

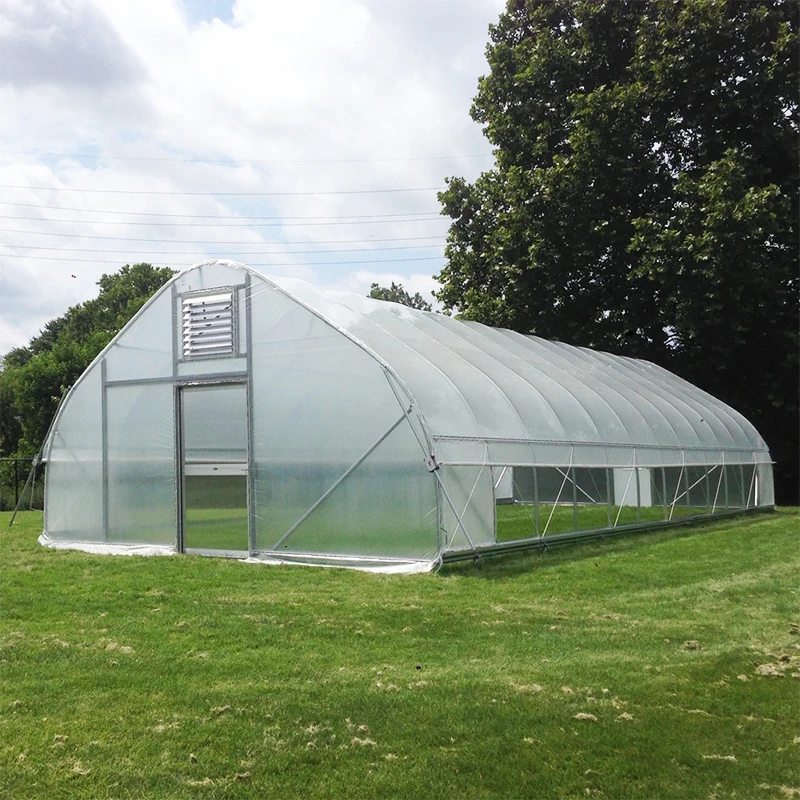

Single Layer PO Greenhouse Film Gothic Tunnel Greenhouse
- Category: Single-Span Greenhouses >>>
- Supplier: Yimao Technology Innovation (Weifang) Co. Ltd. [Shandong China]Yimao
Share on (1600222940802):
Product Overview
Description

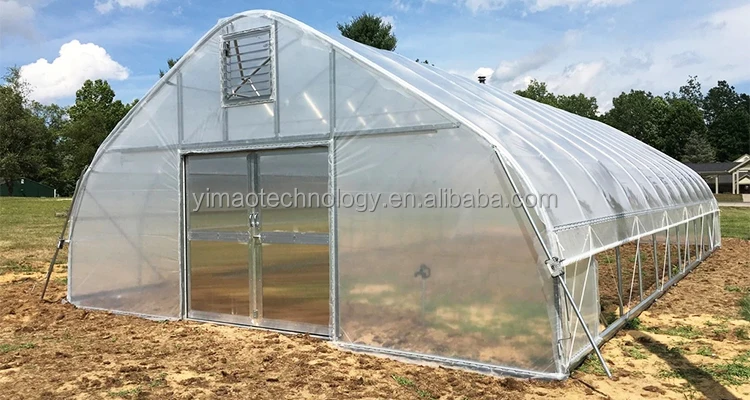

Single-Layer PO Greenhouse Film Tunnel Greenhouse
Durable Covering: Customizable Single-Layer and Multi-Layer PE Film, Polyethylene Fabric Cover Durable, Can Eliminate Tear, tear and Wear. Heat Sealing to Prevent Water Ingress, Our Lid Easily Allows Visible Light, while Helping to Block Harmful UVA and UVB Rays.
Choose Your Own Size: We Can Easily Customize Your Own Tunnel Greenhouse. Select the Span 20 Ft/25 Feet Or Large to 35 Feet, length 100-200 Ft Greenhouse Framework! Select Frame Width and Height, We Will Add the Most Suitable for You Equipment of Framework-Side Panel. Select and Meet Your Requirement and Suitable for Your Size. The Unit Is round. Gothic Shape Are Also Available.
Stronger Greenhouse Structure: and Many of Our Competitors Different, we Only Use High Quality Galvanized Carbon Steel to Achieve the Ultimate Strength and Durability, with Maximum Corrosion and Anti-Rust Performance.
Long Service Life: Our High Channel Greenhouse with 10-15 Years of Service Life.
Safety Anchorage: All High Greenhouse Units Are Supplied with Base Tube. Once Tightly Anchored Set, These Tubes Anchor Will Prevent Greenhouse Framework at the Junction Point Shake Or Swing.
Stable Structure: High Channel Greenhouse for the Frame of a Rock-Solid-Strength and Stability. Reliable Connector, Can Prevent Shelving and Shaking, Therefore Framework Intact.
Simplified Assembly: we Galvanized Steel Pipe in Pre-Drilled Make Your High Channel Greenhouse Framework of Assembly Easier, more Efficient. Nut and Bolt Fasteners Not Only Simplifies the Assembly, and Increase the Stability of the Structure, about Individual Joints Connection.
Step-by-Step Instructions: All Our Buildings Come with Simple Step-by-Step Instructions, for Assembly.
Product Specification
Tunnel and bi-tunnel greenhouses | ||
Span (Width): | 6m/8m/9.3m/9.6m（30ft） (According to Requirements Customizable) | |
Length: | 20m/30m/50m 105ft/120ft/144ft (According to Requirements Customizable) | |
Top Height: | 3.6m/3.75m (According to Requirements Customizable) | |
Ridge High: | 1.8m/1.9m/1.96m (According to Requirements Customizable) | |
Wind Load: | ≤0.35KN/m² | ||||||
Snow Load: | ≤0.25KN/m² | ||||||
Dead Load: | 15KG/m² | ||||||
Control System: | Automatic Control System for Light Deprivation; Cooling Fan&Pad. Top Ventilation; Temperature/Humidity/Light Control System; 220v, 230v, 380v, ph1, ph3, 50Hz, 60Hz Available. | ||||||
Optional System: | Side/Top Ventilation; Lighting System;Cooling/Heating/Dehumidifier System;Drip/Micro Irrigation System; Ebb&Flow Hydroponic Rolling Bench. | ||||||
Product Details

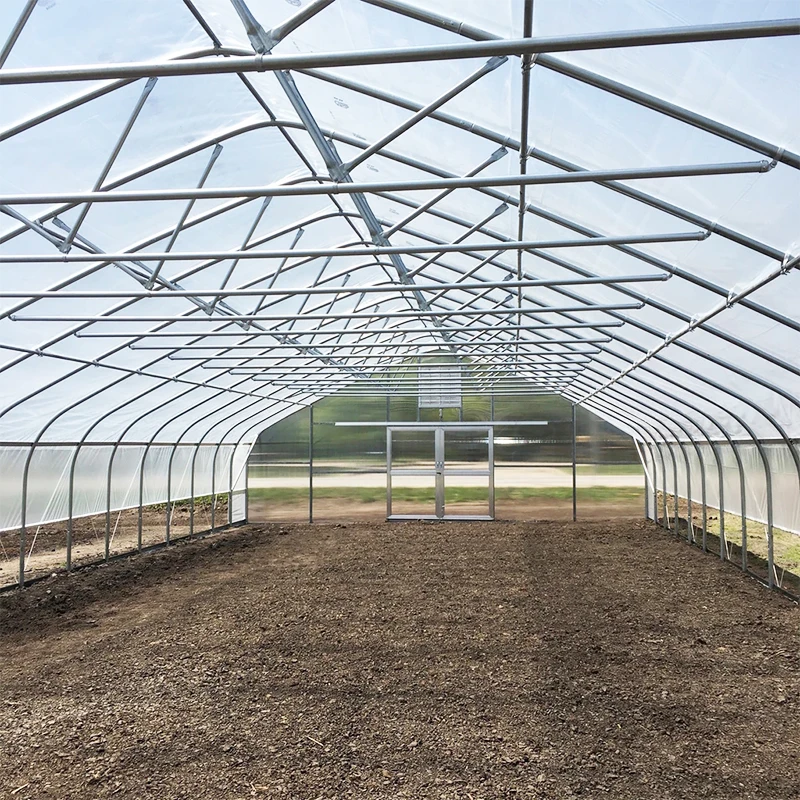

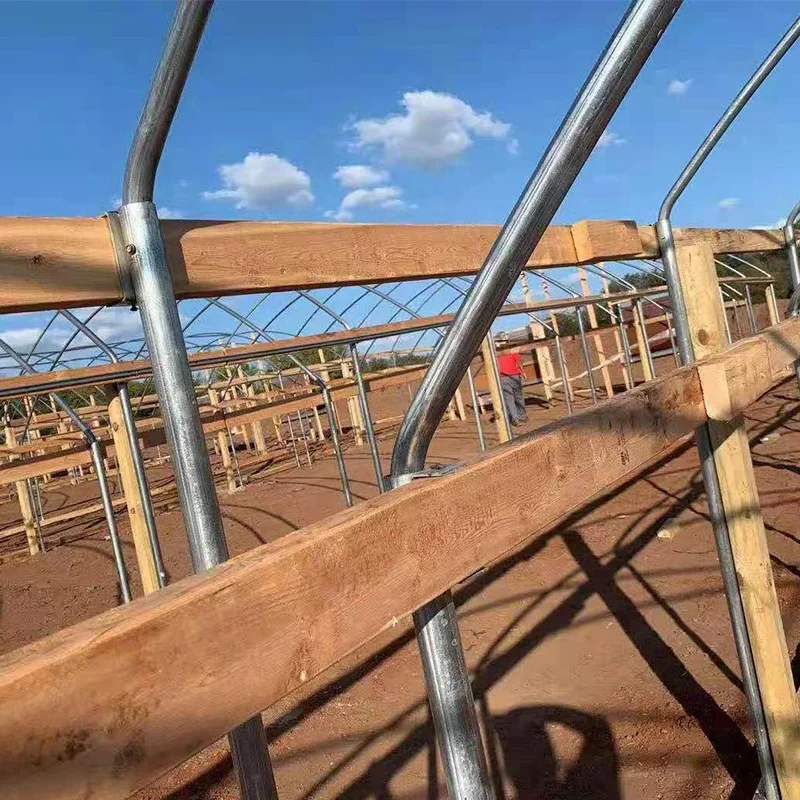

Main frame material: hot-dip galvanized steel
By default, it's High Grade Galvanizing Steel Tube (Standard Q195-235).with zinc coated 275g/m²;
Corrosion Resistance and Long Service Life. The Service Life Is More than 10-15 Years.(Thickness Size Can Be Customized According to Your Requirements. structure can be customized）
Richel Clips
Our fastening clips, tried and proven in every climate for over 15 years, are made using the best materials available on the
market. They are both strong and easy to install.
market. They are both strong and easy to install.
Covering Material
Greenhouse is covered with PE film on top/sides,and iron sheets on both ends.
Covering Film Thickness: 150/200 micron
Global Light Transmission: ≥90%
Diffusion: ≥20%
UV Transmission: 300-390%
Tear Resistance: 15gf/mic
Dart Drop: 530/1000G
Life Span: 5-6 years for 150 micron, 6-8 years for 200 micron
Covering Film Thickness: 150/200 micron
Global Light Transmission: ≥90%
Diffusion: ≥20%
UV Transmission: 300-390%
Tear Resistance: 15gf/mic
Dart Drop: 530/1000G
Life Span: 5-6 years for 150 micron, 6-8 years for 200 micron
Electric ventilation on both sides
Both sides adopt manual/electric control film to roll up and turn on the ventilation. The vent has an anti-insect net, and the top ventilation can be customized.
Exhaust Fan
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.Size: Exhaust Hammer Fans in
1380*1380*400 mm with wind volume 44000 m3/h.
1380*1380*400 mm with wind volume 44000 m3/h.
Cooling Pad
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.Size: Aluminum frame, height
is 1.5 m with thickness 150 mm.
is 1.5 m with thickness 150 mm.
Irrigation system
Intelligent control system
Illumination fill light system

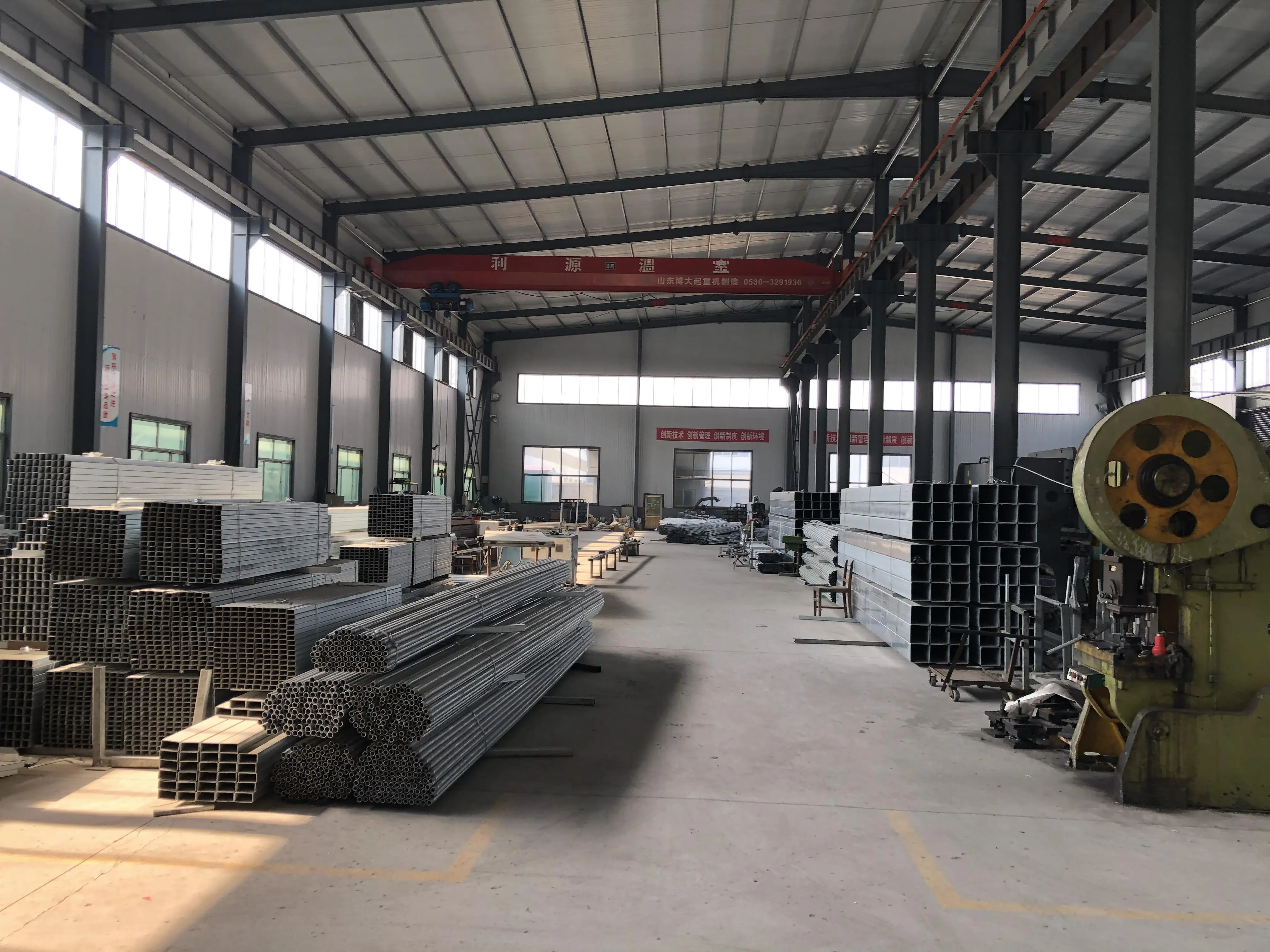

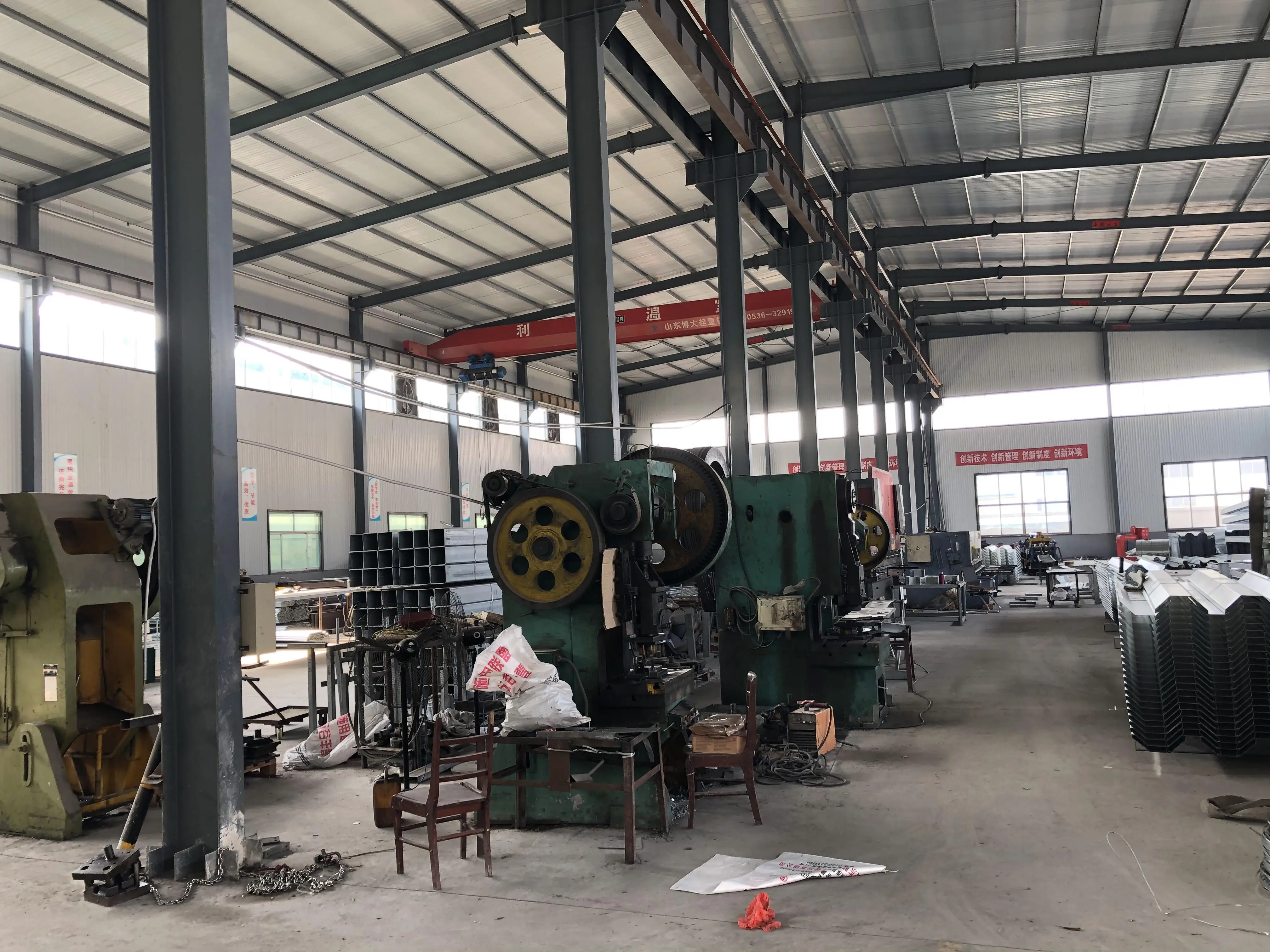

Production Scene

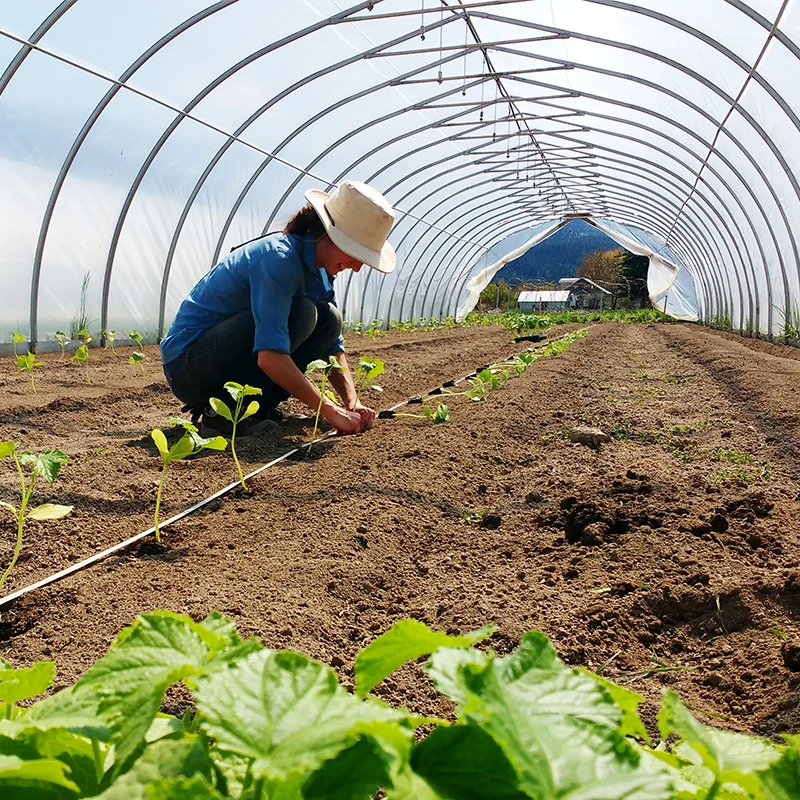

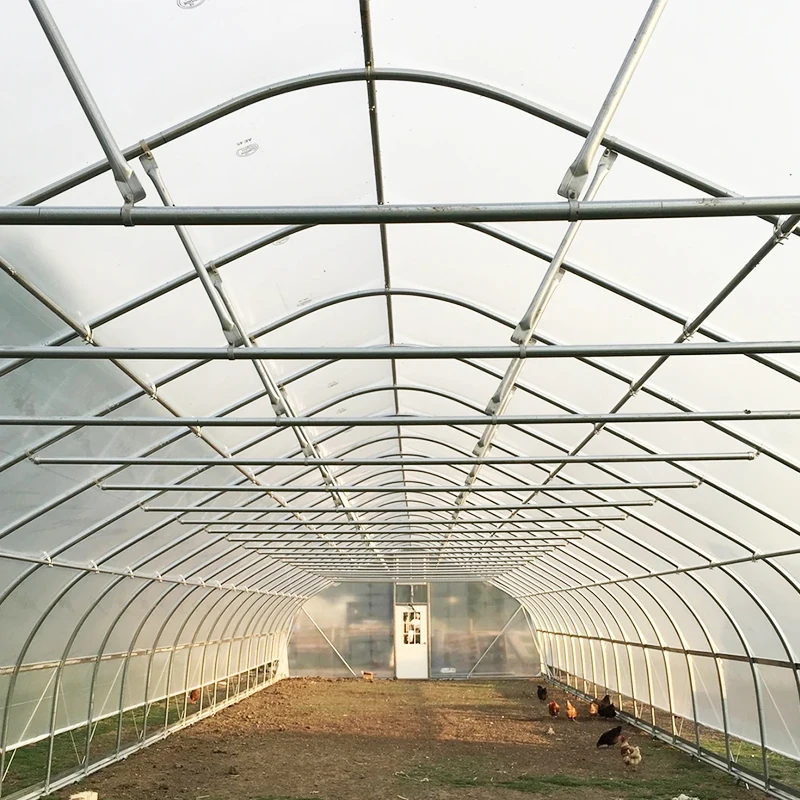

Application Scenarios
Related Hot Sales Product
Packing And Shipping
Our Advantages
YiMao Technology Innovation(WeiFang) Co. LTD Is a Professional R&D Manufacturer and Service Provider of Various Greenhouse Devices and Equipments. After Introduce Advanced Domestic and Overseas Technology, with Many Years Experience on Greenhouse Construction, We Have Developed High Quality Greenhouse Suitable for Different Countries(including Smart Greenhouse with Large Span and Supporting Multiple Materials like Glass, Polycarbonate Po Film), Greenhouse Ancillary Equipment, IoT Application System, Smart Agriculture System, Water and Fertilizer Integrated Equipment, Soilless Cultivation Equipment Piping System and All Other Technology and Equipments That Are Necesary to Build a Whole Agriculture Greenhouse, Sorticultural Greenhouse and Hydroponic System. We Provide Greenhouse Planning Design Service and All Products Can Be Customized Per Your Specific Requirements. We Have a Strong Technology Support Team and Are Dedicated to Provide You with Quality Service.
Looking Forward to Hearing from You!
