Low intensity L 810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light
Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light

Low intensity L 810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light

Share on (1600222960174):


Price:$100.00 - $110.00

Quantity:


Product Overview

Description



Contact




Mrs. Monica X.| Business Development

Hunan Lingte Technology Co., Ltd.
Tel: +86-731-85925707
Fax: +86-731-85925701
Phone/Skype/WhatsApp: +86-19918800083
Email: monica@linterk.com
Website: //www.linterk.com
Address: Building A4, Tongxin International Industrial Park, No.169,Huizhi Middle Road, High-tech District, Changsha, China


Product Information

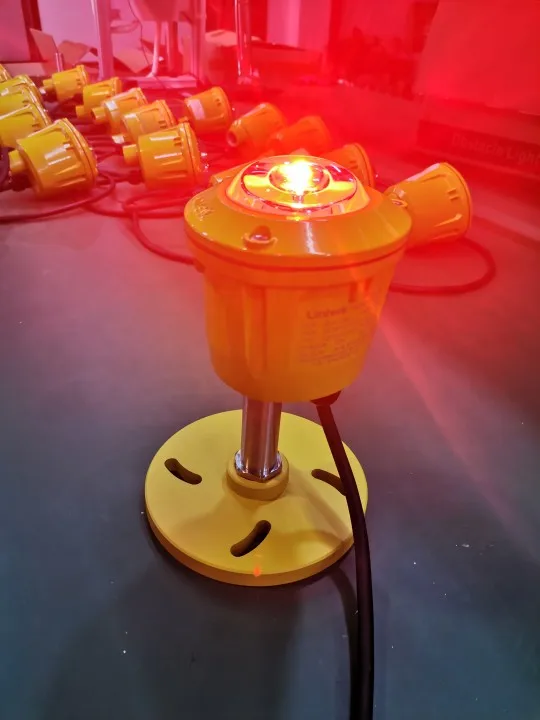

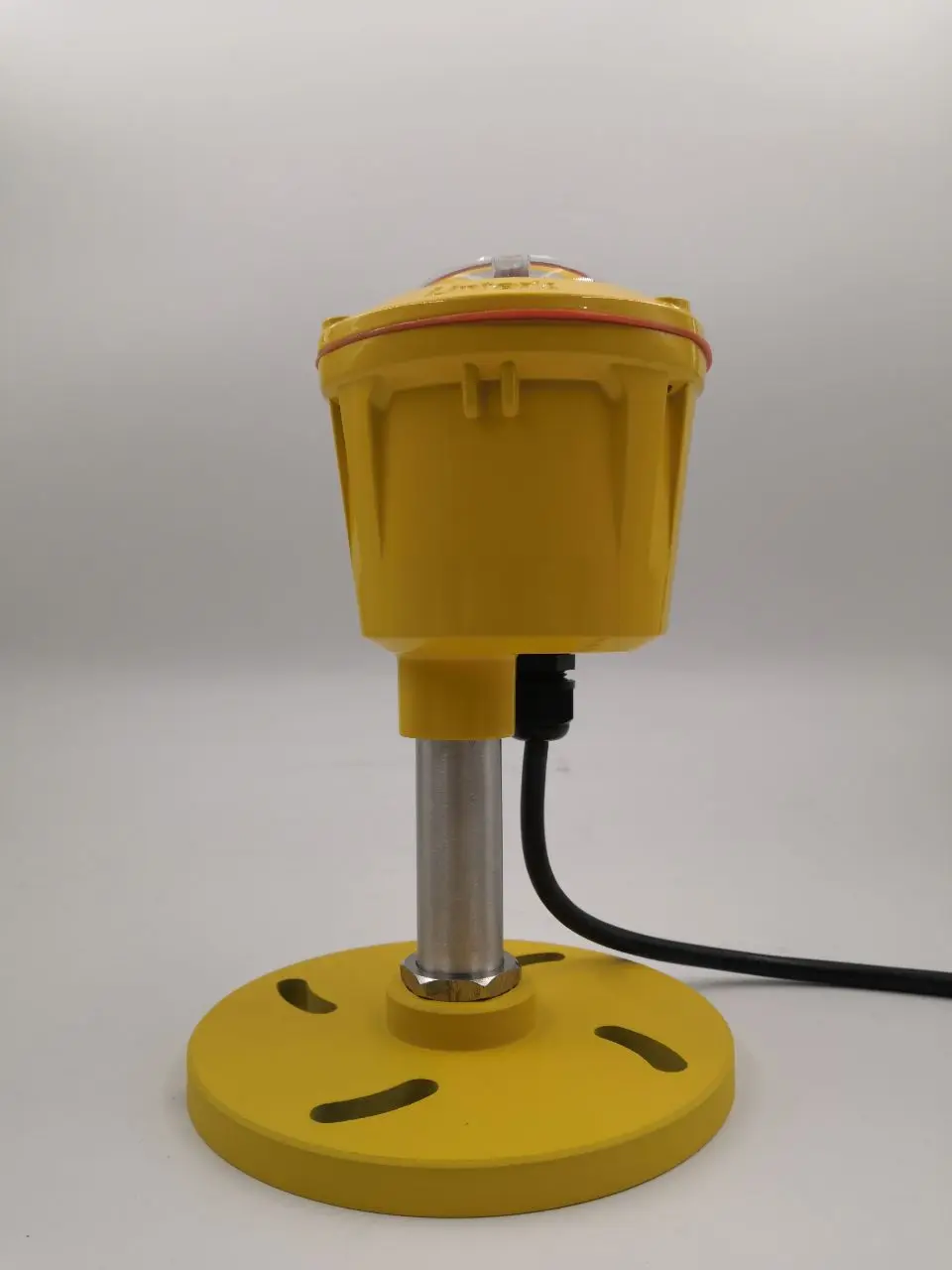

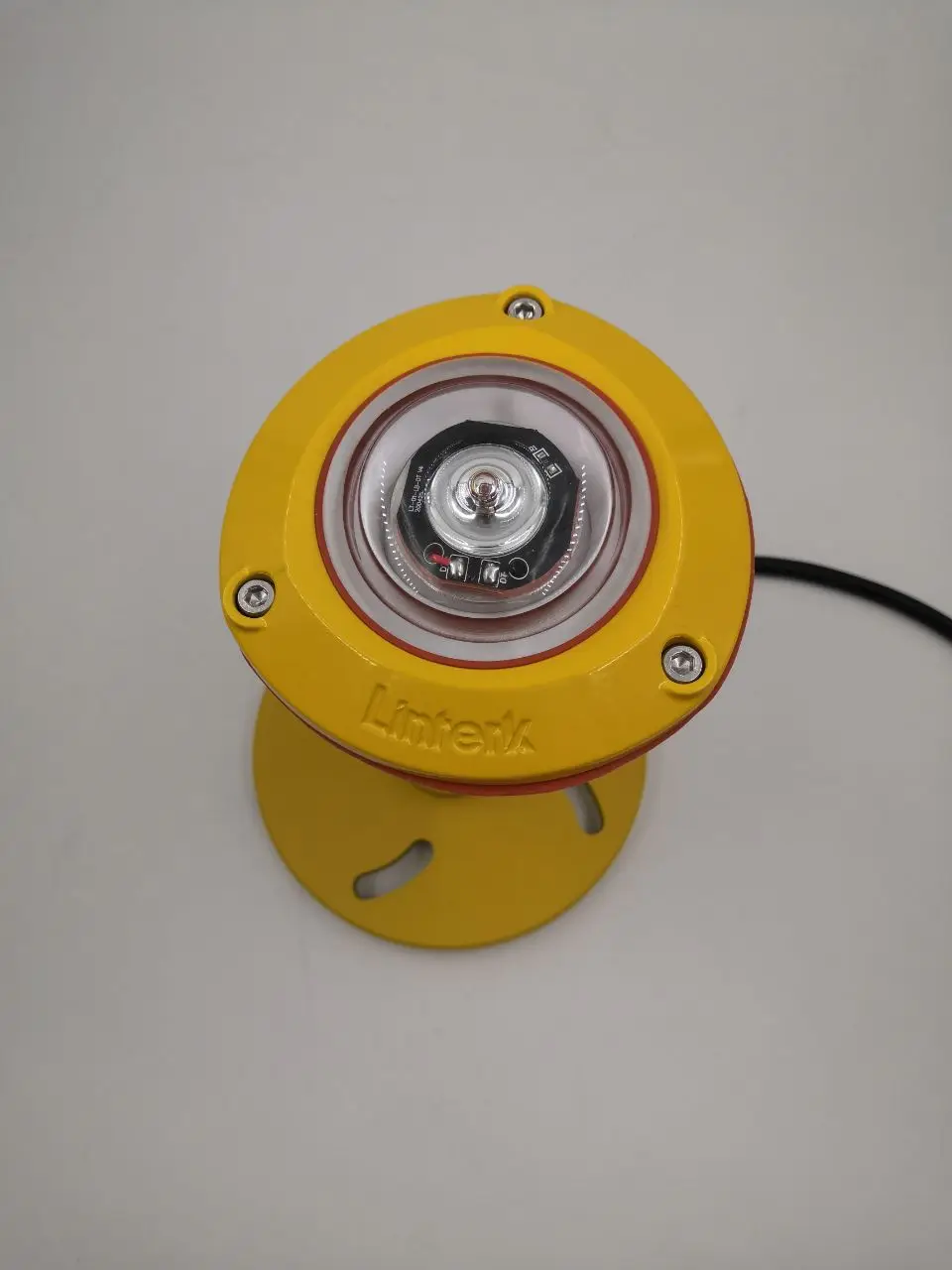

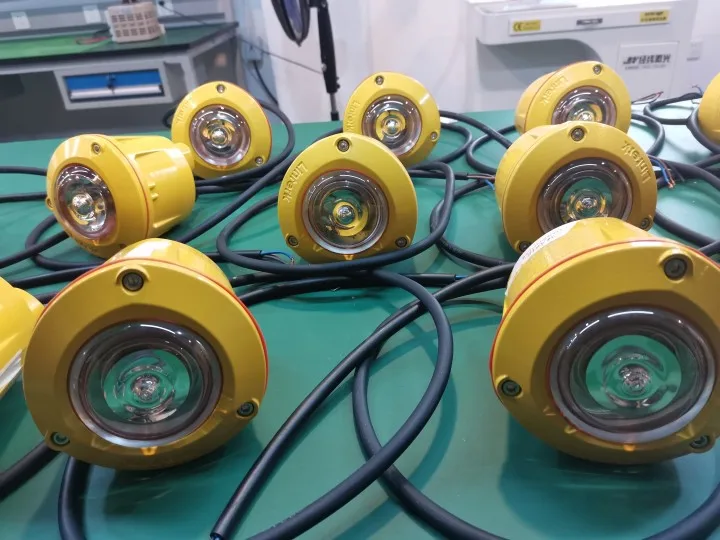

Low-intensity L-810 Single Aviation Obstruction Light 12VDC Red Obstruction Light Telecom Towers LED L810 Obstruction Light

Low Intensity Obstruction Light (LIOL), multi-LED type, is compliant to ICAO (Low Intensity - Type A or B), FAA (Type L-810), Intertek and CAAC certified.
With a low-weight and compact body, high quality and ultra-bright LEDs and innovative optical reflector for an optimum beam spread, Linterk Obstruction Light is your best choice for an efficient, long life and reliable Aircraft Warning Obstacle Light.

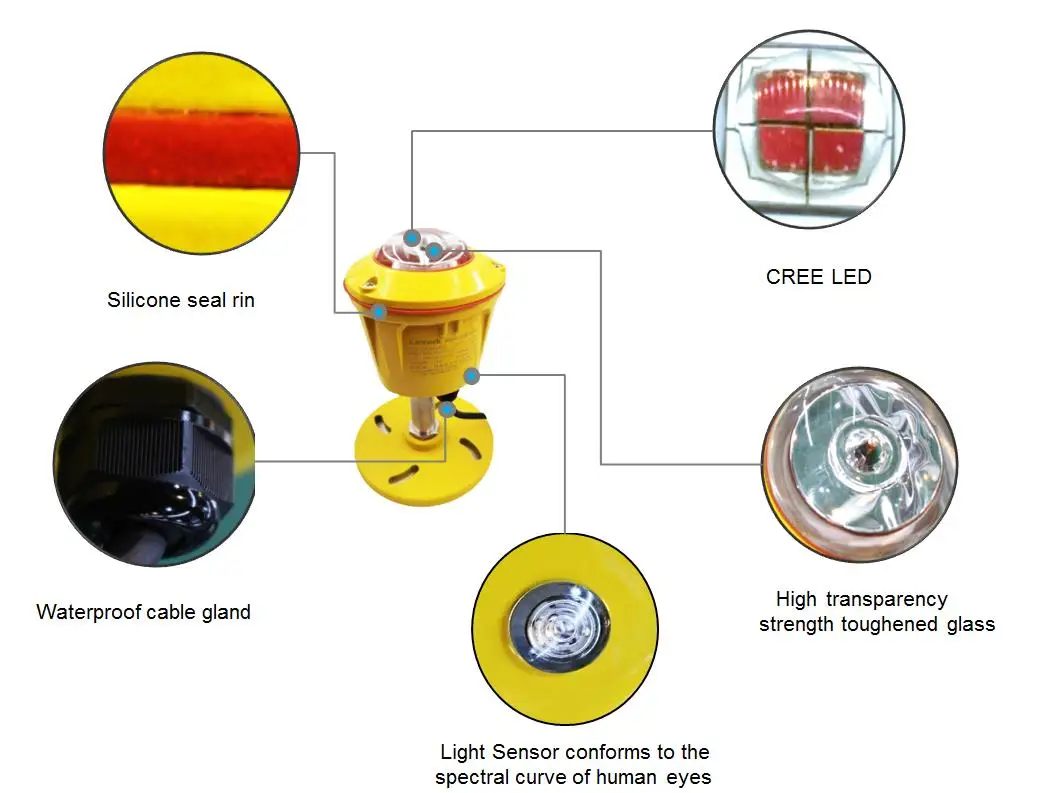

Low Intensity Obstruction Light Features:
* Based on LED technology
* RED light - Steady Burning
* RED light - Flashing
* Intensity available: >10 cd (LIOL-A); >32 cd (LIOL-B and LIOL-E)
* Long lifetime >10 years life expectancy
* Low consumption
* Lightweight and compact
* Degree of Protection: IP67
* No RF-radiations
* Easy to install
* Wind resistance tested at 240km/h (150mph)
* CAAC (Civil Aviation Administration of China) certified
* Intertek certified
* ICAO Compliant

Low Intensity Obstruction Light Options:
* Twin version: two galvanically separated circuits in the same fixture(1 duty & 1 stand-by)
* Stainless Steel beacon support bracket
* Infrared version: IR wavelength 850nM
* Solar Powered






Item
Description
Product Name
L810 Obstruction Light
Model Name
LT-01-LA01AL
Work voltage
110-240VAC, 12-48VDC
Power consumption
≤ 2 W
Synchronization mode
GPS
Light Source
LED
Emitting color
Red
Intensity
10cd/32.5cd
Vertical output degree
≥ 10°
Horizontal output degree
360°
Flash rate
Steady-Burning
LED lifespan
≥100,000 hours
Photosensitivity
0~50cd/ ㎡（adjustable)
Ambient temperature
-40℃ ~ +55℃
Ambient humidity
0% ~ 95% (no condensing）
IP rate
IP67
Wind level
240Km/h
Weight
1.1Kg

Materials
Body: aluminum alloy
Lens: optical glass
Reflector: ABS vacuum coating
Anti surge capability
IEC61000-4-5 3kA
IEC61000-4-5 6kV

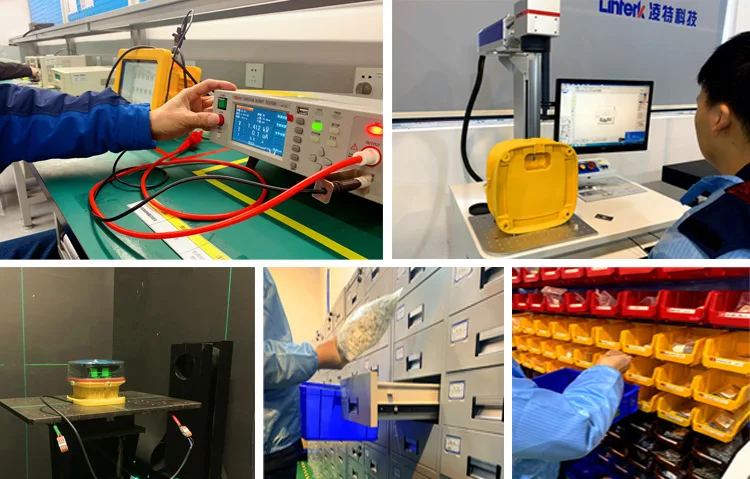

Company Profile


About Linterk
Hunan Lingte Technology Co., Ltd. is a professional manufacturer of ICAO standard Aviation Obstruction Lights. We assist our customers with exemplary guidance in maintaining regulatory compliance and offer robust, industry-leading Obstruction Lights with unrivaled support and service to the Tall building, Power Towns, elecommunications, Broadcast, Utility and Renewable Wind Energy industries all of the world.


Certification




FAQ



Can I have a sample order for obstruction light?
Yes, we welcome sample order to test and check quality.

What about the lead time?
Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than


Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available


How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

How to proceed an order for OB light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.


How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
