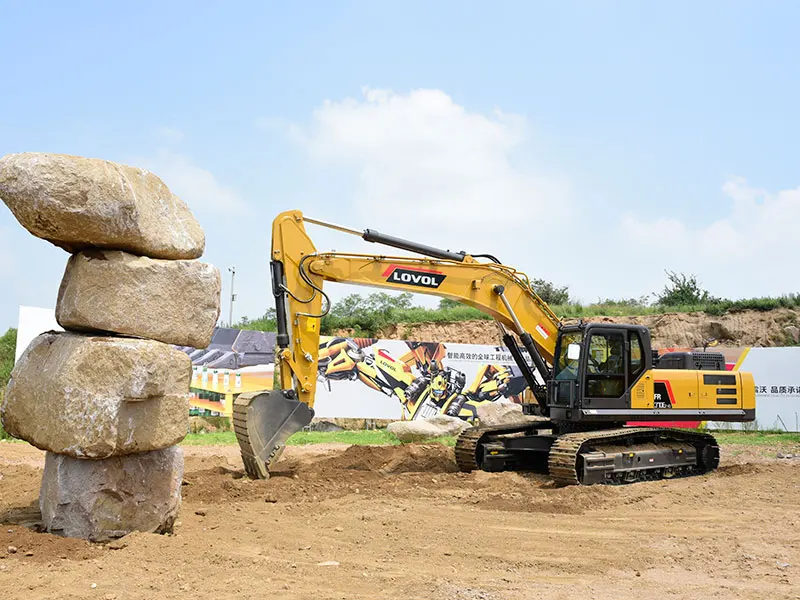

Low Fuel Consumption 26Ton 1.2cbm Hydraulic Crawler Excavator FR260D With Automatic Idle Function

Share on:

Price:$91,500.00 - $95,500.00
Price in USD:Details


Product Overview


Low Fuel Consumption 26Ton 1.2cbm Hydraulic Crawler Excavator FR260D

With Automatic Idle Function



Main Features:


Low Fuel-Consumption Engine
Equipped with original turbo-charged engine which adopts mechanical high-pressure fuel pump and other technologies features strong power, low noise and low fuel consumption. Automatic idle function can reduce fuel consumption and noise dramatically.

Optimal Control System
Adopt original KC-MB-10 controller which adds automatic diagnostic function, the optimal control system makes rational match between the engine and main pump, making machines work efficiently with low fuel consumption.

Optimal Operating Mode
The crushing mode is added to help operator use hydraulic hammer, thus get outperformance with low fuel consumption. The pipelines are also optimized through new design to reduce energy waste of hydraulic system.


Upgraded Hydraulic System
The hydraulic pipelines adopt upgraded high-pressure hoses to avoid damage and oil leakage. Pilot oil filter is adopted which makes hydraulic system more reliable.

Reinforced Structures
The advanced stress analysis technology and Q345 materials make whole structures more reliable. The front and rear support of boom are made of cast steel which effectively reduces concentration of stress, key positions are also reinforced by welding strength plate, which makes arm more robust.

Reliable Electrical System
All the wiring harnesses adopt waterproof and dustproof connector, which has high security level and high reliability. Shut-down protection is added to reduce the failure possibility for electrical elements when power was cut off.


Large Spacious Cab
Equipped with spacious cab which provides operator large space to operate machine. The premium suspension seat with armrests is very comfortable and it can reduce the working fatigue dramatically. Big LCD screen is easy to read all data when working. Air conditioning can provide comfortable feeling in cab.

Ergonomic Design
The proportional joystick delivers sensitivity, accuracy and smoothness in operation. This joystick is specially designed to meet different operating conditions. Intelligent control system is standard which could control diverse attachments such as bucket, hammer, scarifier and hydraulic scissors.

Low Noise and Low Vibration
In order to reduce work fatigue and improve productivity, the noise inside of cab has been controlled to the lowest level. The cab is attached to the frame with buffer that dampens vibrations and sound levels to enhance operator comfort.


Display Screen
Add trouble code diagnostic and maintenance monitor functions which are convenient for operator to find the failure and do the routine maintenance on time.

Engine Hood and Panels
The large engine hood enlarges maintenance space for operator to check and maintain the engine. The tool box is big with big opening angle which can put grease bucket and special tools easily. One key can open all locks of machine, it is very convenient for the operator.

Filters and Maintenance Period
All the filters are fixed at ground level position, it is very convenient to do routine maintenance. The maintenance interval is also extended to save time and cost.


Product Specifications:

Rated PowerkW/rpm128.5/2100
Bucket Capacity1.2
Operating Weightkg25050
Engine Model-CC-6BG1TRP
Number of Cylinders-6
Max. Torque/SpeedN·m/rpm638/1800
Bucket Digging ForcekN160
Arm Digging ForcekN116
Max. Traction ForcekN217
Max. Walking Speedkm/h5.4
Min. Walking Speedkm/h3.7
Rotary Speedr/min12.2
Ground PressureKPa49
Max. Main Pump FlowL/min470
Main Safety Valve PressureMPa32.3/35.3
Fuel TankL385
Hydraulic TankL220
Engine OilL20
