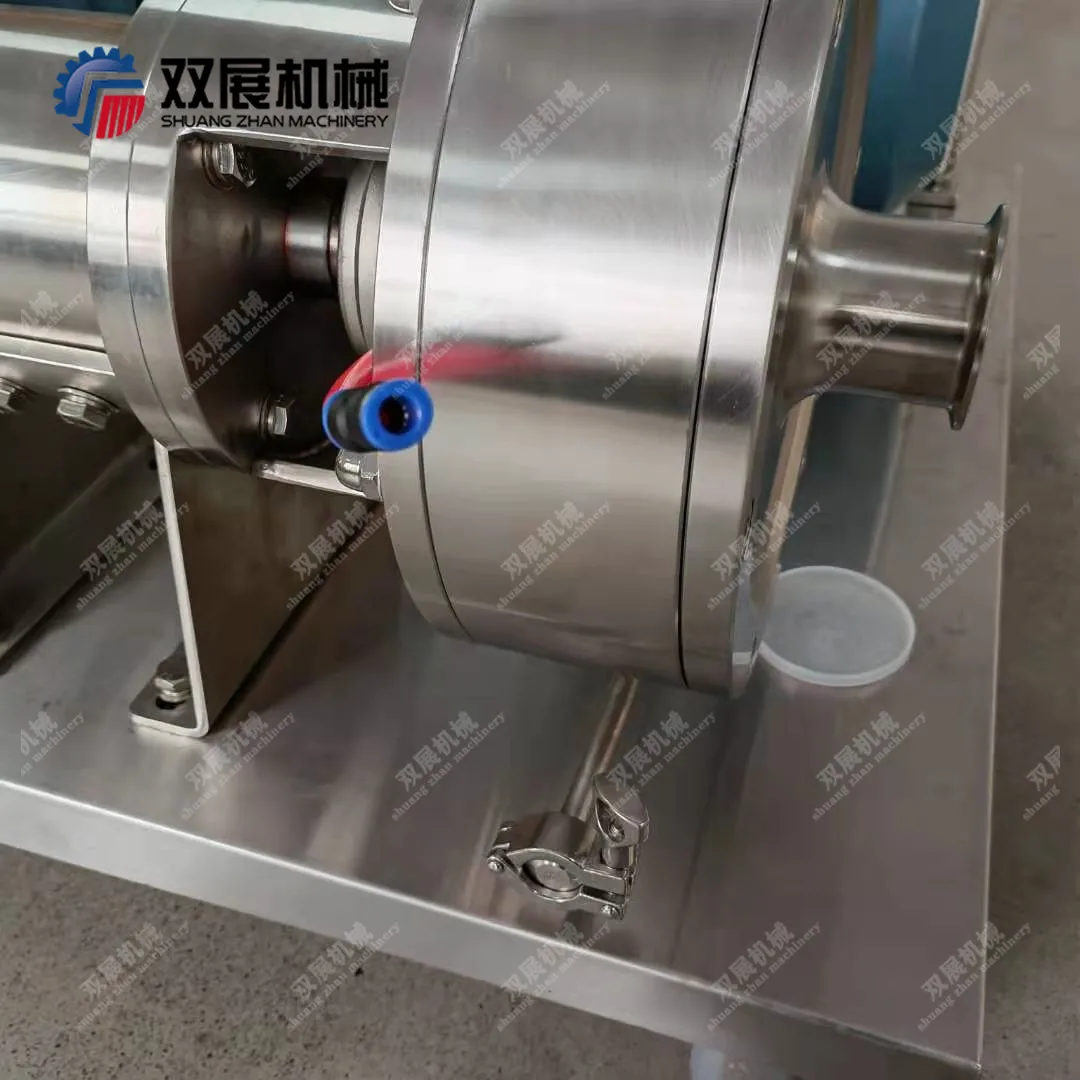

Stainless Steel Food Grade Inline Mixer Emulsifier Three Stage Homogenizing Pump with Trailer ABB motor
- Category: >>>
- Supplier: Wenzhou Shuangzhan Machinery Co. Ltd.
Share on (1600223100360):
Product Overview
Description
Product Overview

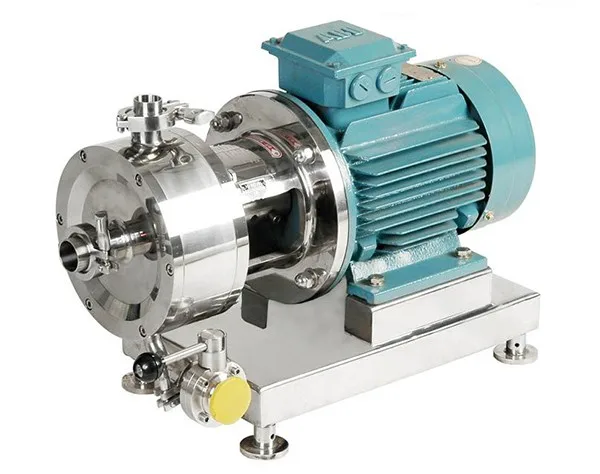

Emulsifying High Shear Pump Homogenizer
This kind of pump can greatly simplify the traditional processes and upgrade the production efficiency and product quality.
Motor from 1.5kw to 132kw.
Feature:
● Continuous large production capacity, materials 100% through the dispersing and shearing.
● Hygienic stainless steel design
● IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Easily maintenance, no need special tools and staff.
● No damage when starting the test, even if there is a brief reverse rotation
● Compatible with single and double mechanical seal, easy to change.
● Continuous large production capacity, materials 100% through the dispersing and shearing.
● Hygienic stainless steel design
● IEC B35 motors, IP55, F-class insulation, 50HZ/60HZ.
● Easily maintenance, no need special tools and staff.
● No damage when starting the test, even if there is a brief reverse rotation
● Compatible with single and double mechanical seal, easy to change.
FEATURES AT A GLANCE
1. Stainless steel 304 or 316L contact material.
2. Food grade design.
3. Tri Clamp/union/flange connection ends available.
4. ABB/SIMENS/local motor
5. Modular design, easy disassembly, replacement parts low cost.
6. Applicable temperature: -20℃ - 160℃, beyond the temperature range needs to be customized.

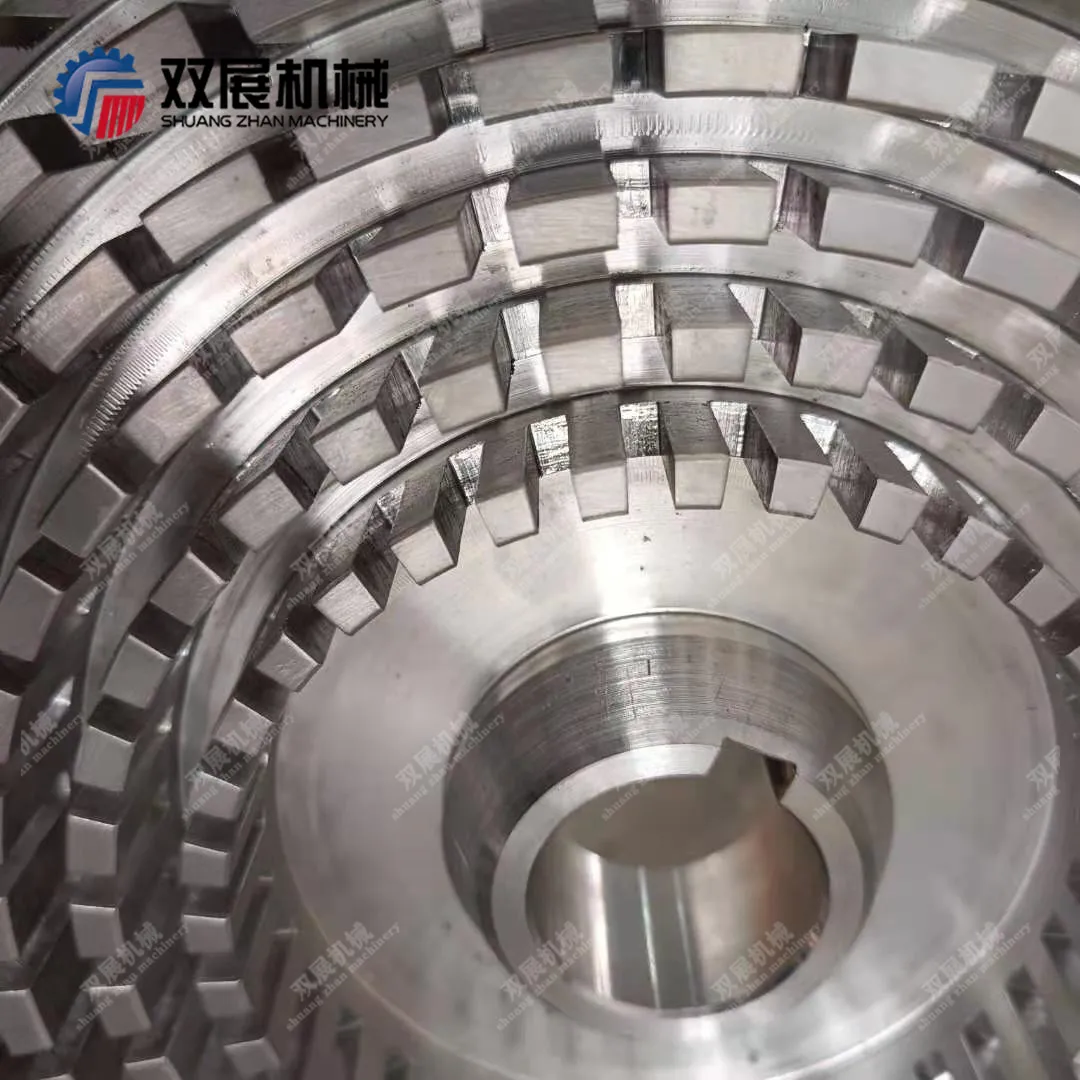

Impller detail view
Body Material: AISI 316L (1.4404)
Mechanical Seal: single mechanical seal SIC/C/EPDM, double mechanical seal (recommend),
Motor Brand: ABB motor, Simens
Temperature: -20 to 160°C

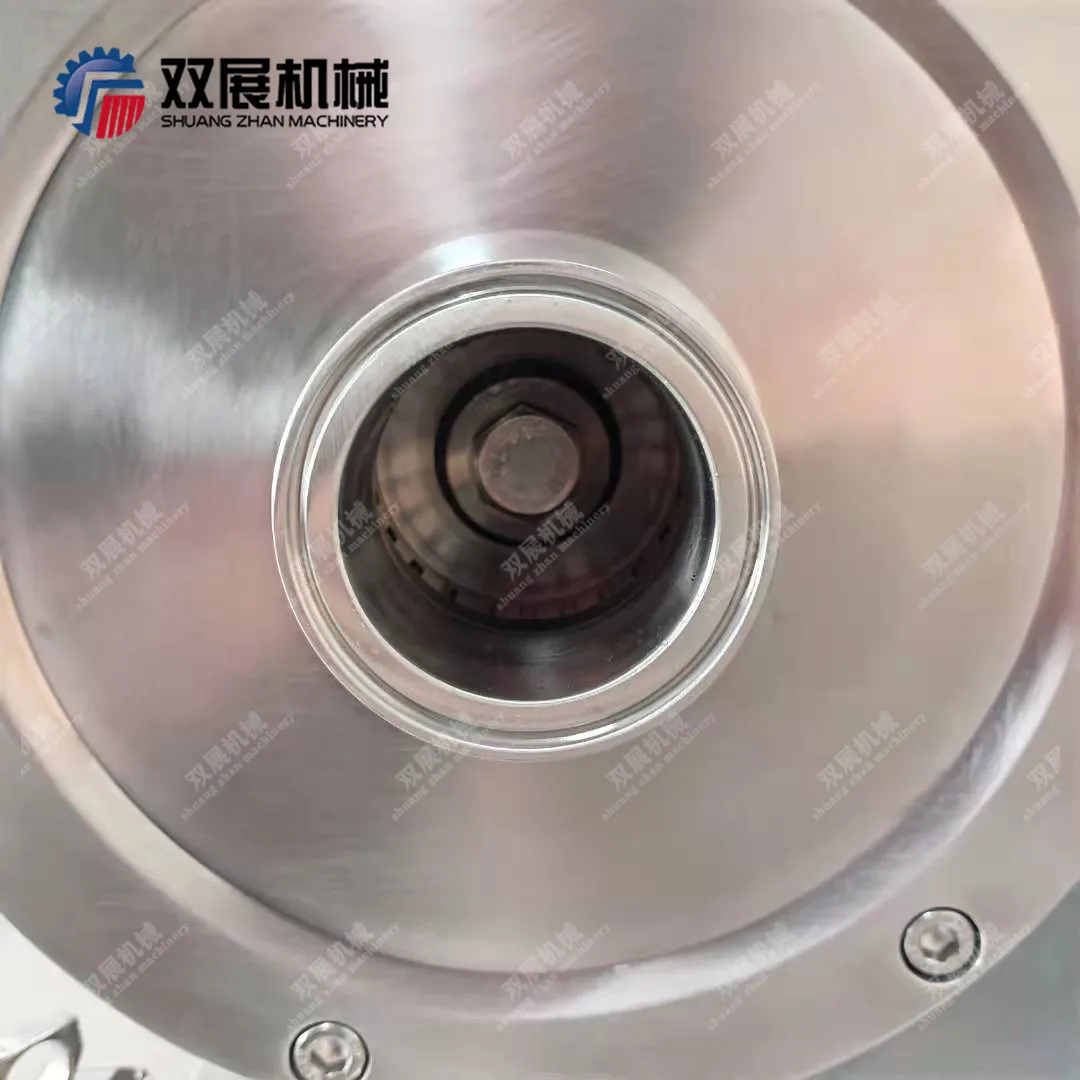

Inlet & Outlet Sizes1 1/2"-3" (DN40-DN80)
Surface treatment: Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type: Tri-Clamp End, Butt Weld End, Thread, Flange
Body Material: AISI 316L (1.4404)
Mechanical Seal: single mechanical seal SIC/C/EPDM, double mechanical seal (recommend),
Motor Brand: ABB motor, Simens
Temperature: -20 to 160°C
Inlet & Outlet Sizes1 1/2"-3" (DN40-DN80)
Surface treatment: Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type: Tri-Clamp End, Butt Weld End, Thread, Flange
FAQ
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power(kw) | 1.5/2.2/3/4/5.5/7.5/11/etc |
2 | Speed(RPM) | 2800 etc |
3 | Flow | 0-12m3/h |
please so kindly provide answer of below questions when you send inquiry.
Notice:
1. What kind of material do you want to process?
2. What's the capacity?
3. What is it used for? Mixing, dispersing, shearing or homogenizing?
Notice:
1. What kind of material do you want to process?
2. What's the capacity?
3. What is it used for? Mixing, dispersing, shearing or homogenizing?
PRODUCT CONFIGURATION

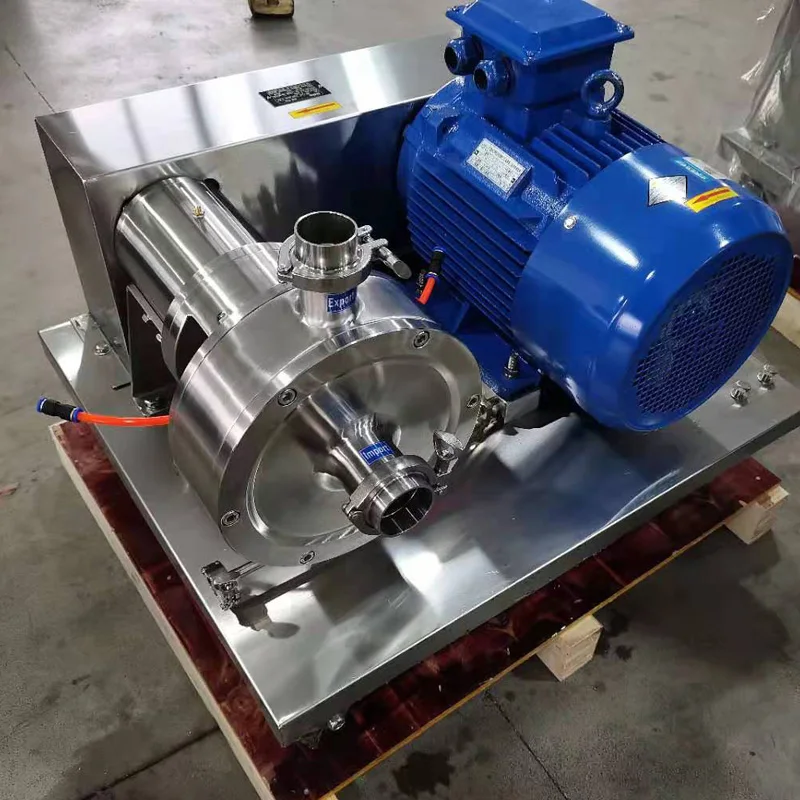

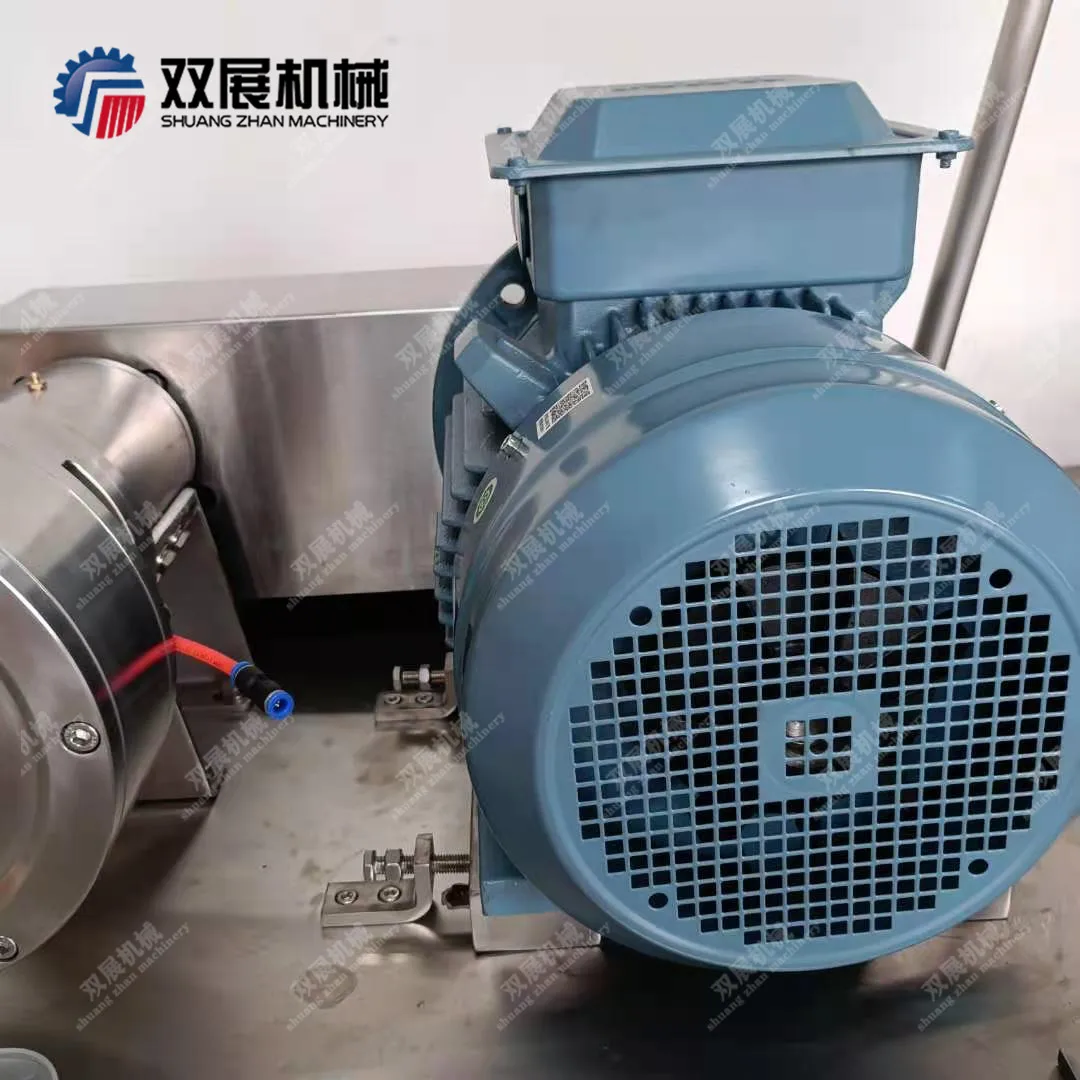

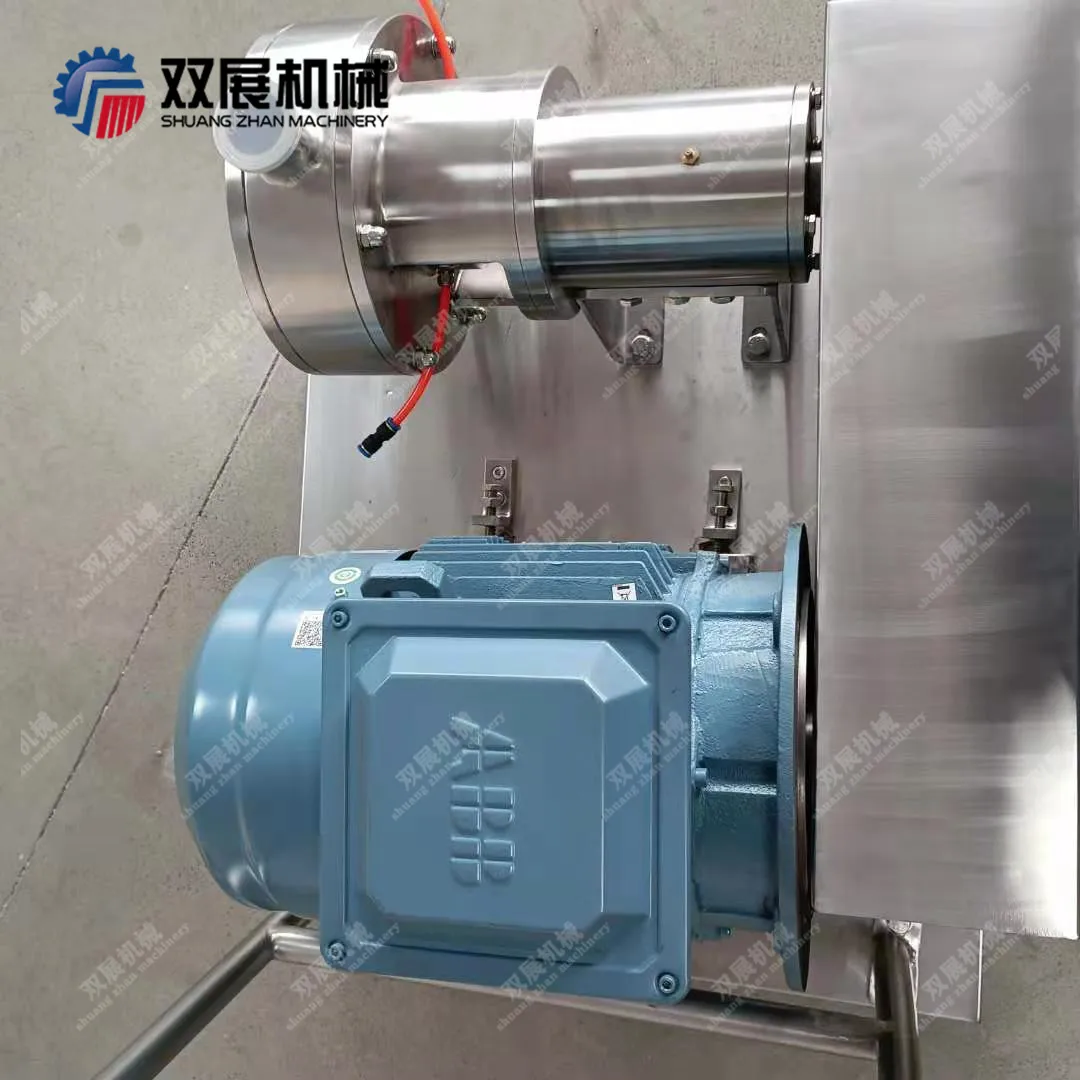

ABB motor

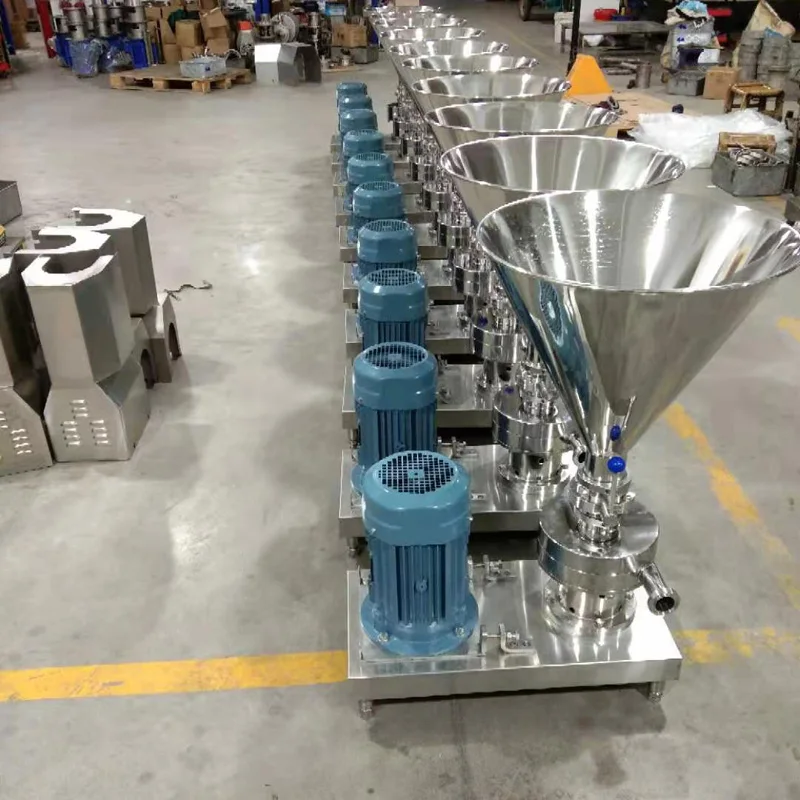

Hopper can be added

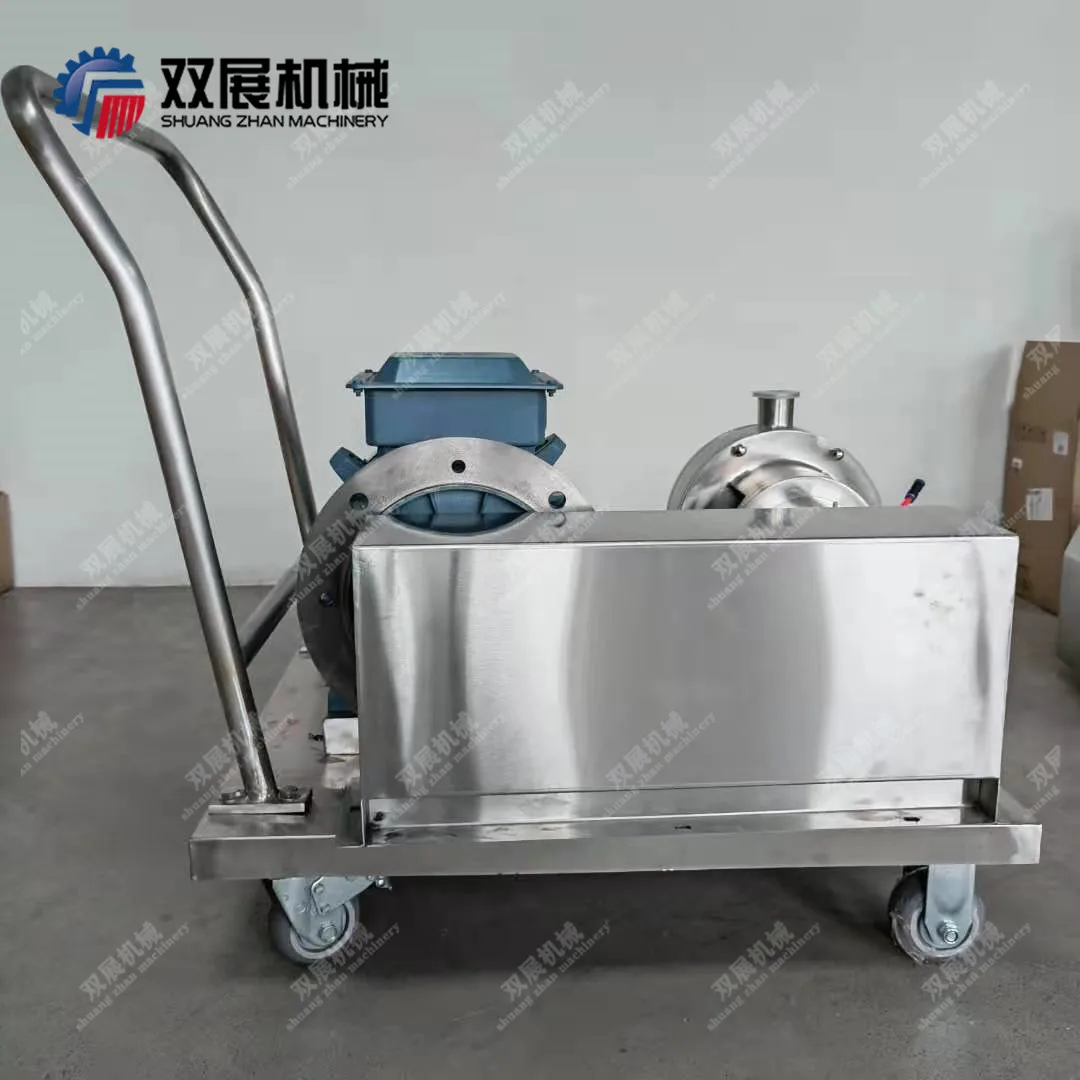

Wheels style
SALES AND SERVICE NETWORK
Successful Project
Jam Facotry in Thailand
Cosmetic in Shanghai
Butter and Dairy in Mauritius
