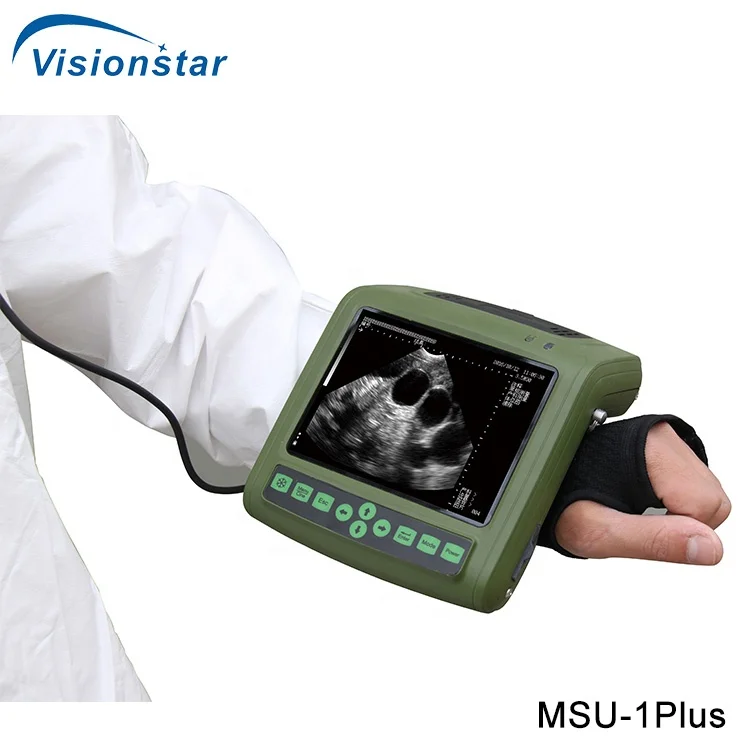

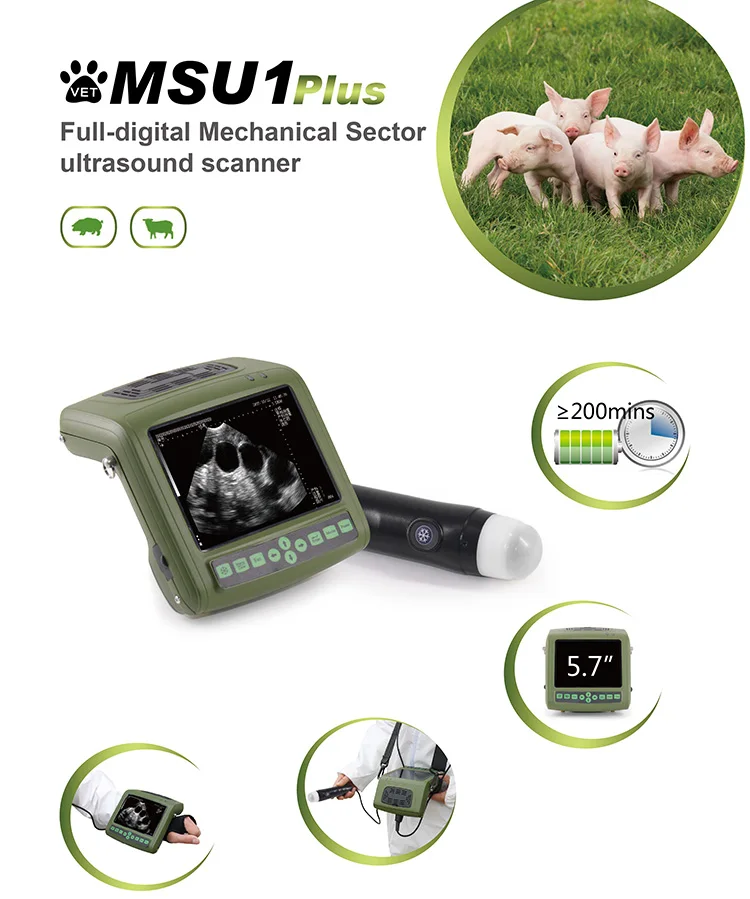

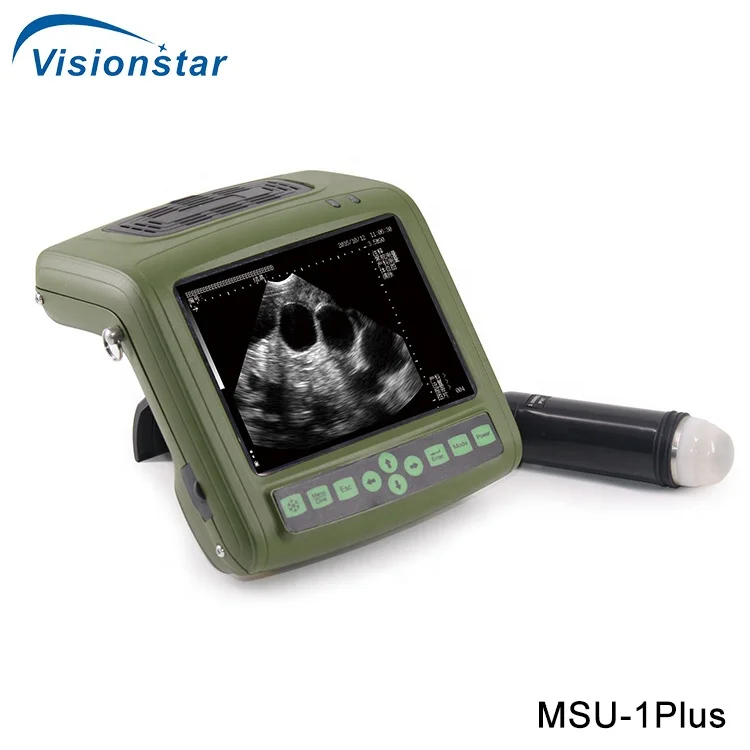

MSU 1 Cheap Handheld Animal Diagnostic Scanner Portable Veterinary Ultrasound Machine

Product Overview

Description

MSU-1 Cheap Veterinary Diagnostic Scanner Portable Ultrasound

Features:

1. Smart design and internal battery of MSU1 make the diagnosis more convenient and bring your new mobile using experience
2. MSU1 owned advanced full digital core technology to obtain clear image and achieve powerful function
3. English menu display, easy to operate
4. Swine, Ovine, Canine, Feline, Goat, Llama veterinary software internally installed which can be generated OB report
5. Two large-capacity lithium batteries, about 400 minutes work
6. 8 kinds of internal pseudo color display, can be magnified, local color work can be add
7. High speed USB socket support flash disk storage

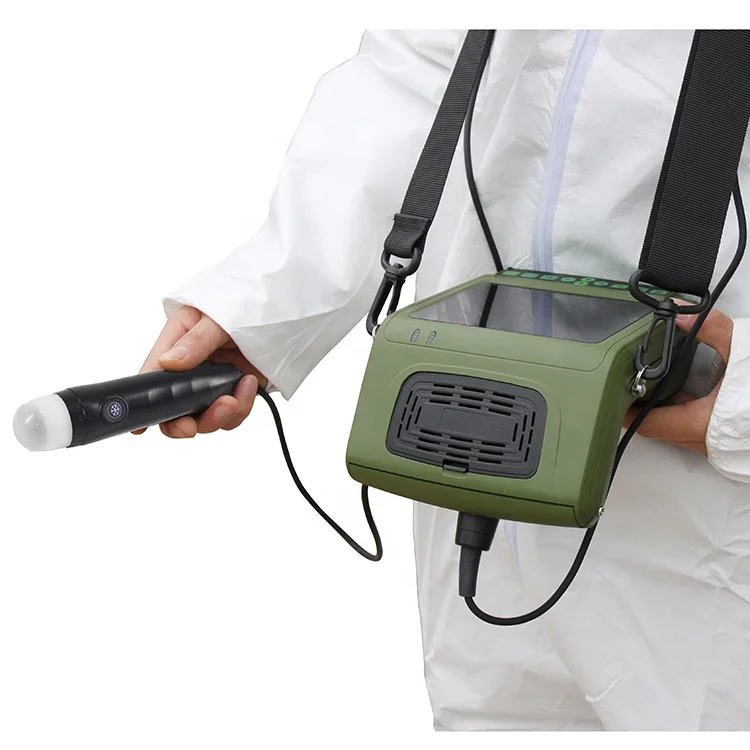

8. Backpack integration design easy save and carry
9. 5’7 inch high resolution color TFT LCD monitor forming a clear image under the sunshine for special treatment
10. With a shutter release for eAasy one-hand operation

Specifications:



Equipped 3.5MHz mechanical sector probe, 2.5/3.5MHz changeable frequency.
Scanning mode	B, 2B,4B, B/MM
Image Processing	IP (4 stages of Gamma connection, Frame correlation processing(4 stages),Left/Right, Up/Down reverse
5 kinds of magnifications.
Image storage	100 frames permanent storage, without lose of image when powered off
Interface language	English Chinese
Internal pseudo color display	8 kinds
Body mark	28 kinds including Swine.Ovine, Canine, Feline, Goat,Llama etc.
High-speed USB socket support large capacity flash disk and mouse.
Puncture guide and gravel positioning function
Common measurement	distance circumference, area(tracing method, elliptic method), volume, etc.

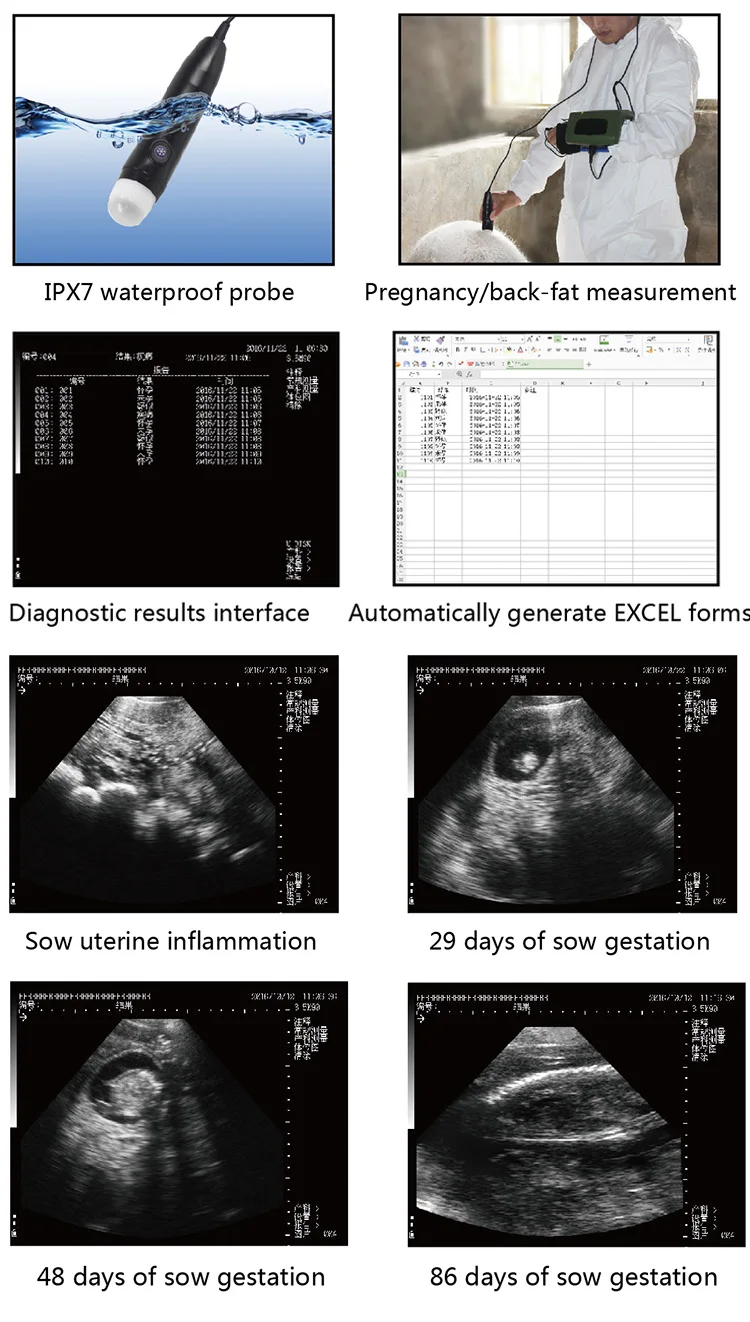

OB measurement	Bovine,Equine,Ovine,Canine,Feline,GoatLlama,gestational weeks and expected date
Cardiac measurement	depth,slope, heart rate,cycle.
Report function	OB report
