flat wire transformer coil winding machines speaker coil winding machine voice coil winding machine (1600223694261)

Share on:


Price:$500.00 - $650.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

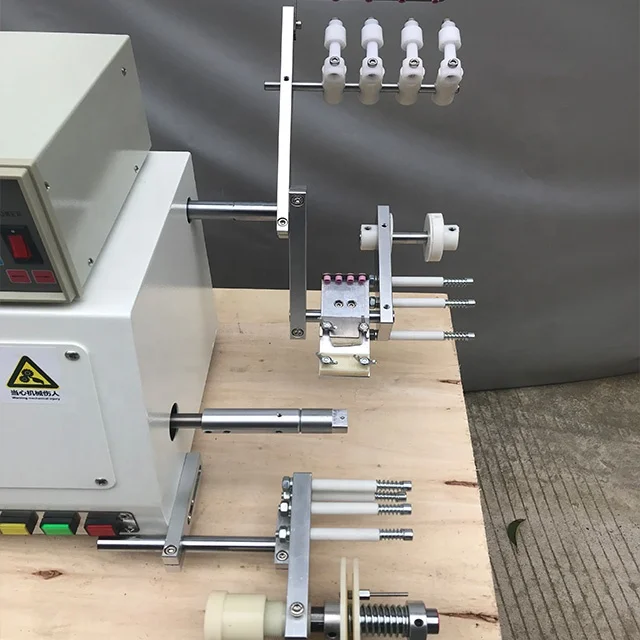

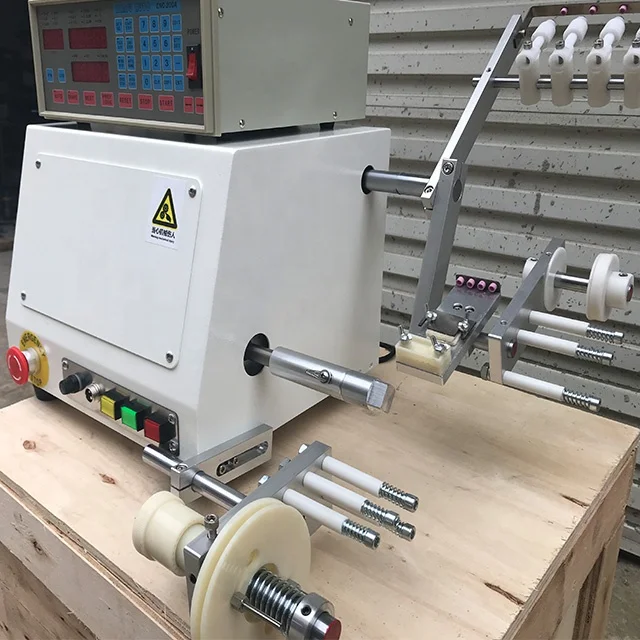

This device uses a computer CNC control system to precisely locate the spindle by CPLD decoding and speed measurement. It is equipped with a stepper motor with a constant current chopper to drive the wiring. It is fast and precise to ensure the normal operation of the equipment. It is widely used in the production of switching power transformers, inductance coils, “Θ” type transformers, and other products.





Functions and characteristics:


1. The data stores the paragraph 0~999 step.


2. It can reverse the winding at high speed.


3. The number of circles is accurate.


4. The problem information is saved automatically.


5. CNC can monitor and display production status.


6. The setting is simple and the operation is convenient.




































































ModelYSY-P800YSY-PW800i
Windable Wire Diameterφ0.1-0.9mmφ0.06-1.0mm
Max.winding width110mm140mm
Max. bobbin Diameter100mm100mm
Spindles12
Spreading motor24V Stepping Motor24V Stepping Motor
Winding motorDC 400WDC 400W
Max winding speed6000 RPM6000 RPM
Voltage220V/50HZ220V/50HZ
Machine Weightabout26KGabout36KG
Machine Dimension600*500*550mm600*500*550mm
Lead time5-7days5-7days









10-year manufacturer in winding machine, want to see more, be my fans, and contact me. Thank you.











Company Information


Suzhou YSY Technology Co., Ltd was founded in May 2017, located at Suzhou City in Jiangsu Province, near Shanghai. It is a professional manufacturer engaged in the research, development, production, sale, and service of wire drawing machines, wire winding machines, Harness automation equipment, solar panels, and so on. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!










Our Services


Dear customer,


Thank you for your time, we are sure you are quite wise to choose us.


If you want us to get a quote, or make a customized one, please send us the drawing or the sample, and tell us your detailed requirements.


It is always a pleasure to greet a friend from afar.


Looking forward to your inquire.





Packaging & Shipping


1.Port: Shanghai/Shenzhen or your choice


2.The Winding of protective film on the machine and Customized glued wooden case













FAQ


1.How to select the best-suited automatic toroid coil winding machine for your toroid coil?





Tell us your toroidal coil data as below please:  OD & ID of the coil before winding,Height of the coil before winding,Layers,Turns ,Dia of the copper wire,pictures or videos of products which are better.





2.This is the first time I use this kind of machine, is it easy to operate?





There is an English manual or guide video that shows you how to use the machine.


If you still have any questions, please contact us by e-mail/WhatsApp/WeChat online service.





3.If the machine has any problem after I receive it, how can I do?





Free parts send to you in the machine warranty period. but you need to pay the postage.





4.What's the MOQ?





1 set machine, mixed order is also welcomed.





5.How can I buy this machine from you? ( Very easy and flexible !)





A. Consult us about this product online or by e-mail.





B. Negotiate and confirm the final price, shipping, payment methods, and other terms.





C. send you the proforma invoice and confirm your order.





D. Make the payment according to the method put on the proforma invoice.





E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.





F.Send your order by air or by sea.
