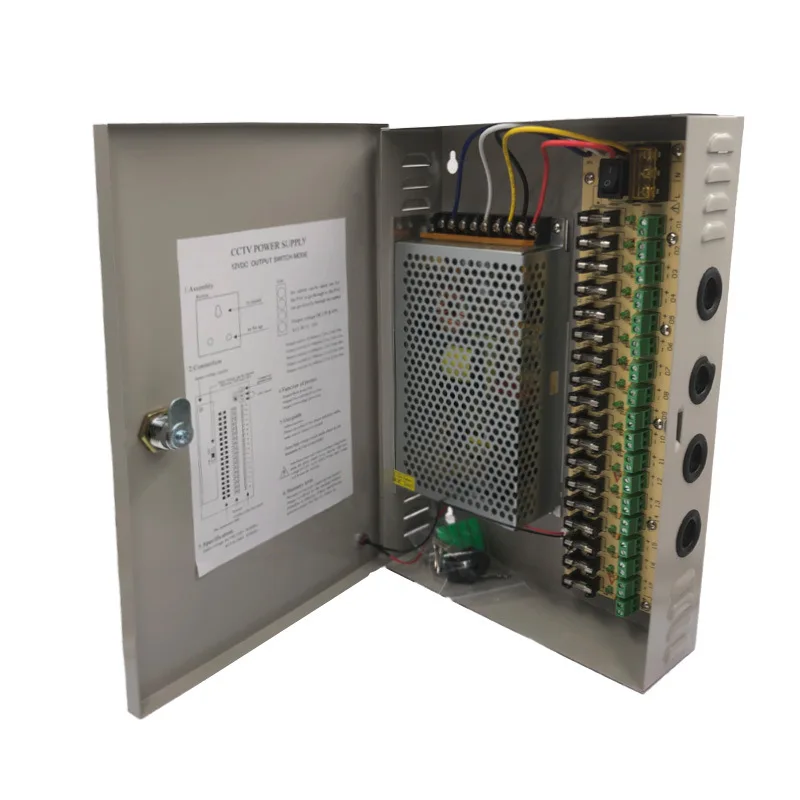

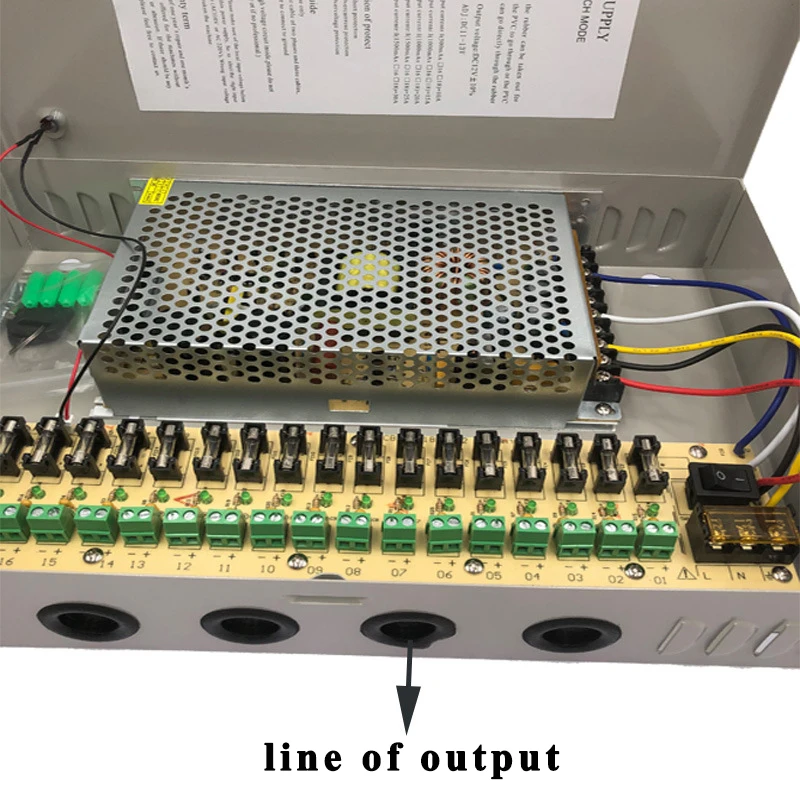

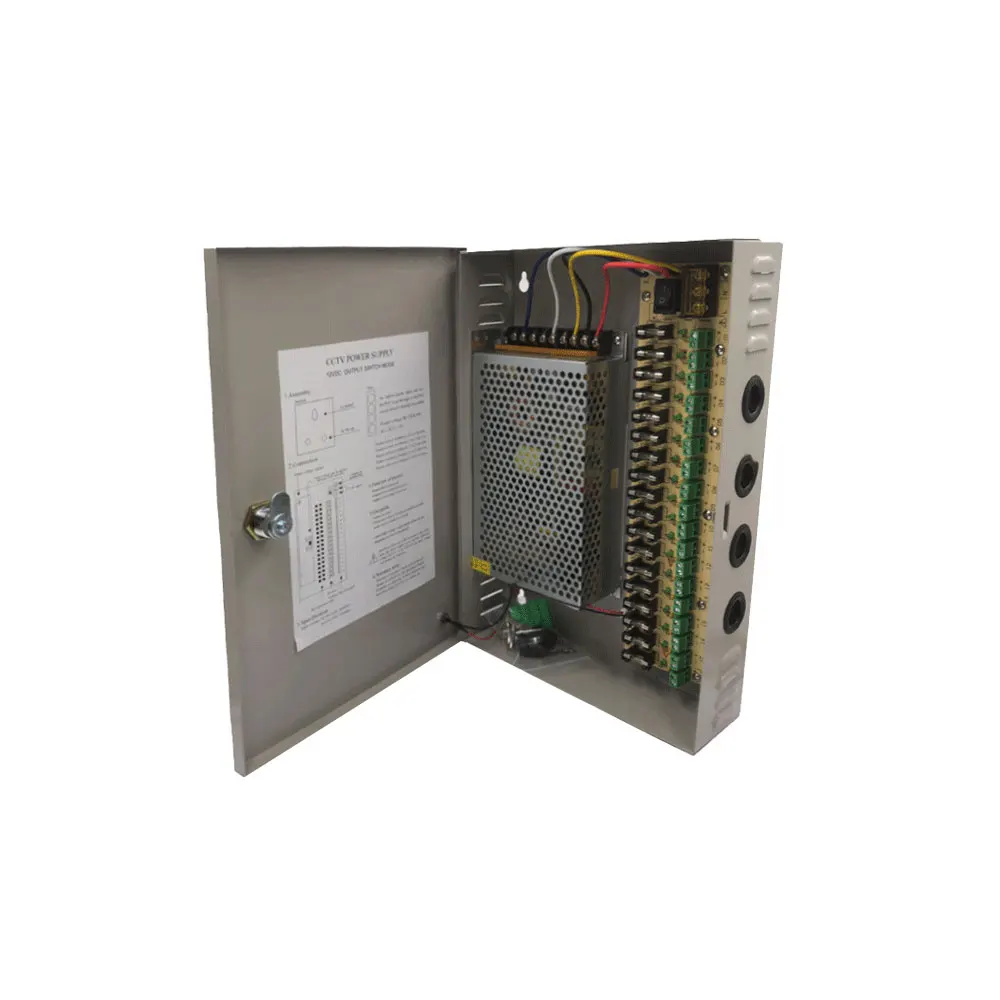

CCTV Camera SMPS Ac Dc 12V 20A SMPS 18 Channel RoHS Driver Supply Box
- Category: >>>
- Supplier: Wenzhou Aoca Electronic Co. Ltd.
Share on (1600224014160):
Product Overview
Description
S-240W 12V
AC Input :85~264AVC 47~63Hz
Channel: 9CH
Size :235*207*50mm
Weight: 0.8KGS
Warranty : 2 years
CCTV Camera SMPS Ac Dc 12V 20A SMPS 18 Channel RoHS Driver Supply Box
Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specification
DC Output | DC Voltage: 12V | ||||||
DC Current :20A | |||||||
Ripple & Noise: 80MV | |||||||
DC Adjustable Range: ±10% Rated Voltage | |||||||
Voltage Tolerance: ±2.0% | |||||||
Line Regulation: ±0.5% | |||||||
Load Regulation: ±1% | |||||||
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |||||||
AC Input | AC Voltage Range: 85-264VAC | ||||||
Frequency Range: 47-63Hz | |||||||
Efficiency:90% | |||||||
AC Current: 0.86/115V 0.4A/230V | |||||||
AC Inrush Current: 20A/115V 40A/230V | |||||||
Leakage Current< 0.5mA /240VAC | |||||||
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery | ||||||
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |||||||
Over-temp. : Shut down O/P voltage, Auto-recovery | |||||||
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) | ||||||
Working Humidity:20 ~ 90% RH, non-condensing | |||||||
Storage Temp.: -10~ +60C° | |||||||
Storage Humidity: 10 ~ 95% RH | |||||||
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH | ||||||
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||
Safety standards: CE,RoHS,FCC,ISO9001 | |||||||
Our Advantages

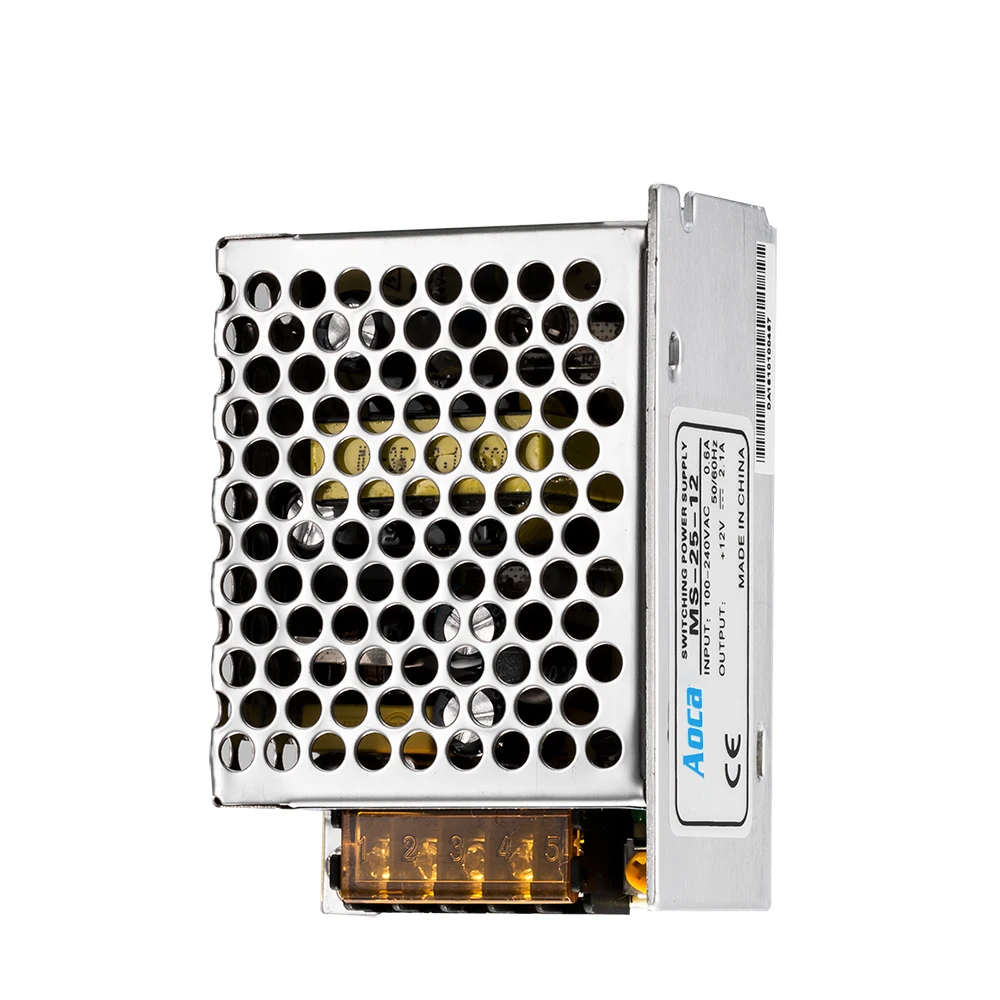

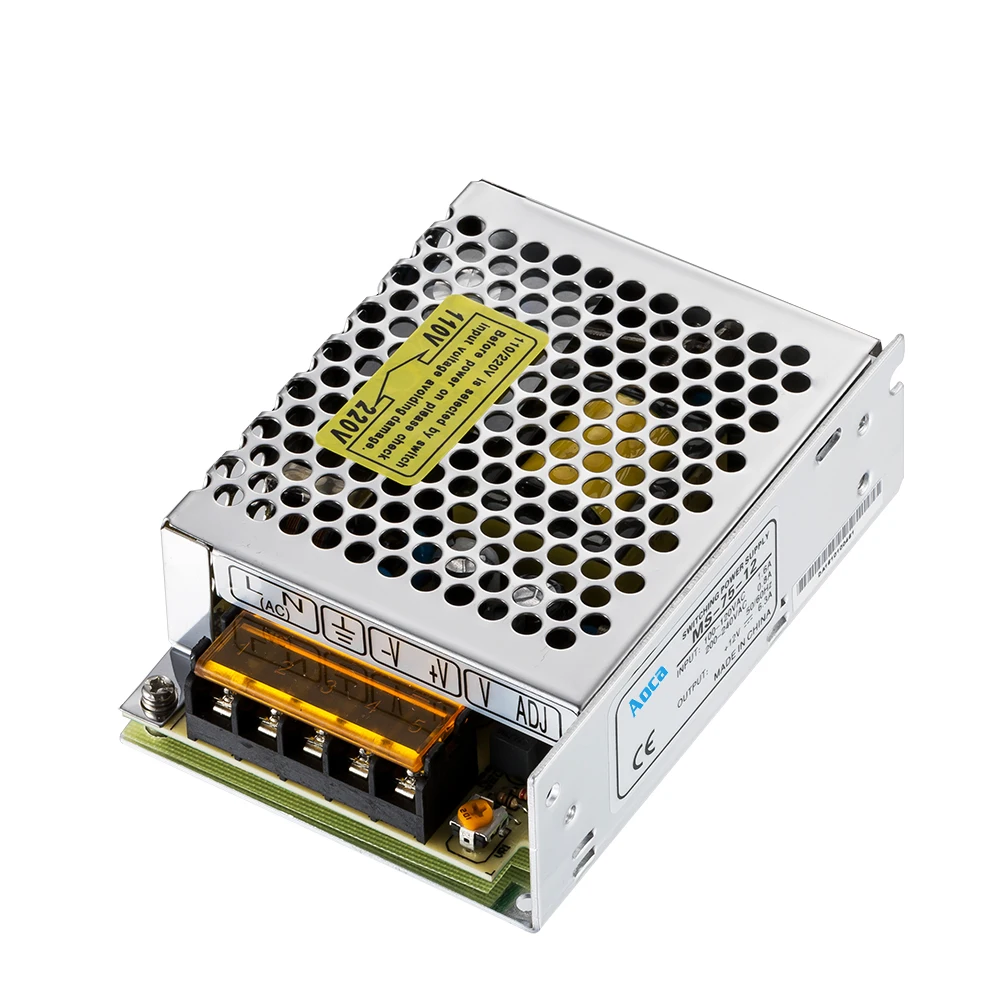

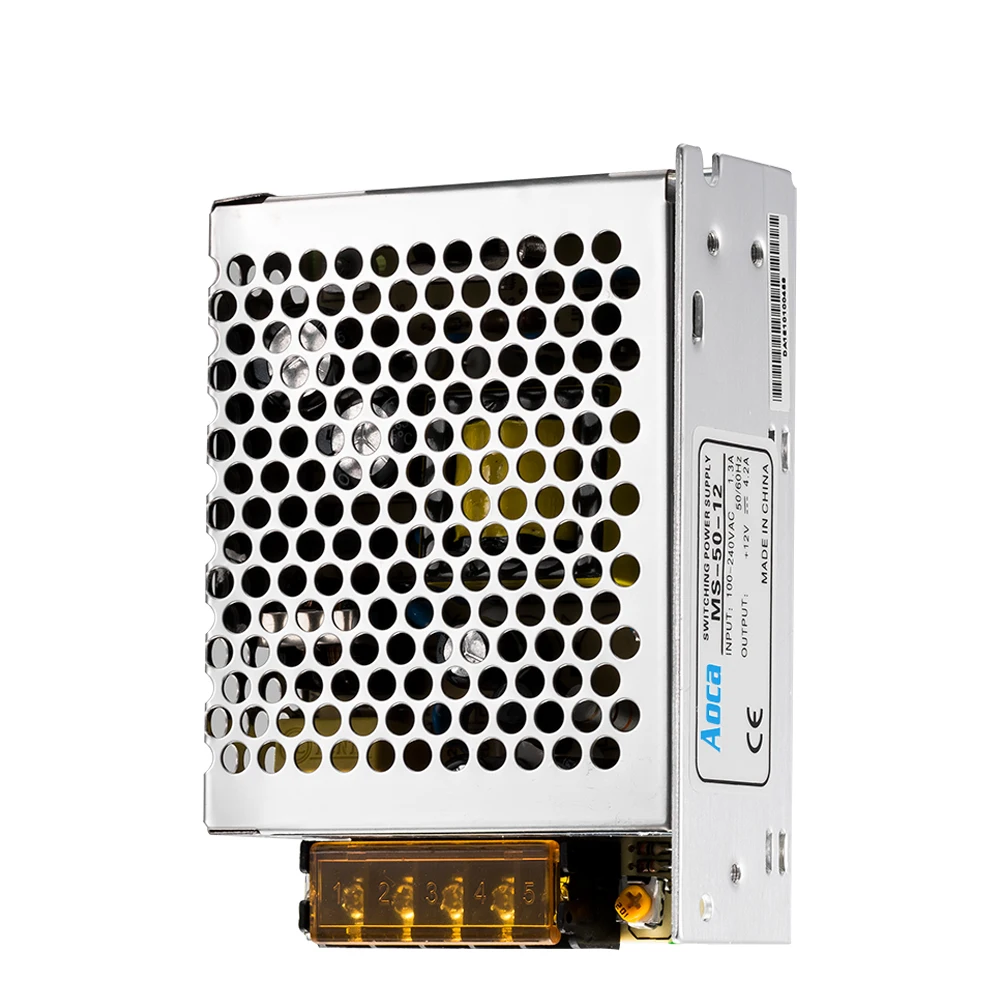

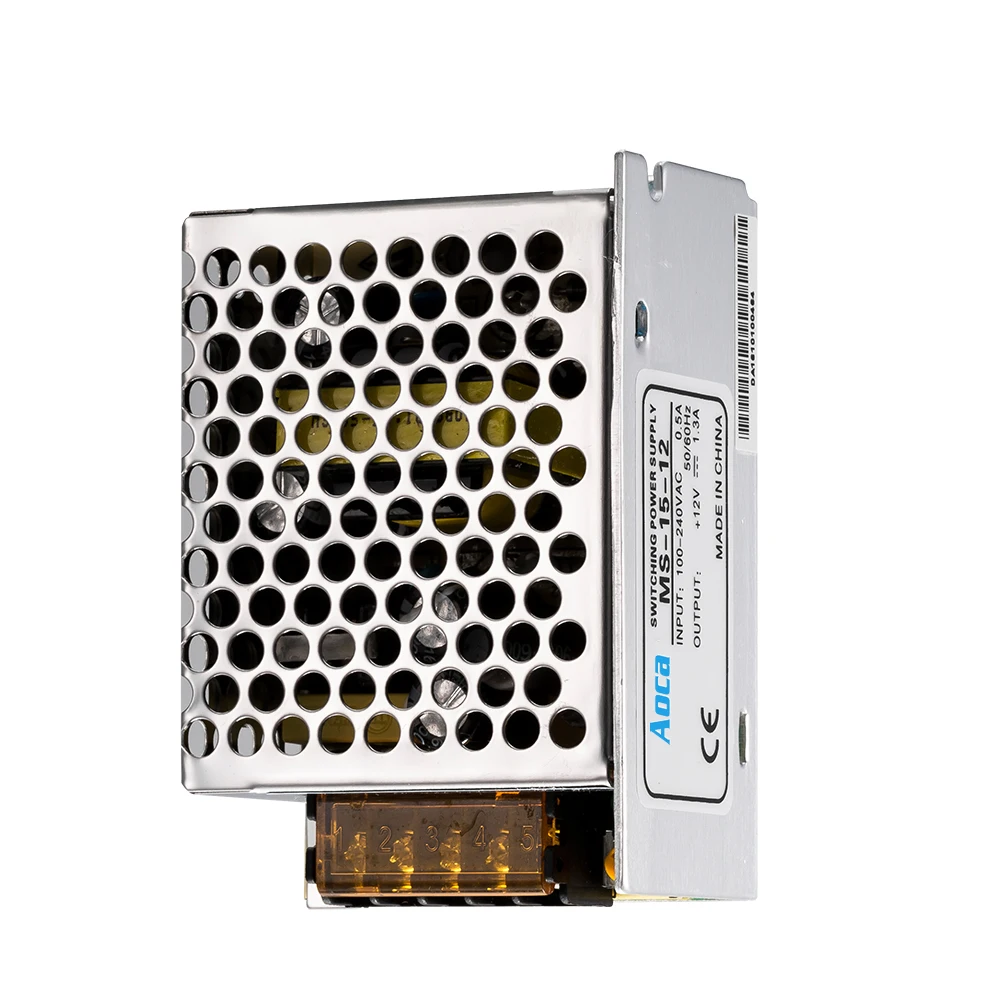

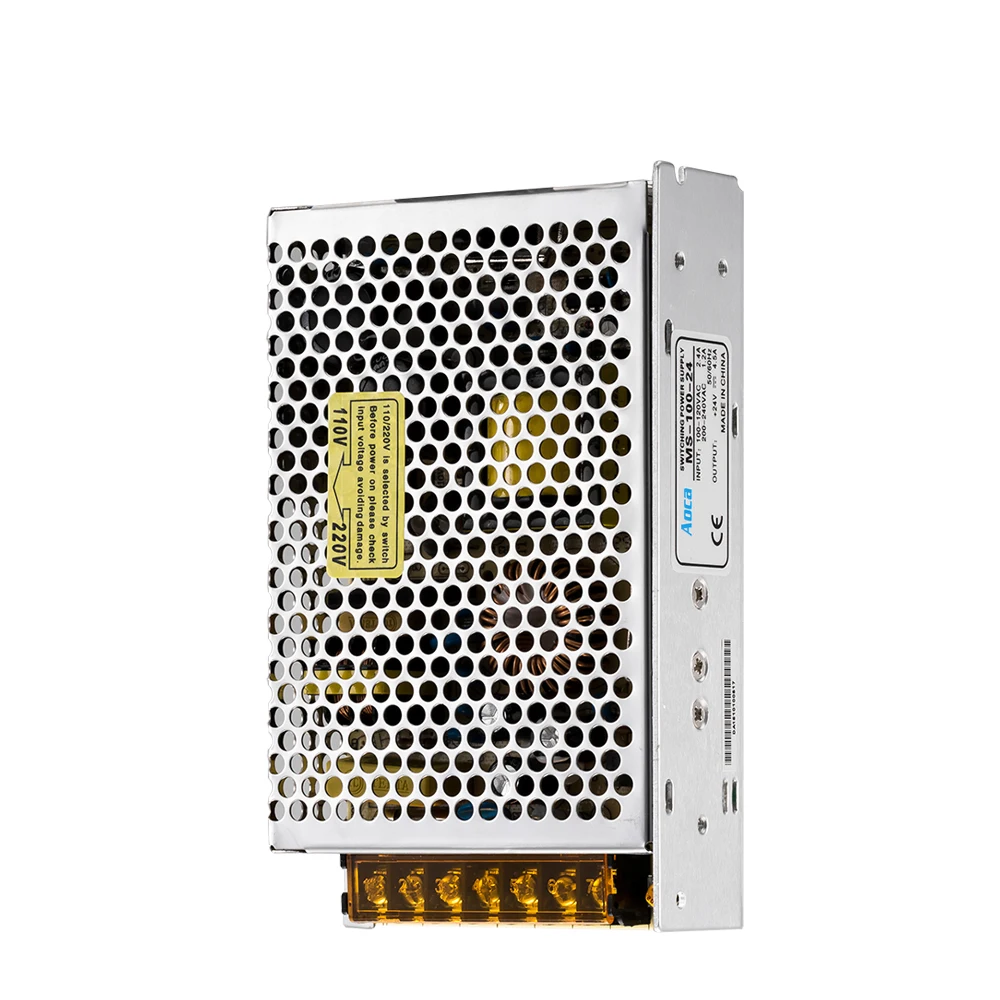

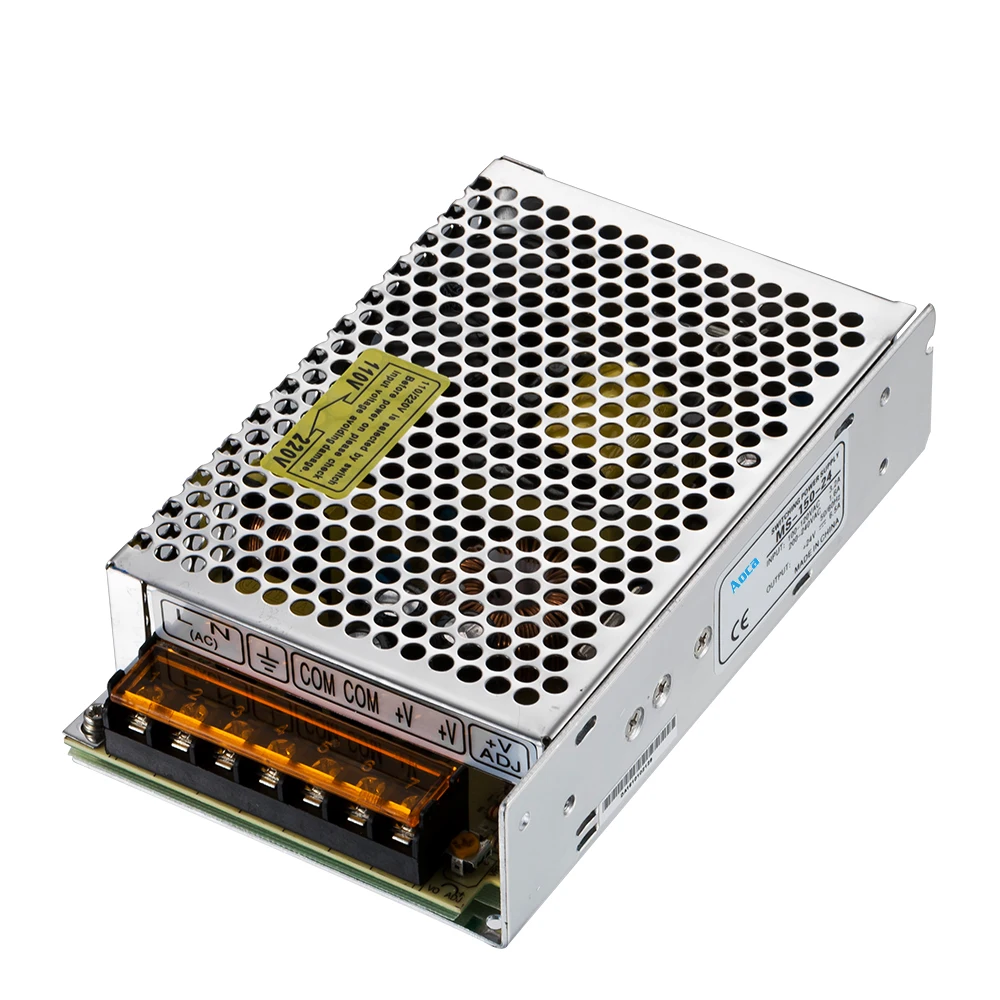

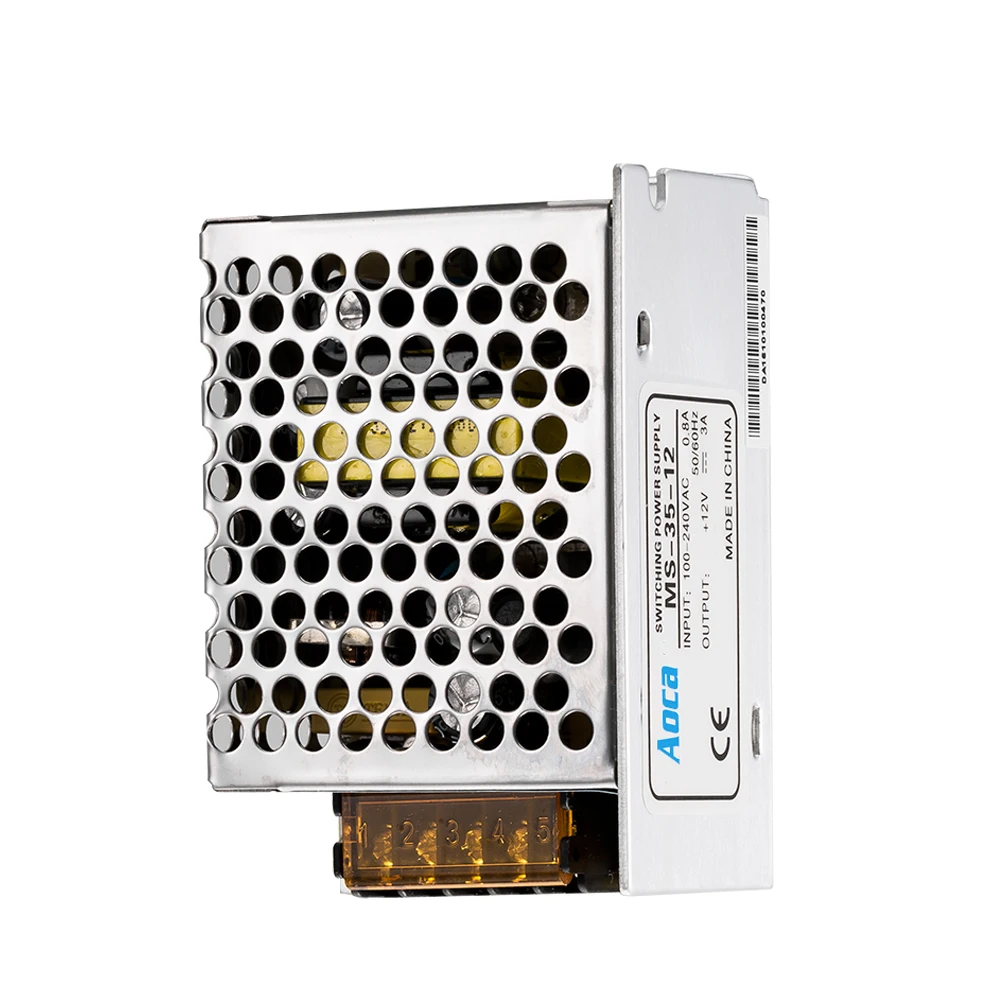

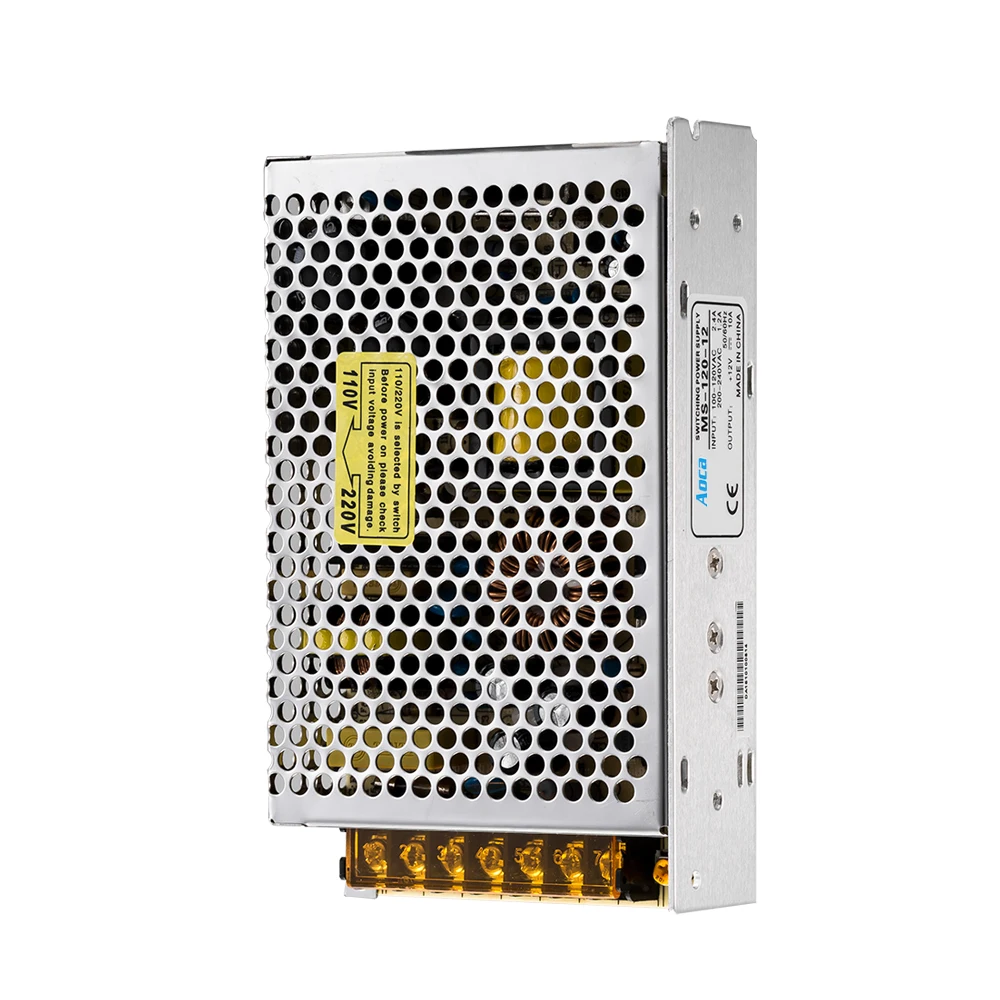

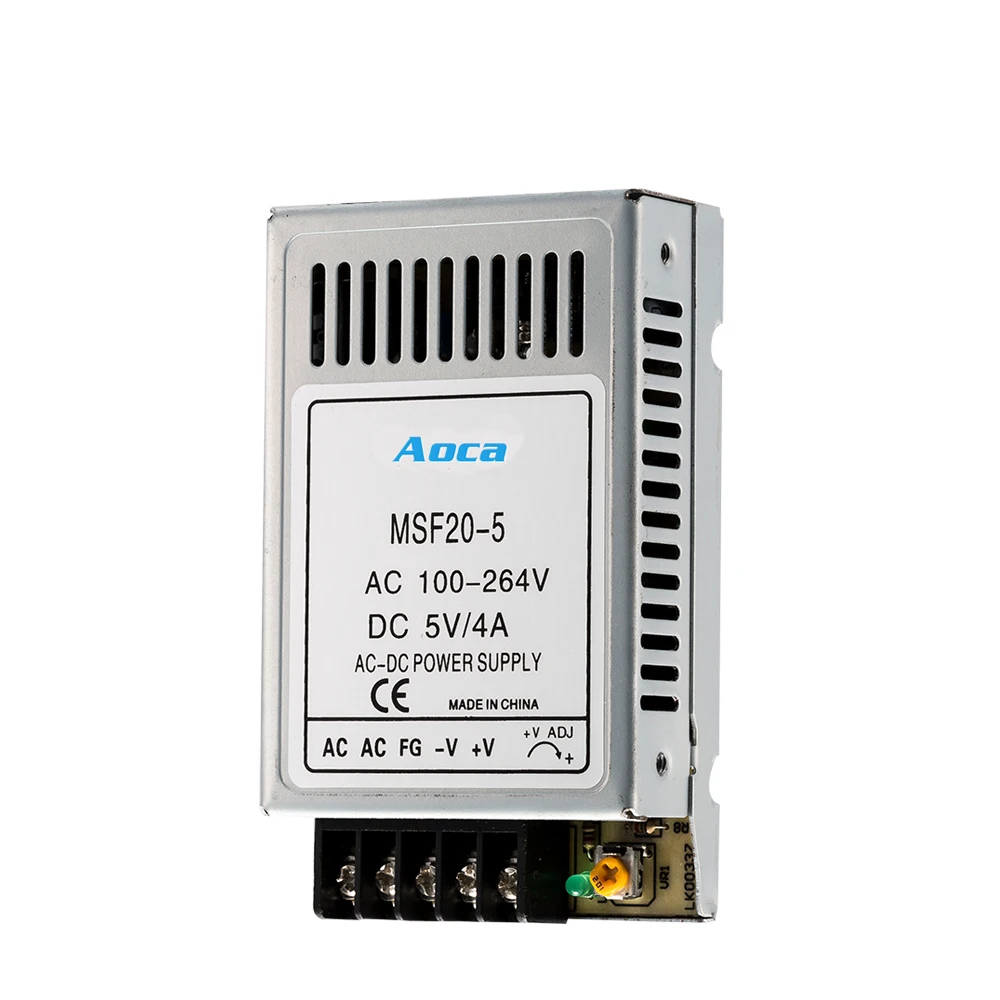

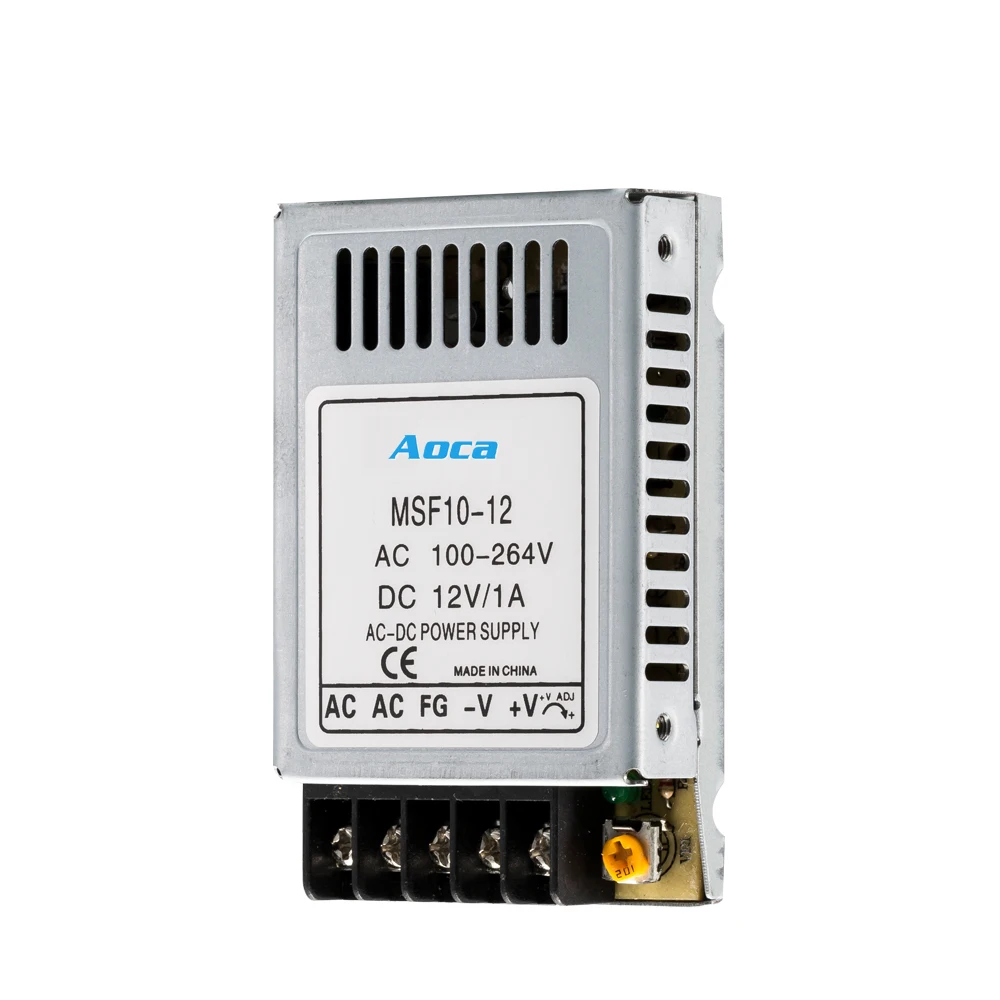

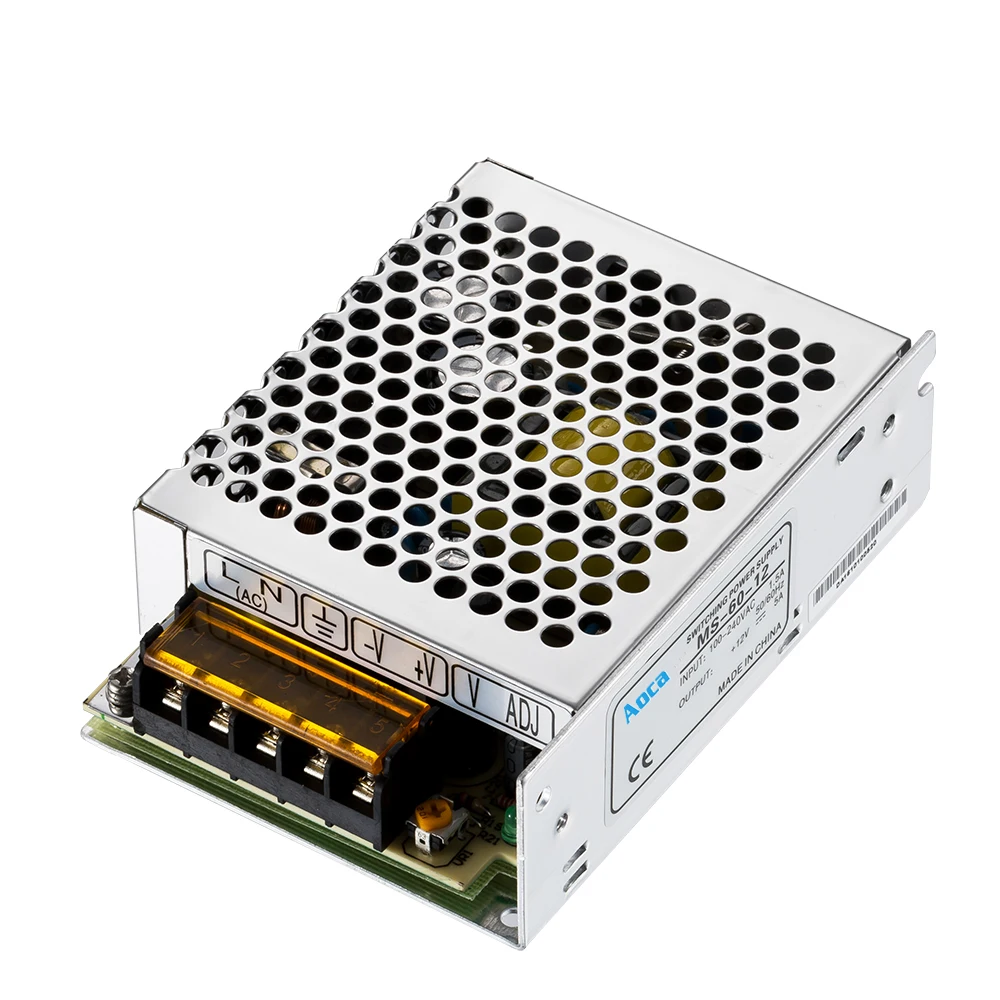

Model Show
Application Field
Packing & Delivery
About Us
FAQ
Q1:How many year warranty of your Led driver?
A:Two years.
Q2:What is your MOQ of switch power supply?
A:Our MOQ is 1 piece.
Q3:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.
Q4:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
Q5:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order
A:Two years.
Q2:What is your MOQ of switch power supply?
A:Our MOQ is 1 piece.
Q3:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.
Q4:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
Q5:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order
