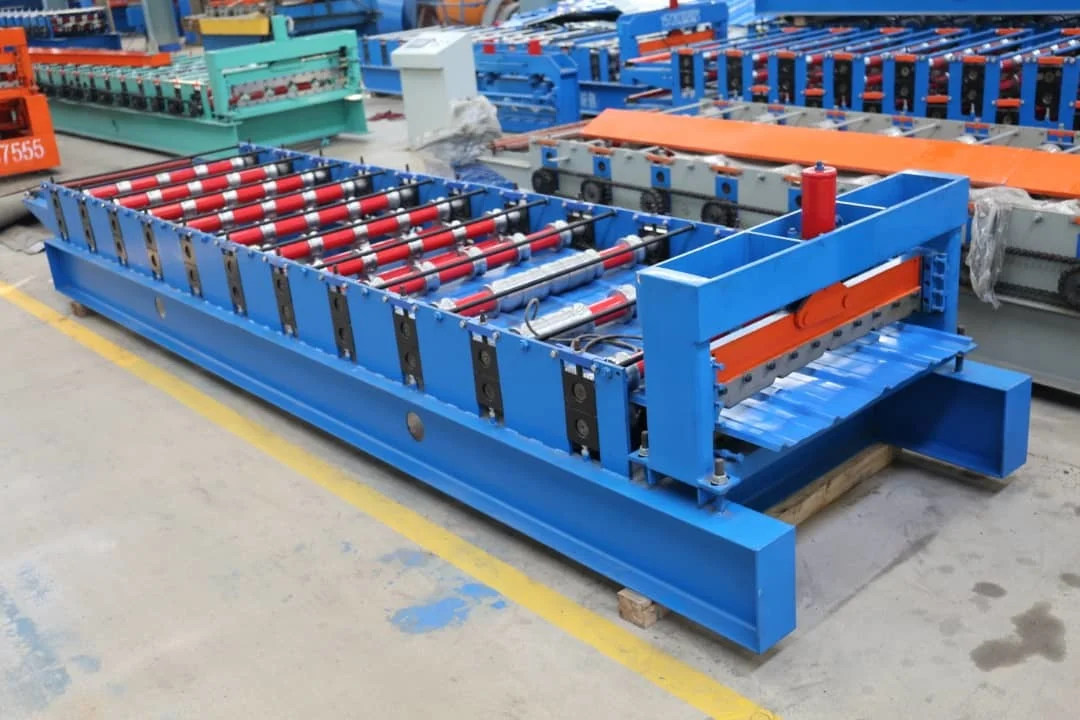

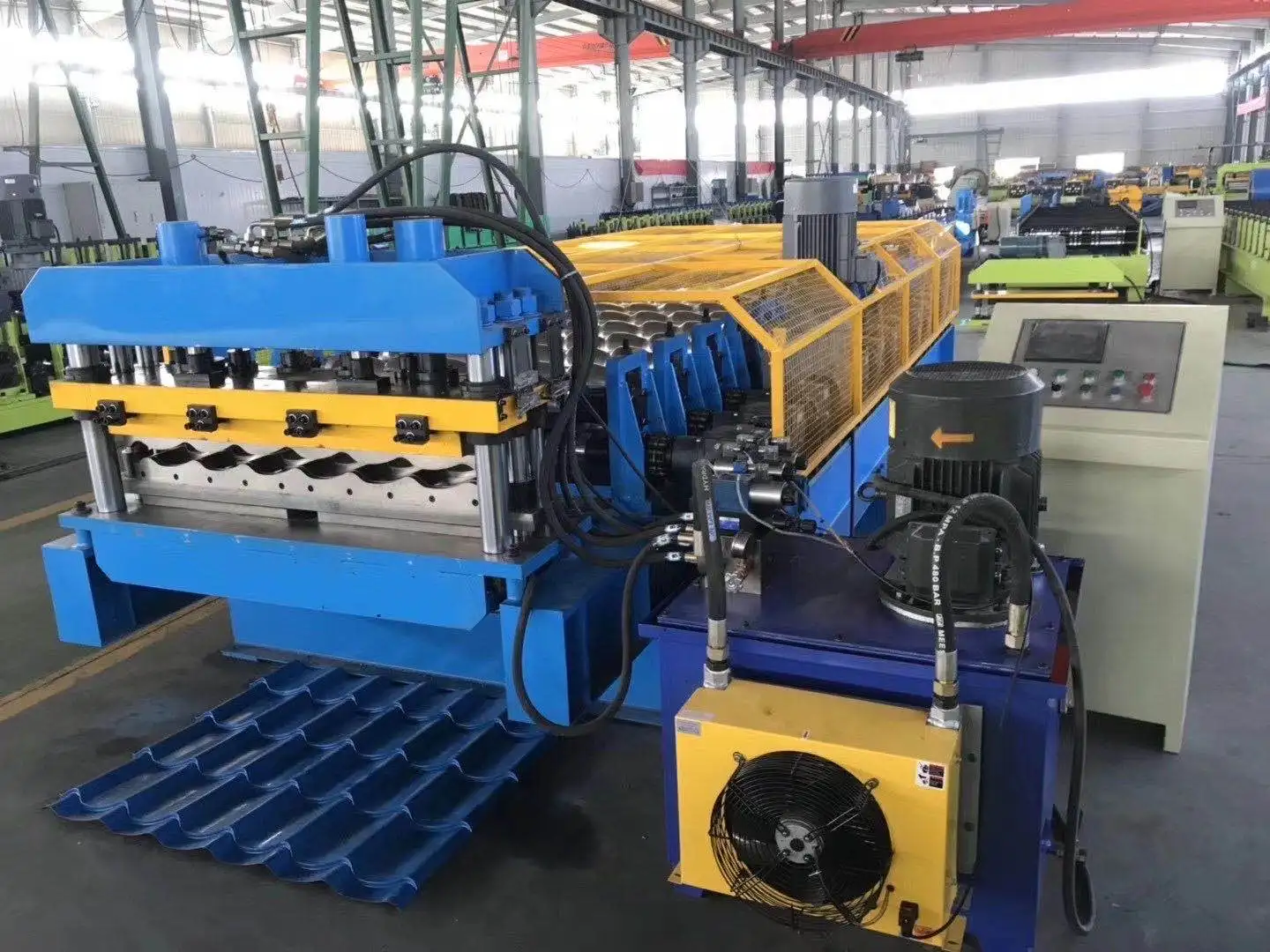

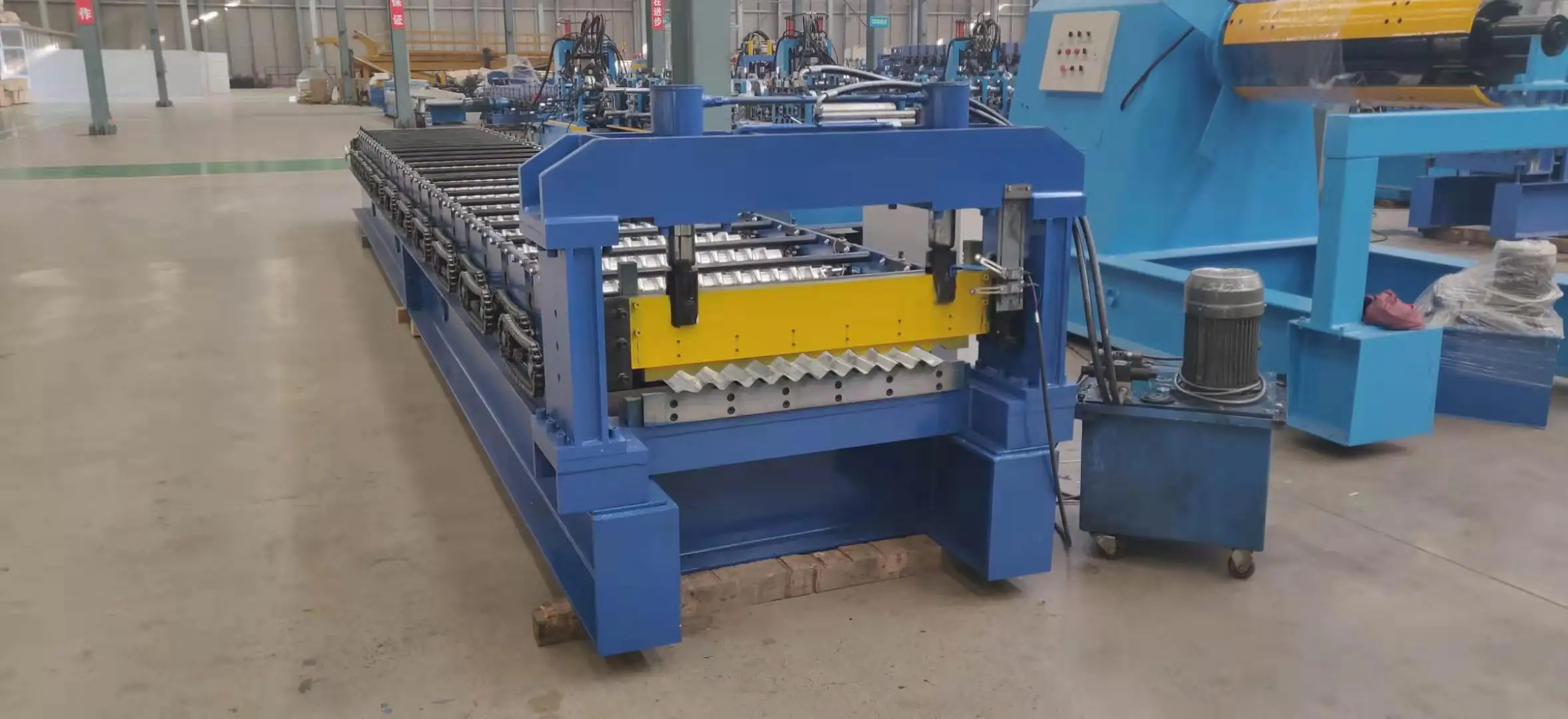

Металлический кровельный лист из гофрированного железа, машина для холодной оцинковки
- Category: >>>
- Supplier: Ibc (tianjin) Industrial Co. Ltd.
Share on (1600224043161):
Product Overview
Description
Forming Speed | 2-3m/min |
Forming station | Around 13 groups |
Total Power | About 5.5+4KW |
Total Weight | About4180KGS |
Voltage | 380v,60hz,3p |
Diameter of shaft | 70mm |
Installation Size | 15 * 1.54 M*1.4 |
Main parts material | ||
Item | Parameter | |
Forming Shaft | 45# steel with grinding process | |
Forming Roller | 45# steel with hard chrome coating | |
Cutting Blade | Cr12 with hard treatment | |
Control System | DELTA PLC& transducer, others are Schneider etc. | |
Electrical motor | China quality brand | |
Bearing | China quality brand | |
Chain | China quality brand | |
Hydraulic parts | China quality brand | |

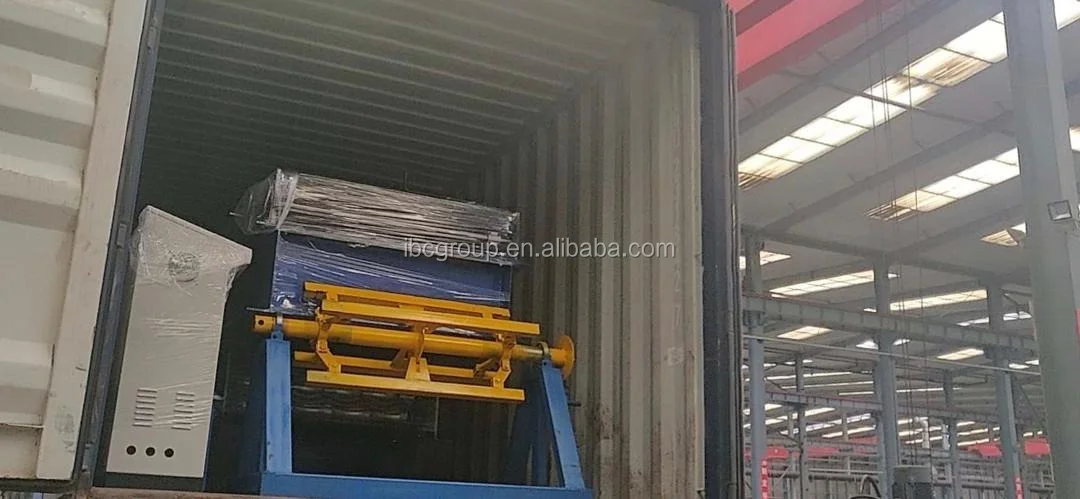

DECOILER
Power: None
Power of the open and closure of segments: Mechanical
Power of rotation of segment: Pull by forming system
Number of segment: 4
Range of segment expansion: 480 ~ 520mm
Height of center of the mandrel: 0.65m
Forming system
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
CUT-OFF DEVICE
1.material for cut-off modular: Cr12mov after treatment
2.hardness for heat treatment:HRC60-62°
3.Cut-off type: Hydraulic cut-off
4.Motor for Hydraulic stand:2.2KW
2.hardness for heat treatment:HRC60-62°
3.Cut-off type: Hydraulic cut-off
4.Motor for Hydraulic stand:2.2KW

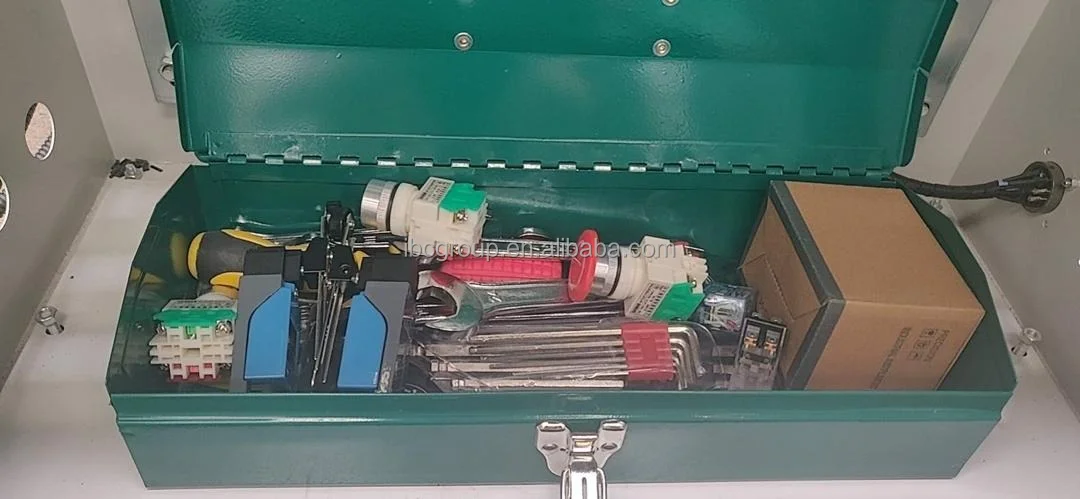

Spare parts
Several Rely
1pcs Encoder
2pcs Fuses
2pcs Normal Button
2pcs Switch button
1pcs Emergency stop
4pcs Sensor
