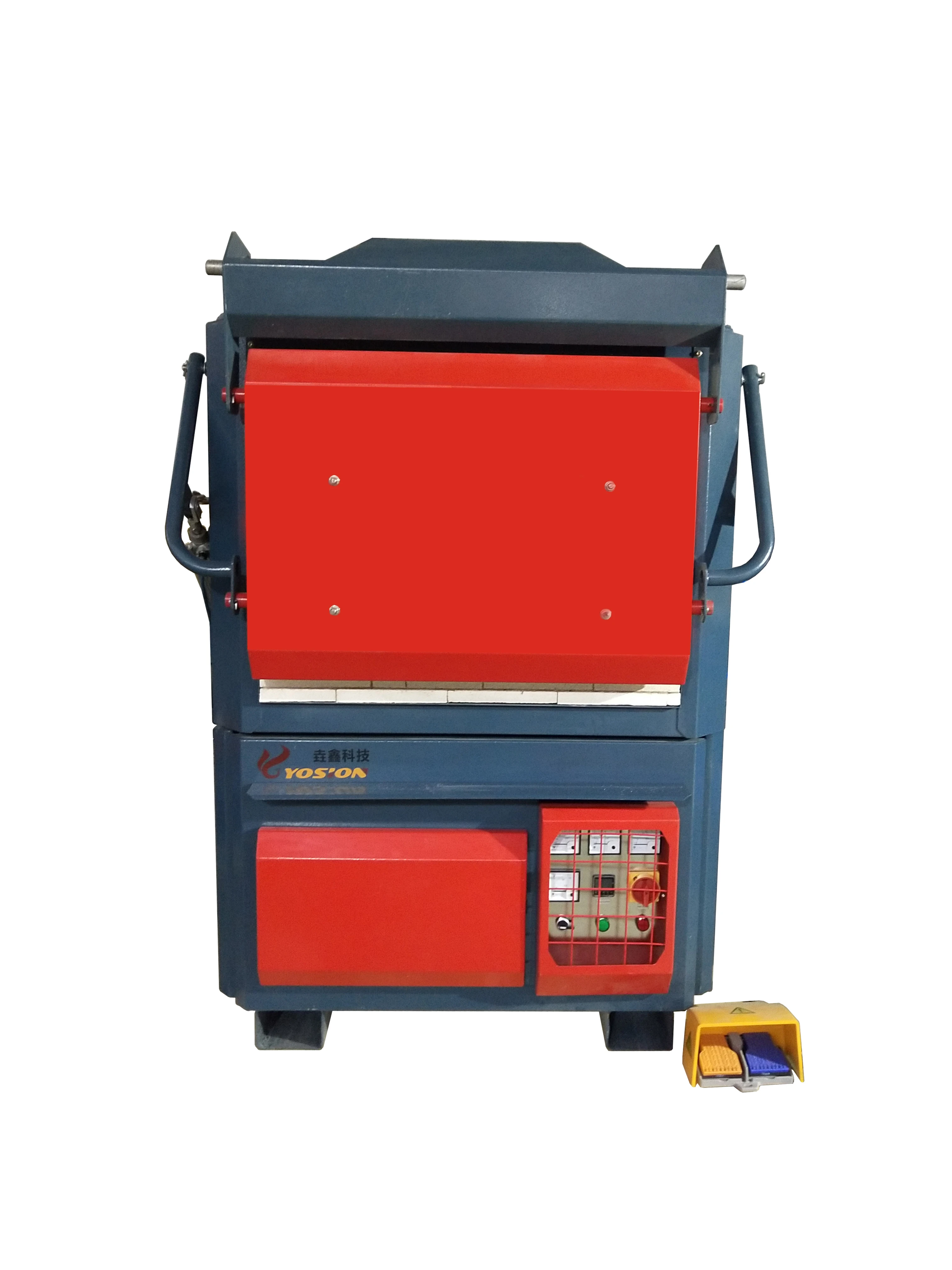

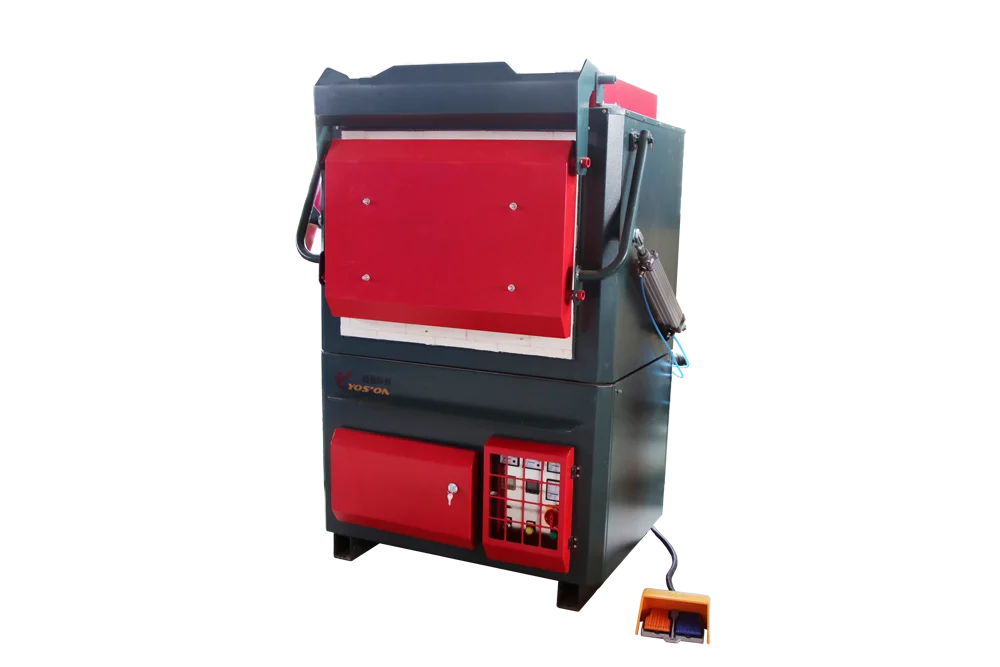

Laboratory/Industrial Electrical Muffle Fusion Furnace Capacity 25PF for Fire Assay Crucible Sample Melting
- Category: Industrial Furnace >>>
- Supplier: Qingdao Yosion Intelligent Technology Co. Ltd.
Share on (1600224044243):
Product Overview
Description
Product Description
Product Description

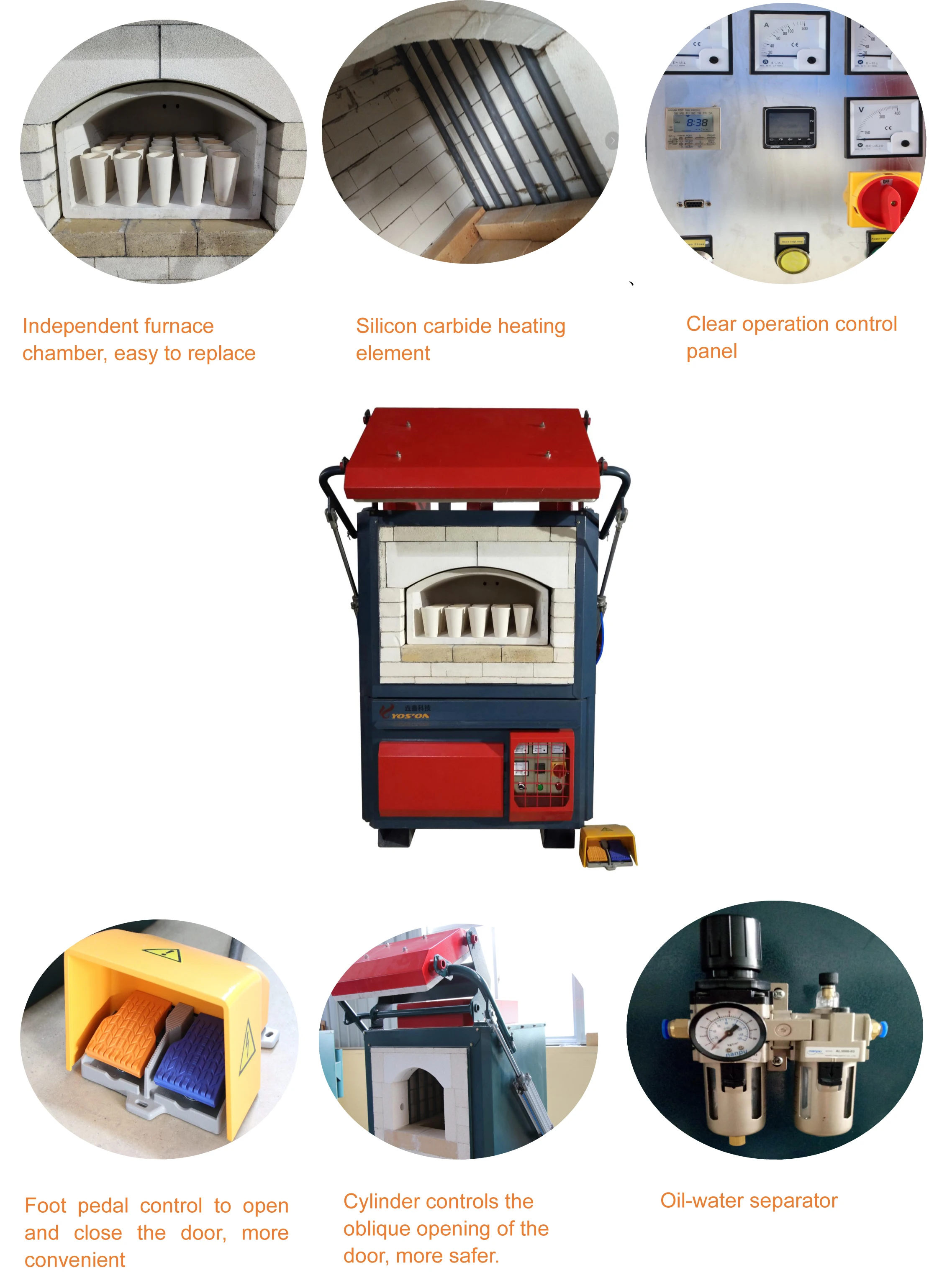

• Independent furnace muffle, large chamber volume, suitable for experiments and production in many fields;
• Fast heating speed, high temperature control precision, high uniformity and stability of furnace temperature;
• Pneumatically control the oblique opening door, which is convenient to operate, keeping the hot furnace door away from the operator;
• Over-temperature automatic alarm output and other safety protection measures to prevent accidents;
• The muffle has a long service life, and the exterior is made of high-insulation refractory bricks with good insulation effect.
• Fast heating speed, high temperature control precision, high uniformity and stability of furnace temperature;
• Pneumatically control the oblique opening door, which is convenient to operate, keeping the hot furnace door away from the operator;
• Over-temperature automatic alarm output and other safety protection measures to prevent accidents;
• The muffle has a long service life, and the exterior is made of high-insulation refractory bricks with good insulation effect.
Temperature Control
•Electronic, automatic control max. 1200°C
•Type K thermocouple.
•High temperature alarm output.
•Optional 7 day timer is available.
•Type K thermocouple.
•High temperature alarm output.
•Optional 7 day timer is available.
Specification
Model | Muffle Size（mm） | Dimension（mm） | Crucible Loading QTY | Max. Temperature（℃） | Power |
YX-FF12 | 500x430x360 | 1150x770x1700 w/ door closed 1160x1087x1950 w/ door open | 12x50/65g 16x30/ 40/55g | 1200 | 18kW.3ph |
YX-FF25 | 660x610x360 | 1400x1160x1850 w/ door closed 1400x1160x2100 w/ door open | 25x50/65g 42x30/40/55g | 1200 | 24kW,3ph |
Project References
Packing & Delivery
Company Profile
QINGDAO YOSION INTELLIGENT TECHNOLOGY CO., LTD. is a comprehensive laboratory service provider integrating research &development, production, sales and service.Yosion specialize in automated sampling & preparation system, sample preparation equipment, containerized laboratory, fire assayequipment & consumable,chemical analysis instrument etc.
Yosion team step by step, focusing on customer needs, actively implement the "going out" strategy, participate in the construction of global mineral laboratories, and have customers in Southeast Asia, Africa, Mid East, North America,South America and so on.
Payment
FAQ
Q1. Are you a factory?
A:Yes, we are a factory, a manufacturer.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team. You can communicate your requirements with us, our engineers will give you a drawing
confirmation, and then the production department will complete the product.
Q3. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q5. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the product.
Q6. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia etc.You can communicate with us for more details.
