Product Overview
Description

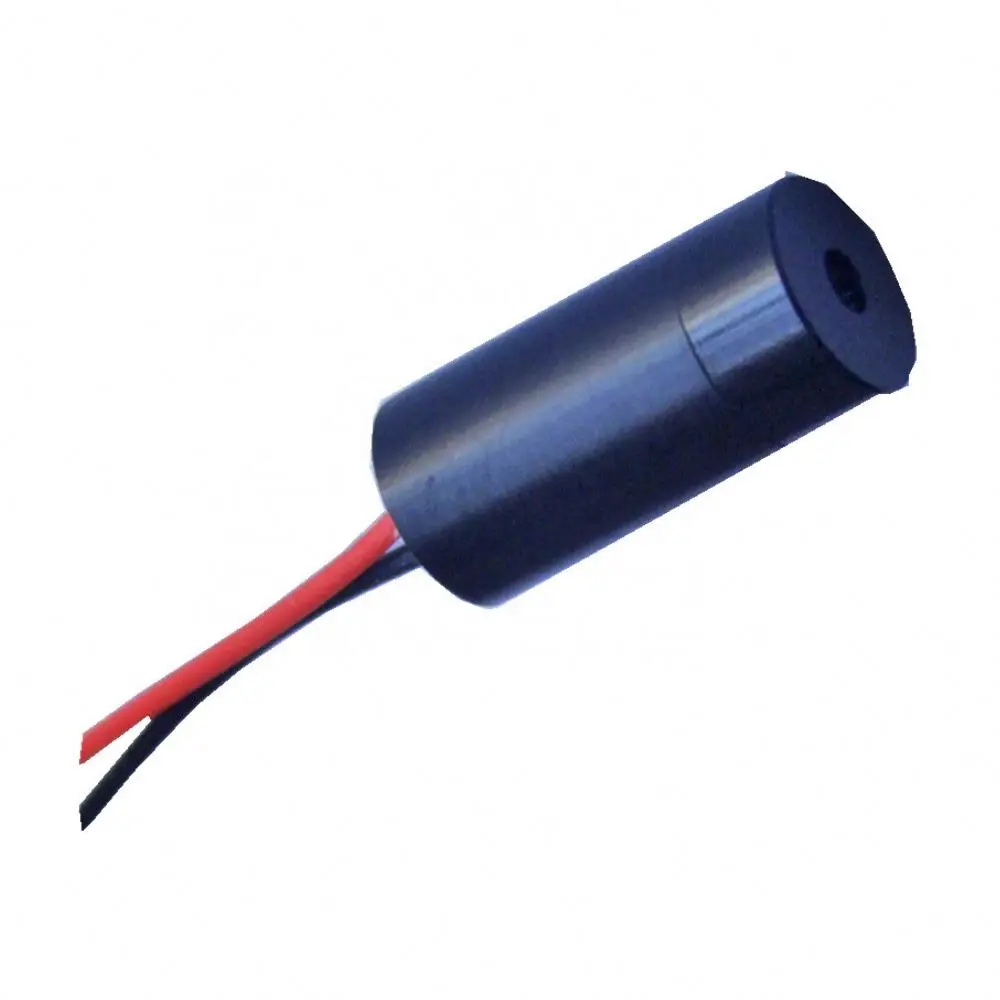

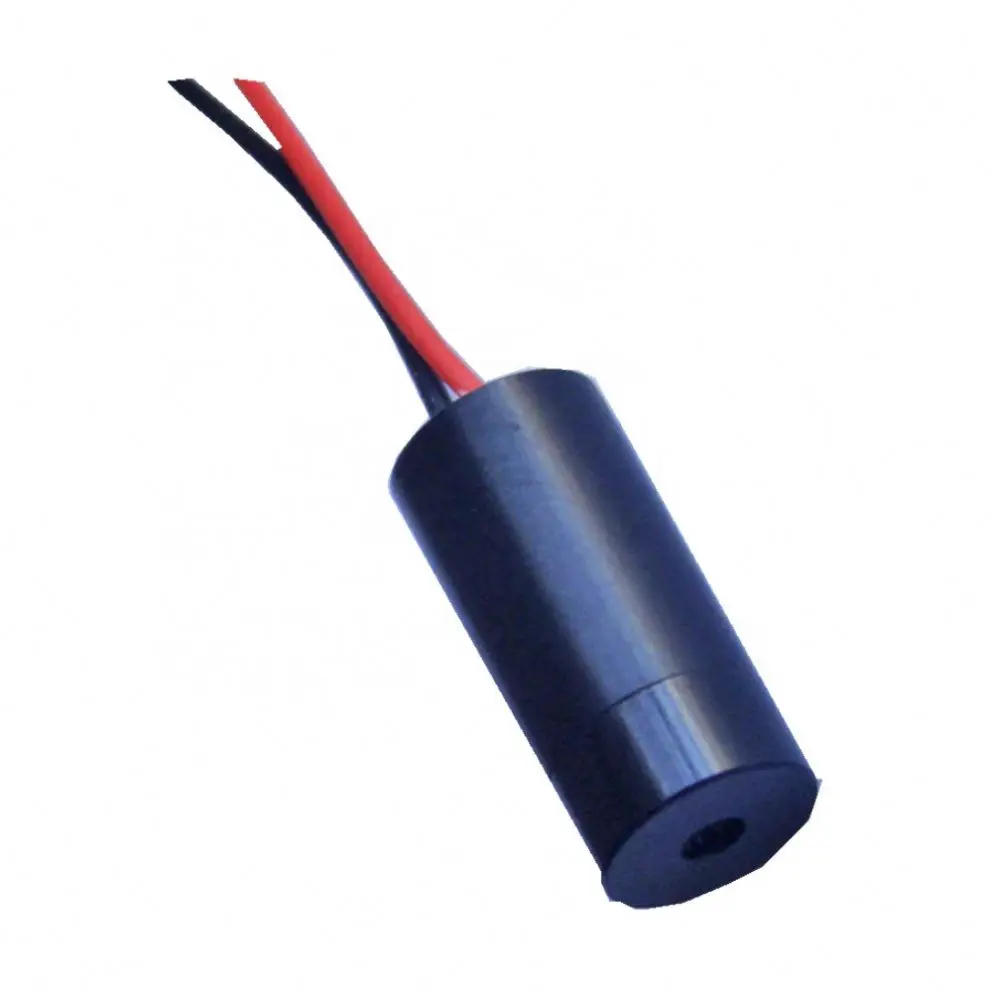

5V Point-shaped Red Line Laser Level Line 1mW 635nm Laser Diode Module for Sighting Medical Concentricity Positioning
Product Description
Features
Size: Φ6 × 12mm, Φ8 × 17mm, Φ9 × 21mm, Φ10 × 22mm, Φ10 × 30mm (optional spring or wire)
Material: copper or aluminum optional
Surface treatment / color: brass natural color, black (oxidized fog black)
Service life: continuous output, continuous service life> 5000 hours
Output wavelength: 635nm / ± 5nm
Output power: <1mW
(5mW ~ 250mW products can be customized, the larger the power, the longer the range, the brighter the light, the thicker the light trace line, the higher the price)
Range: <300 meters
Light spot shape / diameter: oval / minimum light spot diameter ≤Φ1.0mm; light spot at 10m <Φ12mm, light spot adjustable (optional)
Circuit control: APC line
Working voltage: DC = 3.0V (two AA batteries, better use of alkaline batteries), 5.0V (optional)
Working current: <50mA
Working temperature: -10 ℃ ~ + 40 ℃
Storage temperature: -40 ℃ ~ + 80 ℃
Material: copper or aluminum optional
Surface treatment / color: brass natural color, black (oxidized fog black)
Service life: continuous output, continuous service life> 5000 hours
Output wavelength: 635nm / ± 5nm
Output power: <1mW
(5mW ~ 250mW products can be customized, the larger the power, the longer the range, the brighter the light, the thicker the light trace line, the higher the price)
Range: <300 meters
Light spot shape / diameter: oval / minimum light spot diameter ≤Φ1.0mm; light spot at 10m <Φ12mm, light spot adjustable (optional)
Circuit control: APC line
Working voltage: DC = 3.0V (two AA batteries, better use of alkaline batteries), 5.0V (optional)
Working current: <50mA
Working temperature: -10 ℃ ~ + 40 ℃
Storage temperature: -40 ℃ ~ + 80 ℃
Application
1. Can be used for sighting;
2.Can be used for laser test tools;
3. Can be used for concentricity positioning;
4. Can be used for medical equipment positioning;
5. Can be used to make signal equipment;
6. Amoy friends who like to make small products or experiment teaching for themselves.
2.Can be used for laser test tools;
3. Can be used for concentricity positioning;
4. Can be used for medical equipment positioning;
5. Can be used to make signal equipment;
6. Amoy friends who like to make small products or experiment teaching for themselves.
Notices | |
1 | The laser is harmful to the eyes. Do not irradiate the eyes with red light with a power exceeding 30mw. Do not irradiate the human body. Remember! |
2 | Please keep this product away from children to prevent danger caused by improper use of children. It is best to take out the battery and store it separately when not in use, so that even if it is accessible by children, it ca n’t be used because there is no battery |
