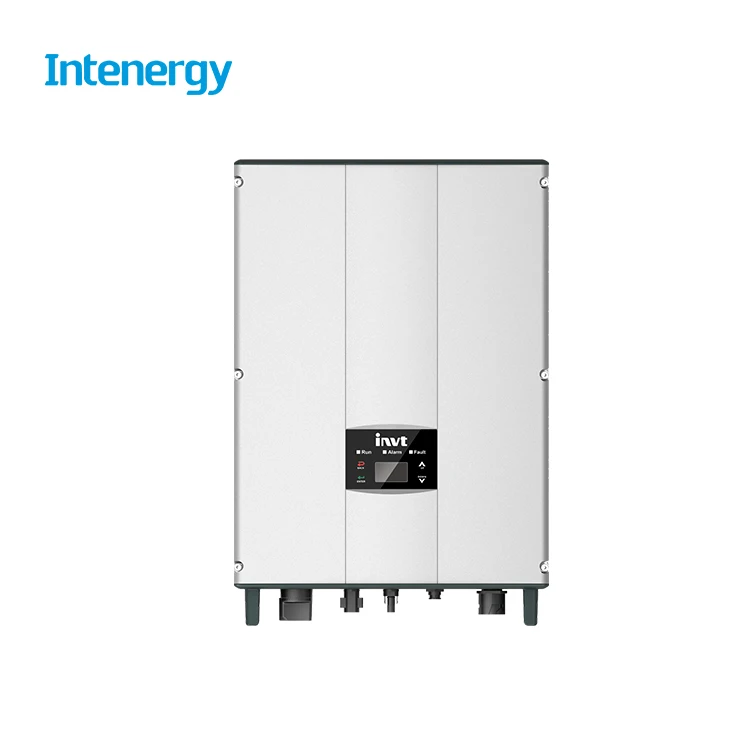

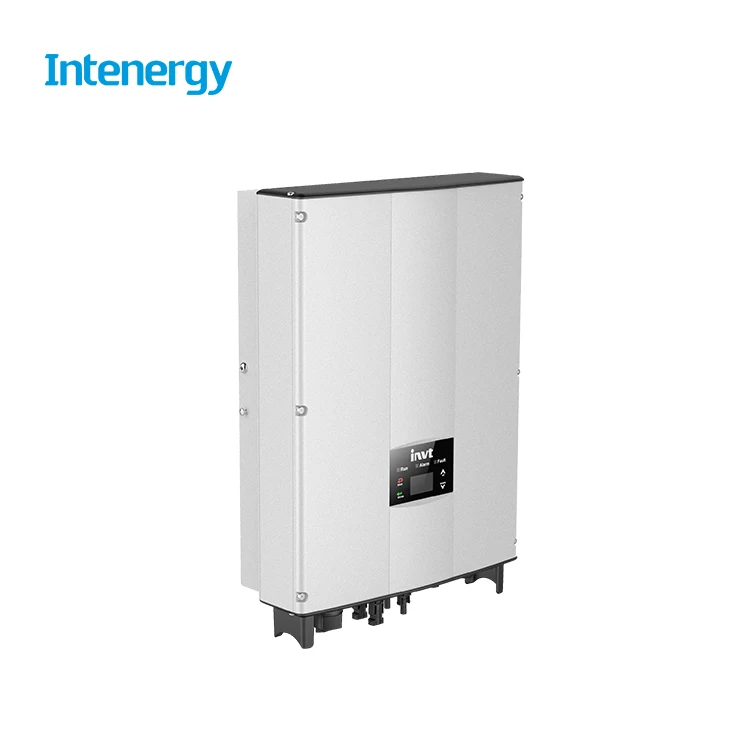

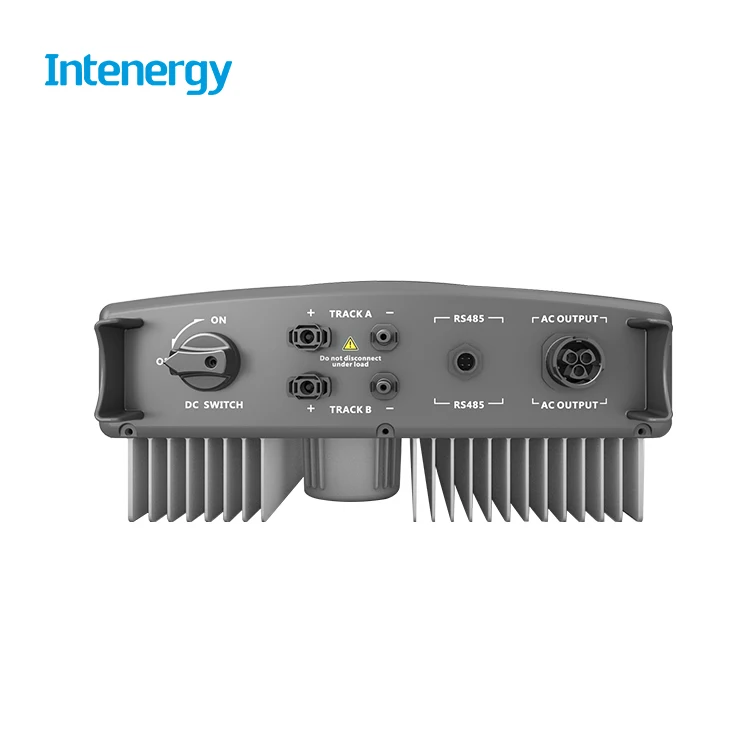

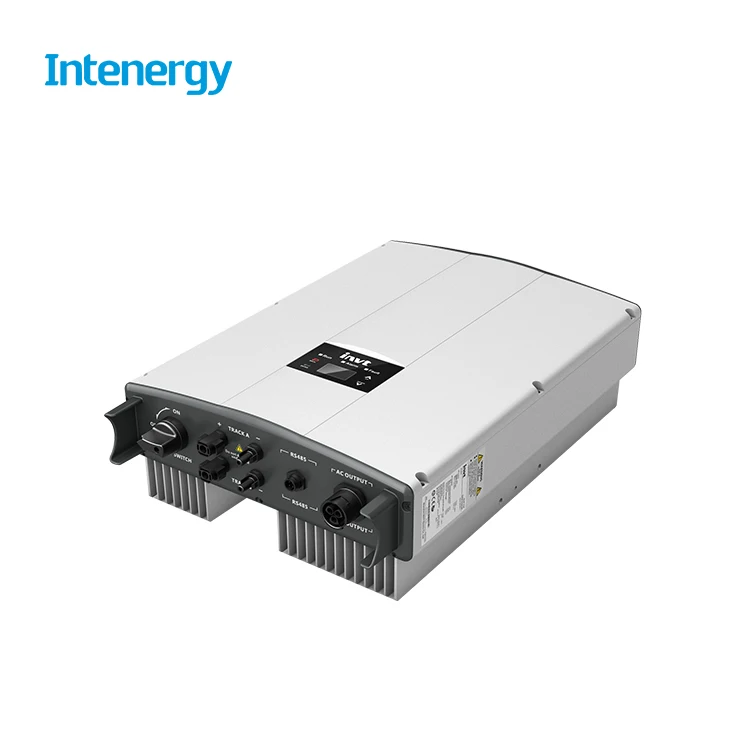

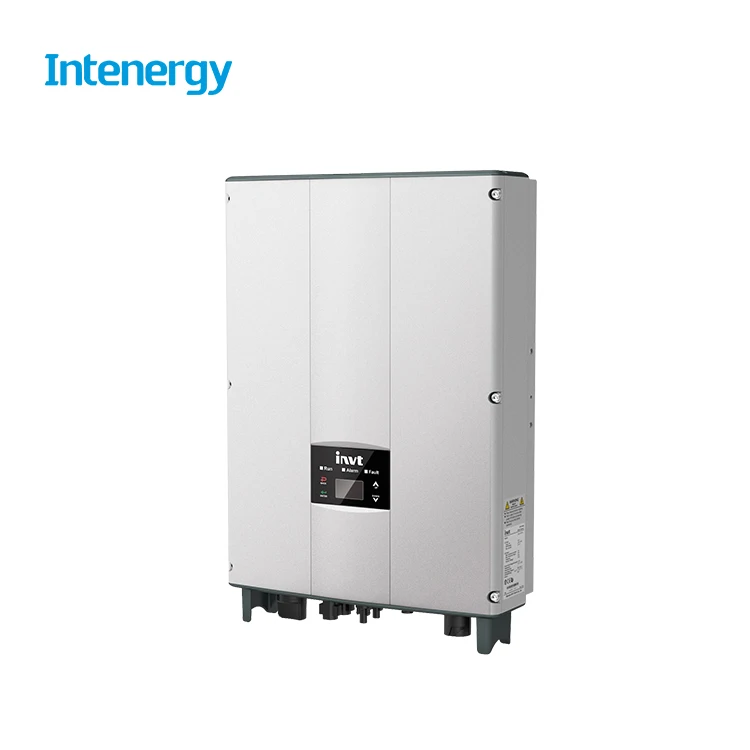

INVT 6KW Power Inverter Solar System China Supplier Good Price
- Category: >>>
- Supplier: Zhejiang Intenergy Innovation Technology Co. Ltd.
Share on (1600224084385):
Product Overview
Description
Products Description
On Grid Inverter Type | BG6KTR | |
Input (DC) | ||
Max. DC Input Power (W) | 7200 | |
Max. DC Input Voltage (V) | 900 | |
MPPT Range (V) | 180-800 | |
Output (AC) | ||
Rated Output Power (W) | 6000 | |
Max. AC Output Current (A) | 9.5 | |
Nominal Output Voltage (V) / Frequency | 230, L+N+PE, 50Hz/60Hz | |
Efficiency | ||
Max. Efficiency | 98.20% | |
Euro-efficiency | 97.70% | |
Protection | ||
Protection | DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc. | |
General Data | ||
LCD Language | English, Chinese, German, Dutch | |
Protection Degree | IP65 | |
Operating Temperature Range | -25℃~+60℃(derate after 45℃) | |
Dimension(H x W x D mm) | 530x360x150 | |
Weight (kg) | 22 | |
Grid Qualification | DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, G83-2:2012, G59/3-2:2015, IEC 61727(IEC62116), AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999 | |
Safety Certificates / EMC Certificates | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |
Factory Warranty (years) | 5(standard)/10(optional) | |
Certificates
Packaging & Payment
Payment Term | L/C at sight, TT, 30% as deposit, 70% balance by TT before shipment, Western Union. |
Packing Details | Carton Box with pallet, Wooden Box. |
Delivery Time | Ship from factory within 15 days after received the deposit. |
Company Information
Intenergy is a part of the Perlight Solar that was founded in 2006, which is specialized in developing, manufacturing and selling of high efficiency photovoltaic (PV) cells, Solar Modules, Solar Systems, and providing technical service.

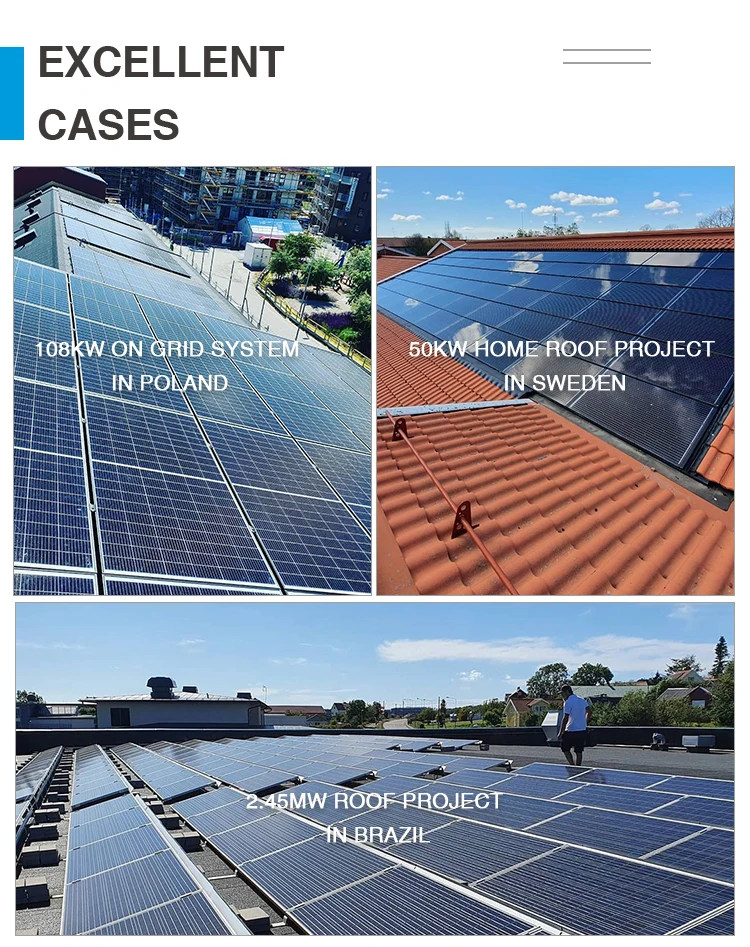

Projects
FAQ
1.Why choose us?
Intenergy is a global solar energy provider with a presence in more than 130 countries around the world. We have more than 10 years of solar photovoltaic cell manufacturing experience. More than 1.5GW of perlight modules have been used in residential,
commercial and off-grid systems around the world.
2.How can we guarantee product quality?
Three times EL testing before shipment for all solar panels, and we apply MES system and ERP system to ensure the traceability of product production process.
3. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card.
Intenergy is a global solar energy provider with a presence in more than 130 countries around the world. We have more than 10 years of solar photovoltaic cell manufacturing experience. More than 1.5GW of perlight modules have been used in residential,
commercial and off-grid systems around the world.
2.How can we guarantee product quality?
Three times EL testing before shipment for all solar panels, and we apply MES system and ERP system to ensure the traceability of product production process.
3. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card.
