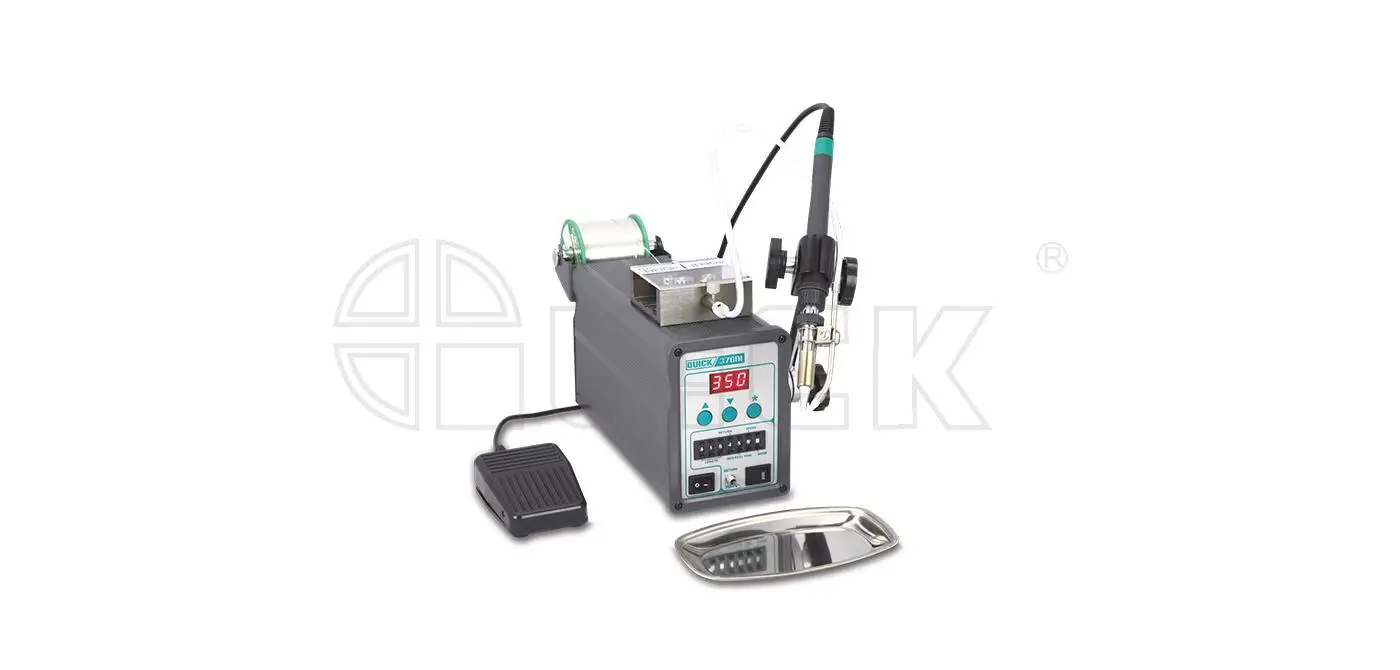

QUICK 376DI 150 150W Solder Self feeding and Solder Perforation Soldering Station
- Category: Soldering Stations >>>
- Supplier: Octopus Technology (dongguan) Co. Ltd.
Share on (1600224093230):
Product Overview
Description
1. High-frequency heating, rapid heating and thermal recovery.
2. Microcomputer control, push-button temperature adjustment, digital temperature calibration and auto sleep function.
3. Auto and manual feeding, feeding times settable.
4. The feeding speed, feeding length, interval time adjustable, backing function available.
5. The pedal switch and manual switch available.
6. Can be used as a lead-free soldering station.
2. Microcomputer control, push-button temperature adjustment, digital temperature calibration and auto sleep function.
3. Auto and manual feeding, feeding times settable.
4. The feeding speed, feeding length, interval time adjustable, backing function available.
5. The pedal switch and manual switch available.
6. Can be used as a lead-free soldering station.
7.Anti - static design, can avoid sensitive electronic parts due to static damage.
SPECIFICATION
Model | QUICK376D | QUICK376D-150 | QUICK 376DI | QUICK 376DI-150 |
Power | 90W | 150W | 90W | 150W |

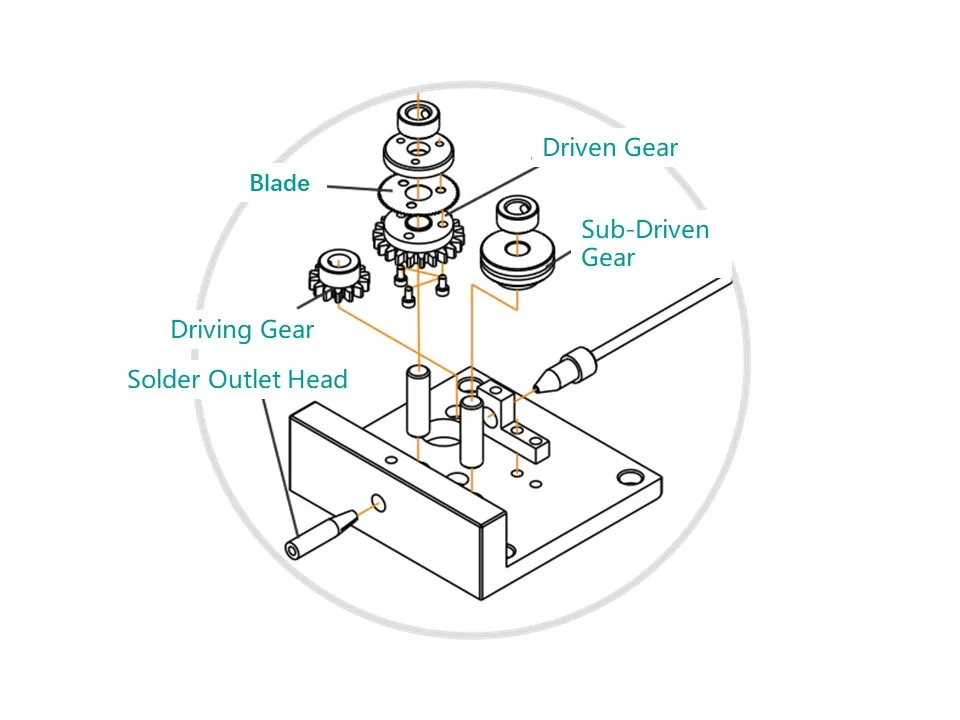

Solder Perforation | No | No | Yes | Yes |
Heating principle | High-frequency | High-frequency | High-frequency | High-frequency |
Temperature range | 50~600℃ | 50~600℃ | 50~600℃ | 50~600℃ |
Temperature stability | ±2℃ (Still air without load) | ±2℃ (Still air without load) | ±2℃ (Still air without load) | ±2℃ (Still air without load) |
Tip to ground potential | ＜2mV | ＜2mV | ＜2mV | ＜2mV |
Tip to ground resistance | ＜2Ω | ＜2Ω | ＜2Ω | ＜2Ω |
Motor | Step motor | Step motor | Step motor | Step motor |
Feeding speed | About 2.7mm/s~27mm/s (36º/s～360º/s) | About 2.7mm/s~27mm/s (36º/s～360º/s) | About 2.7mm/s~27mm/s (36º/s～360º/s) | About 2.7mm/s~27mm/s (36º/s～360º/s) |
Feeding length | 0~150mm | 0~150mm | 0~150mm | 0~150mm |
Interval time | 0~2.7s | 0~2.7s | 0~2.7s | 0~2.7s |
Backing time | 0~0.9s(About 0～25mm Fixed speed：360º/s) | 0~0.9s(About 0～25mm Fixed speed：360º/s) | 0~0.9s(About 0～25mm Fixed speed：360º/s) | 0~0.9s(About 0～25mm Fixed speed：360º/s) |
Feeding mode | Auto(1~9)/manual(0) | Auto(1~9)/manual(0) | Auto(1~9)/manual(0) | Auto(1~9)/manual(0) |
Solder wire diameter | 0.5、0.6、0.8、1.0、1.2、1.4(mm) | 0.5、0.6、0.8、1.0、1.2、1.4(mm) | 0.5、0.6、0.8、1.0、1.2、1.4(mm) | 0.5、0.6、0.8、1.0、1.2、1.4(mm) |
Handle | 20H-90 | 902A | 20H-90 | 902A |
Heating element | H1203 | H1205 | H1203 | H1205 |
Soldering tip | 200 series | 500 series | 200 series | 500 series |
Weight | About 4.2kg | About 4.4kg | About 4.4kg | About 4.6kg |

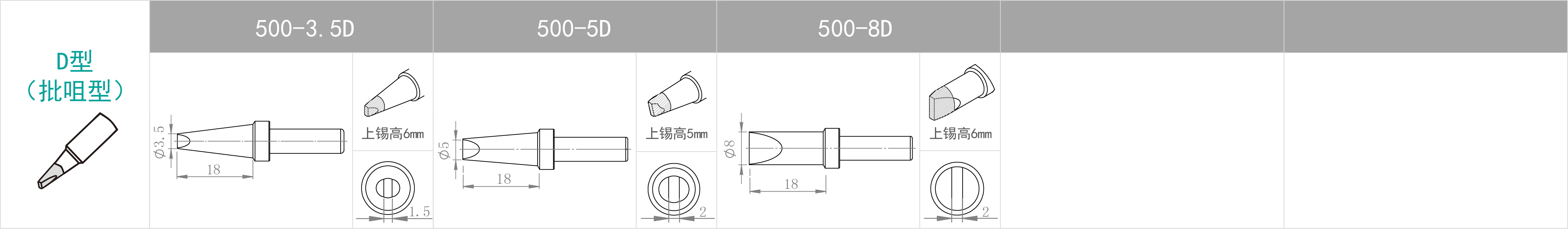

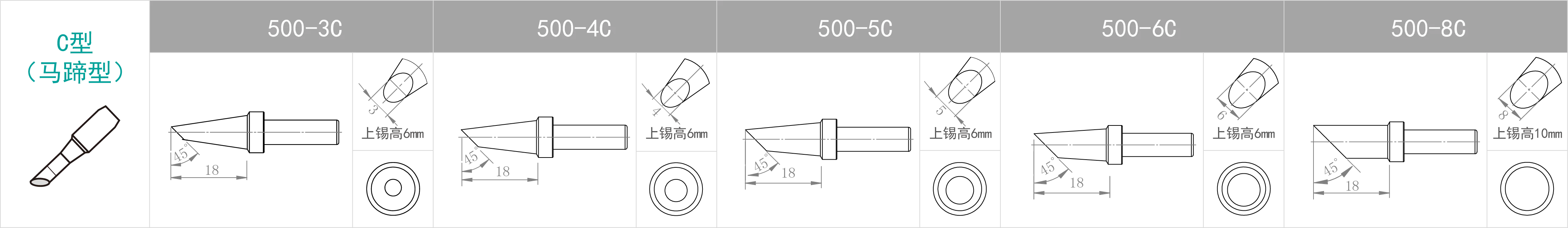

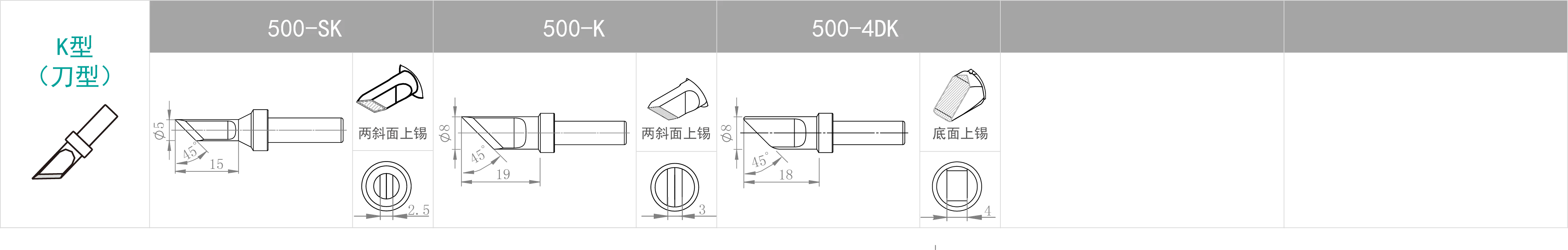

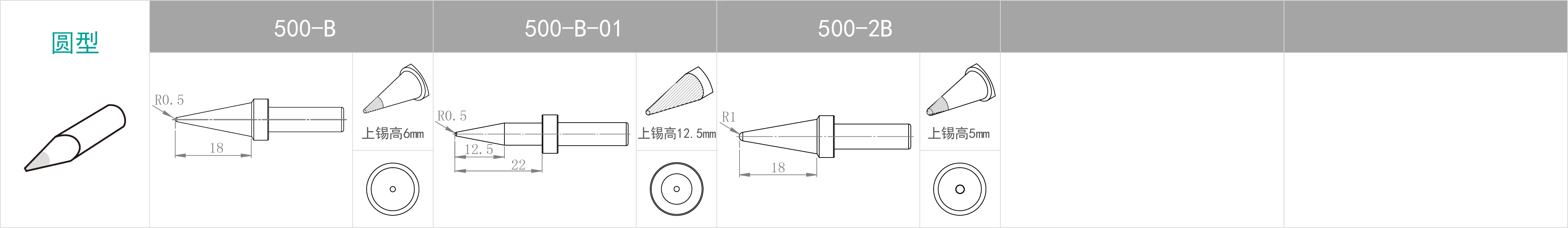

Replaceable Tips
Standard soldering tips are as follows, they can be customized for different applications.
Standard soldering tips are as follows, they can be customized for different applications.

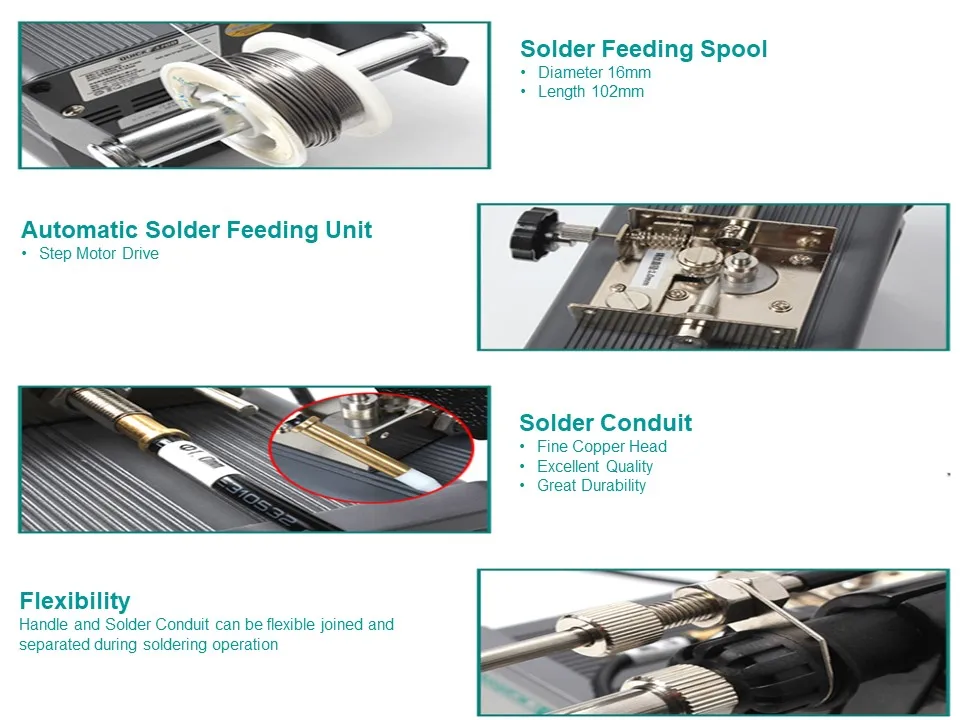

Detail Introduction
