High quality water ring waste plastic granules making machine
- Category: Plastic Granulators >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600224257713):
Product Overview
Description
Products Description
PE/PP Film Woven Bags Die-Face Cutting Pelletizing Line
The PE/PP Film Woven Bags Die-Face Cutting Pelletizing Line has two kinds of types. One is the RDS Series Single Stage Compacting
Die-Face Cutting Pelletizing Line which is used for PE Film, PE bags and PLA Film. If your material is more clean (not dirty), you can use this type. Other is the RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE Bags and PLA Film. Compared with single stage, double stage works more stable, produces more clean and more density granules.
Die-Face Cutting Pelletizing Line which is used for PE Film, PE bags and PLA Film. If your material is more clean (not dirty), you can use this type. Other is the RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line which is used for PE Film, PE Bags and PLA Film. Compared with single stage, double stage works more stable, produces more clean and more density granules.
We can design the layout according to customers' workshop.
Single/double stage pelletizing line for film | ||
die -face cutting pelletizing line | ||
pe pp bags granulation line | ||
plastic film pelletizing machine | ||
water ring type granulation machine | ||
compacting pe pp pelletizier machine | ||
Product Paramenters
RSS Series single/Double Stage Compacting Die-Face Cutting Pelletizing Line
Model | Screw Diameter | Screw L/D | Second Screw L/D | Main Motor Power | Capacity |
RSS-SJ85 | 85mm | 28-33:1 | 10-12:1 | 55KW | 150-200kg/hr |
RSS-SJ100 | 100mm | 28-33:1 | 10-12:1 | 75KW | 200-300kg/hr |
RSS-SJ130 | 130mm | 28-33:1 | 10-12:1 | 90KW | 300-400kg/hr |
RSS-SJ150 | 150mm | 28-33:1 | 10-12:1 | 110KW | 400-500kg/hr |
RSS-SJ160 | 160mm | 28-33:1 | 10-12:1 | 132KW | 500-600kg/hr |
RSS-SJ180 | 180mm | 28-33:1 | 10-12:1 | 160KW | 600-800kg/hr |
RSS-SJ200 | 200mm | 28-33:1 | 10-12:1 | 200KW | 800-1000kg/hr |
Features At-A-Glance
Compacting Force Feeder
The Blade of Compacting Force Feeder
Single Screw Extruder
Made by sturdy frame, heavy.
No vibrating when machine running.
Vacuum degassing System
Suction out moisture and gas from the material by strong vacuum system
Die Head: Made by 40Cr material
Hydraulic Change Screen: Made by 38CrMnAl
Horizontal Die Face Cutting
Vertical Die Face Cutting
Vertical Dewatering Machine
Vibration Screen
Raw Material: Film/Bags

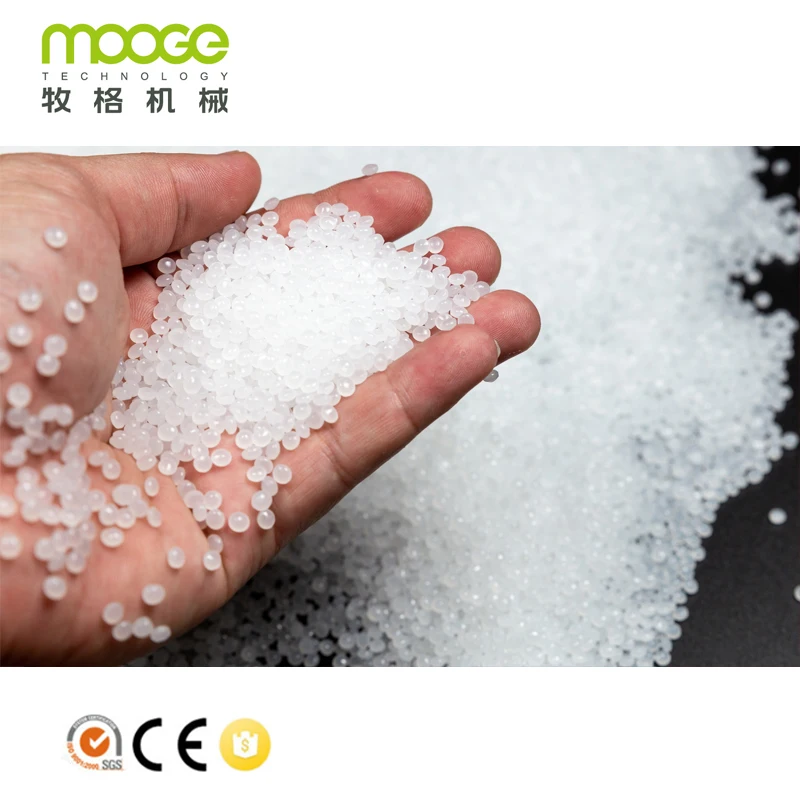

Final Material: PE Pellets (3mm)
Outside of the Electric Control Panel
Inside of the Electric Control Panel
Customer Photos
RSS-SSJ85 in UAE
RSS-SJ100 in UK
RSS-SJ150 in Netherlands
